Southbend (Middleby)  |  S-Series  |  SKU: S60CC-4GR

Southbend (Middleby) S60CC-4GR S-Series Gas Ranges

$10,052.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend S-Series 60" Gas Restaurant Range – 2 Burners & 48" Right-Side Griddle

Model S60CC-4GR | 136,000 BTU | Manual Controls

Built for busy kitchens that need serious griddle space without giving up the versatility of open flames, this Southbend S-Series range combines two powerful 28,000 BTU open burners with a full 48" manual-control griddle and spacious dual storage cabinets. Heavy-gauge stainless steel construction, lifetime-warranted cast-iron components, and industry-leading certifications make it a workhorse you can count on shift after shift.

Standard Features

  • (2) 28,000 BTU NAT one-piece cast-iron non-clog open burners with lifetime warranty

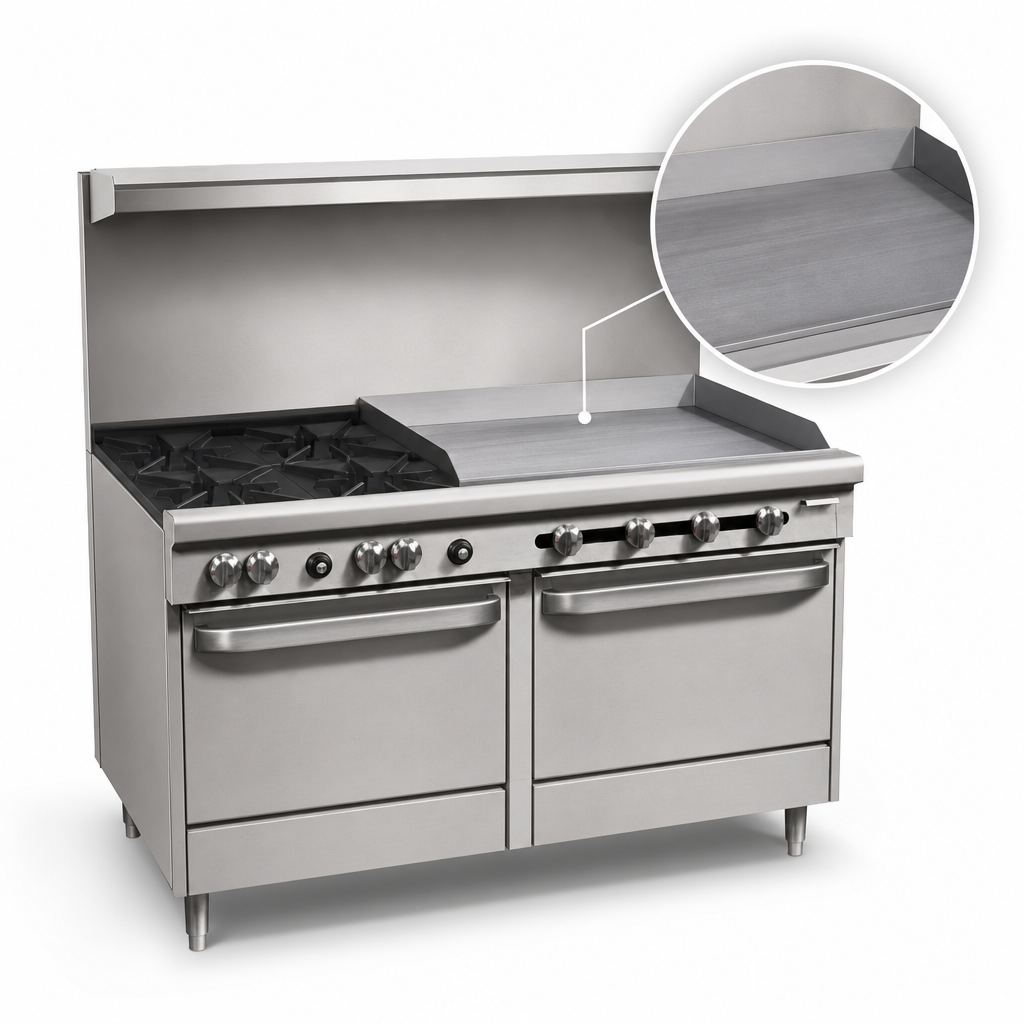

  • 48" smooth, polished 1"-thick steel griddle (right) heated by five 16,000 BTU burners
  • Manual griddle valves for instant heat control from searing to low-temp hold
  • Dual aluminized storage cabinets keep sheet pans, pots and dry goods close at hand
  • Removable cast-iron grate tops accept stock pots up to 14"
  • (2) full-length crumb drawers & removable shelf simplify cleanup
  • 4" stainless front rail with welded end caps protects controls & keeps plates within reach
  • Hinged lower valve panel for fast servicing
  • 6" stainless steel adjustable legs (casters optional)
  • Factory-installed 3/4" regulator; rear 3/4" NPT gas connection
  • cCSAus, CSA Flame, CSA Star & NSF listed for commercial use

Why This Range Rocks

  • Maximize griddle real estate – 80% of the cooktop is a 48" steel slab ideal for breakfast rushes, burgers or sauté lines.
  • Open-top agility – Two high-output burners give you instant flame for sauces, stock reduction or a quick sauté without firing up a second unit.
  • All-day durability – Heavy stainless exterior, rock-wool insulation and metal control knobs are engineered for the rigors of high-volume service.
  • Easy to clean – Polished plate, lift-off grates and removable drawers mean less downtime and better food safety.
  • Future-ready – 3/4" quick-disconnect, casters, flue risers and salamander mounts are available whenever you’re ready to upgrade.

Technical Specifications

Overall width 60 3/4" (1543 mm)
Overall depth 34 – 41 3/4" (864-1060 mm) to front rail
Cooktop configuration (2) open burners + 48" right-hand griddle
Total BTU input 136,000 BTU/hr  (Natural gas)
Open burners 28,000 BTU each (x2)
Griddle burners 16,000 BTU each (x5)
Griddle plate 1" thick polished steel with 3-sided splash
Base (2) cabinet compartments – center-opening doors available at no charge
Gas connection 3/4" NPT (rear); 7" W.C. Natural / 11" W.C. Propane
Clearances 0" sides/rear to non-combustible; 10" to combustible surfaces
Certifications cCSAus, CSA Flame, CSA Star, NSF
Warranty 1-year parts & labor (see details below)

Popular Options & Accessories

  • Swivel casters (front locking)
  • 10" stainless flue riser with heavy-duty shelf
  • 3/4" quick-disconnect hose kit (3, 4 or 5 ft)
  • Center-opening cabinet doors
  • Salamander or cheesemelter mounts
Southbend backs every S-Series range with a full 1-year parts & labor warranty when installed by an authorized service agency. See official warranty statement for complete terms, exclusions and water-quality requirements.
Commercial installation required. This appliance is intended for professional kitchens and must be installed under a properly sized vent hood in accordance with all local codes.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

S-Series

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

60.75in

Depth

34.0in

Shipping Weight

1075.0lbs

Exterior Finish

stainless steel front & sides

Top

(2) open burners, (1) 48" griddle

Plate Thickness

.500" = 1/2"

Vent

backriser with hi-shelf

Base

(2) cabinets

Control Type

manual controls

Specifications

S-Series Restaurant Range, gas, 60", (2) 28,000 BTU open burners, (1) 48" griddle right, manual controls, (2) cabinet bases, removable cast iron grates, (2) crumb drawers & shelf, hinged lower valve panel, stainless steel front, sides, shelf, 4" front rail & 6" adjustable legs, 136,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
