Southbend (Middleby) S60CC-3TR S-Series Gas Ranges
Description

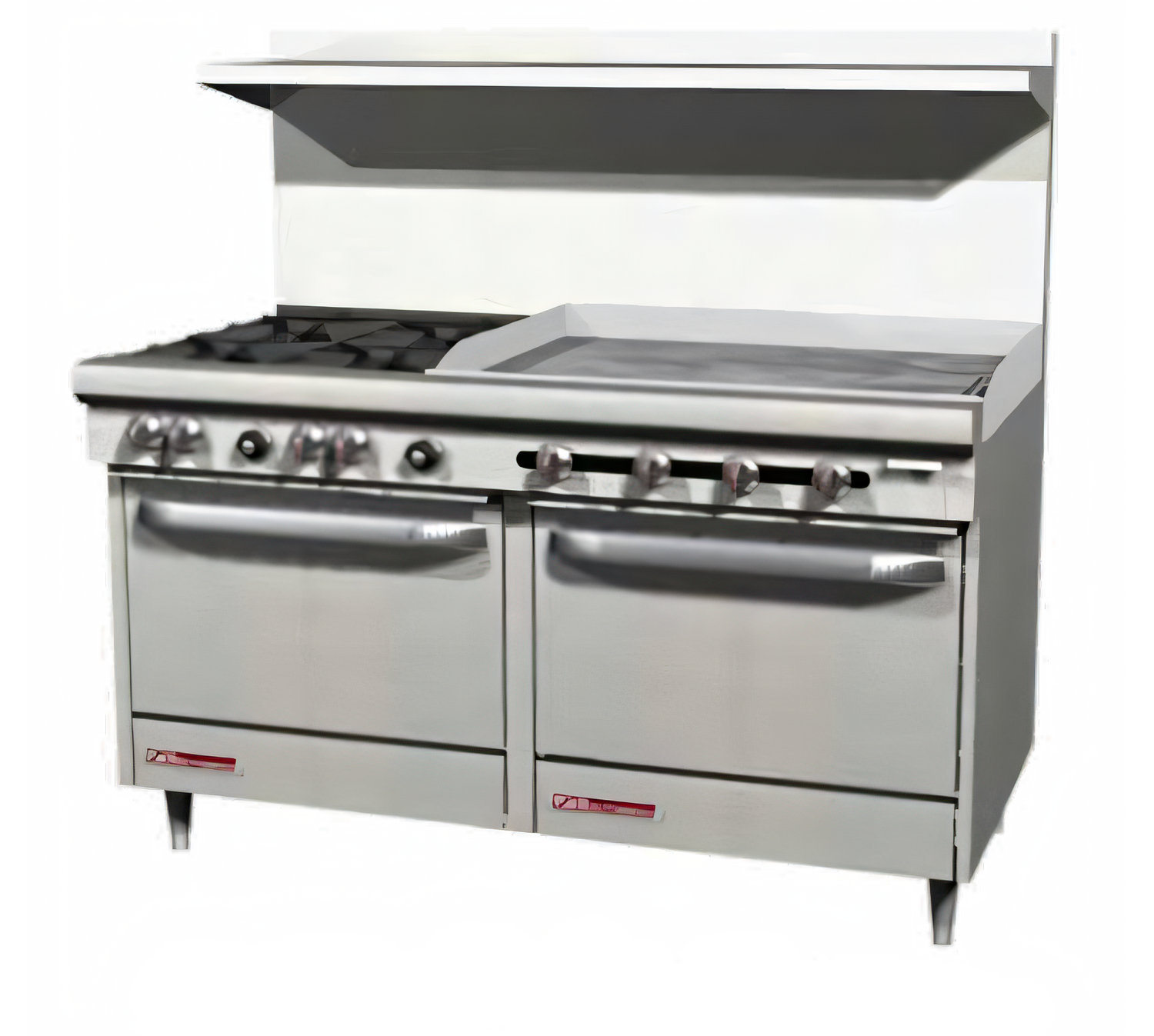

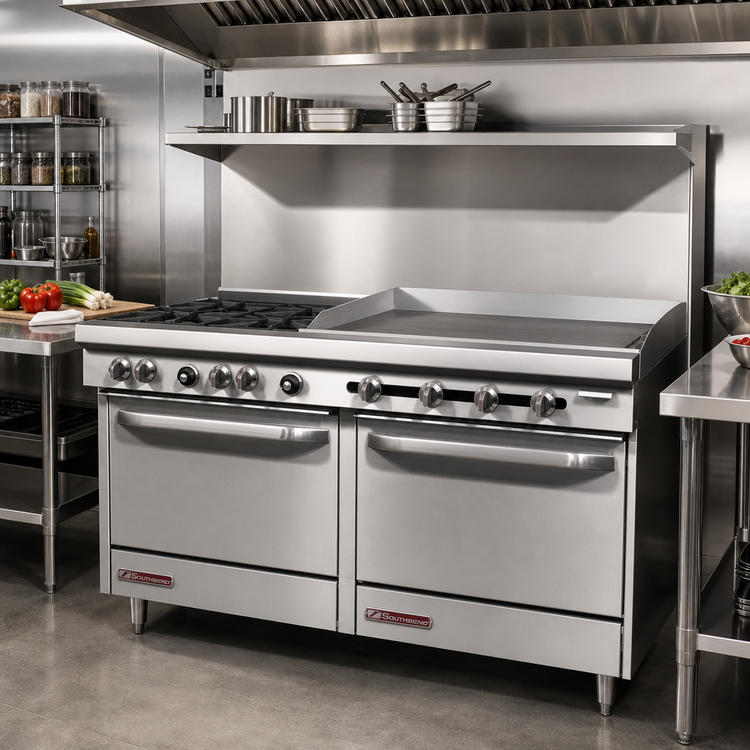

Southbend S-Series 60" Gas Restaurant Range
4 Open Burners • 36" Right-Side Thermostatic Griddle • Dual Cabinet Base – 176,000 BTUPut powerful sauté stations, an all-day griddle, and built-in storage in the same 60" footprint. The Southbend S-Series model S60CC-3G/T delivers 176,000 BTU of cooking muscle, rugged stainless-steel construction, and the rock-solid reliability food-service pros have trusted since 1898.
Why You’ll Love It
- 4 heavy-duty cast-iron burners – 28,000 BTU each with lifetime-warranty, non-clog design.

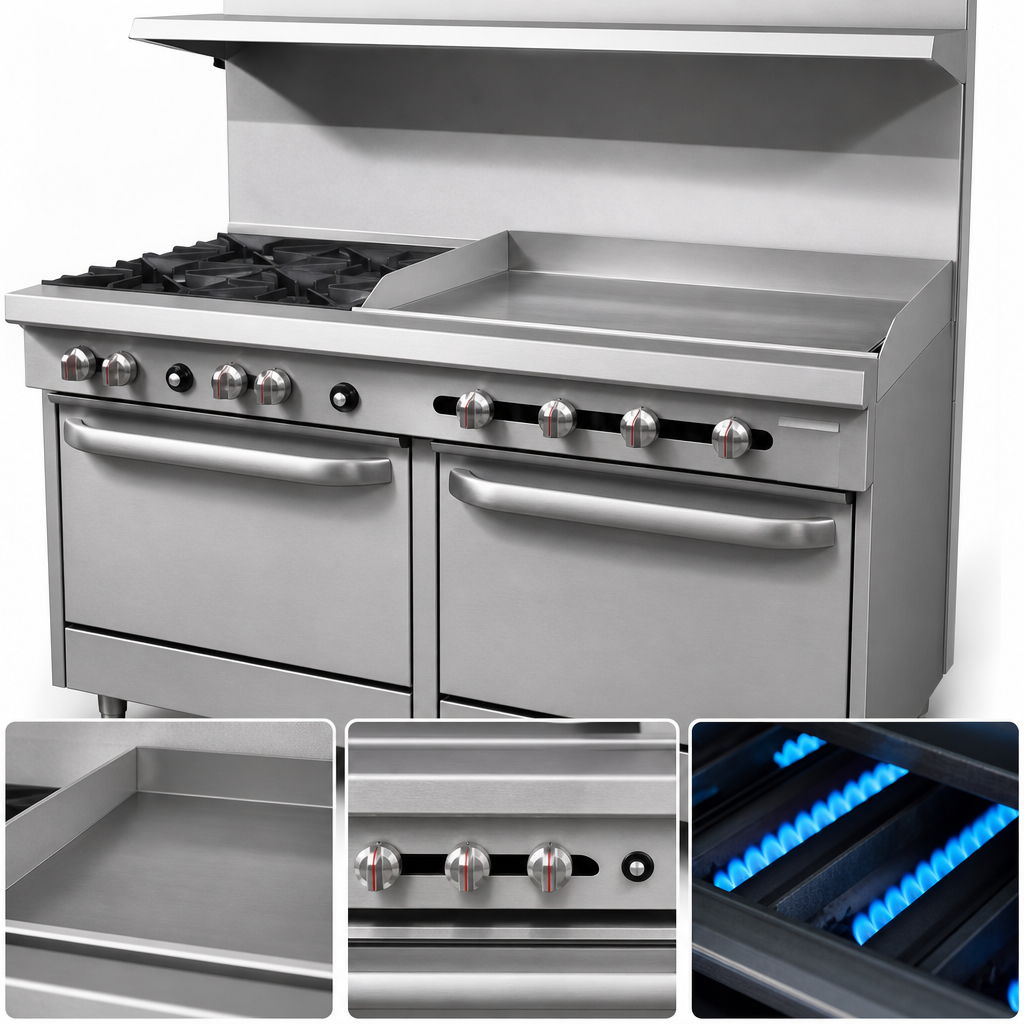

- 36" thermostatic griddle (right-side) – ½" smooth polished steel plate with raised sides; four 16,000 BTU burners let you dial in exact temperatures for every menu day-part.
- Dual full-width crumb drawers capture debris for quick end-of-shift clean up.
- Two cabinet bases – keep sheet pans, smallwares or dry goods right where you use them; optional swing doors available at no charge.
- Removable cast-iron grates – rear sections accept stock pots up to 14".
- Hinged lower valve panel – fast service access without moving the range.
- All stainless exterior – front, sides, high-shelf and 4" front rail stand up to daily punishment and wipe clean in seconds.
- 6" adjustable stainless legs – level the range on uneven floors and meet sanitation clearance codes.
- Certified cCSAus, CSA Flame, CSA Star & NSF for use in commercial kitchens.
Power & Performance
- Total input: 176,000 BTU/hr
- Natural gas standard; field-convertible to LP
- Factory-installed 3/4" pressure regulator
- Rear 3/4" NPT gas connection
Specifications
| Model | S60CC-3G/T |
|---|---|
| Overall width | 60 3/4" (1543 mm) |
| Overall depth (incl. front rail) | 41 3/4" (1060 mm) |
| Working height (cook surface) | 37" (940 mm) |
| Height to top of flue | 59 1/2" (1511 mm) |
| Open burners | 4 × 28,000 BTU (cast iron) |
| Griddle plate | 36" W × 1/2" thick polished steel, thermostatic |
| Griddle burners | 4 × 16,000 BTU |
| Base configuration | 2 × Aluminized storage cabinets (doors optional) |
| Crumb drawers | 2 (removable, one-piece) |
| Electrical | None required |
| Clearance to combustibles | 10" sides & rear (0" to non-combustible) |
| Net weight | Approx. 860 lb (390 kg) |
Popular Options (factory-installed)
- Stainless cabinet doors (no-charge)
- 10" flue riser with single shelf
- All-swivel locking casters
- 3 ft, 4 ft or 5 ft quick-disconnect gas hose w/ restraining device
- Over-shelf salamander or cheese-melter mounts
Warranty
1-Year parts & labor, plus lifetime warranty on non-clog cast-iron burners when installed and maintained per manufacturer guidelines.
