Southbend (Middleby)  |  S-Series  |  SKU: S60CC-3GR

Southbend (Middleby) S60CC-3GR S-Series Gas Ranges

$9,815.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

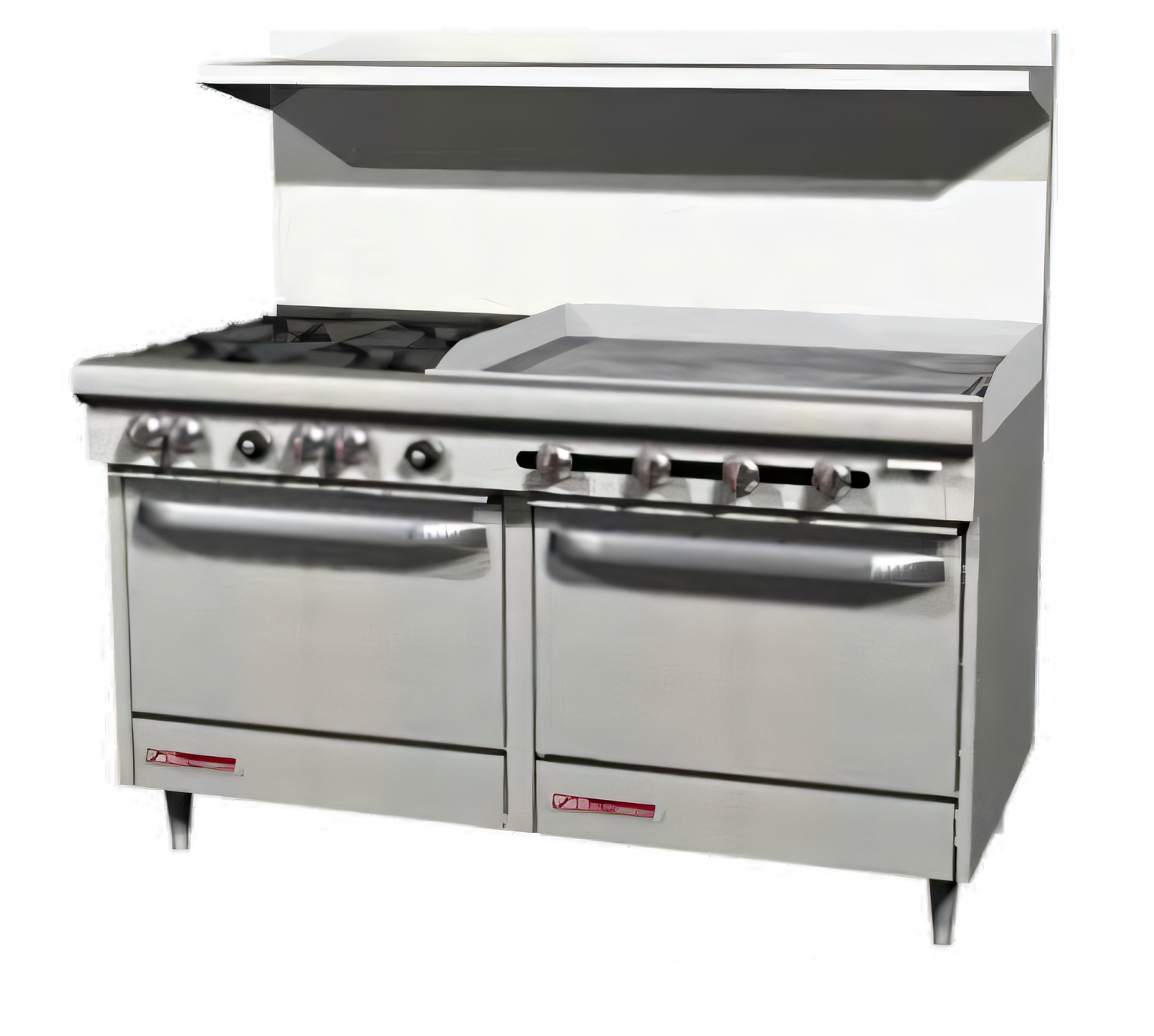

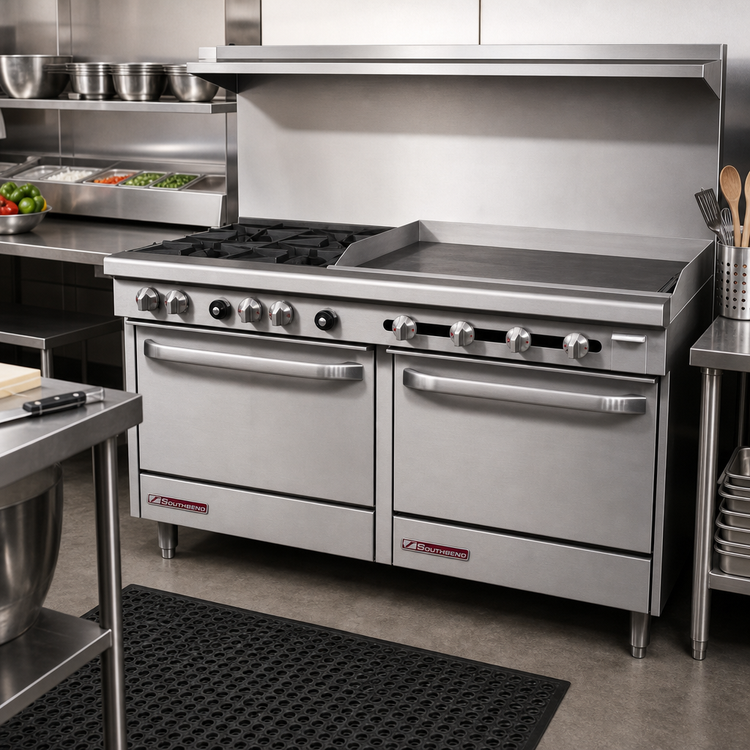

Southbend S-Series 60" Gas Restaurant Range – 4 Burners & 36" Right-Side Griddle

Model S60CC-3G/T  |  176,000 BTU Total Output

Replace an entire cook line with one rugged workhorse. The Southbend S-Series 60" range pairs four high-performance open burners with a spacious 36" manual griddle and two storage cabinets, delivering maximum versatility in a minimal footprint.

Performance & construction highlights

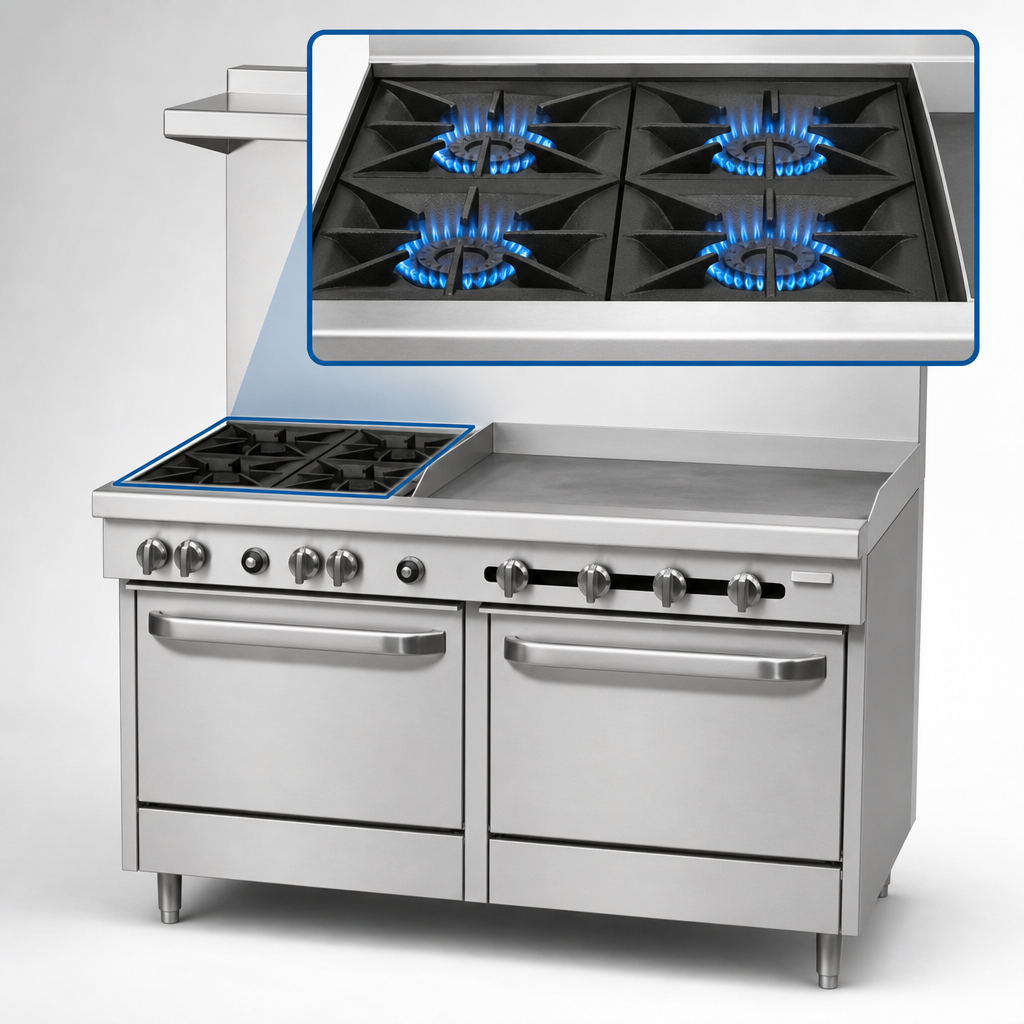

  • 4 open burners, 28,000 BTU each, one-piece cast-iron heads with a lifetime warranty.

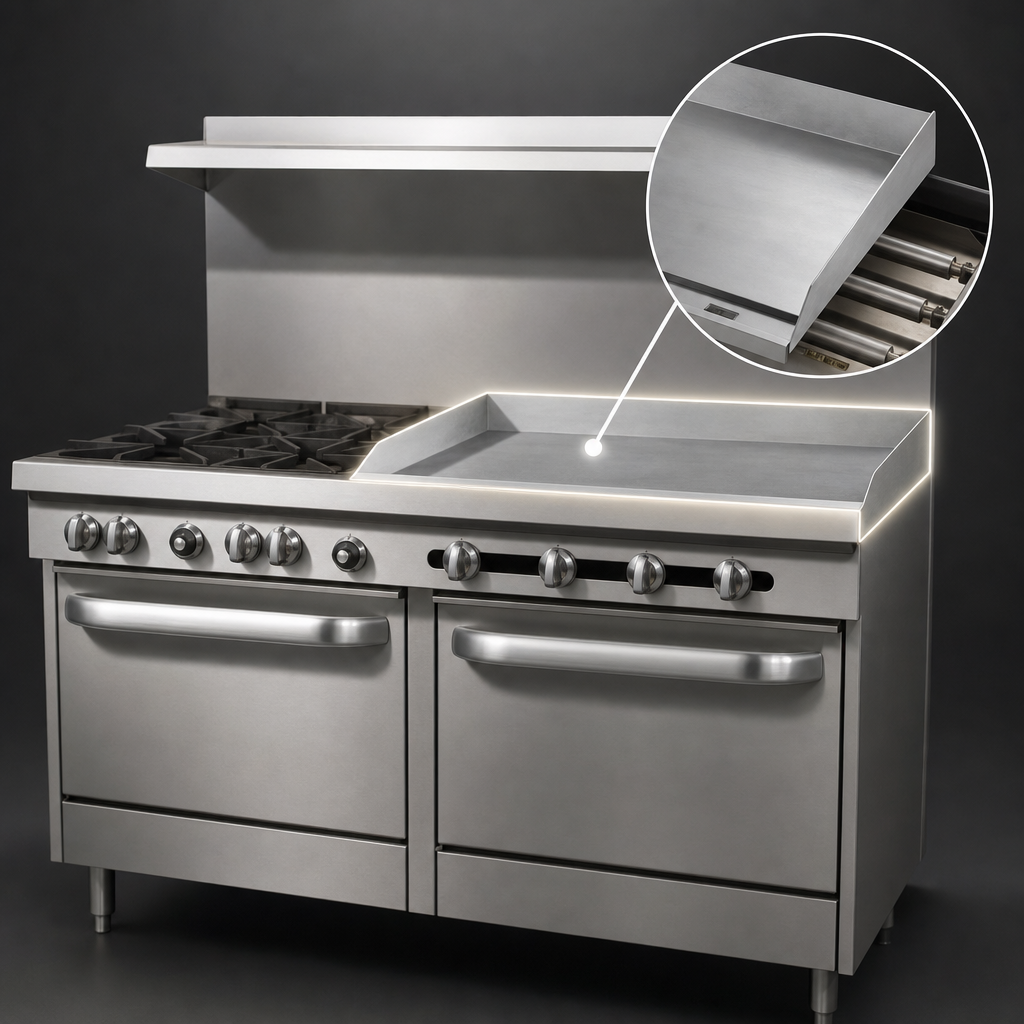

  • 36" smooth, ½" thick polished-steel griddle (right-hand) heated by four 16,000 BTU burners—ideal for breakfast, burgers and sauté work.
  • Independent manual gas valves for every burner & griddle zone for true low-to-high control.
  • Dual full-width cabinet bases keep sheet pans, stock pots and utensils right where you need them (optional doors available at no charge).
  • Removable cast-iron grates handle cookware up to 14" in diameter; two one-piece crumb drawers speed up end-of-shift clean-ups.
  • Stainless steel front, sides, 4" front rail and 22½" flue-riser shelf stand up to daily abuse and simplify wipe-downs.
  • Hinged lower valve panel, metal control knobs with red safety stripes and factory-installed regulator for effortless serviceability.
  • 6" adjustable stainless legs for perfect leveling on any commercial floor.
  • Certified cCSAus, CSA Flame, CSA Star and NSF for gas safety & sanitation.
Technical specifications
Total BTU 176,000 BTU/hr (Natural or Propane)
Open burners 4 × 28,000 BTU (cast iron, non-clog)
Griddle 36" W × 24" D, ½" thick polished steel, manual control (right-side)
Base 2 ventilated cabinet compartments (no ovens)
Overall width 60 ¾" / 1543 mm
Overall depth ≈34" / 864 mm (to front rail)
Overall height 59 ½" to top of 22 ½" flue riser shelf
Gas connection ¾" NPT male, rear (opposite griddle side)
Inlet pressure Natural 7" W.C.  |  Propane 11" W.C.
Crated weight ≈860 lb / 390 kg
Certifications cCSAus, CSA Flame, CSA Star, NSF
What’s included
  • 22½" stainless flue riser with single sturdy equipment shelf
  • Factory-installed pressure regulator
  • Set of four 6" adjustable stainless legs
  • One-year limited parts & labor warranty (service by Southbend Authorized Agencies)
Installation note: Maintain a minimum 10" clearance to combustible walls and mount under a properly vented hood. If using casters, secure the unit with a suitable restraining device.

Looking for other burner/griddle/oven combinations? The S-Series offers dozens of configurations—contact us for details and fast quotes.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

S-Series

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

60.75in

Depth

34.0in

Shipping Weight

1075.0lbs

Vent

backriser with hi-shelf

Top

(4) open burners, (1) 36" griddle

Control Type

manual controls

Exterior Finish

stainless steel front & sides

Base

(2) cabinets

Plate Thickness

.500" = 1/2"

Specifications

S-Series Restaurant Range, gas, 60", (4) 28,000 BTU open burners, (1) 36" griddle right, manual controls, (2) cabinet bases, removable cast iron grates, (2) crumb drawers & shelf, hinged lower valve panel, stainless steel front, sides, shelf, 4" front rail & 6" adjustable legs, 176,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
