Southbend (Middleby) S60CC-2GR S-Series Gas Ranges
Description

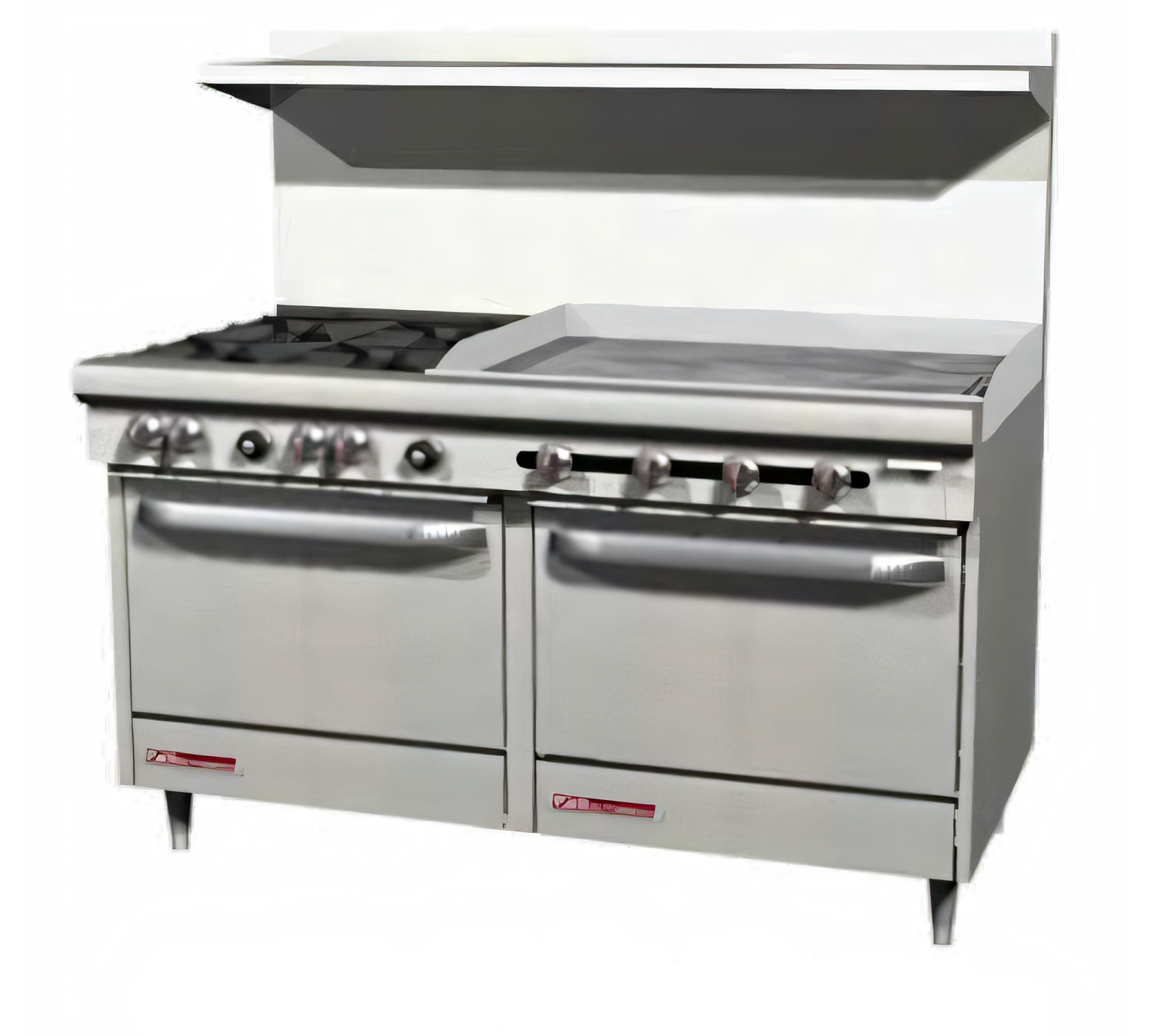

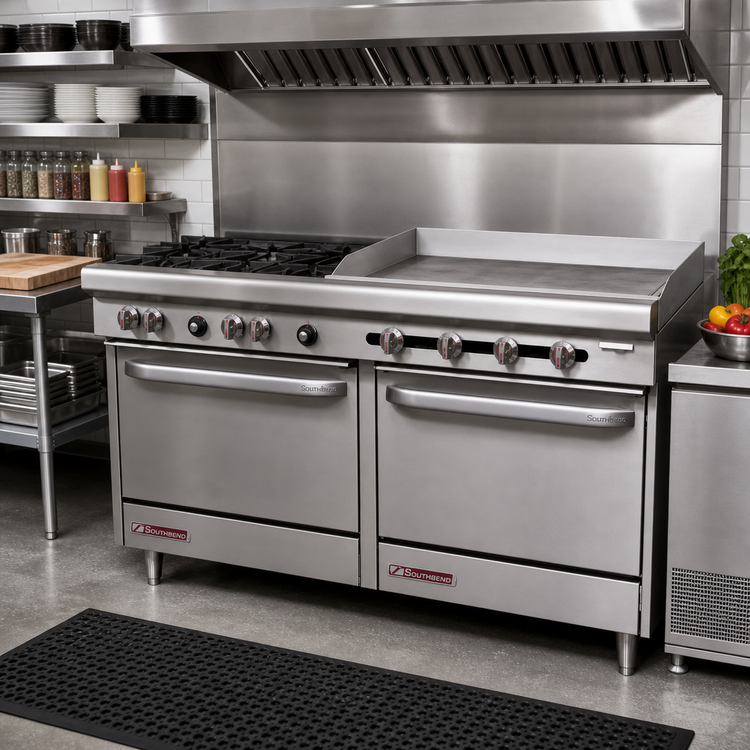

Southbend S-Series 60" Gas Restaurant Range

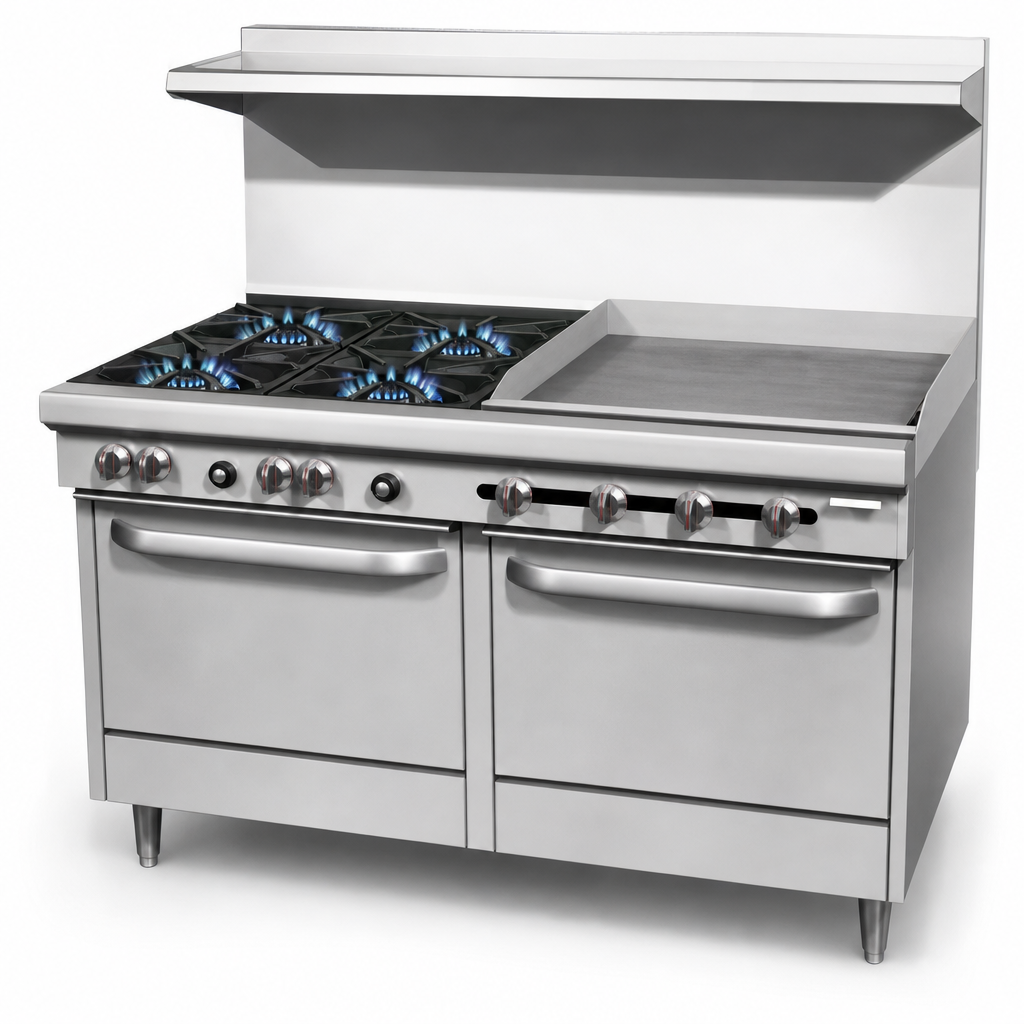

Model S60CC-2G – 6 Open Burners | 24" Right-Side Griddle | Double Cabinet BaseBuilt for busy commercial kitchens that refuse to compromise on power or durability, the Southbend S-Series S60CC-2G combines six 28,000 BTU open burners with a smooth 24" manual-control griddle and two roomy cabinet bases—giving chefs the flexibility to sauté, sear, pan-fry and hold sheet pans all on one rugged platform.
Why You’ll Love It
- Heavy-duty cast-iron burners with a lifetime warranty deliver instant, even heat.

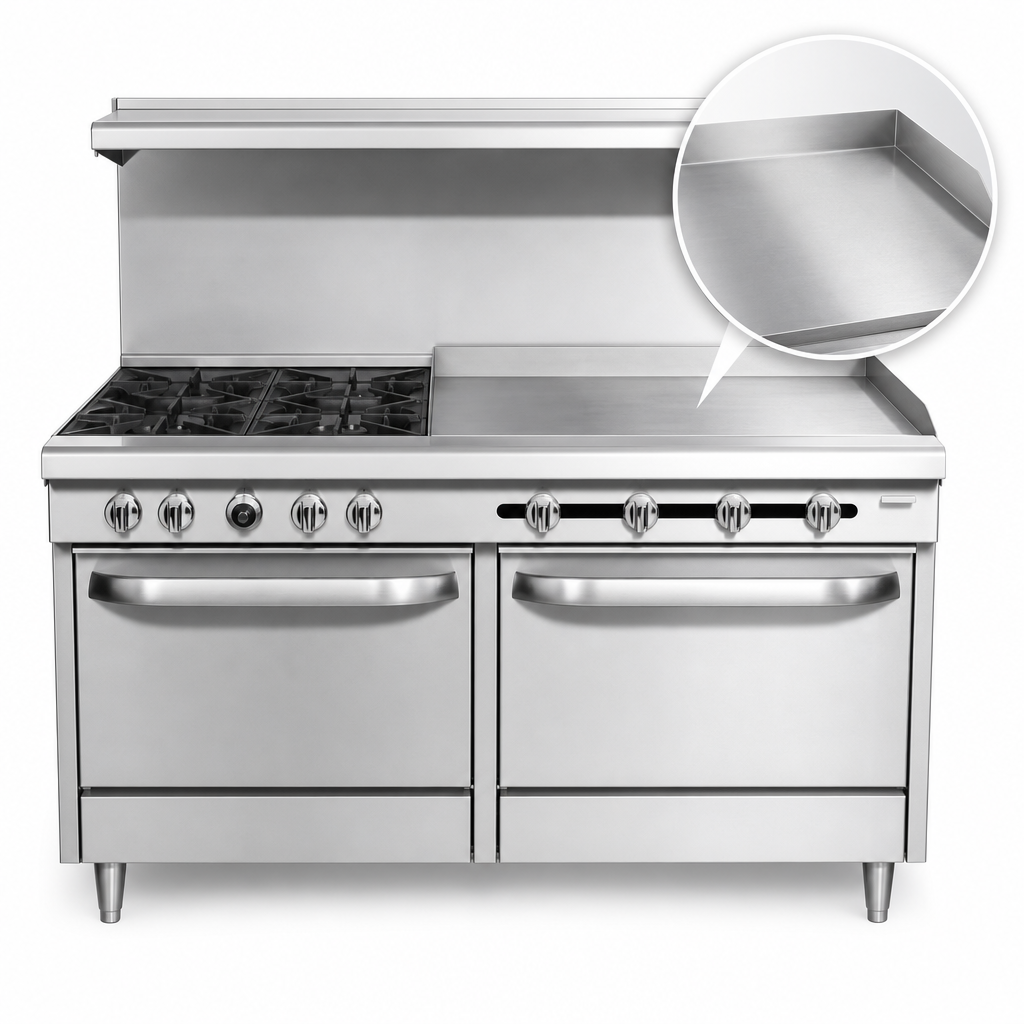

- 1/2" polished steel griddle (right-side) handles breakfast favorites and high-volume sandwich production with ease.
- Two full-width, removable crumb drawers keep the cooktop clean and speed up nightly breakdown.
- Stainless steel front, sides, shelf and 4" front rail stand up to daily punishment and wipe down fast.
- Double cabinet base (aluminized steel) stores sheet pans, stock pots and smallwares right where you need them; optional doors available at no charge.
- Hinged lower valve panel grants instant access for service and calibration.
- (6) adjustable 6" stainless legs meet health-code clearance requirements.
- Certified cCSAus, CSA Flame, CSA Star & NSF for gas safety and sanitation compliance.
Technical Specifications
| Overall Width | 60 3⁄4" (1543 mm) |
|---|---|
| Overall Depth | 34" (864 mm) to front rail |
| Working Height | 36 1⁄2" (927 mm) with legs |
| Overall Height (top of flue) | 59 1⁄2" (1511 mm) |
| Open Burners | (6) 28,000 BTU cast-iron, non-clog |
| Griddle Plate | 24" W × 24" D, 1/2" polished steel, right-side, manual valves |
| Griddle Burners | (3) 16,000 BTU aluminized steel U-shaped |
| Total Input | 216,000 BTU/hr (Natural or LP) |
| Gas Connection | 3⁄4" NPT male, rear Min. inlet 7" W.C. Nat / 11" W.C. LP |
| Base Configuration | (2) open cabinets, center-opening doors optional |
| Controls | Manual infinite valves & individual standing pilots |
| Construction | Stainless front, sides, shelf & rail; aluminized cabinet interior |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1 year parts & labor; lifetime on open-top burners |
Popular Factory Options
- All-swivel locking casters
- 10" flue riser with single stainless shelf
- 3⁄4" quick-disconnect hose & restraining device (3 ft, 4 ft or 5 ft)
- Center-opening cabinet doors (no-charge)
- High-mount salamander or cheesemelter brackets
Southbend equipment is intended for commercial use only and must be installed under a properly sized ventilation hood. See full warranty & installation manual for details.
