Southbend (Middleby) S60AD-4TR S-Series Gas Ranges
Description

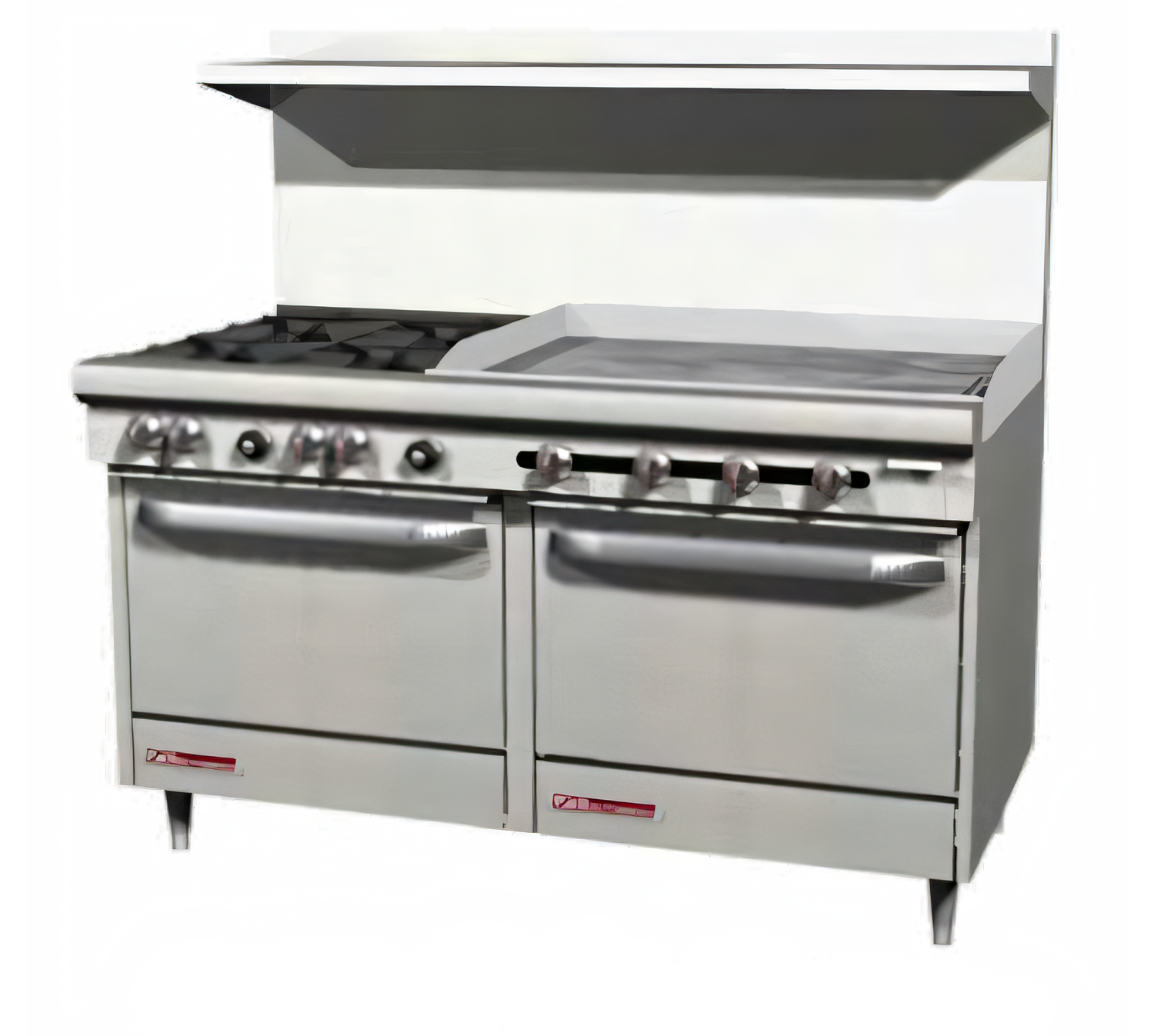

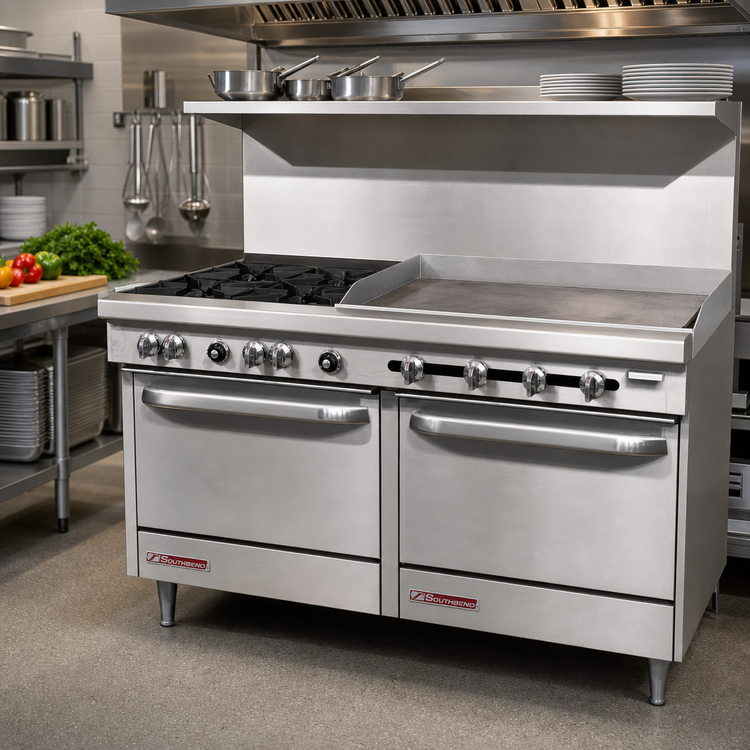

Southbend S-Series 60" Gas Range w/ 48" Thermostatic Griddle, 2 Open Burners & Dual Ovens
Model S60AD-4G/T – right-side griddleBuilt for busy kitchens that demand versatility in a single footprint, this 60 inch Southbend S-Series combines a high-output griddle, two lifetime-warranty open burners, a full-size convection oven, and a space-saving standard oven. Heavy-duty stainless construction, snap-action thermostats, and removable components make it the dependable workhorse your line has been looking for.
Why you’ll love it

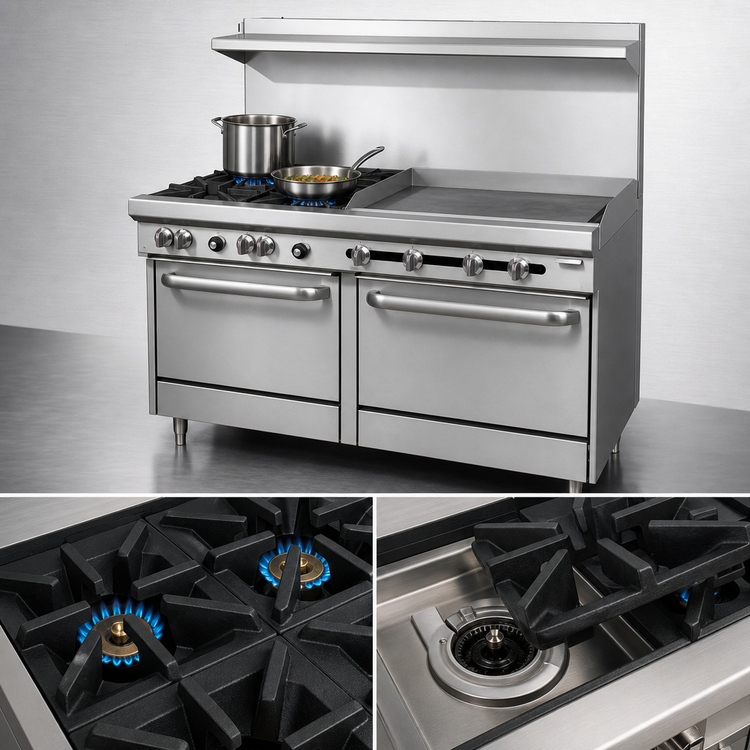

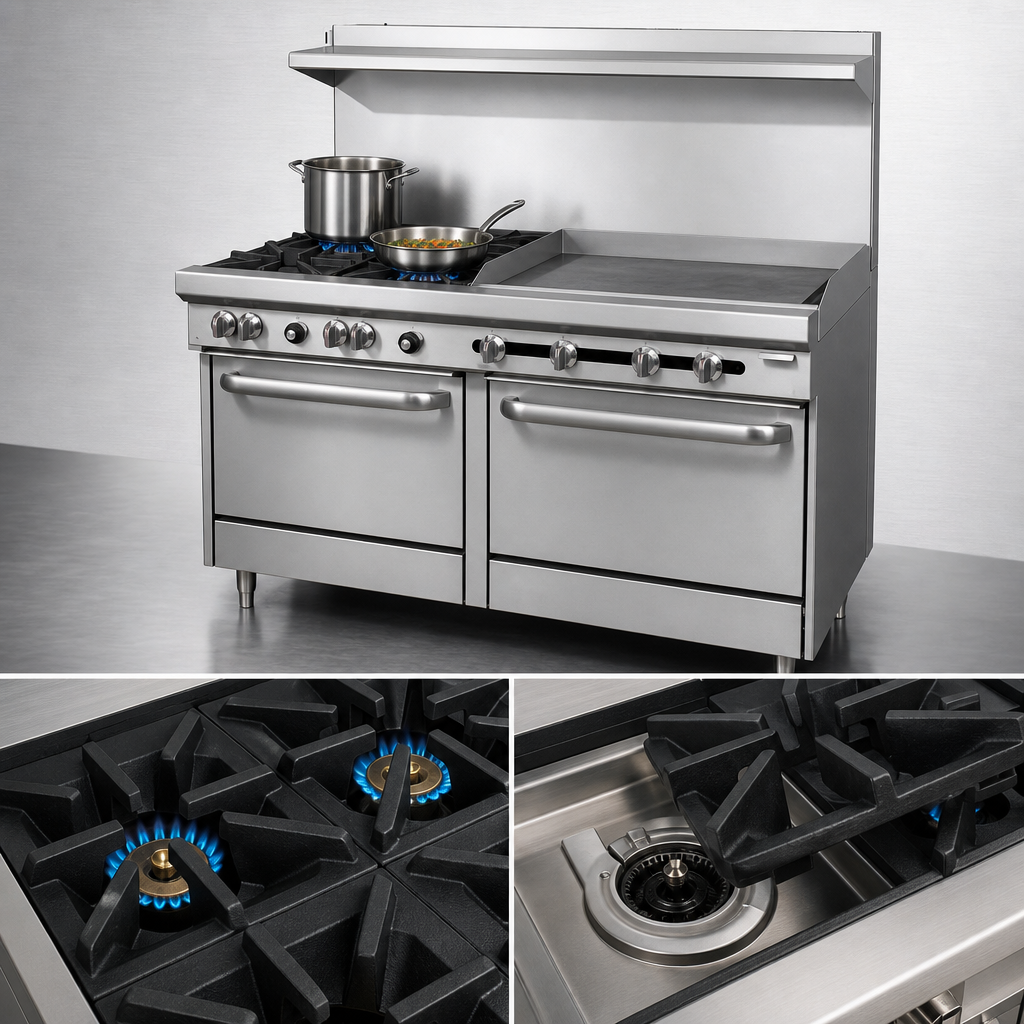

- Two 28,000 BTU non-clog open burners with removable cast-iron grates.
- 48" griddle (right-hand) – 1" polished steel plate with 5 x 16,000 BTU burners and precise thermostatic controls every 12".
- Dual ovens:
- 35,000 BTU convection oven, 5-position rack guides, 2 racks included.
- 35,000 BTU standard oven, 2-position guides, 1 rack included.
- Three total racks ship with the range – swap freely between ovens.
- Two full-width crumb drawers keep your base clean and slide out for quick dumping.
- 4" front rail, hinged lower valve panel, and 6" adjustable stainless legs simplify daily use and service.
- Factory-installed 3/4" pressure regulator; natural or LP gas field convertible.
- cCSAus, CSA Flame, CSA Star & NSF listed for peace of mind and easy inspection sign-off.
At-a-glance specs

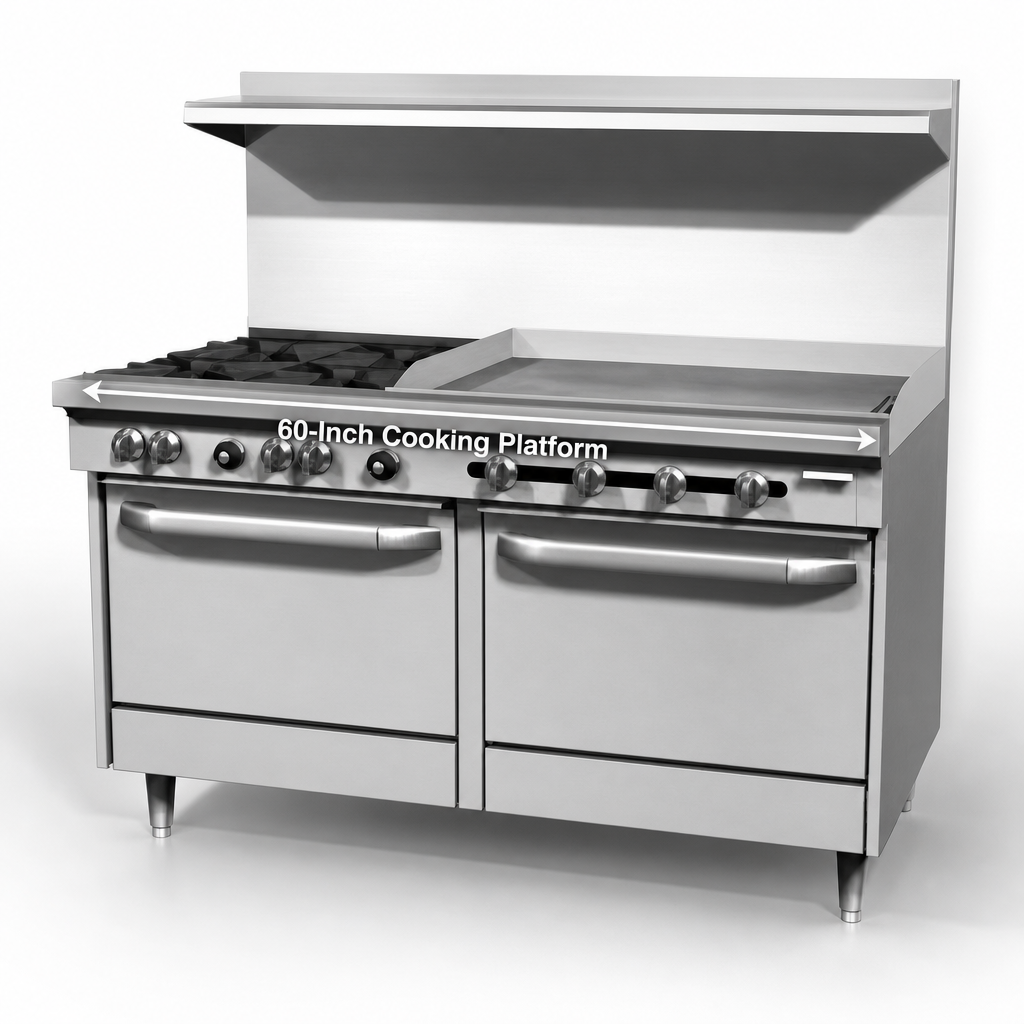

| Overall width | 60.75" / 1543 mm |
|---|---|
| Depth (incl. rail) | 41.75" / 1060 mm |
| Height (to flue top) | 59.50" / 1511 mm |
| Total output | 206,000 BTU/hr (Natural Gas) |
| Open burners | 2 × 28,000 BTU cast-iron |
| Griddle plate | 48" W × 24" D, 1" thick steel, 5 × 16,000 BTU |
| Standard oven cavity | 26" W × 26.5" D × 14" H – snap-action 175-550 °F |
| Convection oven cavity | 26" W × 24" D × 14" H – snap-action 175-550 °F, ½ hp fan |
| Gas inlet | 3/4" NPT (rear, opposite griddle side) – 7" W.C. NG / 11" W.C. LP |
| Electrical (convection fan) | 115 V / 60 Hz / 1-ph, 5.9 A, NEMA 5-15P cord & plug |
| Shipping weight | Approx. 860 lb / 390 kg |
| Warranty | 1 year parts & labor (factory authorized service required) |
Popular add-ons (sold separately)
- All-swivel locking casters
- Restraining device & 3/4" gas quick-disconnect hose (3–5 ft)
- 10" flue riser or salamander / cheesemelter mounts
- Extra oven racks or cabinet doors
For non-quarry-tile flooring or additional installation guidance, please consult the factory.
