Southbend (Middleby) S60AD-3TR S-Series Gas Ranges
Description

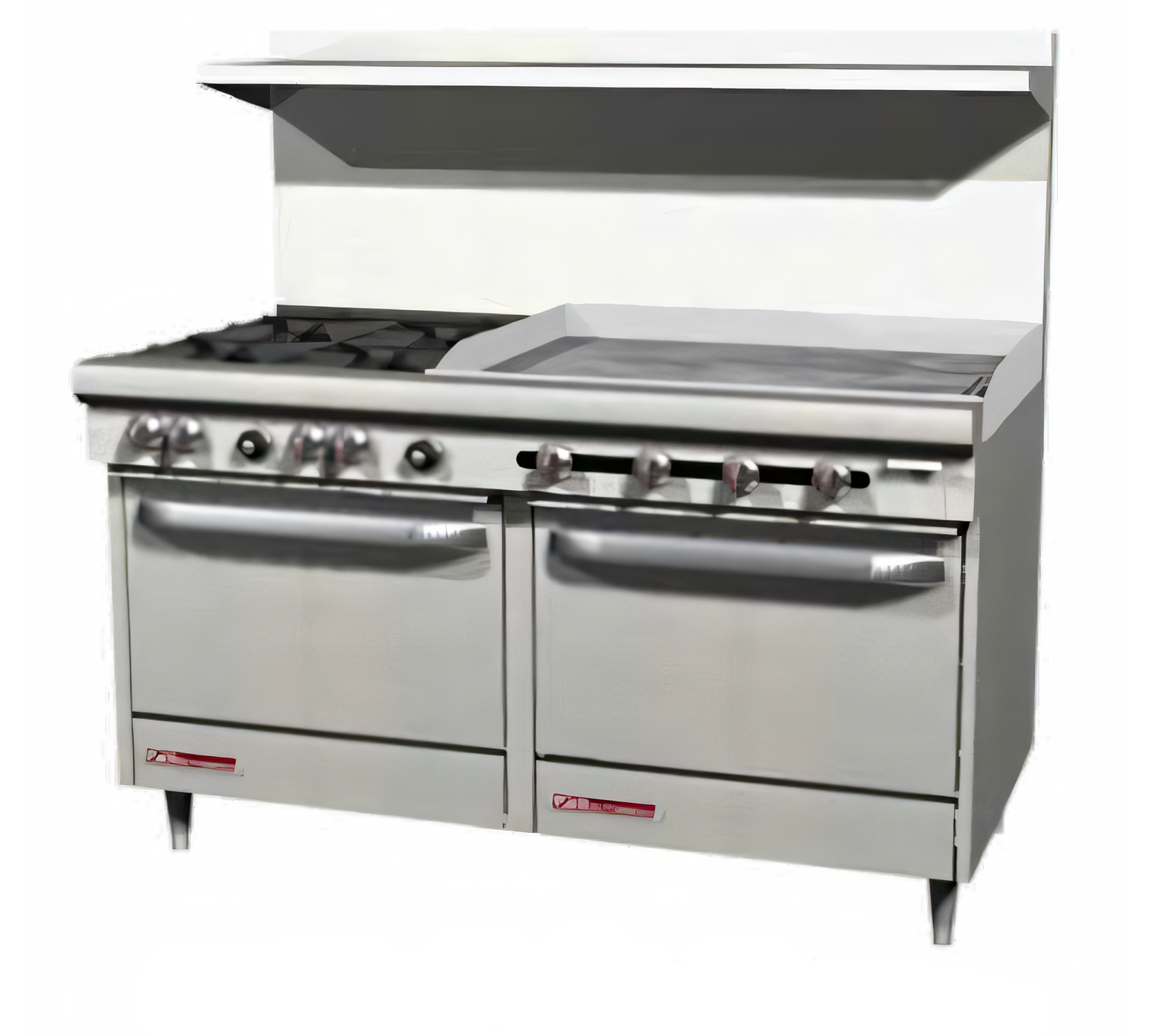

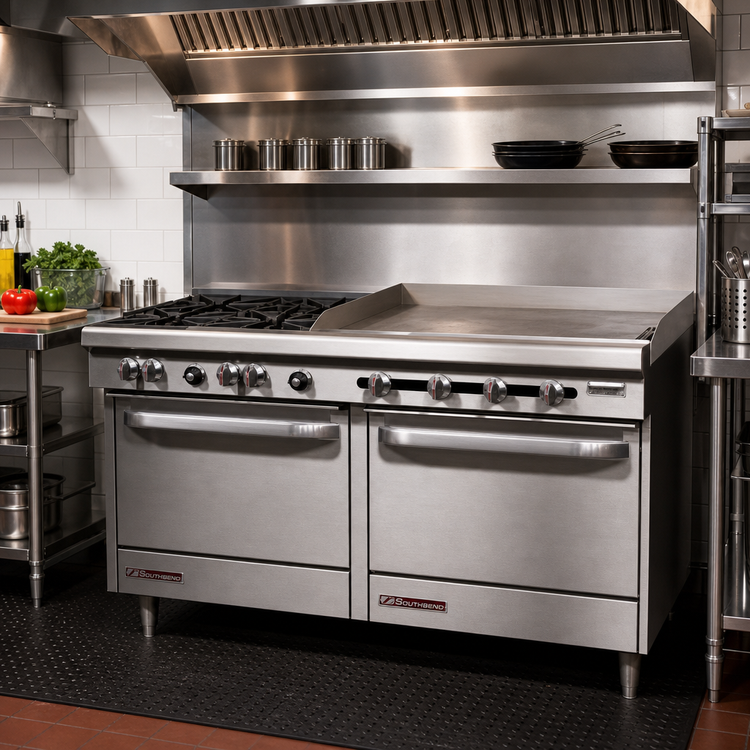

Southbend S-Series 60" Gas Restaurant Range
Model S60AD-3GR/T – 4 Burners • 36" Thermostatic Griddle (Right) • Convection & Standard OvensCombine high-volume productivity with the rock-solid durability chefs expect from Southbend. The S-Series S60AD-3GR/T delivers 246,000 BTU of total cooking power in a 60-inch footprint—perfect for kitchens that need open-top flexibility, a large griddle work-station, and the baking consistency of both convection and standard ovens.
Key Highlights

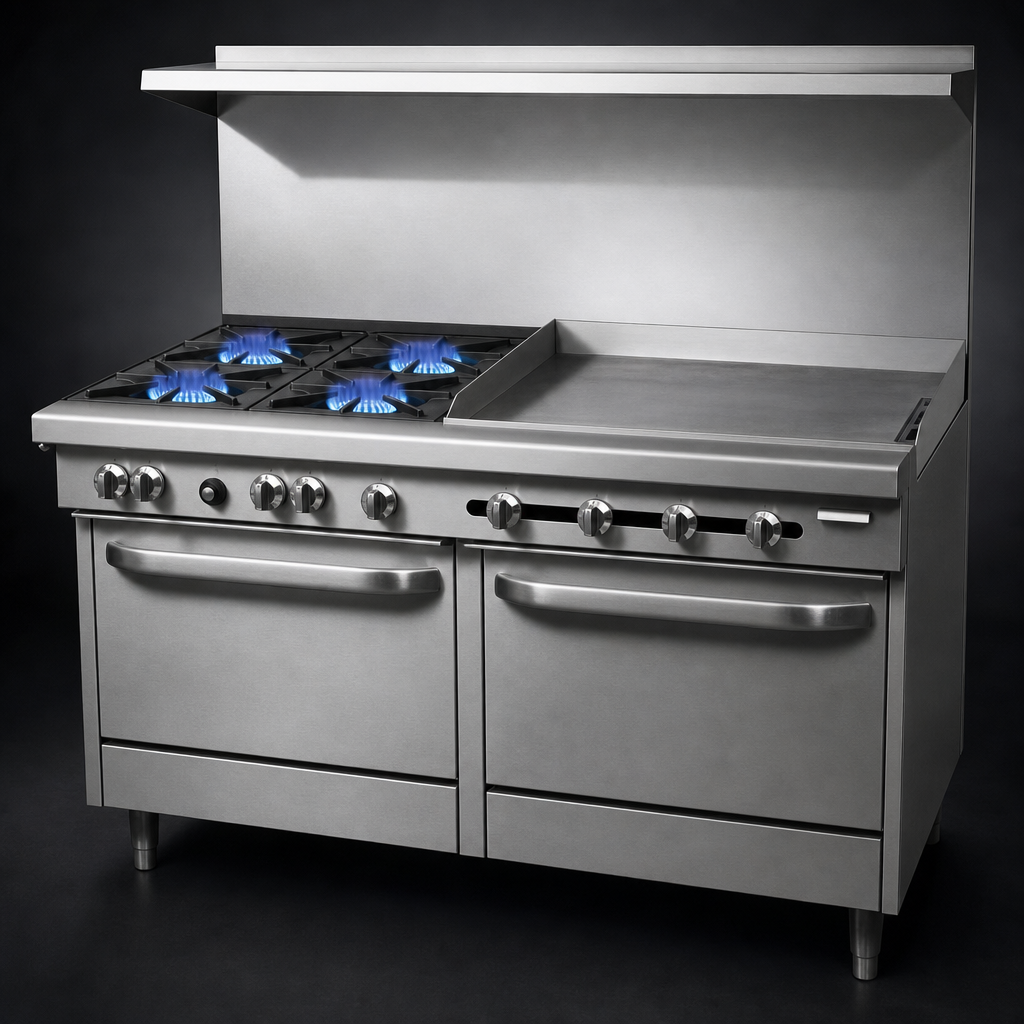

- Four 28,000 BTU patented non-clog cast-iron open burners (lifetime warranty) with removable grates—rear grates accept stock pots up to 14".
- Right-side 36" thermostatic griddle • 1/2" polished steel plate with raised sides • four 16,000 BTU burners • 175-550 °F snap-action control.
- 35,000 BTU convection oven (5-position rack guides, 2 racks, 1/2 hp fan motor, on/off fan switch).
- 35,000 BTU standard oven (U-shaped burner, 2-position rack guides, 1 rack).
- Two removable crumb drawers keep the work area clean; hinged lower valve panel speeds service access.

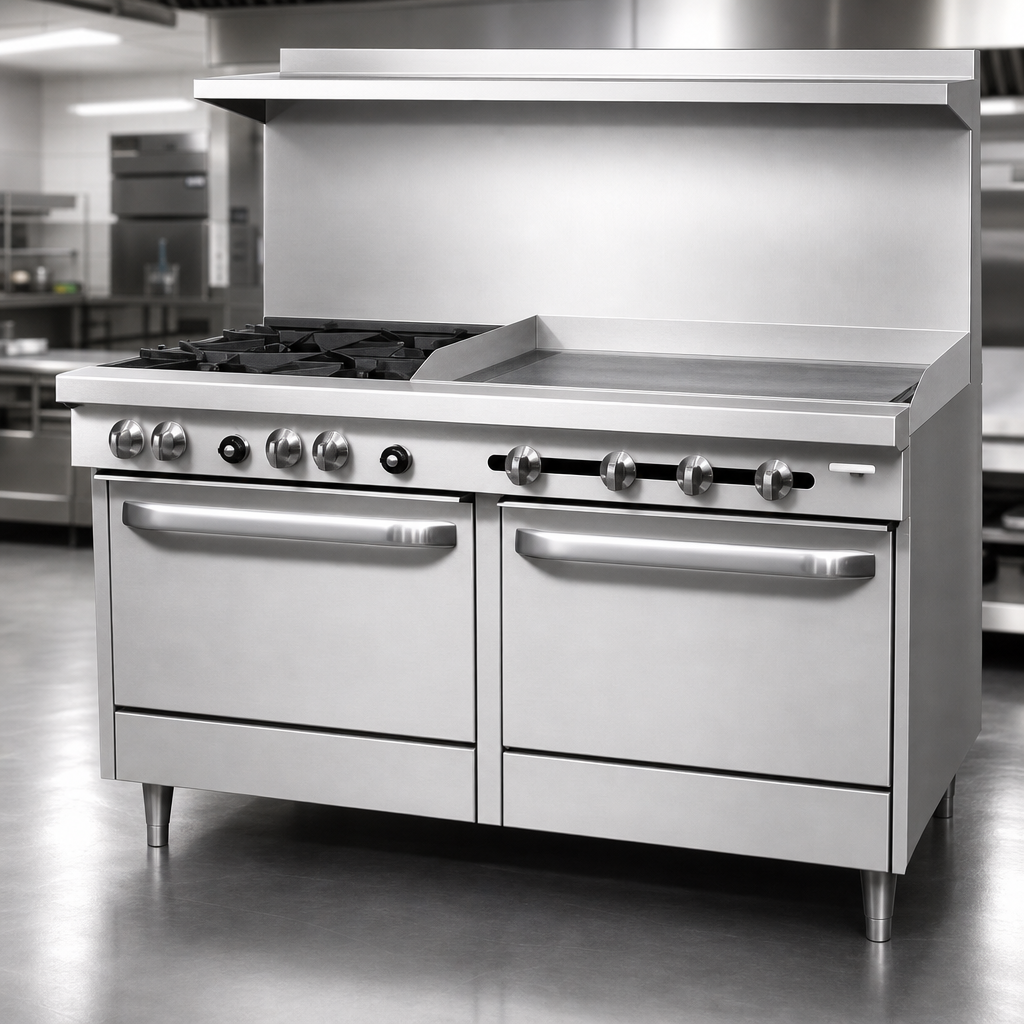

- Stainless steel front, sides, high 22.5" flue-shelf & 4" front rail on 6" adjustable stainless legs.
- Factory-installed gas pressure regulator and CSA Flame, CSA Star, cCSAus & NSF certifications.
Performance & Utilities
| Overall width | 60.75" (1543 mm) |
|---|---|
| Overall depth | 41.75" (1060 mm) |
| Overall height (to top of flue) | 59.5" (1511 mm) |
| Total input | 246,000 BTU/hr (natural gas) |
| Gas connection | 3/4" NPT, rear (min. 7" W.C. Nat / 11" W.C. LP) |
| Electrical (convection oven motor) | 115 V / 60 Hz / 1 ph, 5.9 A – 6' cord & plug included |
| Oven interior – Convection | 26" W × 24" D × 14" H |
| Oven interior – Standard | 26" W × 26.5" D × 14" H |
| Shipping weight | Approx. 860 lb (390 kg) |
| Warranty | 1 year parts & labor (see warranty statement) |
Popular Options & Accessories
- 4 or 6-piece caster kit (front locking)
- 10" stainless flue riser
- 3/4" quick-disconnect gas hose (3, 4 or 5 ft)
- Additional oven racks
- Restraint device, salamander & cheesemelter mounts
Intended for commercial use only. Need flexible payments? Ask about Middleby Equipment Financing to get this range working in your kitchen now.
