Southbend (Middleby)  |  S-Series  |  SKU: S60AD-2TR

Southbend (Middleby) S60AD-2TR S-Series Gas Ranges

$13,136.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

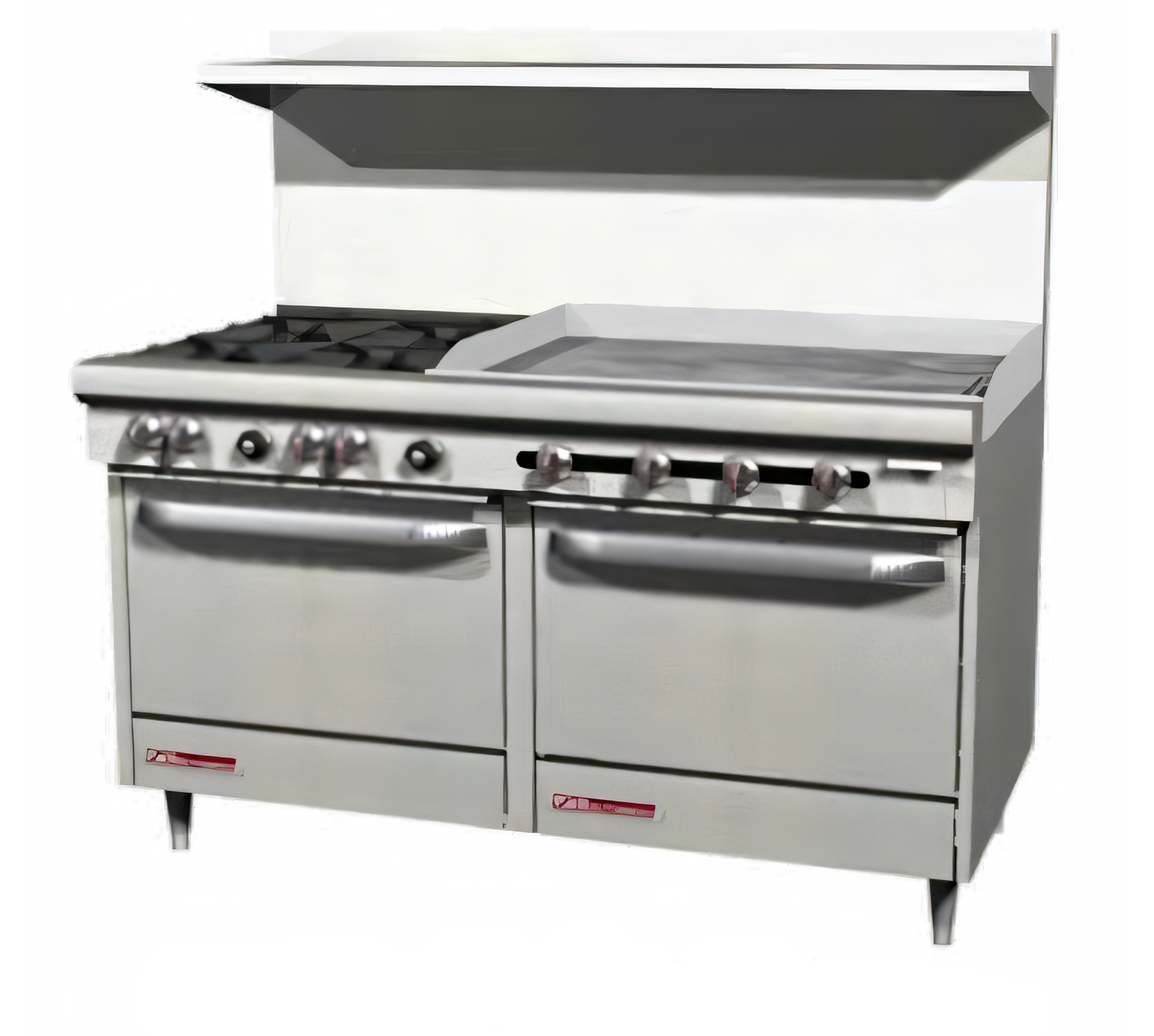

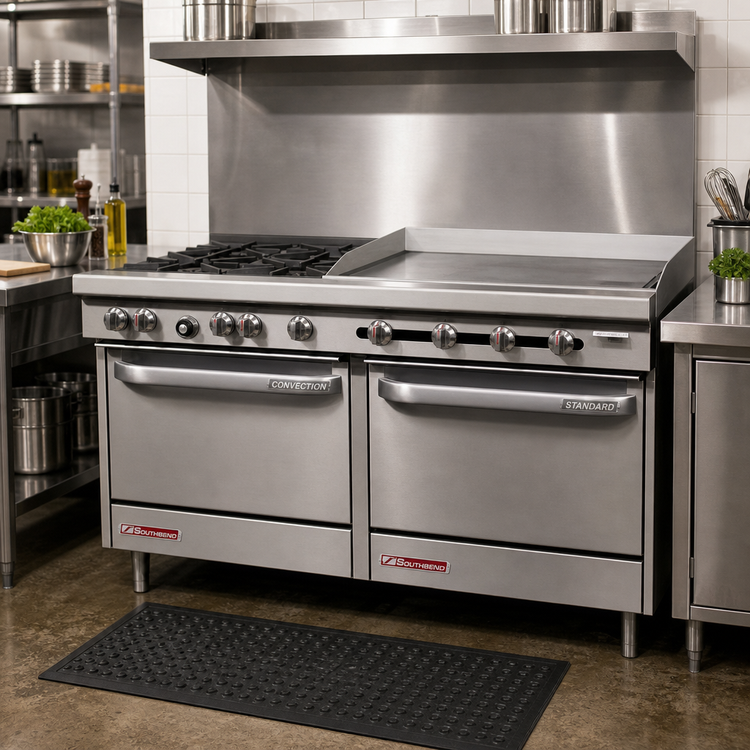

Southbend S-Series 60" Gas Restaurant Range

6 Open Burners • 24" Thermostatic Griddle (Right) • Convection & Standard Ovens

Combine the versatility of a full-size griddle, the speed of six 28,000 BTU open burners, and the precision of both convection and standard baking—all in one rugged, 60-inch footprint. The Southbend S-Series delivers the heavy-duty performance chefs expect while fitting demanding line layouts and budgets.

Why You’ll Love It

  • 286,000 BTU total output handles high-volume sautéing, searing, baking & roasting.

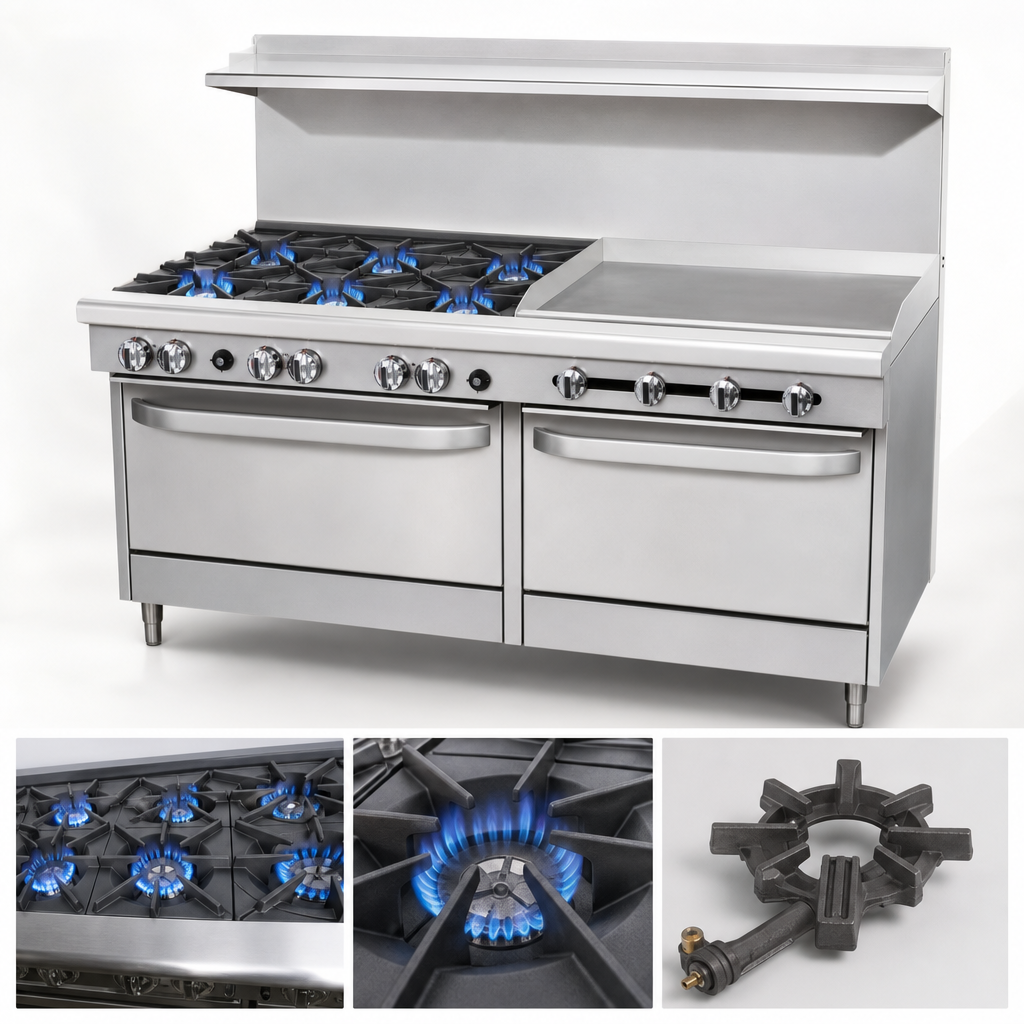

  • (6) Patented, non-clog 28,000 BTU cast-iron burners with lifetime warranty.

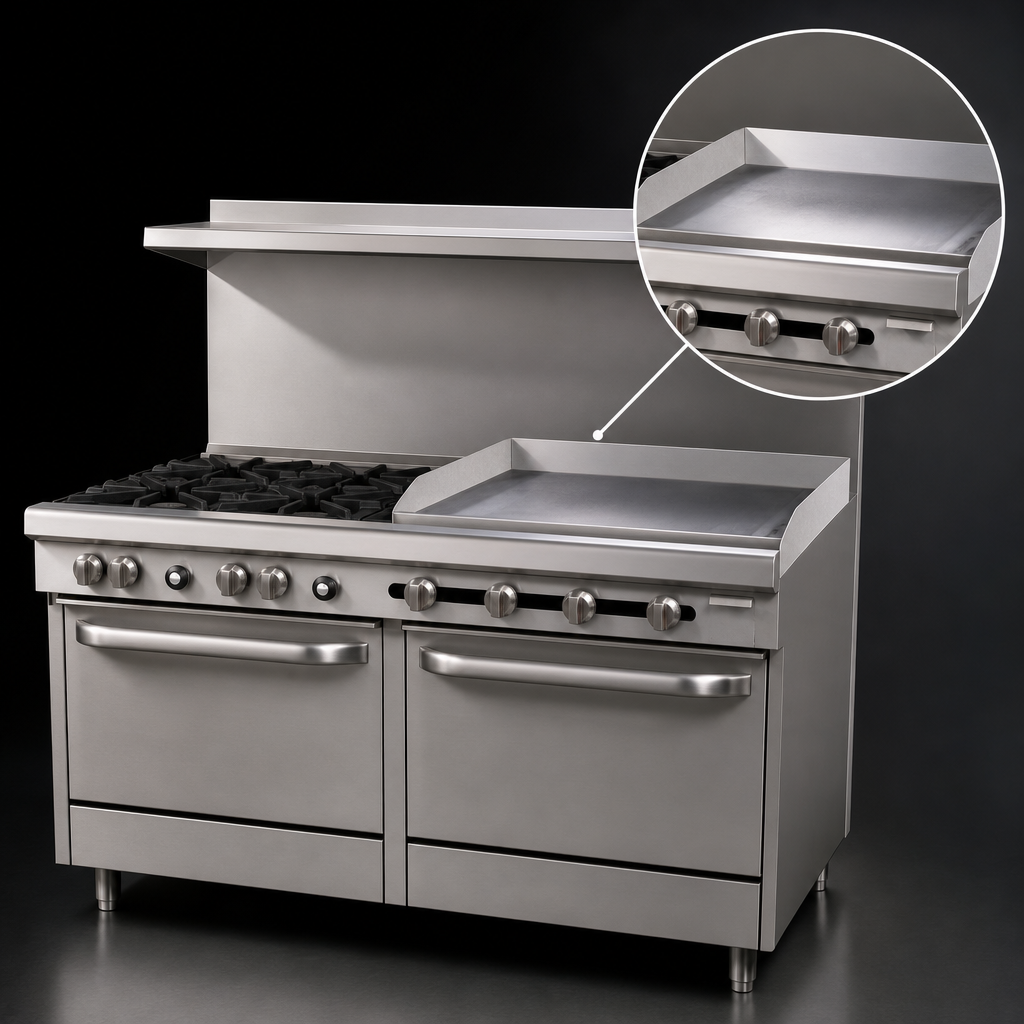

  • 24" x 27" polished, ½"-thick steel griddle (right-side) with snap-action thermostatic controls for consistent holding and recovery.
  • Dual ovens: left convection (35,000 BTU, 5-position, 2 racks) + right standard (35,000 BTU, 2-position, 1 rack).
  • Two full-width crumb drawers and hinged lower valve panel speed daily clean-up.
  • All-stainless front, sides, 4" rail & high-shelf plus removable cast-iron grates built for years of commercial abuse.
  • cCSAus, CSA Flame, CSA Star & NSF listed for gas safety and sanitation compliance.

Cooktop Power

  • Open burners are 100 % removable for sink cleaning and accept stock pots up to 14".
  • Individual standing pilots for instant ignition—no electric needed.
  • Griddle heat supplied by (3) 16,000 BTU U-burners; raised sides contain spatters.

Oven Features

  • Both ovens factory set 175 – 550 °F via snap-action thermostats.
  • Convection section uses a ½ HP fan motor (115 V plug-in, 5.9 A) that can be switched off to operate as a standard oven when needed.
  • Enameled cavities surrounded by block rock-wool insulation for maximum efficiency.
  • Chrome-plated racks (3 total) included; additional racks available.

Built for the Line

  • 22.5" stainless flue riser with single shelf keeps plates and seasonings within reach.
  • 6" stainless adjustable legs (casters optional).
  • Metal control knobs with red stripes are easy to spot and replace.

Technical Specifications

Model S60AD-2GR/T  (Natural Gas)
Overall Width 60.75" (1543 mm)
Overall Depth 41.75" (1060 mm)
Height – to Cook Surface / w Flue 37" (940 mm) / 59.5" (1511 mm)
Open Burners 6 × 28,000 BTU (cast iron)
Griddle 24" W × 27" D, ½" plate, 3 × 16,000 BTU, thermostatic
Left Oven Convection, 35,000 BTU, 5-rack guides, 2 racks
Right Oven Standard, 35,000 BTU, 2-rack guides, 1 rack
Total Gas Input 286,000 BTU/hr
Gas Connection ¾" NPT rear, 7" W.C. Natural (11" W.C. LP)
Electrical (convection fan) 115 V / 60 Hz / 1 ph, 5.9 A, cord & NEMA 5-15P plug
Certifications cCSAus, CSA Flame, CSA Star, NSF
Warranty 1 year parts & labor (factory authorized service)

Popular Options & Accessories

  • All-swivel locking casters
  • 10" flue riser
  • 3 – 5 ft ANSI Z 21.69 quick-disconnect gas hose & restraining device
  • Extra oven racks
  • Shelf-mount salamander or cheesemelter
Oversized cookware: Pots 12" Ø or larger should be used on the rear grates to avoid trapping heat in the front rail and damaging components.
Installation: For units on combustible floors, 6" legs or casters and a 10" wall clearance are required. Install under a vented hood per local code.

Intended for commercial use only. Not for household installation.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

S-Series

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

60.75in

Depth

42.25in

Shipping Weight

1075.0lbs

Control Type

thermostatic controls

Base

(1) standard oven, (1) convection oven

Top

(6) open burners, (1) 24" griddle with thermostat

Plate Thickness

.500" = 1/2"

Vent

backriser with hi-shelf

Exterior Finish

stainless steel front & sides

Specifications

S-Series Restaurant Range, gas, 60", (6) 28,000 BTU open burners, (1) 24" griddle right, thermostatic controls, (1) convection oven, (1) standard oven, snap action thermostat, removable cast iron grates, (2) crumb drawers & shelf, hinged lower valve panel, includes (3) racks total, stainless steel front, sides, shelf, 4" front rail & 6" adjustable legs, 286,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
