Southbend (Middleby) S60AC-4GR S-Series Gas Ranges

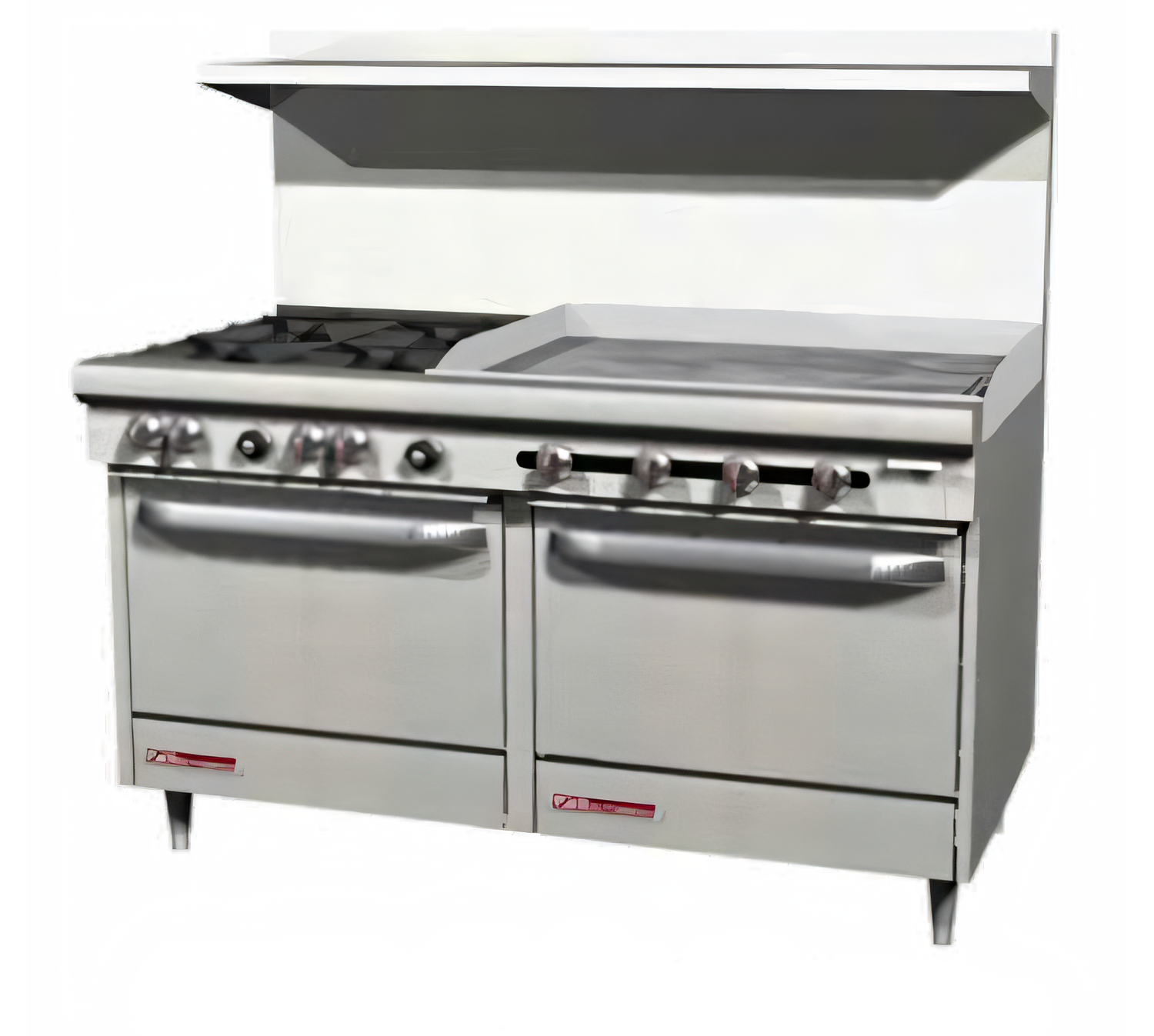

Southbend S-Series 60" Gas Range with 48" Griddle & Convection Oven

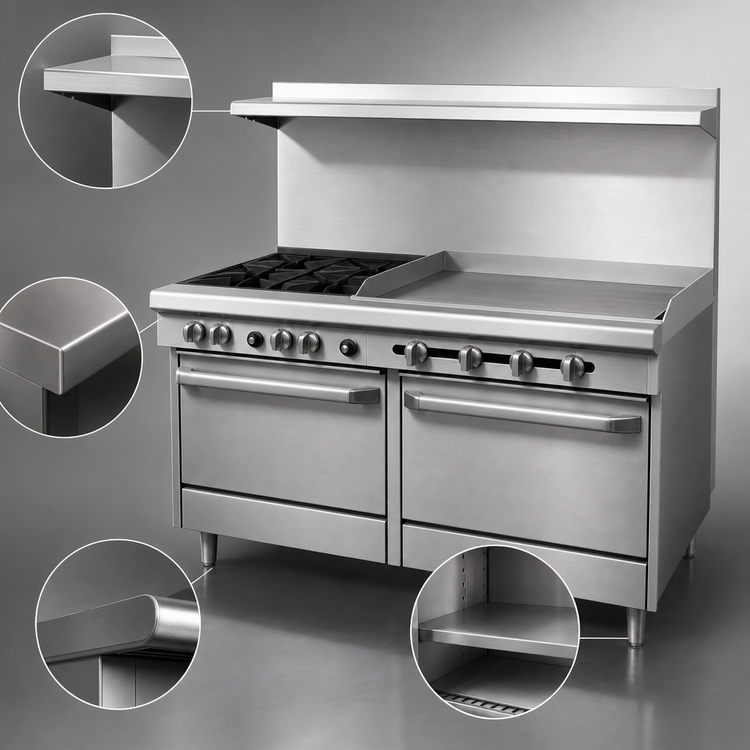

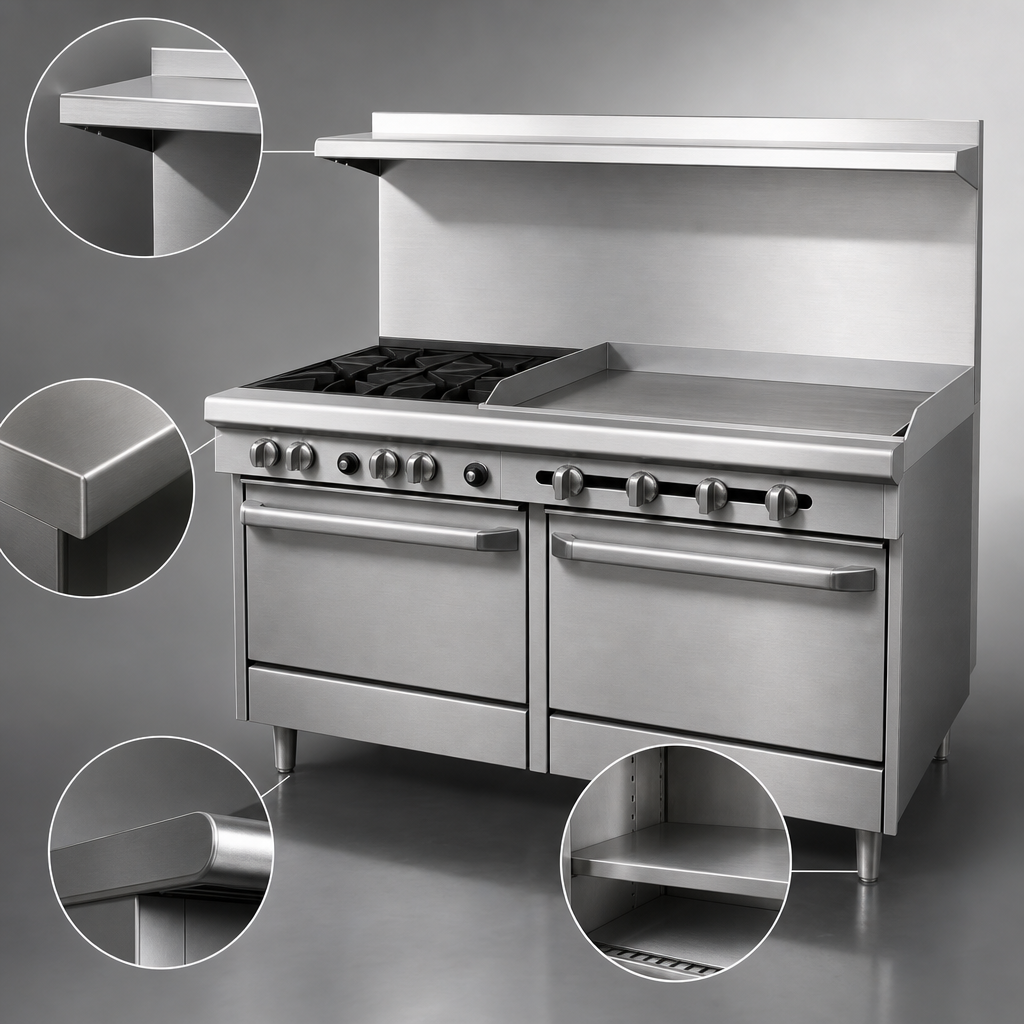

Engineered for the daily rush of busy kitchens, the S-Series packs a pair of high-output open burners, a full 48-inch griddle, and a space-saving convection oven into one rock-solid 60-inch footprint. Heavy-gauge stainless steel, lifetime-warrantied cast-iron burners, and an easy-clean design keep you cooking longer and cleaning up faster.

Performance & Convenience

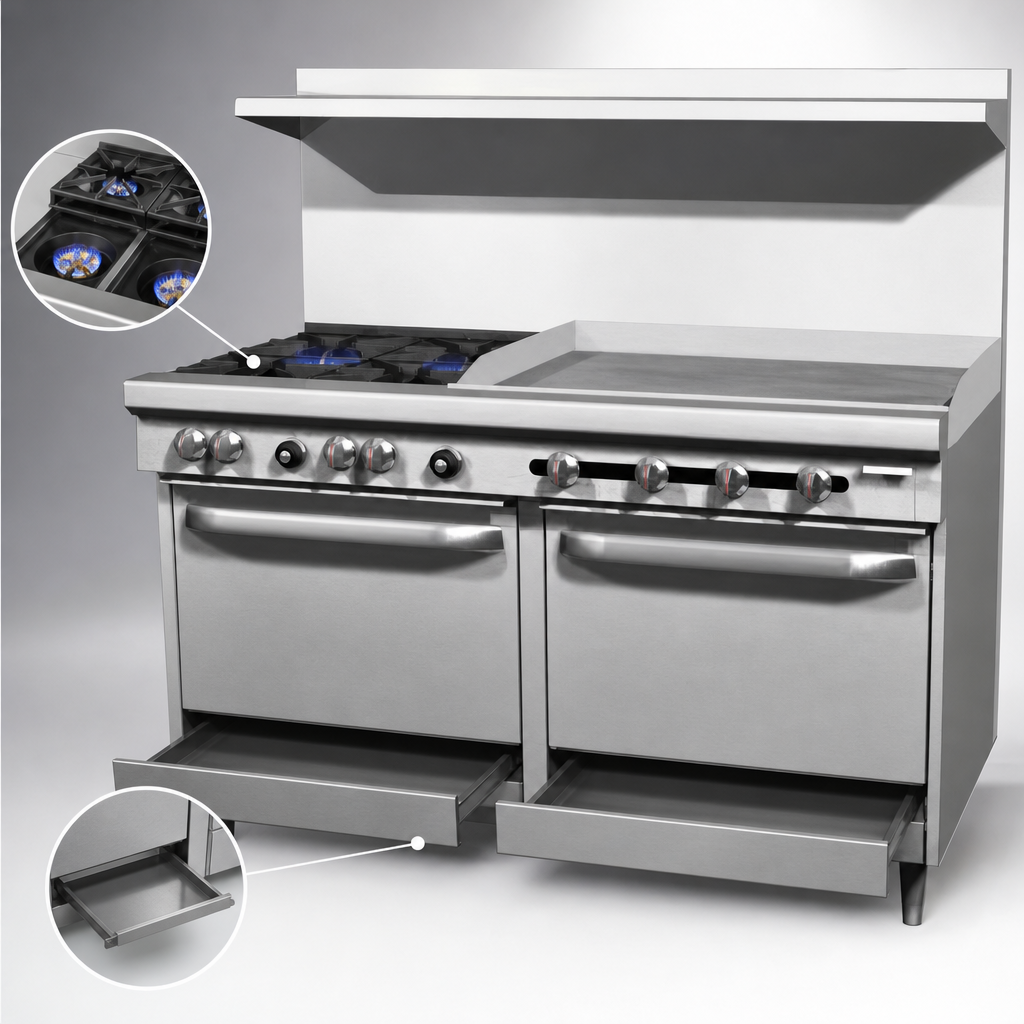

• (2) 28,000 BTU open burners with one-piece cast-iron, non-clog heads — lifetime warranty.
• Right-side 48" griddle
    • 1" thick polished steel plate with raised splash sides
    • Five 16,000 BTU burners under the plate
    • Manual control valves for instant heat response.
• 35,000 BTU convection oven (snap-action thermostat 175 °F – 550 °F) with 5-position rack guides & 2 chrome racks included.
• Aluminized cabinet base (left side) keeps sheet pans and utensils within arm’s reach.
• Dual, one-piece crumb drawers plus hinged lower valve panel speed up nightly cleaning.
• 22.5" flue riser with stainless utility shelf maximizes vertical work space.
• 4" stainless front rail with welded end caps protects valves from heat and bumps.
• 6" stainless, adjustable legs — add optional locking casters anytime.
• Factory-installed 3/4" regulator, flame-failure safety on all pilots, and a 1/2 hp fan motor (115 V cord & plug) for worry-free operation.

What Ships in the Crate

• Range assembly with burners, griddle, oven & cabinet
• (2) chrome oven racks
• Removable cast-iron grate tops
• (2) full-width crumb drawers
• Stainless flue riser & utility shelf
• 6" adjustable legs & factory pressure regulator
• Owner’s manual & warranty registration

Specifications

Oversized cookware (12" dia. +) should be placed on the rear grate section to prevent excess heat on the front rail. Use on the front grate may shorten component life and is not covered under warranty.
