Southbend (Middleby) | S-Series | SKU: S60AC-3TR

Southbend (Middleby) S60AC-3TR S-Series Gas Ranges

Name: Southbend (Middleby) S60AC-3TR S-Series Gas Ranges
Brand: Southbend (Middleby)
SKU: S60AC-3TR
Price: 12923.00 USD
Availability: InStock

$12,923.00

Expected delivery date of , to your door

if ordered within hours and minutes

Not Shipping to ?

More Delivery Options

Documents

Cutsheet Owner's manual Middleby financial flyer Warranty sheet

Description

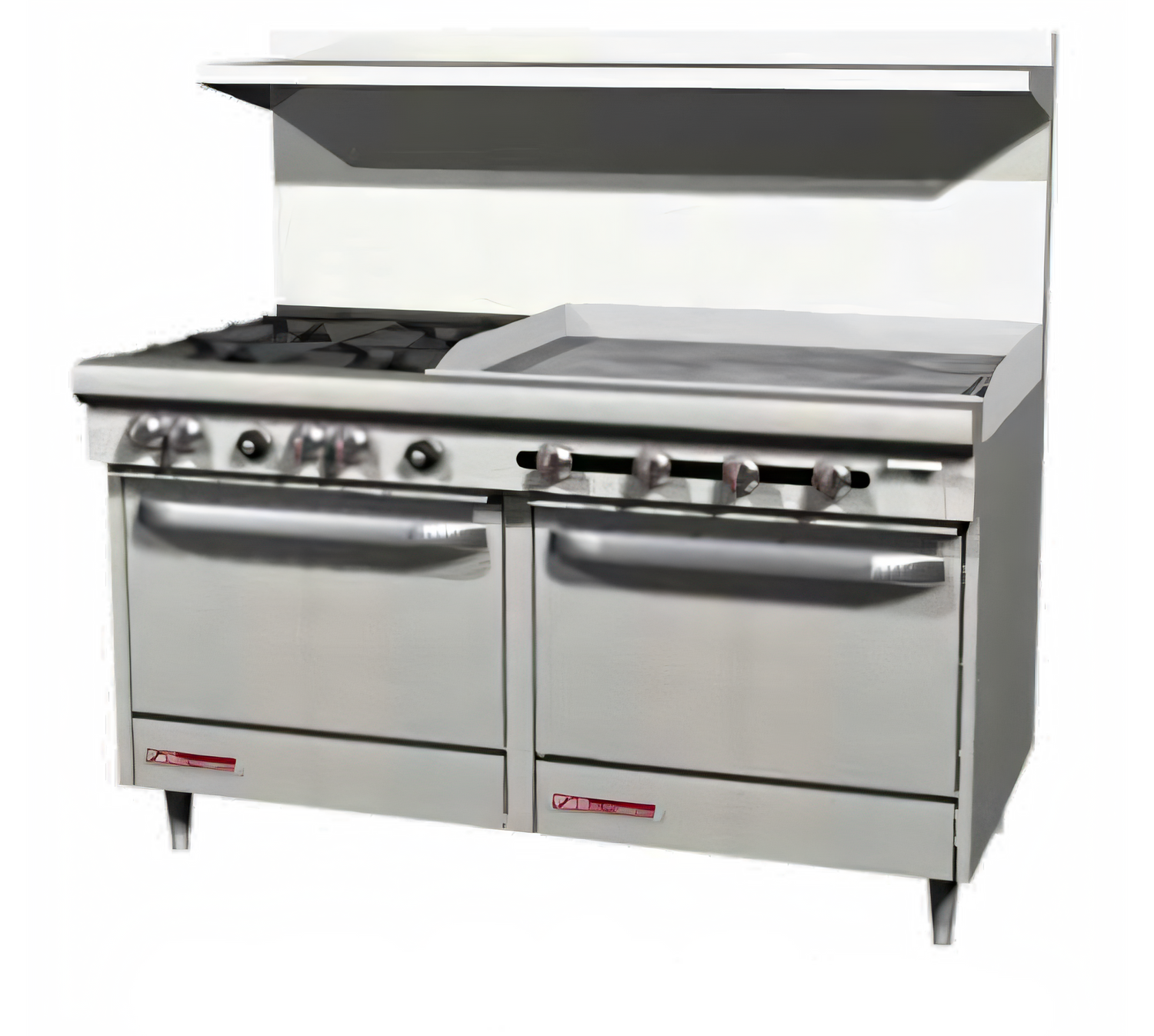

Southbend S-Series 60” Gas Range – 4 Burners, 36” Thermostatic Griddle & Convection Oven

Model S60AC-3G/T • 211,000 BTU • Natural or LP Gas

Put power, versatility and durability on your cook line with Southbend’s S-Series range. This 60-inch workhorse combines four high-performance open burners, a right-side 36-inch thermostatic griddle, a space-saving convection oven and an integrated cabinet base—everything you need to keep up with a busy service.

Key Performance Features

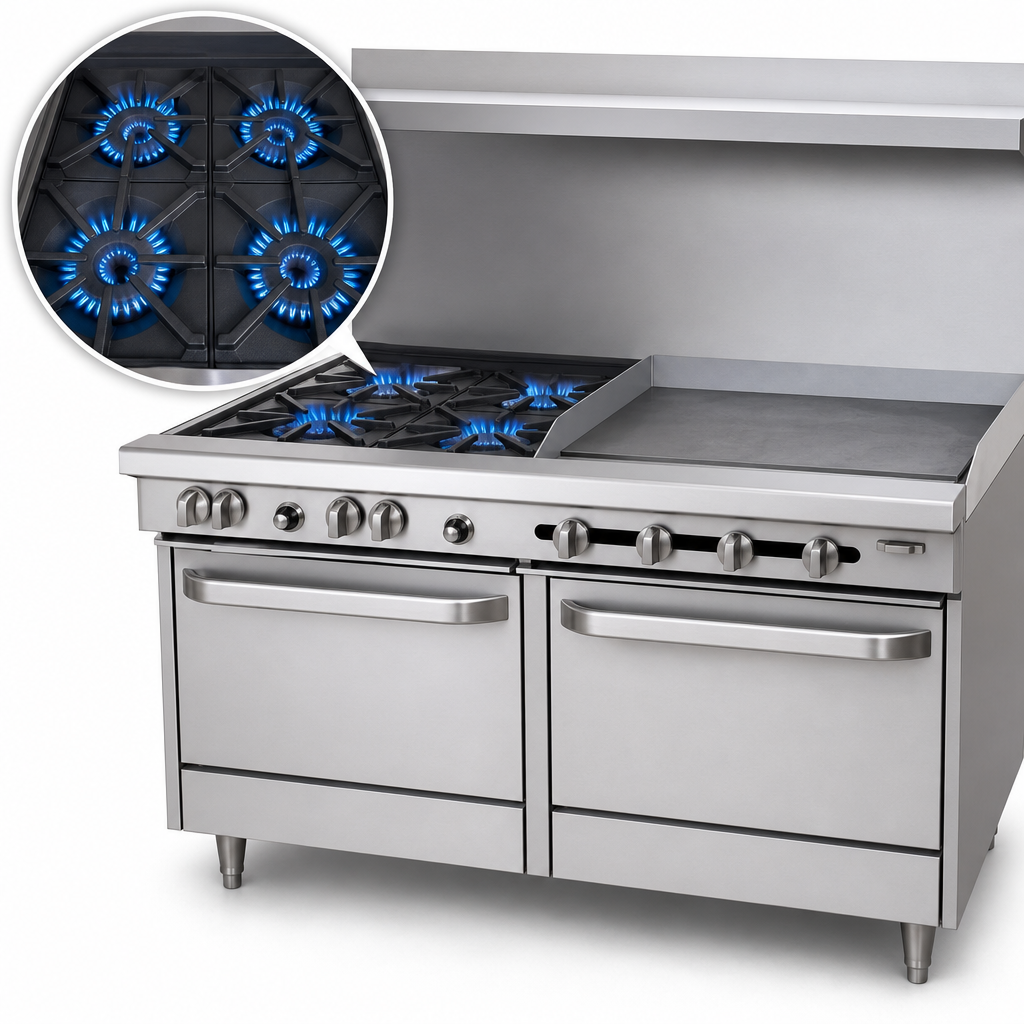

4 × 28,000 BTU cast-iron non-clog burners with lifetime warranty & removable grates (accept up to 14″ stock pots).

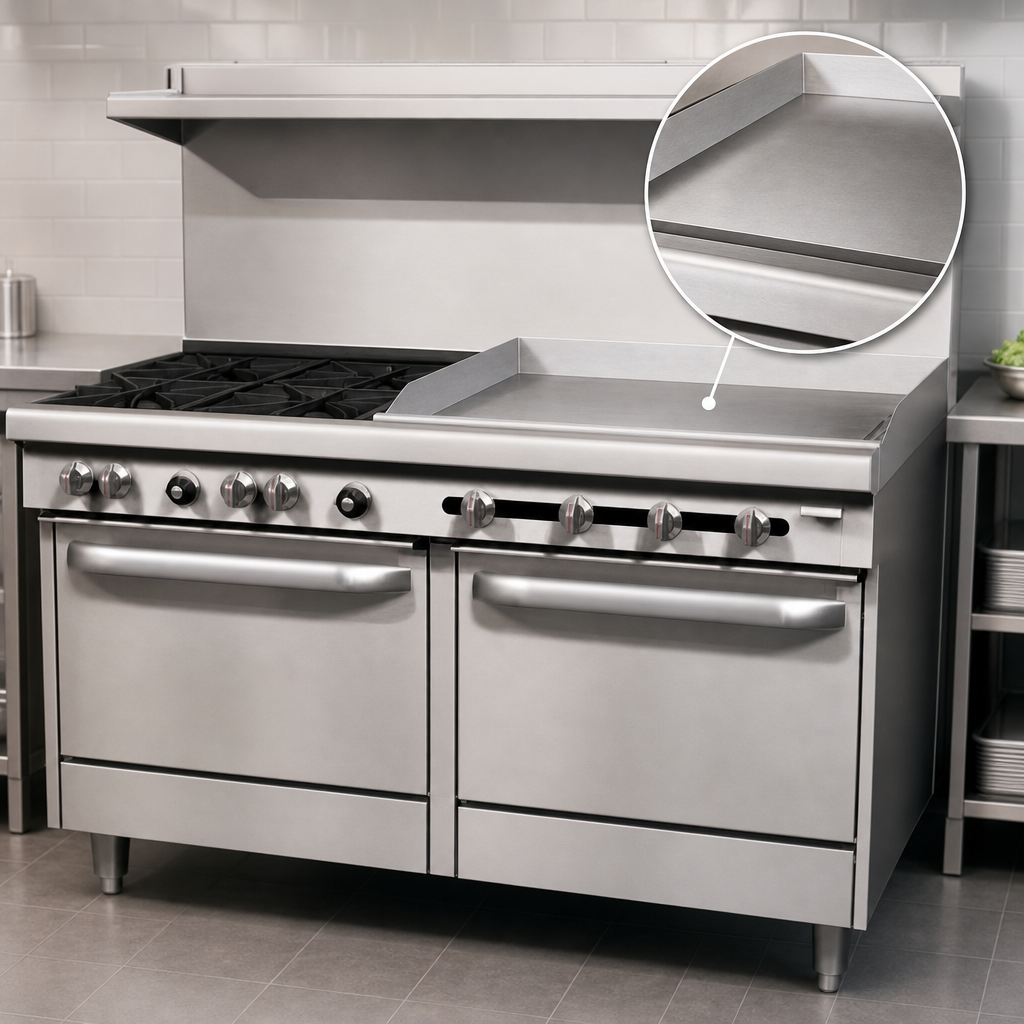

36″ right-mounted, ½″ polished steel griddle plate with raised sides and snap-action thermostatic control 175-550 °F.
35,000 BTU convection oven with ½ HP motor, 5-position guides & 2 chrome racks for fast, even baking.
Aluminized cabinet base keeps sheet pans and smallwares within arm’s reach.
Dual, one-piece crumb drawers & hinged lower valve panel make daily clean-up and service simple.
Rugged stainless steel front, sides, 4″ rail, removable shelf and 22.5″ flue riser built to survive high-volume kitchens.
6″ adjustable stainless steel legs for quick leveling on uneven floors.
0″ clearance required to non-combustible surfaces—ideal for battery installations.
cCSAus, CSA Flame & Star, and NSF listed.

Technical Specifications

Model	S60AC-3G/T
Overall Width	60 3/4″ (1543 mm)
Overall Depth	41 3/4″ (1060 mm)
Cook Surface Height	37″ (940 mm)
Overall Height w/ Flue	59 1/2″ (1511 mm)
Open Burners	4 × 28,000 BTU (NAT) / 24,000 BTU (LP)
Griddle	36″ right, 4 × 16,000 BTU, ½″ plate, thermostatic
Oven Type	Convection, 35,000 BTU, 26″ W × 24″ D × 14″ H cavity
Included Racks	2 chrome-plated, 5-position
Cabinet Base	Aluminized; optional center-opening doors
Total Input	211,000 BTU/hr
Gas Connection	¾″ NPT (rear, opposite side of griddle)
Electrical (oven)	115 V / 60 Hz / 1 φ • 6 A • NEMA 5-15P cord
Legs/Casters	6″ adjustable SS legs (locking casters optional)
Certifications	cCSAus, CSA Flame, CSA Star, NSF
Warranty	1 year parts & labor

What’s Included

(2) chrome oven racks
22.5″ stainless steel flue riser with single shelf
Factory-installed pressure regulator

Popular Options & Accessories

Locking swivel casters
Center-opening cabinet doors
Additional oven racks
10″ flue riser
¾″ quick-disconnect hose & restraining device
Salamander or cheesemelter mounts

Installation & Safety: For commercial use only. Install under a properly sized vent hood and maintain 10″ clearance to combustible construction (0″ to non-combustible). Follow local codes and the Southbend installation manual.

Need easy monthly payments? Ask about Middleby Equipment Financing.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

S-Series

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

60.75in

Depth

42.25in

Shipping Weight

1075.0lbs

Top

(4) open burners, (1) 36" griddle with thermostat

Base

(1) convection oven, (1) cabinet

Exterior Finish

stainless steel front & sides

Control Type

thermostatic controls

Plate Thickness

.500" = 1/2"

Vent

backriser with hi-shelf

Specifications

S-Series Restaurant Range, gas, 60", (4) 28,000 BTU open burners, (1) 36" griddle right, thermostatic controls, (1) convection oven, (1) cabinet base, snap action thermostat, removable cast iron grates, (2) crumb drawers & shelf, hinged lower valve panel, includes (2) racks, stainless steel front, sides, shelf, 4" front rail & 6" adjustable legs, 211,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
