Southbend (Middleby) S60AC-3GR S-Series Gas Ranges
Description

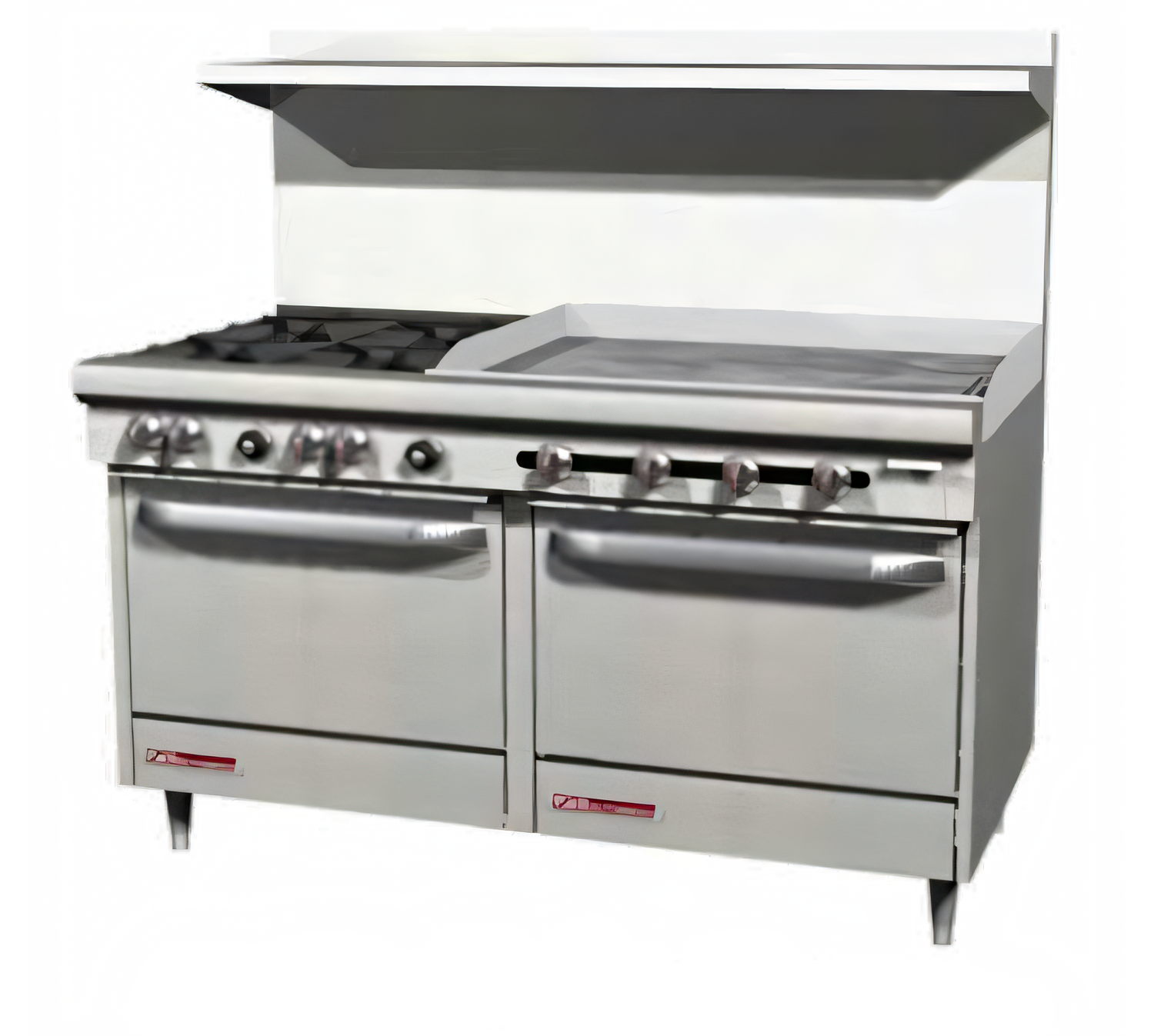

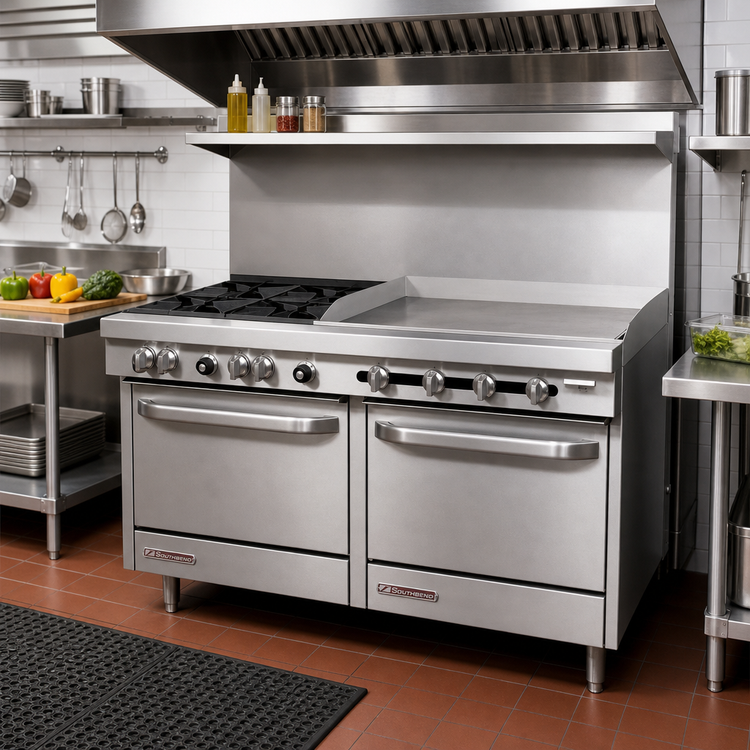

Southbend S-Series 60" Gas Restaurant Range – 4 Burners / 36" Right-Side Griddle / Convection Oven & Cabinet Model S60AC-3G | 211,000 BTU | Natural or LP
Built for high-volume kitchens that demand versatility in a tight footprint, the Southbend S-Series 60" range combines powerful open-top cooking, a full-size manual griddle, a high-performance convection oven, and a convenient cabinet base—everything you need to keep the line moving, in one stainless-steel workhorse.
Key Advantages

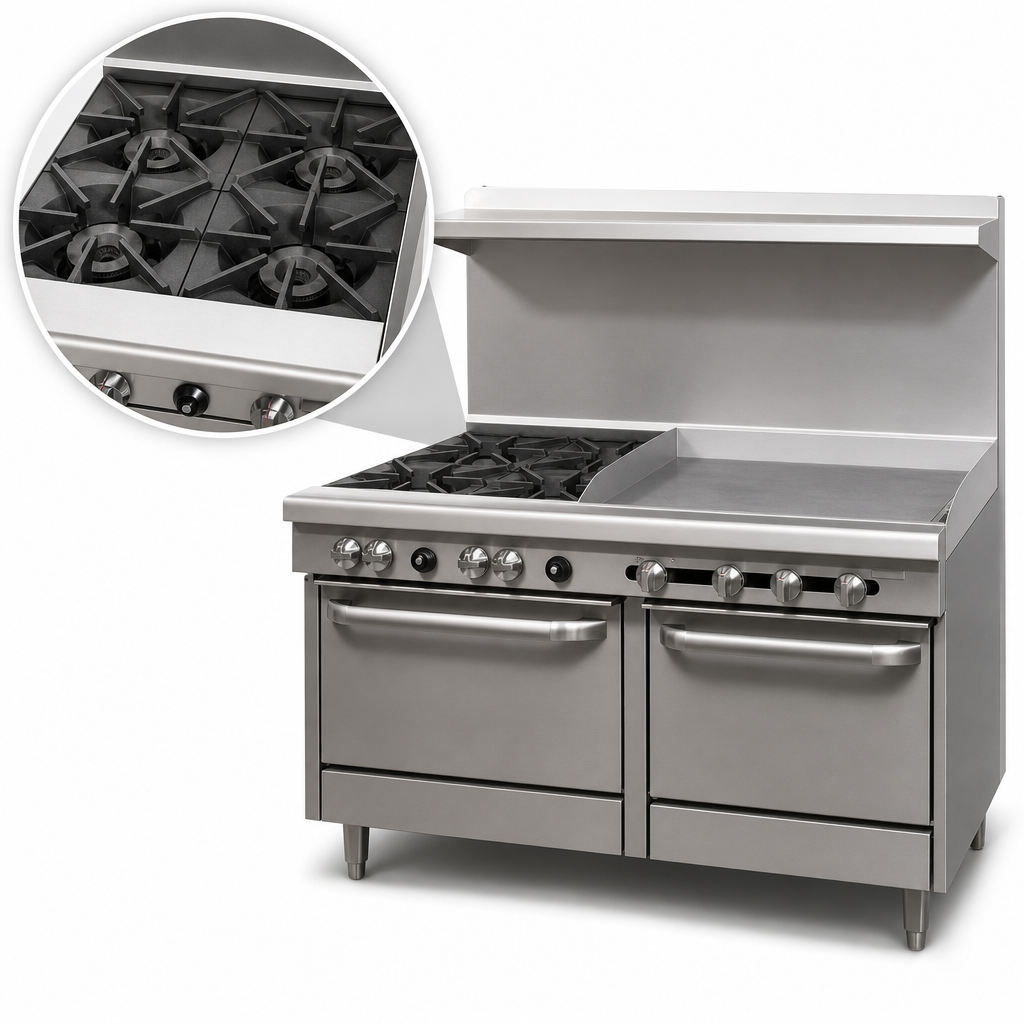

- Four 28,000 BTU open burners with lifetime-warranted, non-clog cast-iron heads

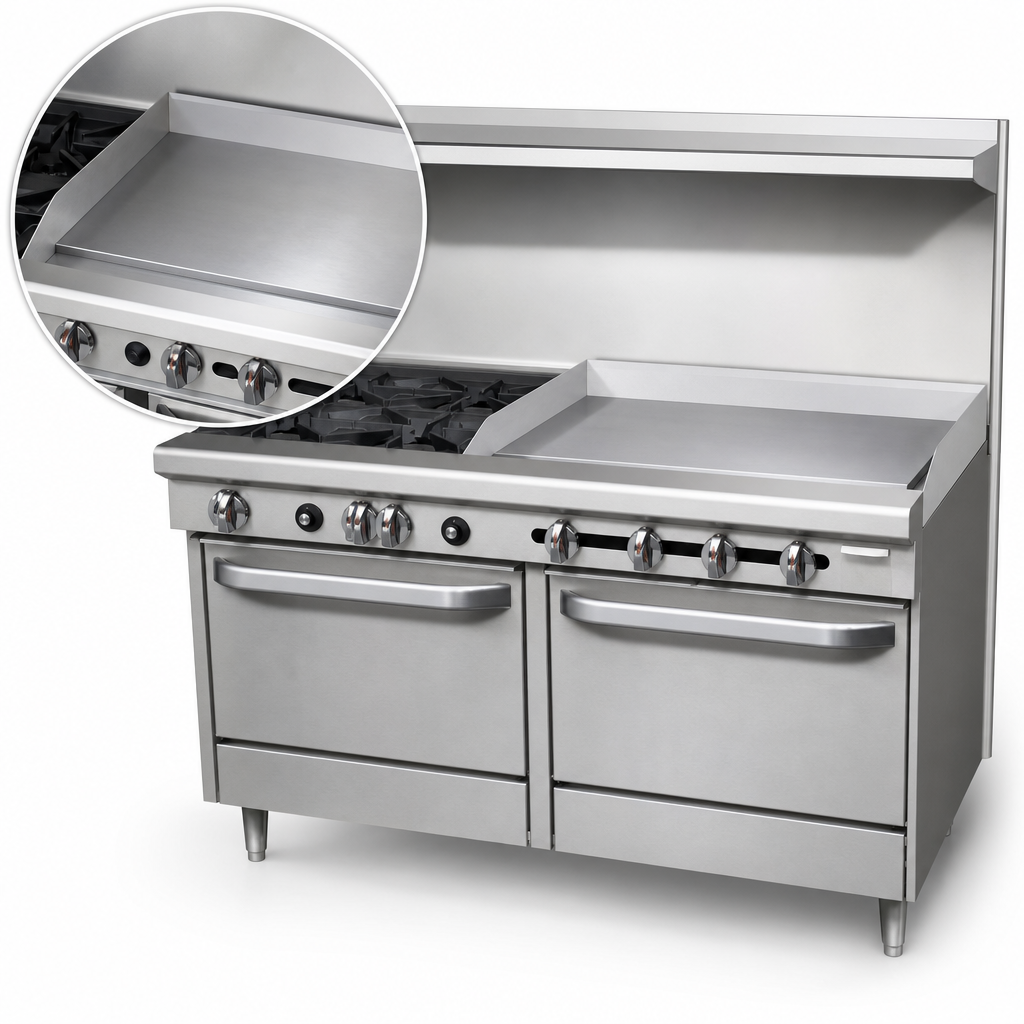

- Durable 36" x 1/2" polished steel griddle (right side) heated by four 16,000 BTU burners
- 35,000 BTU convection oven with snap-action thermostat (175 °F – 550 °F) – includes 2 chrome racks / 5 positions
- Aluminized cabinet base keeps sheet pans, smallwares & dry goods within arm’s reach
- Two removable crumb drawers and hinged lower valve panel for fast, tool-free cleaning
- 22.5" stainless flue riser with single shelf maximizes vertical storage (factory-installed)
- Rugged 4" front rail plus 6" adjustable stainless legs for perfect leveling on any surface
- Certified CSA Flame / Star & NSF for gas safety and sanitation
Built for the Rush
- One-piece cast-iron grates handle stock pots up to 14" in diameter
- U-shaped oven burner paired with a 1/2 hp fan delivers even bake & roast results
- Fan On/Off switch lets the convection base double as a standard oven when needed
- Stainless front, sides, and shelf stand up to daily scouring and harsh commercial cleaners
Specifications
| Overall Width | 60 3/4" (1543 mm) |
|---|---|
| Depth (front to back) | 34" (864 mm) with 4" rail |
| Height (to cook surface / to riser top) | 36" / 59 1/2" |
| Total BTU | 211,000 BTU |
| Open Burners | 4 × 28,000 BTU (natural) cast-iron, lift-off grates |
| Griddle Plate | 36" W × 24" D × 1/2" thick polished steel, manual controls |
| Oven Interior | 26" W × 24" D × 14" H, 2 racks / 5 positions |
| Gas Connection | 3/4" NPT (rear); Min. pressure 7" W.C. Nat / 11" W.C. LP |
| Electrical | 115 V, 60 Hz, 1 ph, 6' cord & NEMA 5-15P, 5.9 A (convection motor) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1 year parts & labor (factory-authorized service network) |
Popular Options (Sold Separately)
- All-swivel locking casters
- Cabinet-base doors (no-charge option at time of order)
- 10" flue riser for low-ceiling installs
- Quick-disconnect gas hose kits (3', 4', 5')
- Additional oven racks & salamander/cheesemelter mounts
