Southbend (Middleby) S60AC-2TR S-Series Gas Ranges
$11,908.00
Unit price
/
Unavailable
Description
Southbend S-Series 60" Gas Restaurant Range
Model S60AC-2GR/T – 6 Open Burners • 24" Right-Side Thermostatic Griddle • Convection Oven & Cabinet BaseOne powerhouse line cooks, sautés, sears, bakes and stores. Southbend’s S-Series packs 251,000 BTU of multi-tasking performance into a rugged, stainless-steel frame that’s built to thrive on the hot line shift after shift.
Performance & Convenience
- Six 28,000 BTU non-clog open burners with removable cast-iron grates (lifetime warranty).

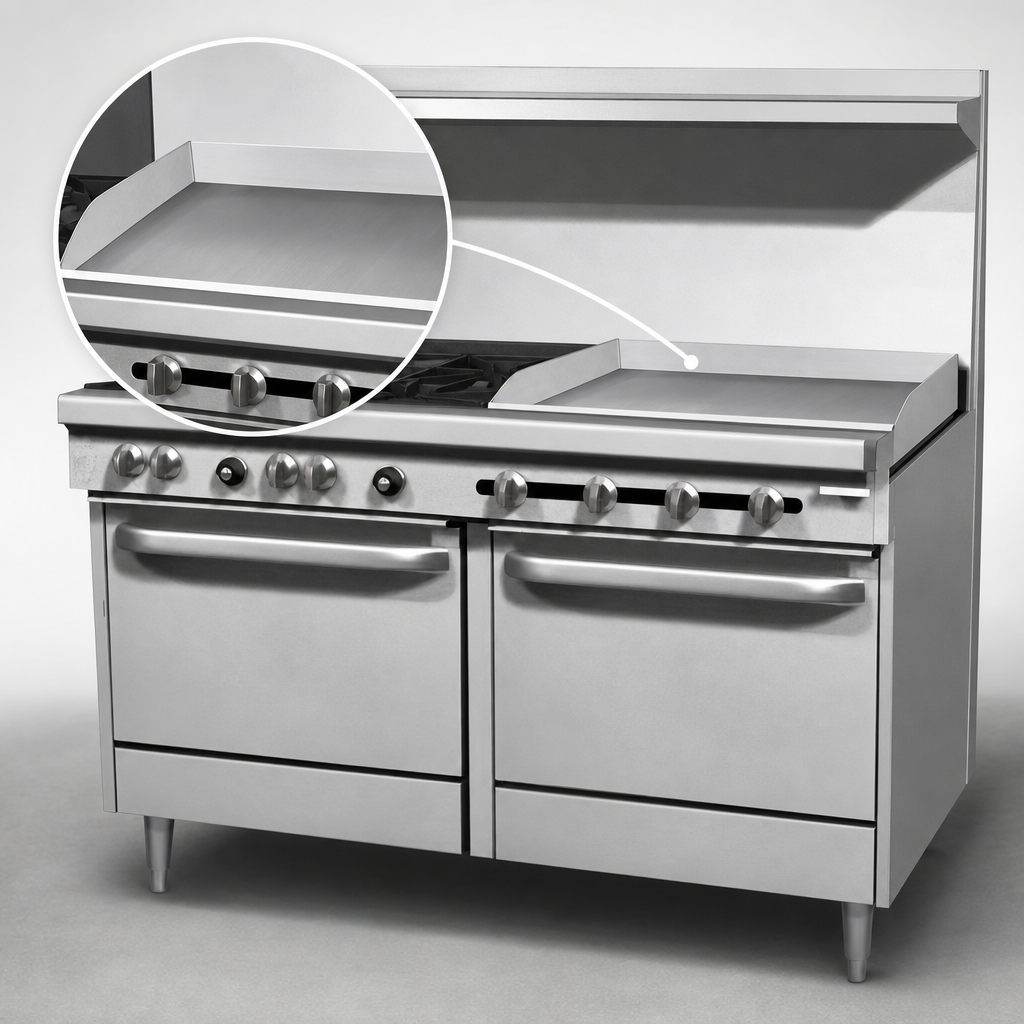

- 24" thermostatic griddle on the right—½" polished steel plate, 3 × 16,000 BTU burners, 175 – 550 °F range.
- 35,000 BTU convection oven (snap-action thermostat) with ½ hp blower for even baking.
- Left-hand cabinet base keeps sheet pans, sauté pans and dry goods within arm’s reach.
- Two full-width crumb drawers, hinged lower valve panel and lift-off burner heads speed clean-up.
- 4" stainless front rail, 22.5" flue riser with integrated shelf & 6" adjustable stainless legs.
- Factory-installed ¾" regulator; cCSAus, CSA Flame, CSA Star & NSF listed.
Space-Saver Convection Oven
- 26" W × 24" D × 14" H porcelain-enameled cavity.
- 5-position rack guides with (2) nickel-plated racks included.
- ON/OFF fan switch lets the base double as a standard oven when needed.
Technical Specs
| Overall width | 60 3⁄4" |
|---|---|
| Depth (to front rail) | 31" |
| Cook-surface height | 36" |
| Flue riser height | 22 1⁄2" |
| Total BTU input | 251,000 BTU/hr |
| Gas connection | ¾" NPT rear, 7" W.C. Nat | 11" W.C. LP |
| Electrical (fan motor) | 115 V, 1 ph, 5.9 A, 6' cord & plug |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor • Lifetime on open burners |
What Ships in the Box
- (2) nickel-plated oven racks
- (2) removable crumb drawers
- Factory pressure regulator & manuals
Optional swivel casters, quick-disconnect gas hose & salamander mounts available at checkout.
Commercial use only: Unit must be installed under a vented hood by a licensed technician and operated in accordance with local codes.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
S-Series
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
59.5in
Width
60.75in
Depth
42.25in
Shipping Weight
1075.0lbs
Top
(6) open burners, (1) 24" griddle with thermostat
Exterior Finish
stainless steel front & sides
Control Type
thermostatic controls
Plate Thickness
.500" = 1/2"
Vent
backriser with hi-shelf
Base
(1) convection oven, (1) cabinet
Specifications
S-Series Restaurant Range, gas, 60", (6) 28,000 BTU open burners, (1) 24" griddle right, thermostatic controls, (1) convection oven, (1) cabinet base, snap action thermostat, removable cast iron grates, (2) crumb drawers & shelf, hinged lower valve panel, includes (2) racks, stainless steel front, sides, shelf, 4" front rail & 6" adjustable legs, 251,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
