Southbend (Middleby) S60AC-2RR S-Series Gas Ranges
Southbend (Middleby) S60AC-2RR S-Series Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) S60AC-2RR S-Series Gas Ranges
Description

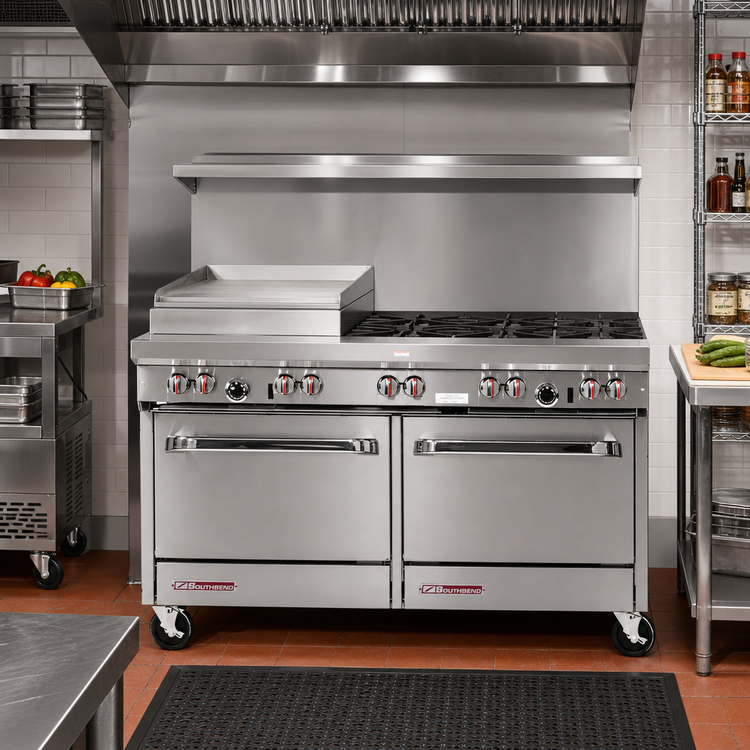

Southbend S-Series 60" Gas Restaurant Range
Model S60AC-2RR - 6 Burners • 24" Raised Griddle/Broiler • Convection Oven + CabinetCombine high-powered open burners, a raised griddle/broiler, a space-saving convection oven and handy cabinet storage—all in one rugged, 60-inch footprint. Built to thrive on the toughest cooklines, the Southbend S-Series delivers the versatility, speed and durability professional kitchens demand.
Key Features
- (6) 28,000 BTU patented cast-iron non-clog open burners with lifetime warranty.

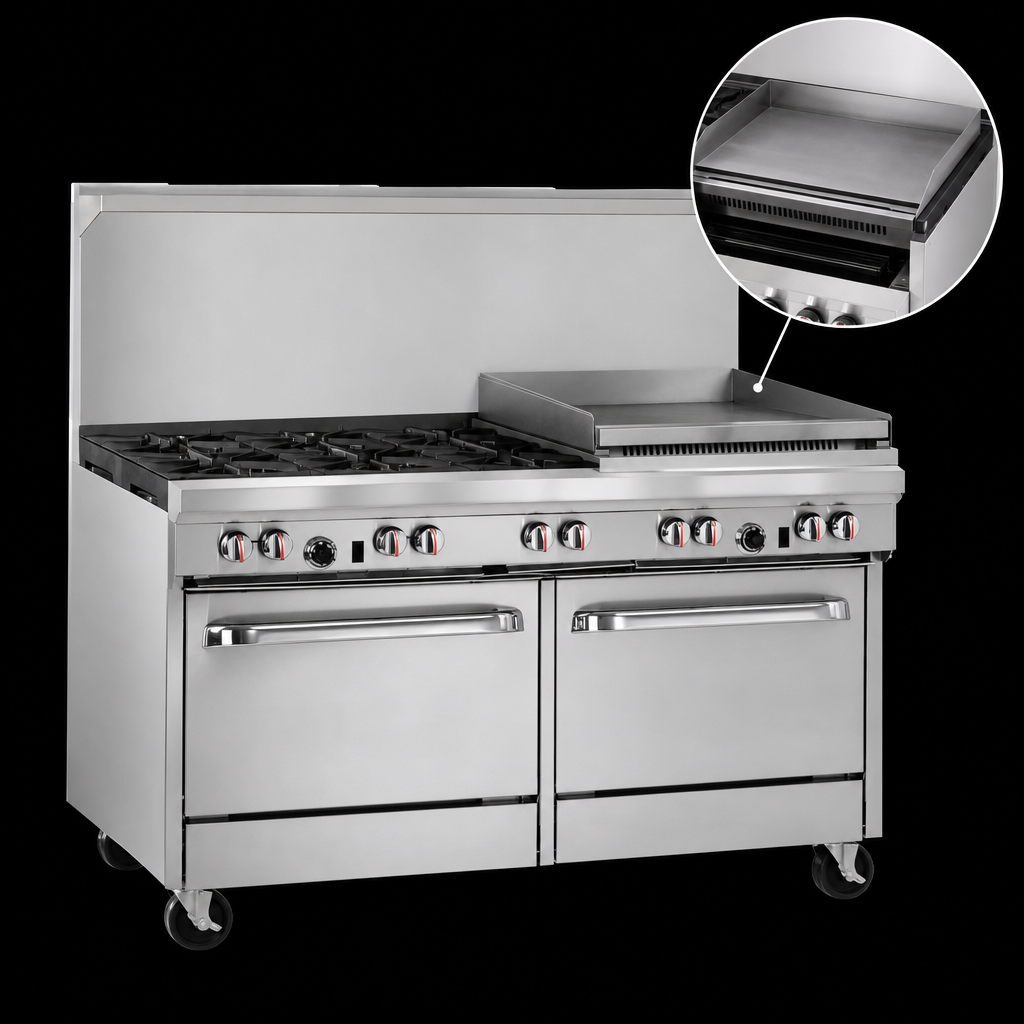

- 24" raised, ½" thick polished steel griddle plate with broiler drawer below (right-side mount, 33,500 BTU total).
- 35,000 BTU convection oven (175 °F – 550 °F) with snap-action thermostat, 5-position rack guides & 2 chrome racks.
- Aluminized cabinet base keeps pans & smallwares at arm’s reach; optional doors available at no charge.
- Total input: 236,500 BTU/hr (Natural).
- One-piece removable crumb drawer, hinged lower valve panel & metal control knobs for easy cleaning.
- Stainless steel front, sides, removable shelf, 4" front rail with closed end caps & 6" adjustable legs.
- Factory-installed ¾" pressure regulator; rear gas connection.
- Convection fan motor: ½ HP, 115 V, 5.9 A, supplied with 6' NEMA 5-15P cord (208/240 V optional).
- Certified cCSAus, CSA Flame, CSA Star & NSF for commercial use.
Performance at a Glance
| Overall width | 60 ¾" |
|---|---|
| Cooktop configuration | (6) open burners + 24" raised griddle/broiler |
| Griddle burners | (2) × 12,000 BTU & (1) × 9,500 BTU |
| Oven type / BTU | Convection / 35,000 BTU |
| Oven cavity (W × D × H) | 26" × 24" × 14" (enameled steel) |
| Included oven racks | 2 |
| Total input (Natural) | 236,500 BTU/hr |
| Gas connection | ¾" NPT male, rear (min. 7" W.C. Natural, 11" W.C. LP) |
| Electrical (fan) | 115 V / 1 ph / 5.9 A |
Popular Options & Accessories
- Locking swivel casters
- Center-opening cabinet doors
- Additional oven racks
- 10" flue riser
- ¾" quick-disconnect gas hose (3 - 5 ft)
- Cheesemelter or salamander mounts
Backed by Southbend’s 1-year parts & labor warranty. See full warranty statement for terms and exclusions.
