Southbend (Middleby) S60AC-2GR S-Series Gas Ranges
Description

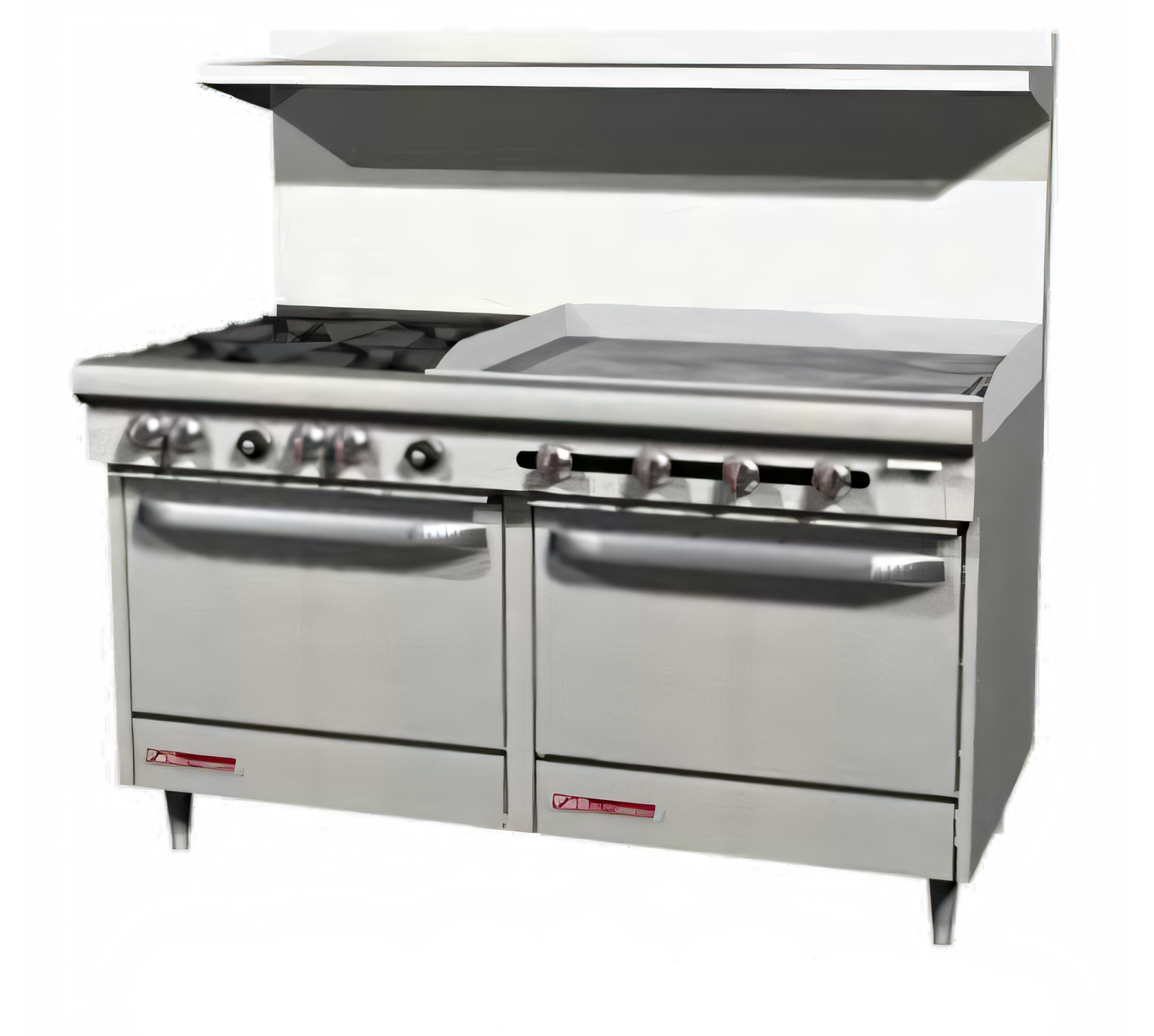

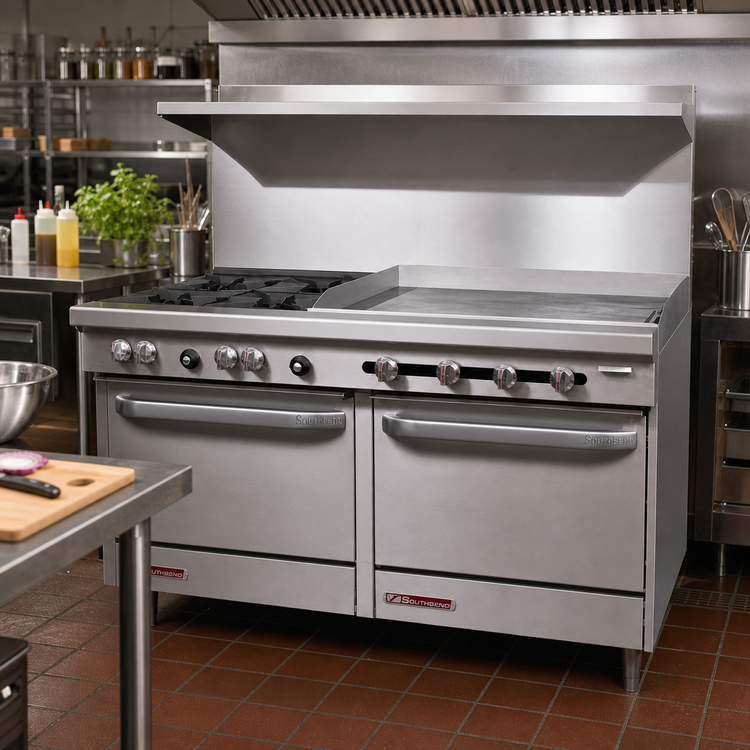

Southbend S-Series 60" Gas Restaurant Range
Model S60AC-2G/T-R | 6 Burners • 24" Right-Side Griddle • Convection Oven & Cabinet BaseBuilt for the daily grind of high-volume kitchens, the Southbend S-Series combines the versatility chefs demand with the rugged construction that has made Southbend a trusted name since 1898. Six high-performance open burners, a full-size 24" griddle, and a 35,000 BTU convection oven sit under one durable stainless-steel body— giving you the power of three pieces of equipment in only 60 inches of line space.
Key Features
- Total input: 251,000 BTU (natural gas) with factory-installed ¾" regulator

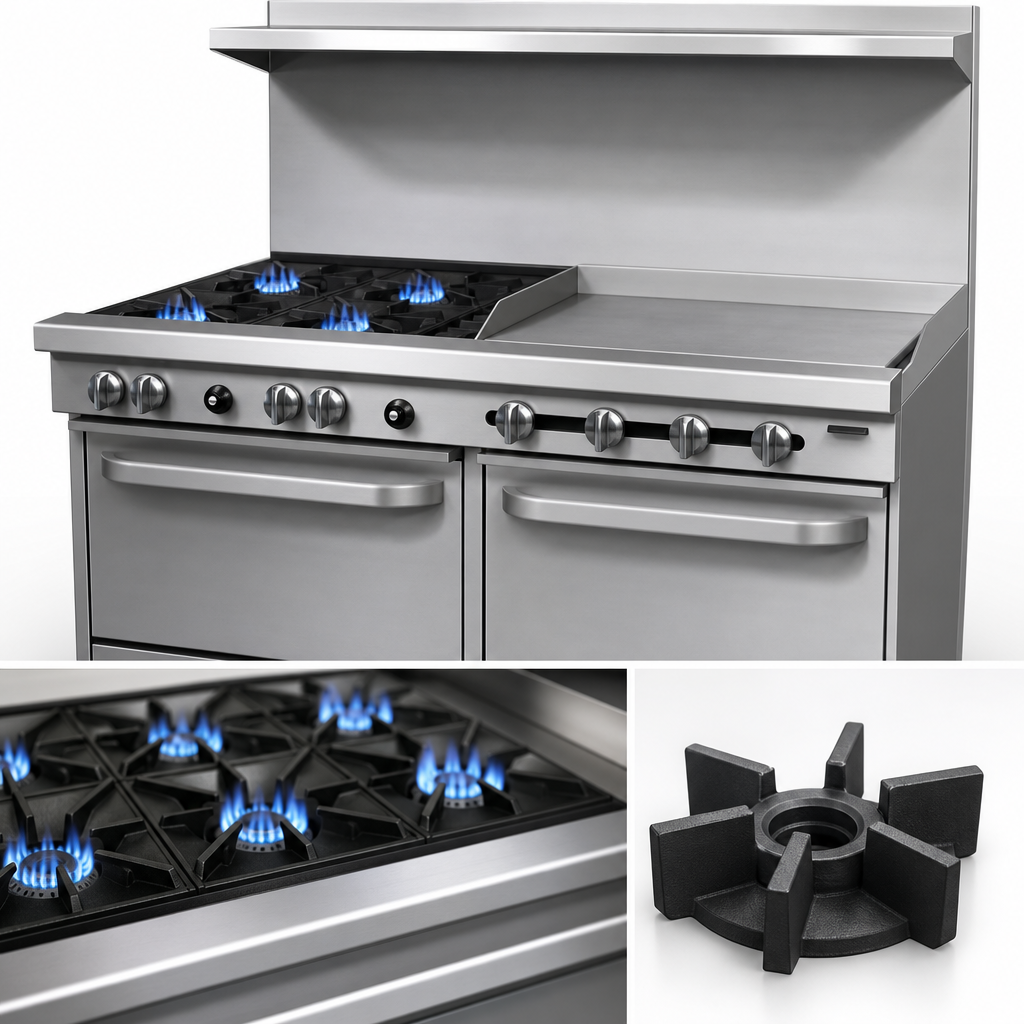

- (6) 28,000 BTU patented clog-free cast-iron burners
• Lifetime warranty on burner castings

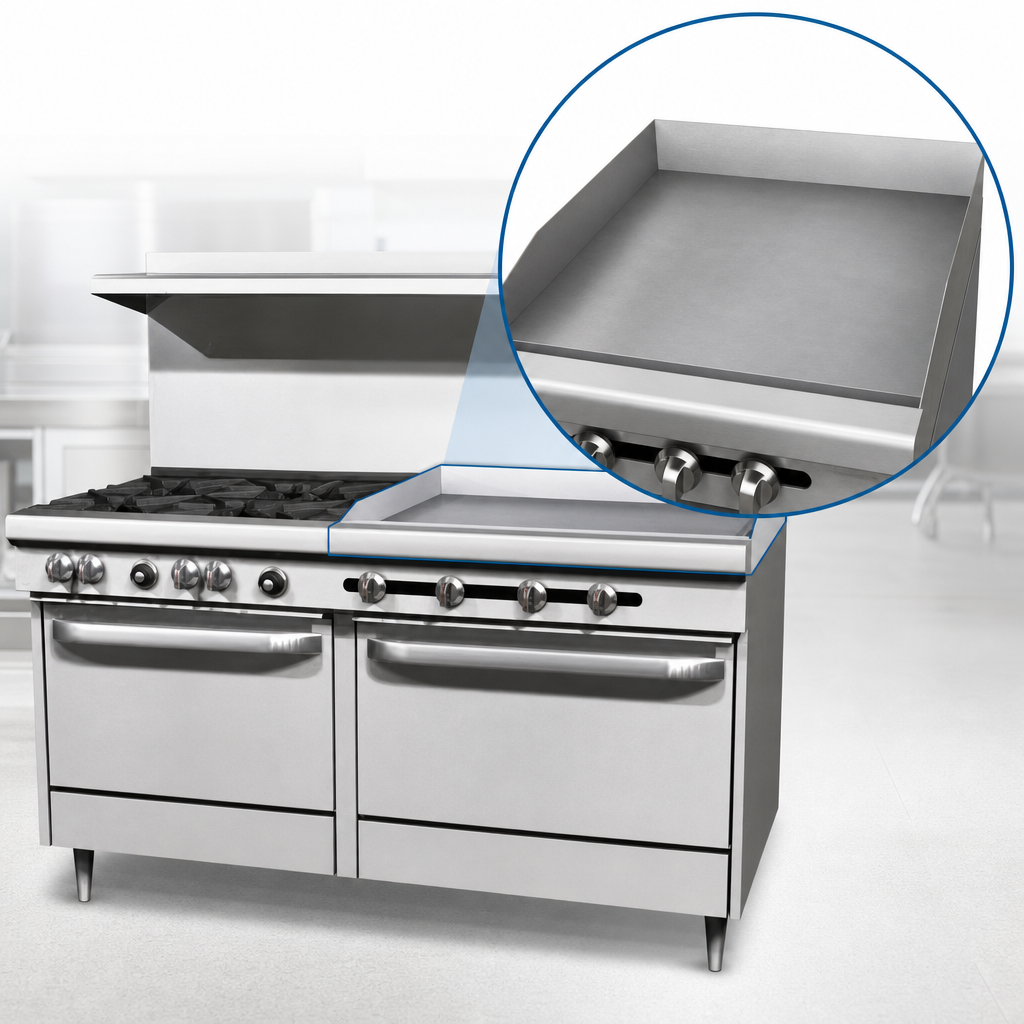

• Individually removable grate tops—rear grates handle stock pots up to 14" - 24" x 24" ½" polished steel griddle on the right side
• Manual control with three 16,000 BTU burners
• Raised splash sides and 4" stainless front rail keep the line clean -
Convection oven base (right-hand door)
• 35,000 BTU U-shaped burner, 175-550 °F snap-action thermostat
• ½ hp fan motor with on/off switch—use as a still oven when needed
• 5-position rack guides, ships with (2) chrome racks - Cabinet base on the left for sheet pans, skillets & dry storage (optional doors available)
- Dual full-width crumb drawers under the cooktop for fast cleanup
- Hinged lower valve panel & metal knobs with heat-safe red stripes for easy service
- Stainless steel front, sides, shelf & 22½" flue riser; 6" adjustable stainless legs
- Certified: cCSAus, CSA Flame & Star, NSF — meets commercial code requirements
- Backed by a 1-year parts & labor warranty from Southbend
At-a-Glance Specs
| Overall width | 60 ³⁄₄" / 1543 mm |
|---|---|
| Overall depth | 34" / 864 mm |
| Cook surface height | 36 ¹⁄₂" / 927 mm |
| Height w/ flue riser | 59 ¹⁄₂" / 1511 mm |
| Total BTU input | 251,000 BTU/hr (natural gas) |
| Gas connection | ¾" NPT rear, left- or right-hand (opposite griddle side) |
| Electrical (oven fan) | 115 V, 60 Hz, 1 ph, 5.9 A, 6-ft cord & NEMA 5-15P plug |
| Oven interior | 26" W × 24" D × 14" H (660 × 610 × 356 mm) |
| Shipping weight | Approx. 860 lb / 390 kg |
| Warranty | 1 year parts & labor (see warranty statement) |
Why Operators Love the S-Series
- Space maximizer – three cooking zones in one footprint save valuable line space.
- Service friendly – hinged valve panel, removable crumb trays, and individual grate tops make maintenance quick.
- Always in stock – S-Series is part of Southbend’s Quick-Ship program for faster delivery.
- Legendary durability – heavy-gauge stainless, rock-wool insulation, and cast-iron components stand up to years of abuse.
Maintain a minimum 10" clearance to combustible surfaces when the unit is installed on legs or casters.
Avoid placing oversized cookware (12"+ diameter) over the front rail to prevent heat damage.
Need a different base or griddle size? Ask about other S-Series configurations, quick-ship options, and Middleby financing programs.
