Southbend (Middleby) S60AA-4TR S-Series Gas Ranges
Description

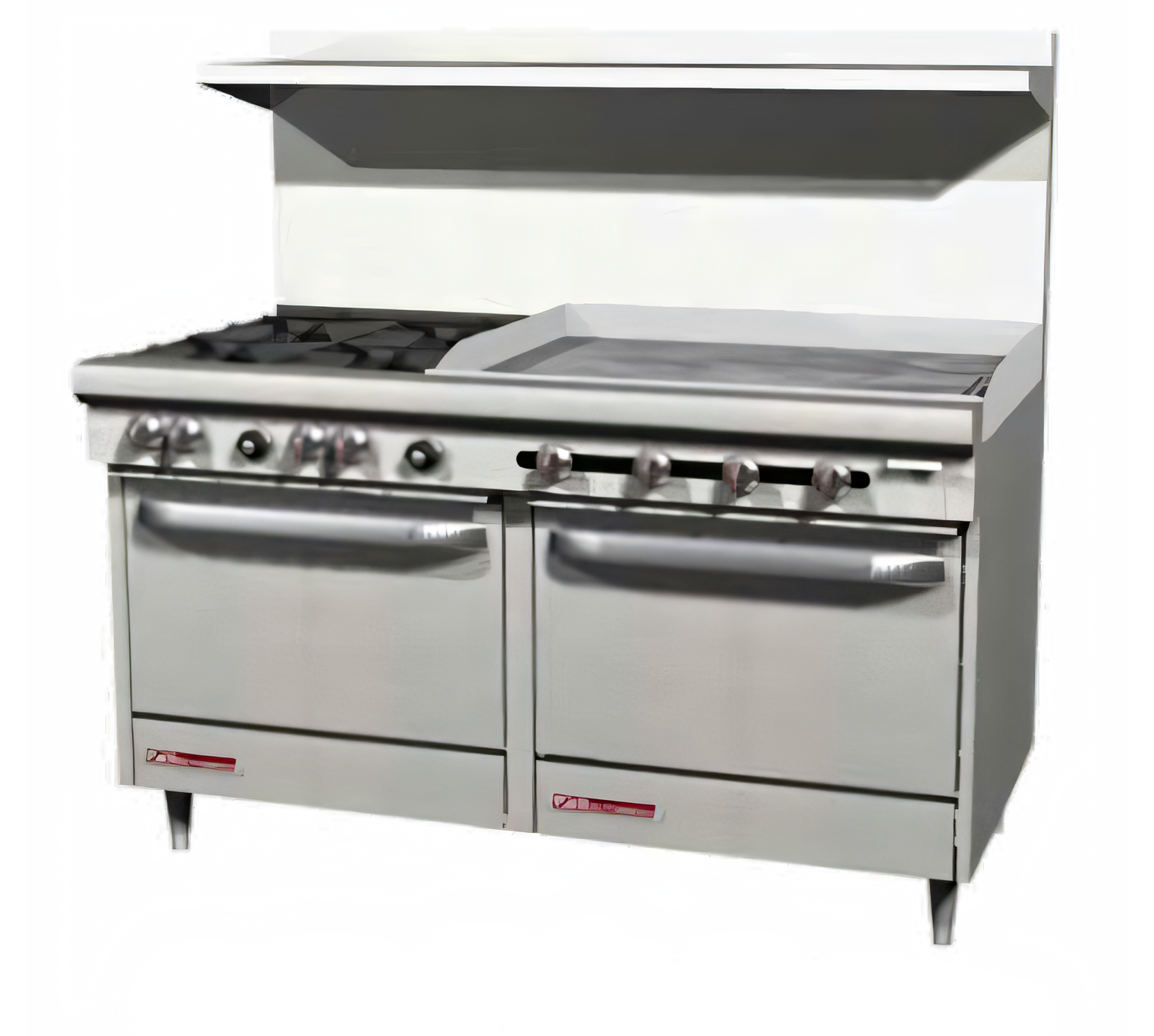

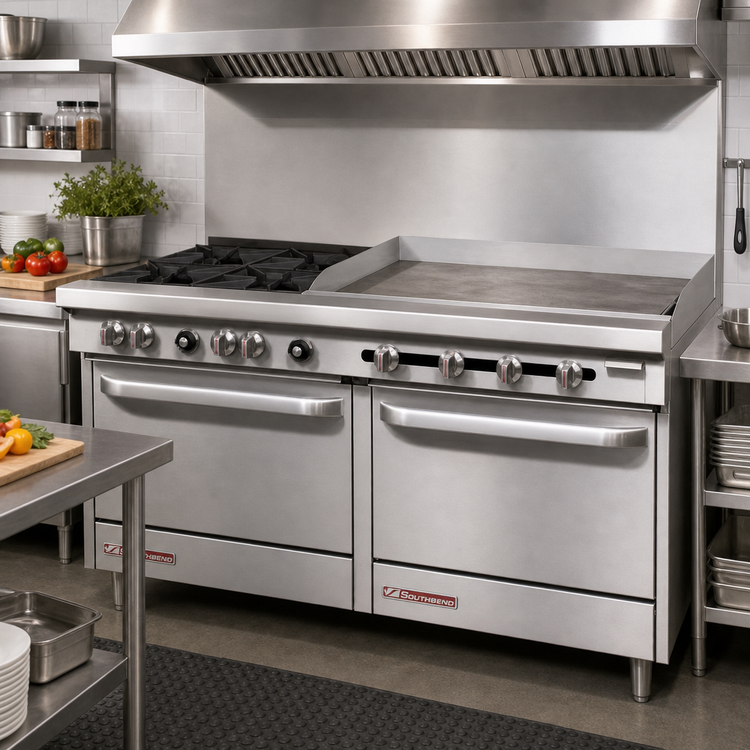

Southbend S-Series 60" Gas Range – 48" Thermostatic Griddle & Double Convection Ovens
Model S60AA-4G/T | 206,000 BTU | Right-Side GriddleBuilt for busy kitchens that demand versatility, the Southbend S-Series combines heavy-duty construction with chef-centric performance. Two open burners share the cooktop with a full 48 inch thermostatic griddle, while twin convection ovens below keep entrées, sides and desserts moving at high volume. All in a single, 60 inch footprint.
Why You’ll Love It
- 48" 1" thick polished steel griddle (right-hand) with snap-action thermostats for fast heat recovery and consistent surface temps.
- (2) 28,000 BTU cast-iron open burners up front—perfect for sauté pans and stock pots up to 14".

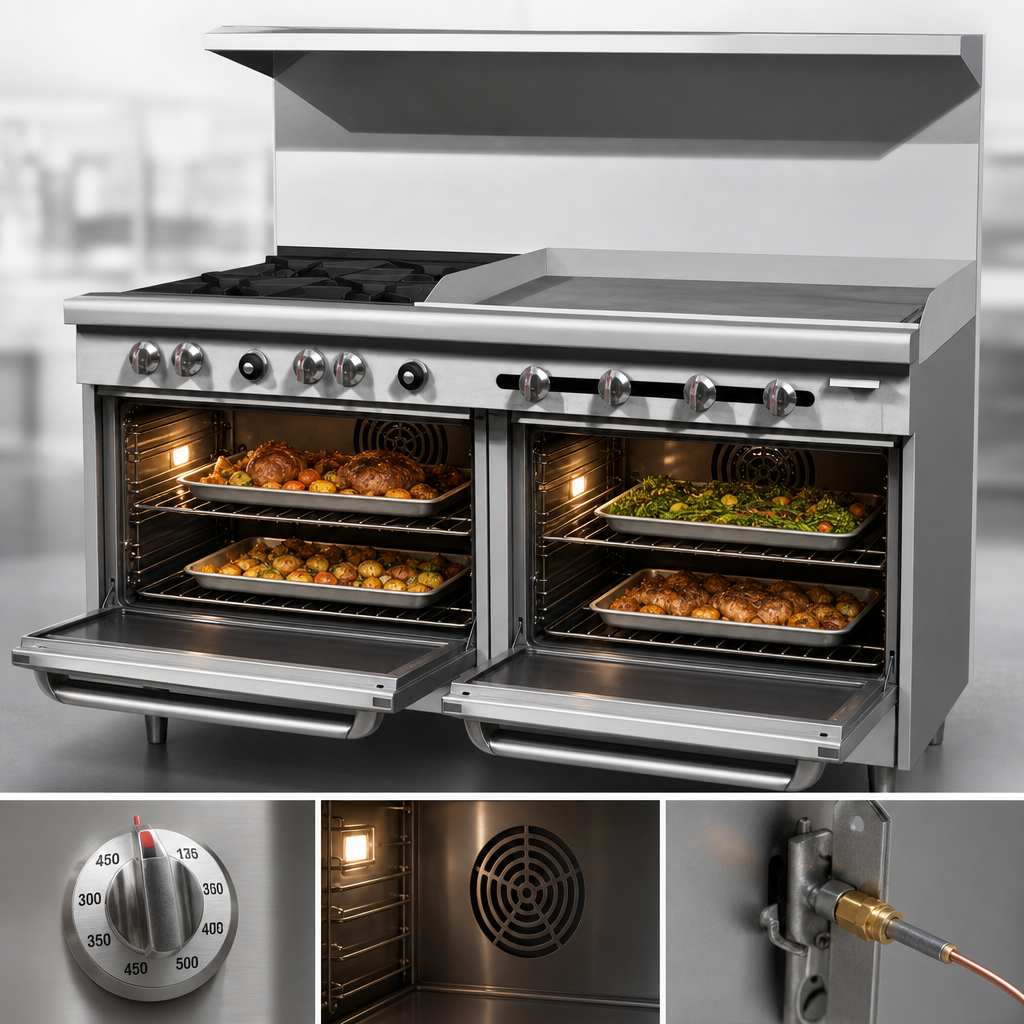

- (2) 35,000 BTU convection ovens with ½ hp fan motors, 5-position rack guides and (2) racks each.
- Removable cast-iron grates, dual crumb drawers and hinged valve panel speed up end-of-day cleaning.
- Stainless steel front, sides, landing-rail & high-back flue for a professional look that wipes down easily.
- 6" adjustable stainless legs level the range on uneven floors and meet health-code clearance.
- Certified CSA Flame, CSA Star, cCSAus & NSF for gas and sanitation compliance.
At-a-Glance Specs
| Cooktop Configuration | (2) 28,000 BTU open burners & 48" thermostatic griddle (right) |
|---|---|
| Overall Width | 60 3⁄4" (1543 mm) |
| Depth × Height | 41 3⁄4" × 59 1⁄2" to top of flue |
| Total Input | 206,000 BTU/hr – Natural or Propane (field convertible) |
| Oven Type / Capacity | Dual convection; 26" W × 24" D × 14" H each |
| Oven Temperature Range | 175 °F – 550 °F (snap-action thermostat) |
| Gas Connection | ¾" NPT, rear (opposite griddle side) |
| Electrical (convection fans) | 115 V, 1 Ø, 5.9 A, 6' cord & NEMA 5-15 plug |
| Crated Weight | ≈ 860 lb / 390 kg |
| Included | (4) oven racks, pressure regulator, crumb drawers, shelf above flue |
| Warranty | 1 year parts & labor (commercial use) |
Popular Factory Options
- Swivel casters (front locking)
- 3 ft–5 ft gas quick-disconnect & restraining device
- 10" flue riser or salamander/cheesemelter mounting brackets
- Extra oven racks
Oversized cookware (12" Ø+) should be kept to the rear burners to avoid overheating the front rail. Warranty void if unit is installed in non-commercial settings.
