Southbend (Middleby) S60AA-3TR S-Series Gas Ranges
Southbend (Middleby) S60AA-3TR S-Series Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) S60AA-3TR S-Series Gas Ranges
Description

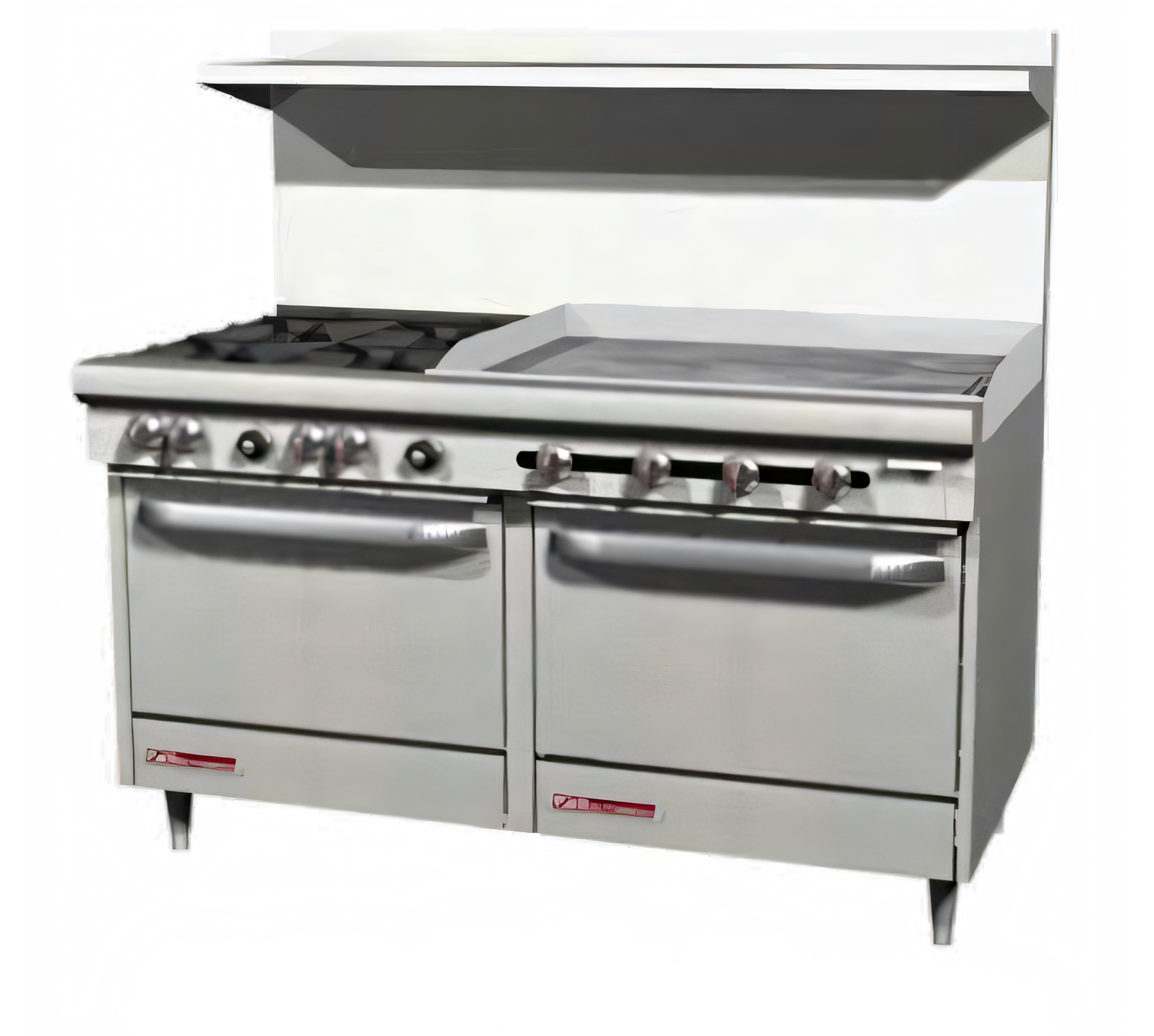

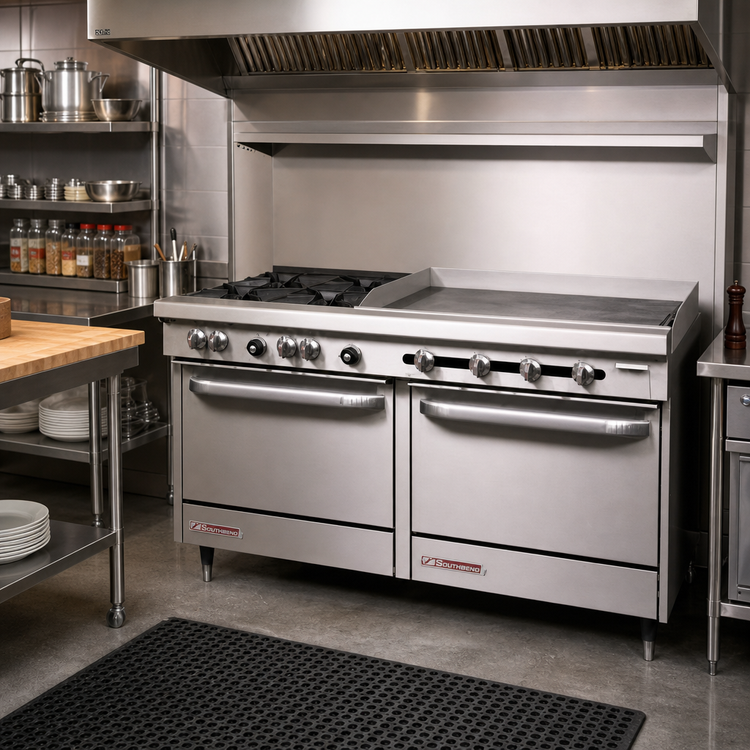

Southbend S-Series 60" Gas Restaurant Range
Model S60AA-3G/T — 4 Open Burners, 36" Thermostatic Griddle (Right), Dual Convection OvensPack maximum productivity into a single 60-inch footprint. With high-powered open burners, a spacious thermostatic griddle, and two full-size convection ovens, the Southbend S-Series lets your line handle sauté, grill, roast, bake and re-therm orders all day long without skipping a beat.
Why Operators Love It

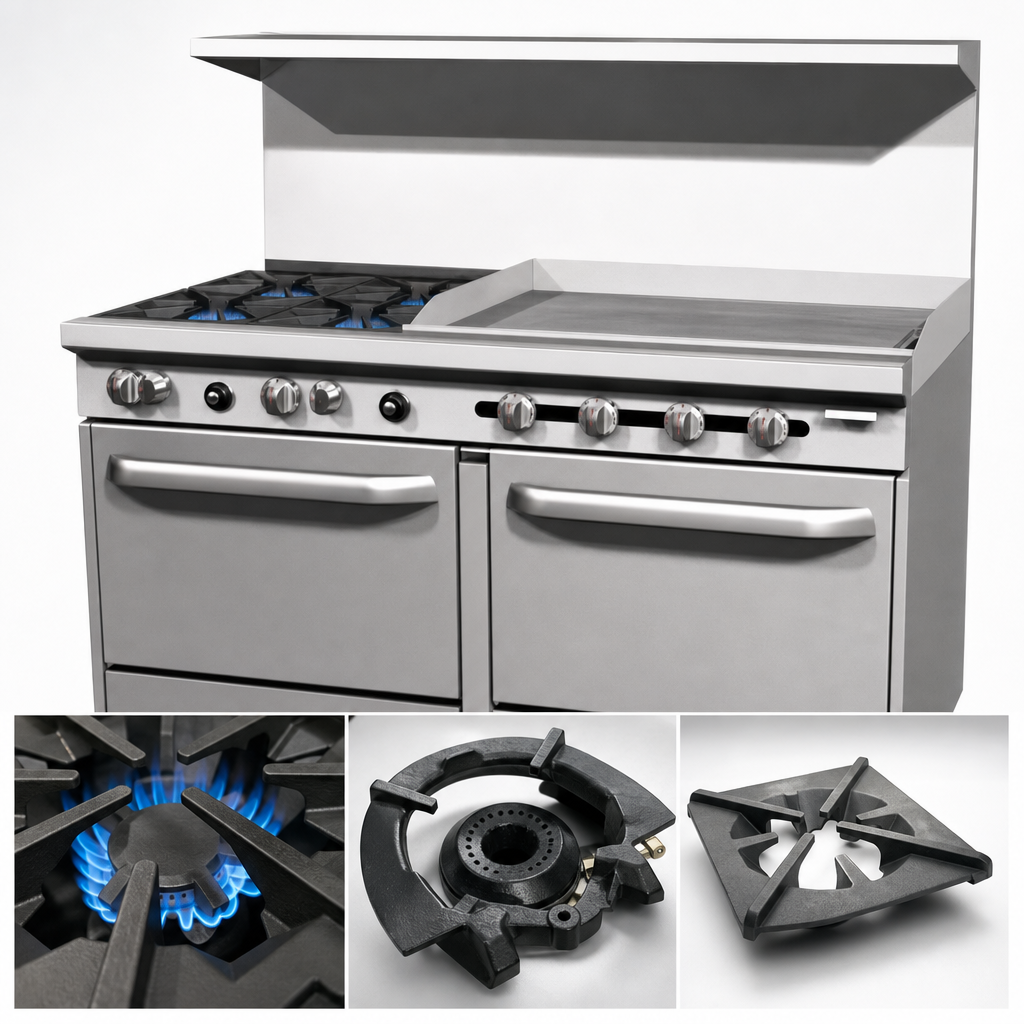

- 4 × 28,000 BTU open burners with lifetime-warranty, non-clog cast-iron heads.

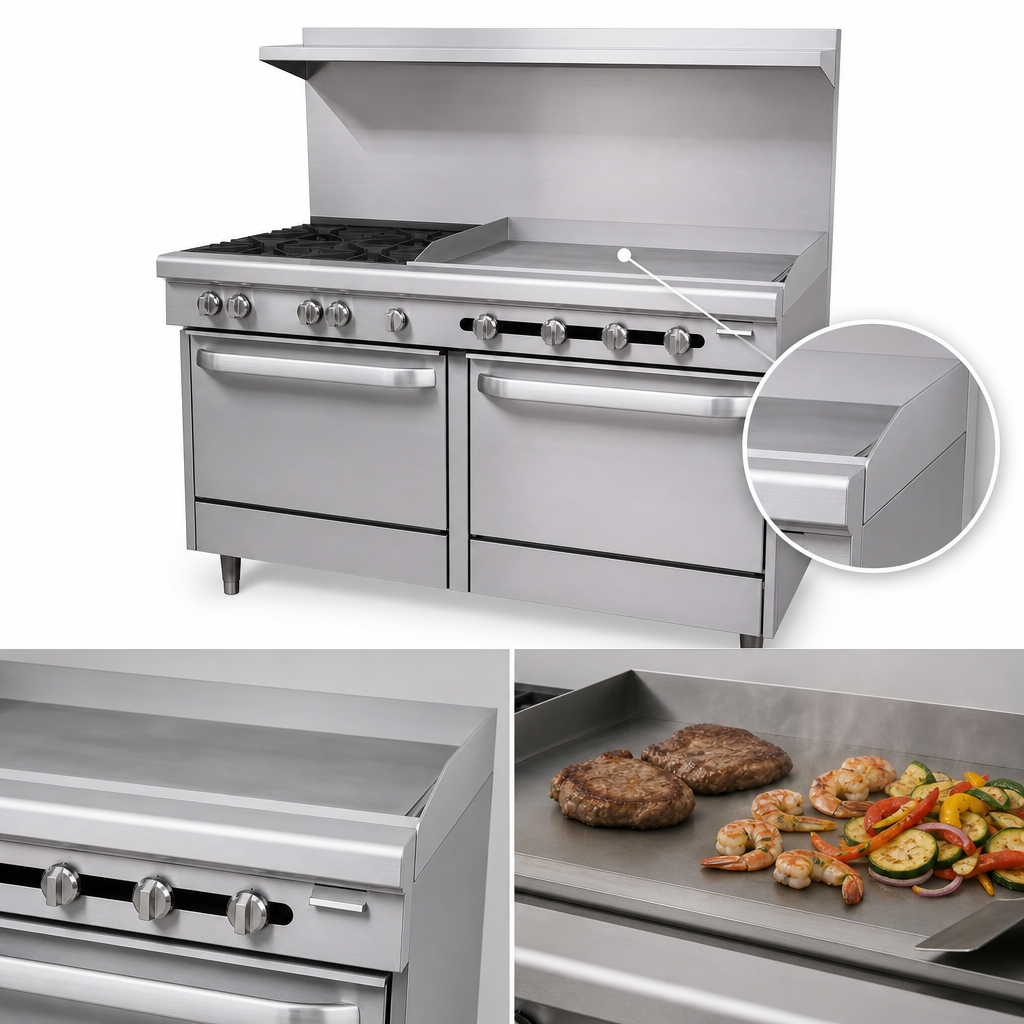

- 36" right-hand griddle — ½" polished steel plate with thermostatic controls and 4 × 16,000 BTU burners for precise zone cooking.
- Two 35,000 BTU convection ovens deliver fast, even baking; each includes 5-position rack guides and 2 racks.
- Snap-action thermostats (175 °F – 550 °F) for both ovens ensure consistent results without guesswork.
- Removable cast-iron grate tops hold stock pots up to 14" and lift out for sink-side cleaning.
- Dual one-piece crumb drawers keep food debris out of the burner box for cleaner, safer operation.
- Stainless steel front, sides, shelf and 4" front rail stand up to daily wear and tear and wipe down in seconds.
- 6" adjustable stainless legs level the range on uneven floors.
Performance Specs
| Overall width | 60.75" (1543 mm) |
|---|---|
| Overall depth | 41.75" (1060 mm) including 4" rail |
| Work surface height | 37" (940 mm) |
| Flue height | 59.5" (1511 mm) with shelf |
| Total input | 246,000 BTU/hr (natural gas) |
| Open burners | 4 × 28,000 BTU |
| Griddle burners | 4 × 16,000 BTU (½" plate) |
| Ovens | 2 × 35,000 BTU convection, snap-action thermostat |
| Gas connection | ¾" NPT rear, factory pressure regulator included |
| Electrical (fans) | 115 V / 1 ph / 60 Hz, 5.9 A, 6' cord & plug supplied |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (commercial use) |
Built for the Long Haul
- 22.5" stainless flue riser with integrated utensil shelf saves valuable wall space.
- Hinged lower valve panel provides fast service access without removing the range from the line.
- Metal control knobs with red stripes give cooks visual feedback even in low-light kitchens.
- Field-retrofit options available: casters, quick-disconnect hose, salamander or cheese-melter mounts, and more.
Looking for a different burner/griddle configuration? The S-Series line offers multiple cook-top layouts to match your exact menu needs — ask our team for details.
