Southbend (Middleby) S60AA-2TR S-Series Gas Ranges
Description

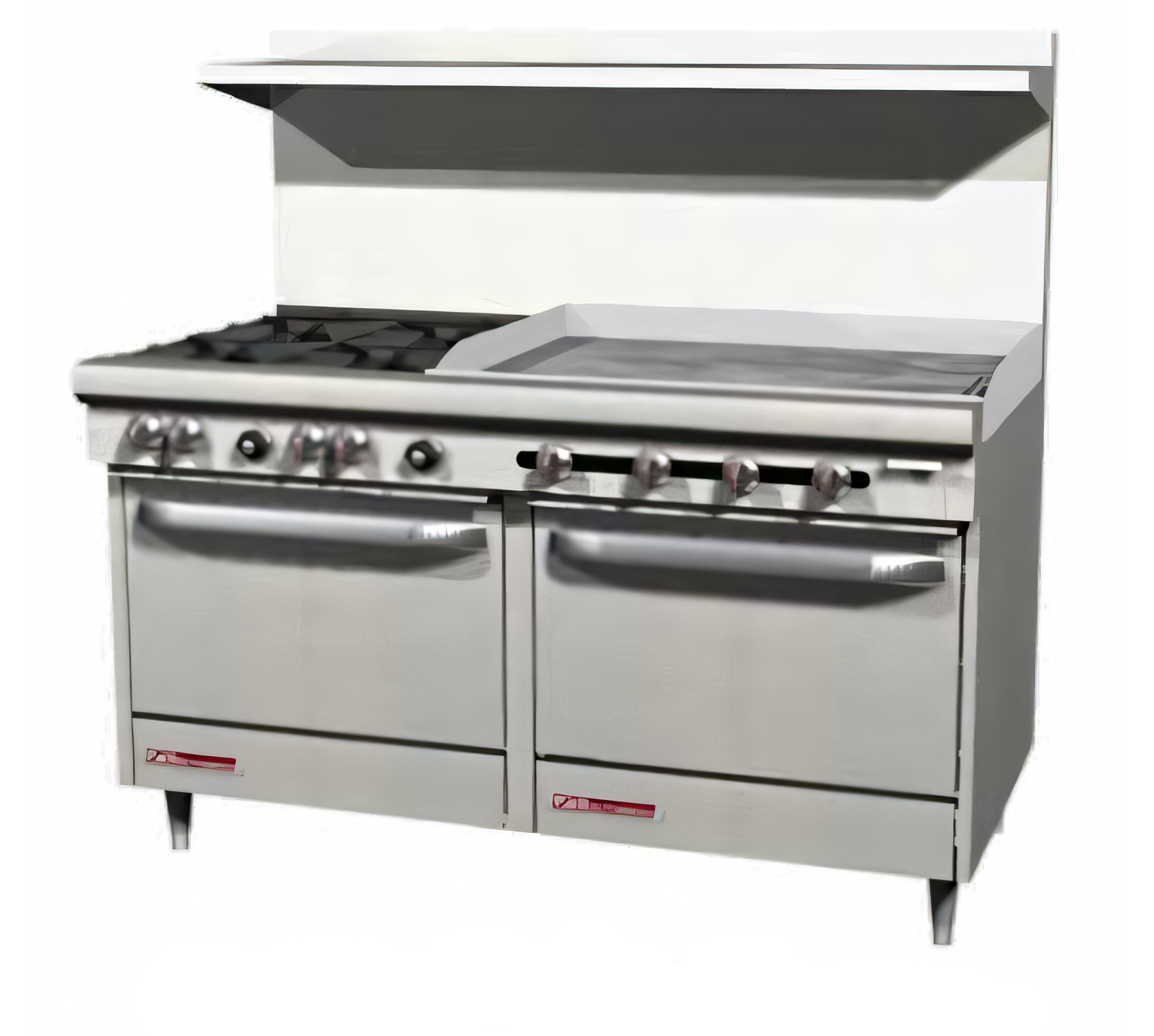

S-Series 60" Gas Restaurant Range | 6 Burners • 24" Thermostatic Griddle • 2 Convection Ovens
Southbend – Model S60AA-2G/T (right-side griddle)Built for high-volume kitchens that refuse to compromise, the Southbend S-Series combines heavy-duty construction, precise temperature control, and industry-leading burner performance into one space-saving workstation. From breakfast rush to banquets, this 286,000 BTU powerhouse keeps every menu item moving.
Why You’ll Love It

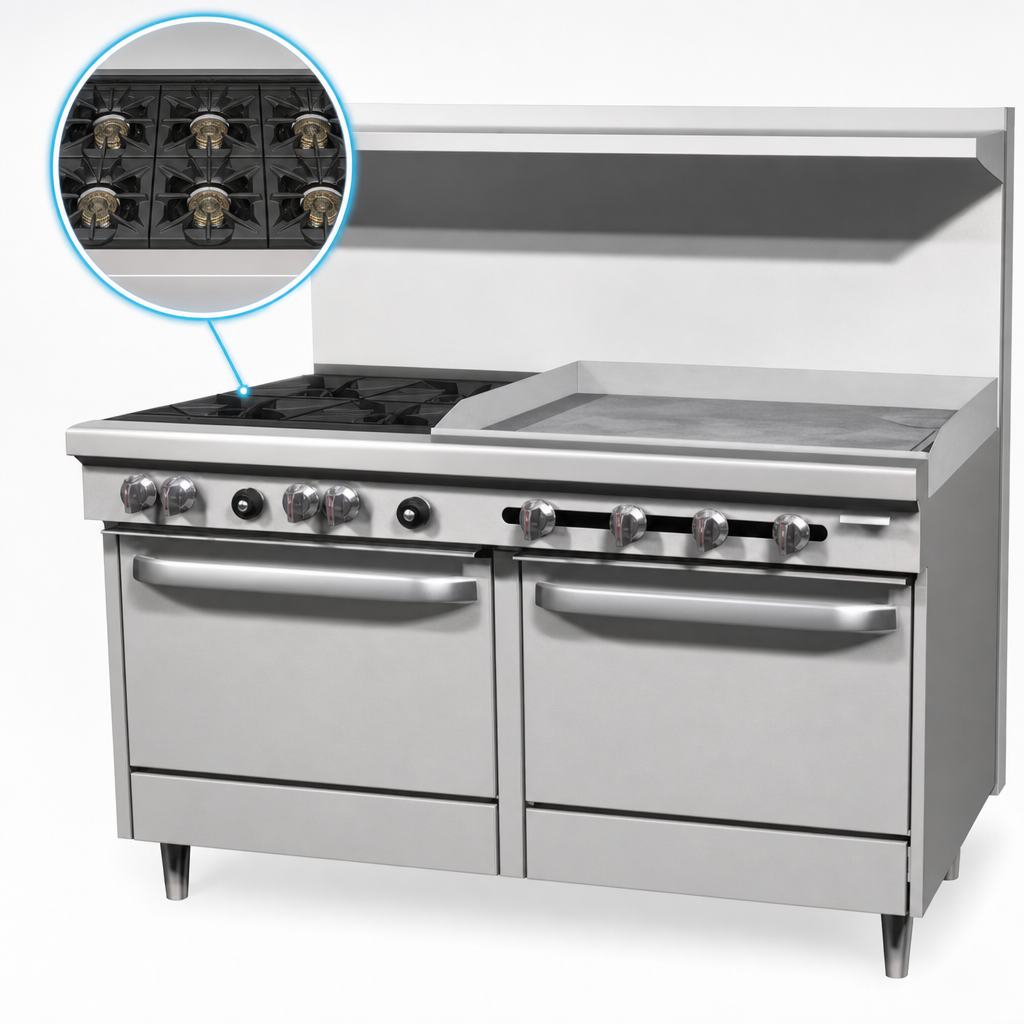

- Six 28,000 BTU non-clog cast-iron burners with a lifetime warranty.

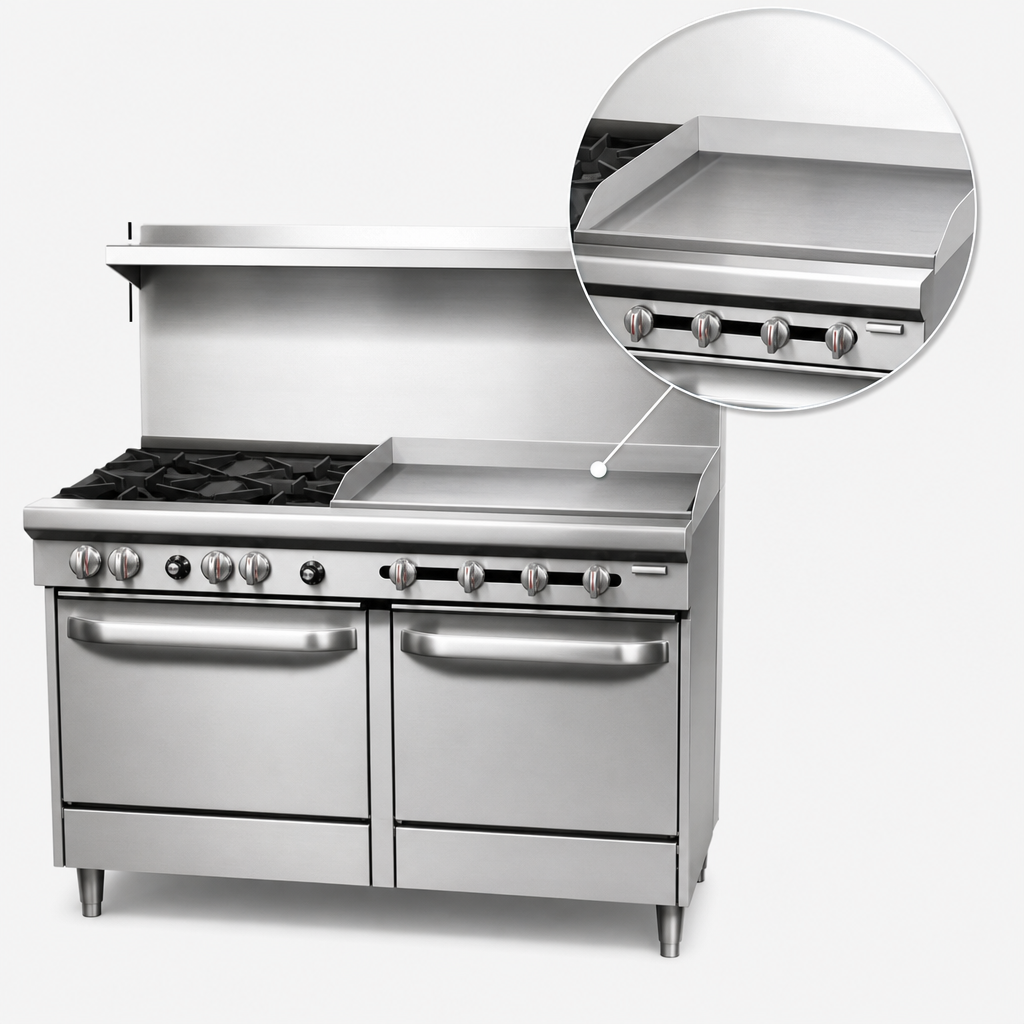

- 24" thermostatic griddle (right-side) with ½" polished steel plate for even heat across pancakes, proteins & paninis.
- Dual 35,000 BTU convection ovens with snap-action thermostats (175-550 °F) and ½ hp fan motors for faster, more consistent baking.
- Removable cast-iron grate tops handle stock pots up to 14" and lift out for easy cleaning.
- (2) one-piece crumb drawers, hinged lower valve panel, and quadrant-spring doors with cool-touch chrome handles streamline daily maintenance.
- Stainless steel front, sides, 22.5" flue-riser shelf, and 4" front rail stand up to the toughest line abuse.
- 6" stainless, adjustable legs for leveling on any surface; optional locking casters available.
- cCSAus, CSA Flame, CSA Star & NSF listed for gas safety and sanitation compliance.
Key Specifications
| Overall width | 60 3/4" / 1543 mm |
|---|---|
| Overall depth (incl. rail) | 41 3/4" / 1060 mm |
| Work height | 37" / 940 mm to cook surface |
| Flue height | 59 1/2" / 1511 mm |
| Total input | 286,000 BTU/hr (Natural gas) |
| Gas connection | ¾" NPT rear (natural 7" W.C. / propane 11" W.C.) |
| Electrical (ovens) | 115 V, 60 Hz, 1-ph, 5.9 A, 6' cord & plug |
| Oven interior (each) | 26" W × 24" D × 14" H with 5-position rack guides |
| Included oven racks | 2 per oven (4 total) |
| Griddle plate | 24" W × 27" D, ½" thick polished steel, 3×16 k BTU burners |
| Approx. shipping weight | ≈ 860 lb / 390 kg |
| Warranty | 1-year parts & labor (burners lifetime casting warranty) |
What’s Included
- (6) individual cast-iron grate tops
- (4) heavy-duty oven racks
- 22.5" stainless flue riser with single shelf
- Factory-installed gas pressure regulator
- Installation & operation manual
Allow 10" side clearance from combustible walls. Install beneath a vented hood and connect to ¾" gas line of equal or greater diameter. If casters are added, a restraining device must be used.
