Southbend (Middleby) S60AA-2GR S-Series Gas Ranges
Southbend (Middleby) S60AA-2GR S-Series Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) S60AA-2GR S-Series Gas Ranges
Description

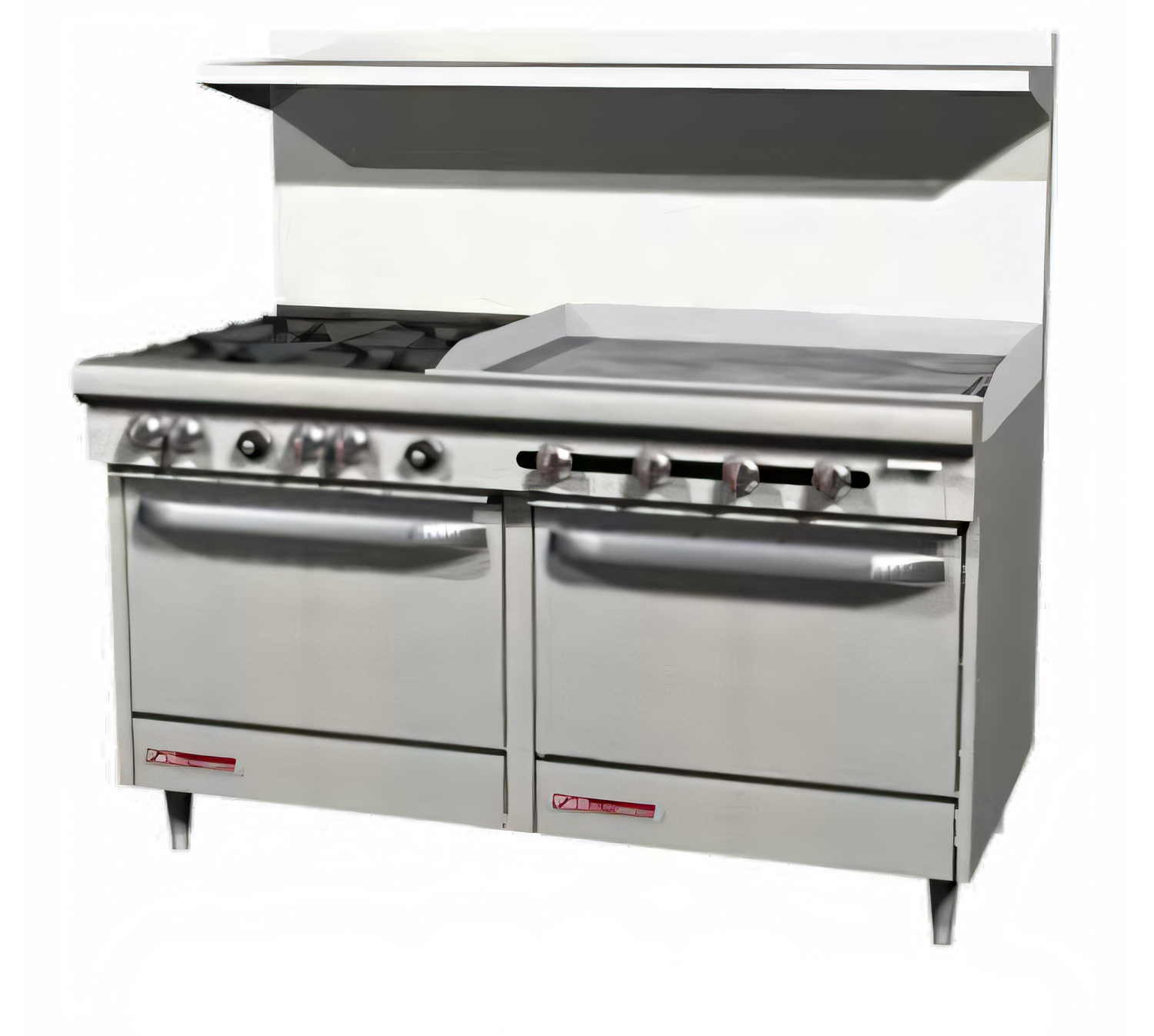

Southbend S-Series 60" Gas Restaurant Range – Model S60AA-2G
(6) 28,000 BTU Open Burners • 24" Right-Side Griddle • Dual Convection Ovens)Pack more productivity into a single footprint. The Southbend S-Series S60AA-2G pairs six high-performance open burners with a versatile 24-inch griddle and two powerful convection ovens—giving chefs the freedom to sauté, sear, griddle and bake all at once. Heavy-duty stainless construction, lifetime-warranted burners and smart, easy-clean details make this range a workhorse you can count on for years of hard service.
Key Features

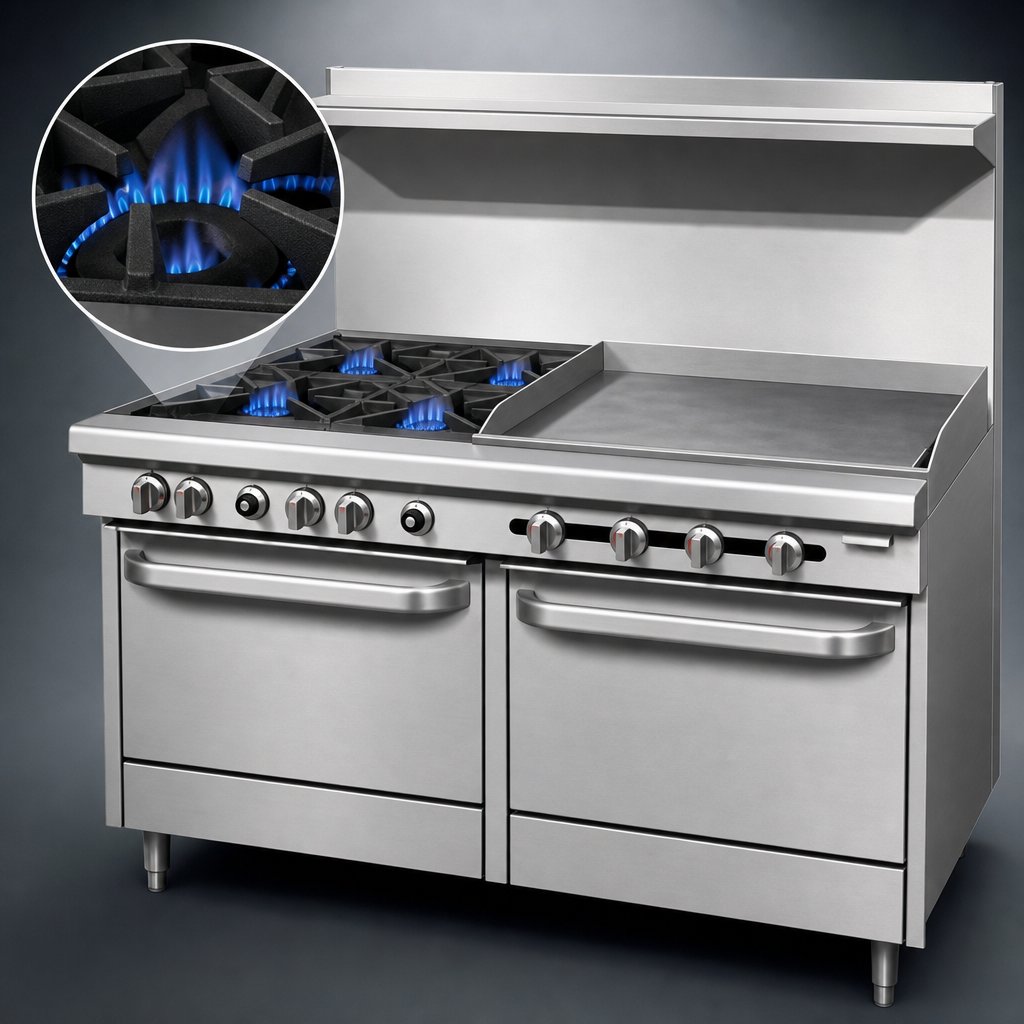

- Six PATENTED 28,000 BTU cast-iron non-clog burners (lifetime warranty)

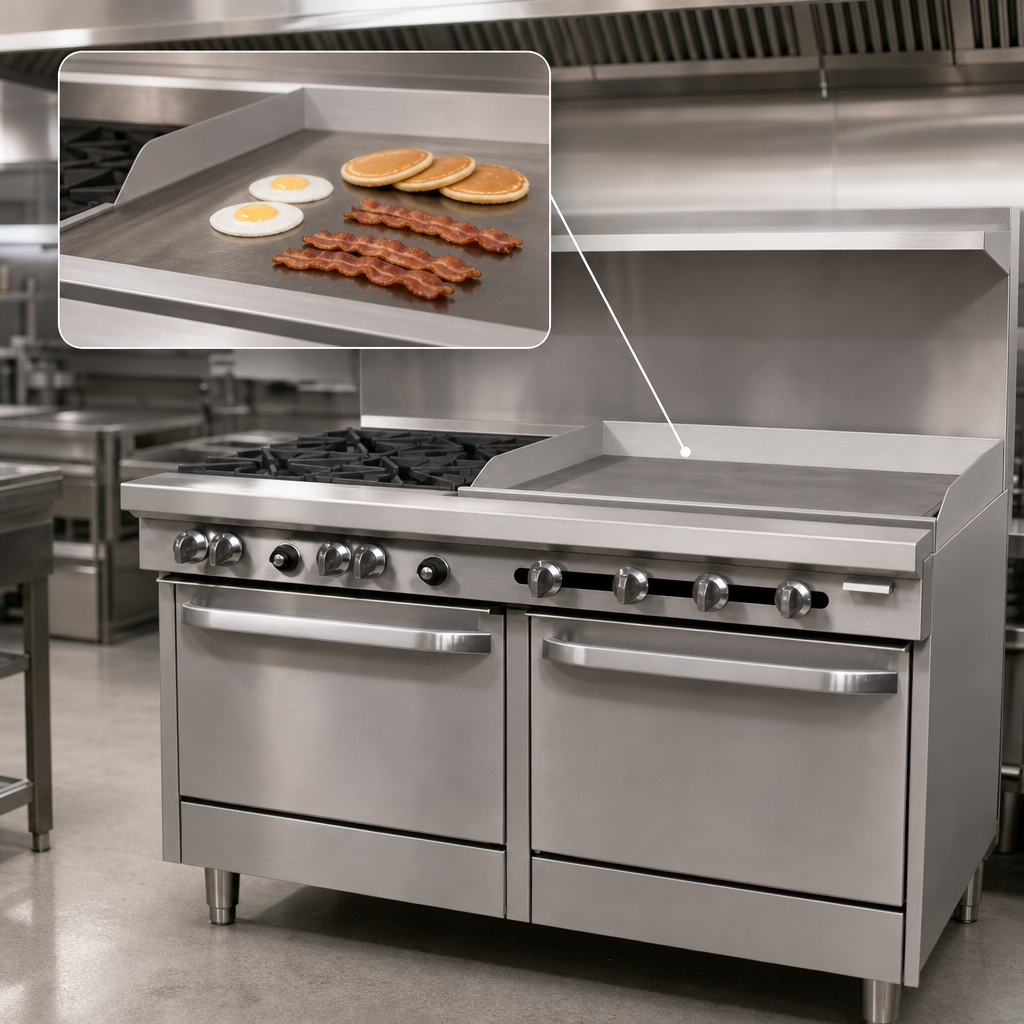

- 24" smooth, ½"-thick polished steel griddle (right side) heated by three 16,000 BTU burners – manual controls for instant response
- Two 35,000 BTU convection ovens with snap-action thermostats (175 °F–550 °F)
- ½ HP fan motors with on/off switches—each oven can be used as a standard oven when the fan is off
- Removable cast-iron top grates (rear grate holds up to a 14" stock pot)
- Dual full-width crumb drawers and hinged lower valve panel speed daily clean-up
- Stainless steel front, sides, 4" front rail (closed end caps) and single-deck rear shelf / flue riser
- 6" stainless steel adjustable legs for secure, level installation
- Factory-installed ¾" pressure regulator & rear gas connection
- Certified cCSAus, CSA Flame, CSA Star and NSF
What’s Included
- (2) nickel-plated racks per oven (5-position guides)
- (2) removable crumb drawers
- Stainless steel flue riser with shelf
- User, installation & warranty documentation
Performance At A Glance
| Total Input | 286,000 BTU/hr (Natural or LP) |
|---|---|
| Open Burners | (6) × 28,000 BTU |
| Griddle Burners | (3) × 16,000 BTU — manual |
| Convection Ovens | (2) × 35,000 BTU — 175 °F–550 °F |
| Electrical | 115 V / 60 Hz / 1-ph, 5.9 A total, 6' cord with NEMA 5-15P plug (fans only) |
| Gas Connection | ¾" NPT rear (opposite side of griddle) |
Dimensions & Capacities
| Overall Width | 60-3/4" (1543 mm) |
|---|---|
| Overall Depth | 41-3/4" (1060 mm) – with 4" rail |
| Height to Cook Surface | 36" (914 mm) – adjustable |
| Height with Flue | 57-1/2" (1461 mm) |
| Oven Interior (each) | 26"W × 24"D × 14"H (660 × 610 × 356 mm) |
| Shipping Weight | Approx. 860 lb (390 kg) |
Why Choose the S-Series?
- Legendary Southbend build quality backed by a 1-year parts & labor warranty
- Heavy, self-supporting rock-wool insulation maximizes heat retention and energy efficiency
- Chrome, spring-balanced oven doors for effortless operation
- Metal control knobs with red indicator stripe stand up to daily wear
- Accepts a full line of Southbend salamanders, cheesemelters, casters and quick-disconnect kits
Looking for flexible payments? Ask about Middleby Equipment Financing and turn your new range into easy monthly installments.
