Southbend (Middleby) S48EE S-Series Gas Ranges
$7,806.00
Unit price
/
Unavailable
Description

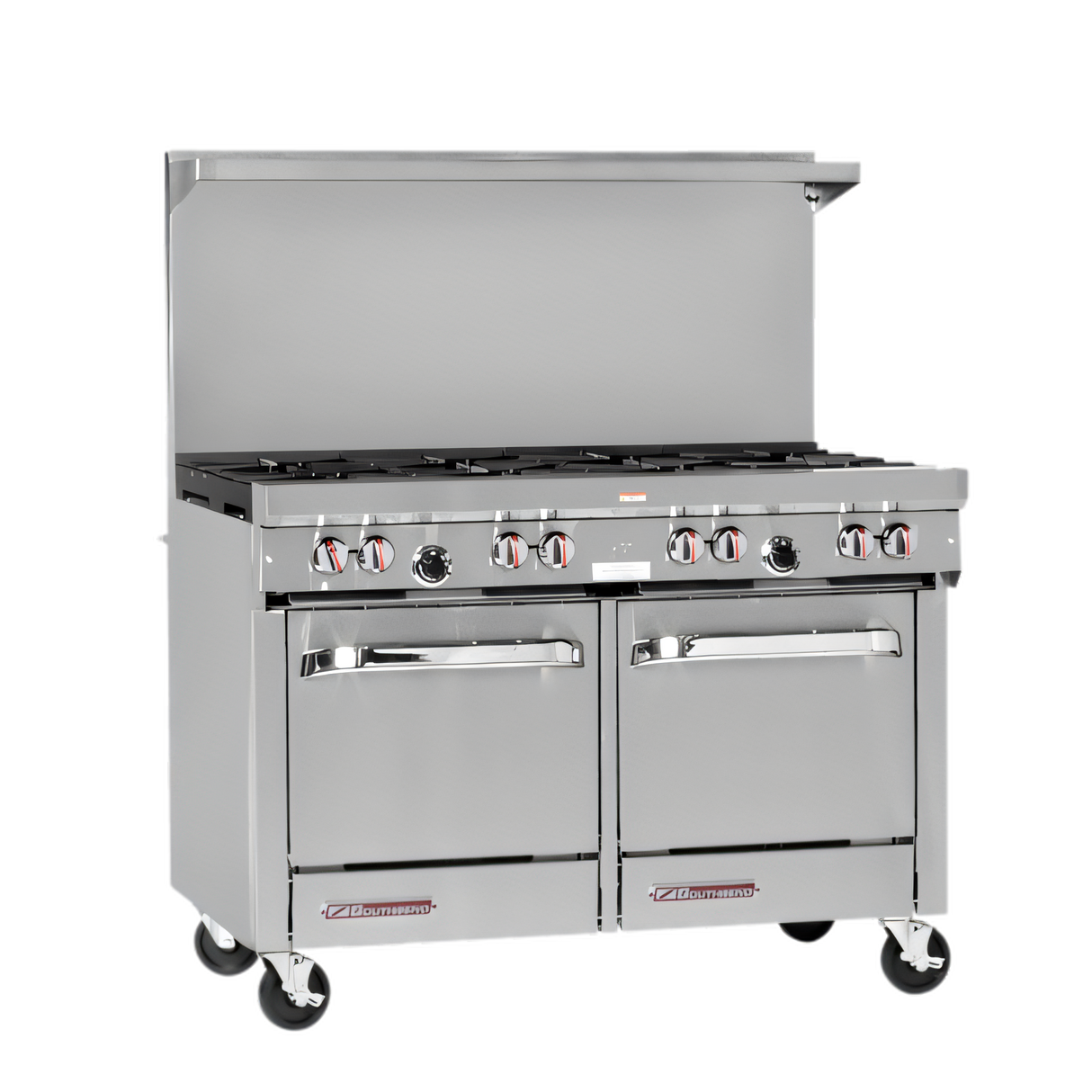

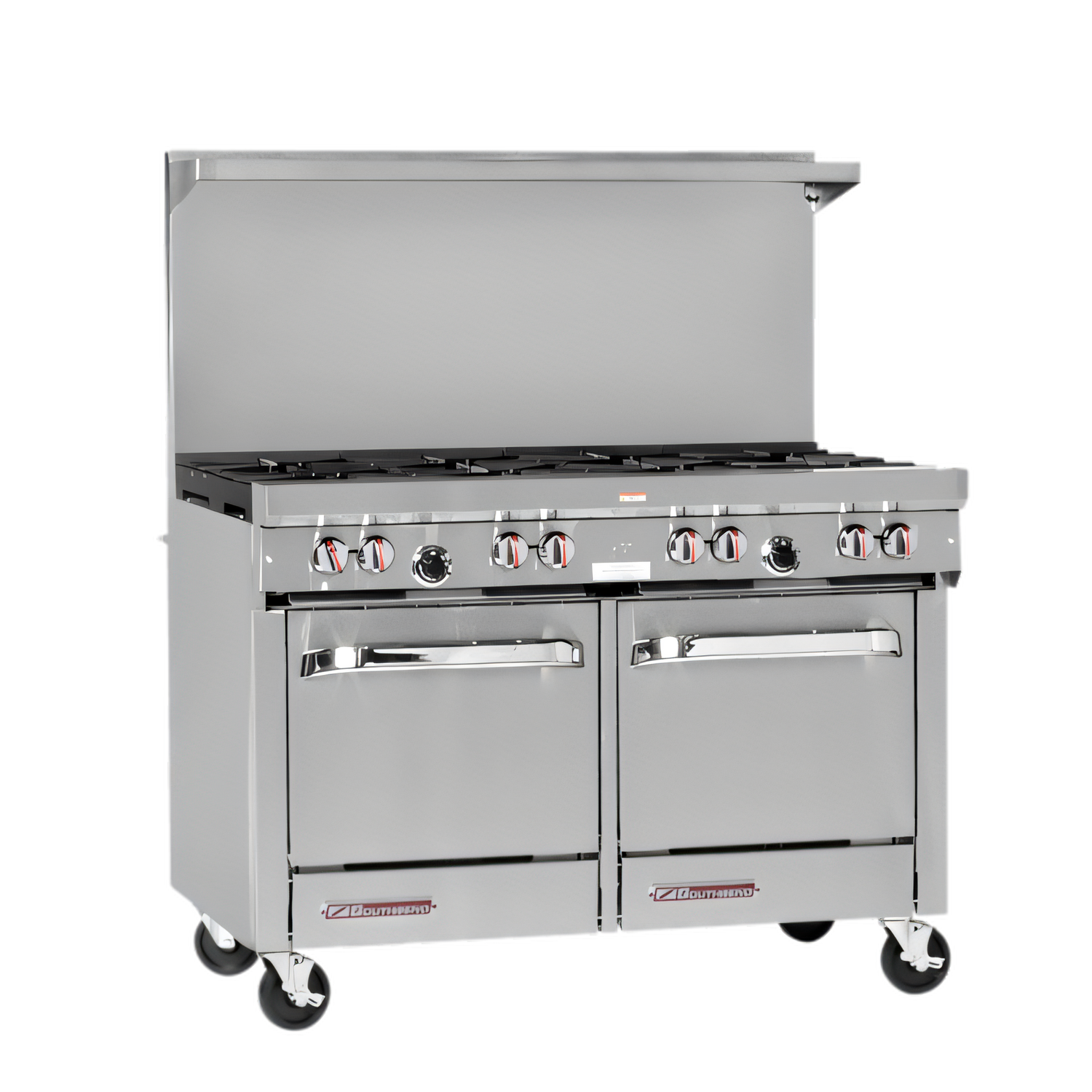

Southbend S-Series S48EE 48" Gas Restaurant Range
8 Open Burners • 2 Space-Saver Ovens • 294,000 BTUEngineered for high-volume kitchens, the Southbend S-Series S48EE pairs eight powerful open burners with two independent space-saver ovens—delivering unmatched versatility in a single 48" footprint.
Key Features

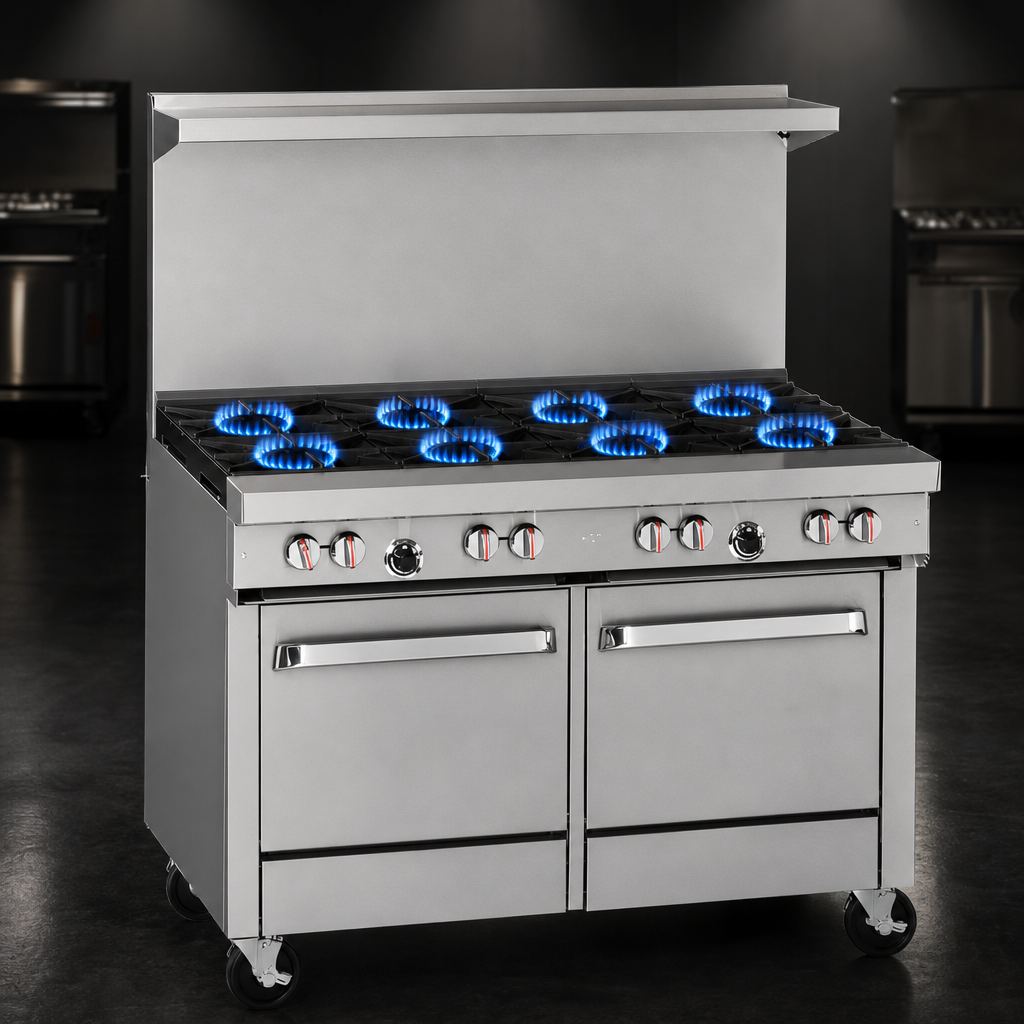

- Eight 28,000 BTU patented, non-clog cast-iron burners (lifetime warranty).

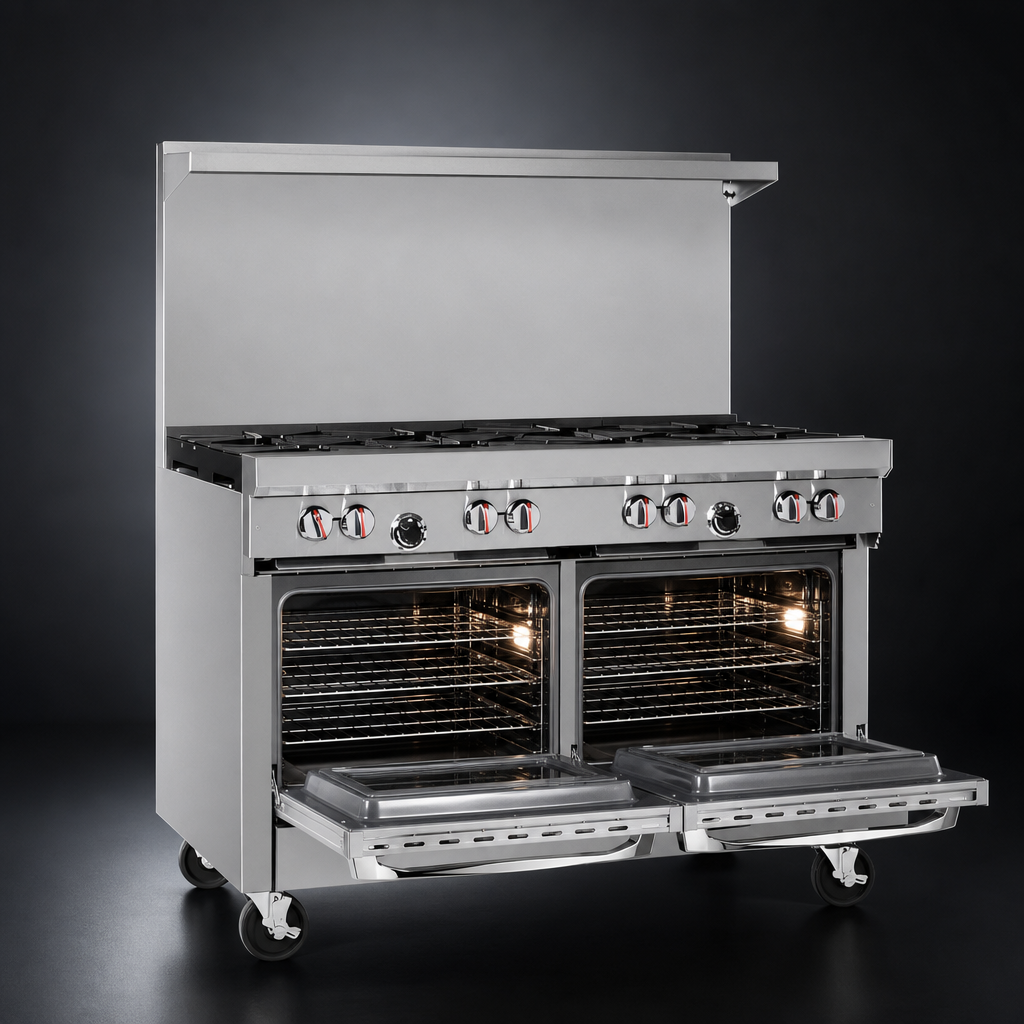

- Two 35,000 BTU space-saver ovens with snap-action thermostats (175 °F – 550 °F).
- Heavy-duty U-shaped oven burners with flame-failure safety devices.
- Eight removable cast-iron grates—rear positions accommodate up to a 14" stock pot.
- Dual removable crumb drawers for fast, no-mess clean-up.
- Stainless-steel front, sides, 22.5" flue-riser shelf & 4" front rail with welded end caps.
- Ergonomic metal control knobs (red stripe) & hinged lower valve panel for easy service.
- Quadrant-spring oven doors with chrome handles stay where you set them.
- 6" adjustable stainless legs (optional locking casters available).
- Built to CSA & NSF standards for commercial use.
At-a-Glance Specs
| Model | S48EE (S-Series) |
|---|---|
| Total Input | 294,000 BTU/hr (Natural Gas) |
| Open Burners | 8 × 28,000 BTU |
| Ovens | 2 × 35,000 BTU space-saver, 175 °F – 550 °F |
| Exterior (W × D × H) | 48.63" × 34" × 59.5" (to top of flue) |
| Work Height | 37" |
| Oven Interior (each) | 19.5" W × 26.5" D × 14" H |
| Racks Supplied | 1 chrome rack per oven (2 total) |
| Gas Connection | 3/4" NPT (rear), min. 7" W.C. NAT / 11" W.C. LP |
| Clearance to Combustibles | 10" sides & rear (with legs/casters) |
| Shipping Weight | ≈ 860 lb |
| Certifications | CSA, NSF |
What’s Included
- (8) lift-off cast-iron grate tops
- (2) removable crumb drawers
- (2) chrome oven racks
- Factory-installed gas pressure regulator
- 6" stainless adjustable legs
Popular Options (sold separately)
- All-swivel casters with front locks
- 10" flue riser
- Extra oven racks
- Restraining device or quick-disconnect gas hose (3 – 5 ft)
- Salamander or cheesemelter mounts
- Auxiliary griddle plates
Warranty
- 1-year parts & labor on complete unit
- Lifetime warranty on non-clog cast-iron top burners
Important: For commercial use only. Install under a properly sized vent hood and
follow all local codes. If installing on non-quarry tile flooring, contact Southbend for approved
mounting solutions.
Need help with financing? Ask us about flexible monthly payment plans through Middleby Equipment Financing.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
S-Series
Certifications
NSF, CSA
Height
59.5in
Width
48.63in
Depth
34.0in
Shipping Weight
860.0lbs
Exterior Finish
stainless steel front & sides
Top
(8) open burners
Vent
backriser with hi-shelf
Base
(2) standard / space saver ovens
Specifications
S-Series Restaurant Range, gas, 48", (8) 28,000 BTU open burners, (2) space saver ovens, snap action thermostat, (8) removable cast iron grate tops & (2) crumb drawers, hinged lower valve panel, includes (1) rack per oven, stainless steel front, sides, removable shelf, 4" front rail & 6" adjustable legs, 294,000 BTU, CSA, NSF
