Southbend (Middleby) S48EE-3TR S-Series Gas Ranges
Description

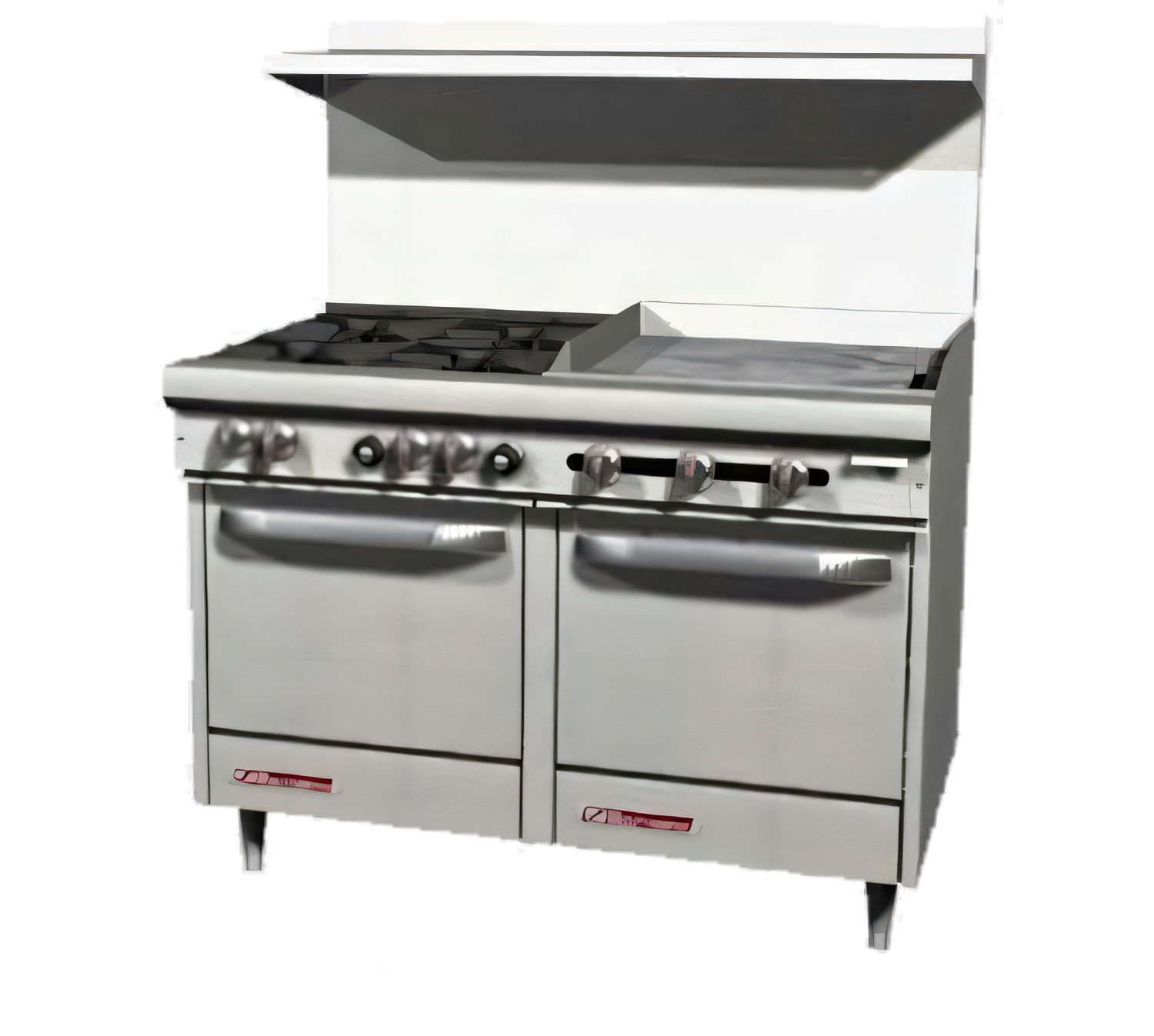

S-Series 48" Gas Restaurant Range – 2 Burners, 36" Thermostatic Griddle & Dual Space-Saver Ovens
Southbend Model S48EE-3TR • 190,000 BTU (Natural Gas)Built for line-busy restaurants that refuse to compromise on performance or footprint, this S-Series range unites turbo-charged open burners, a full-size 36" griddle and two independent space-saver ovens in only 48 ⅝" of width. Heavy-duty stainless construction, service-friendly design and industry-leading warranties make it a long-term workhorse for any commercial kitchen.
Why You’ll Love It

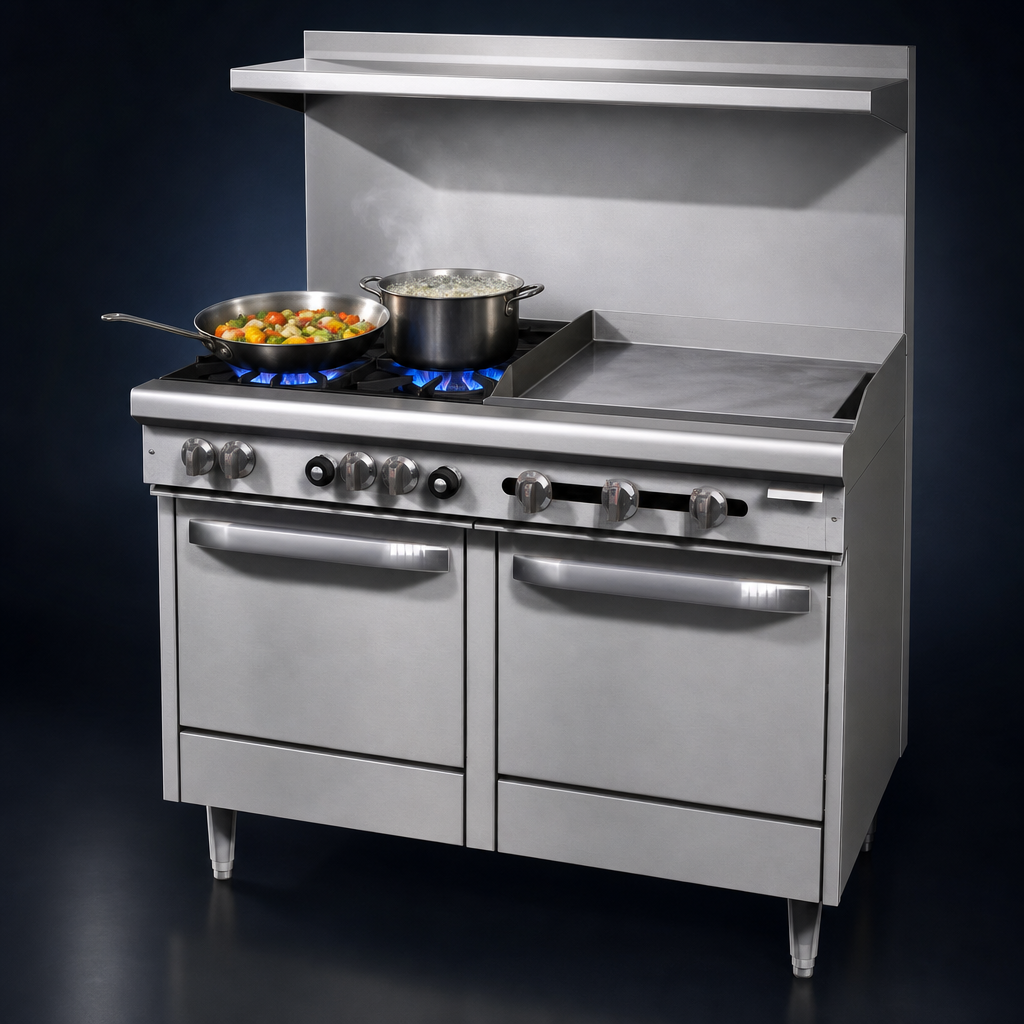

- 2 open burners – 28,000 BTU each: patented, one-piece cast-iron heads (lifetime warranted) with individual lift-off grates for fast cleaning.

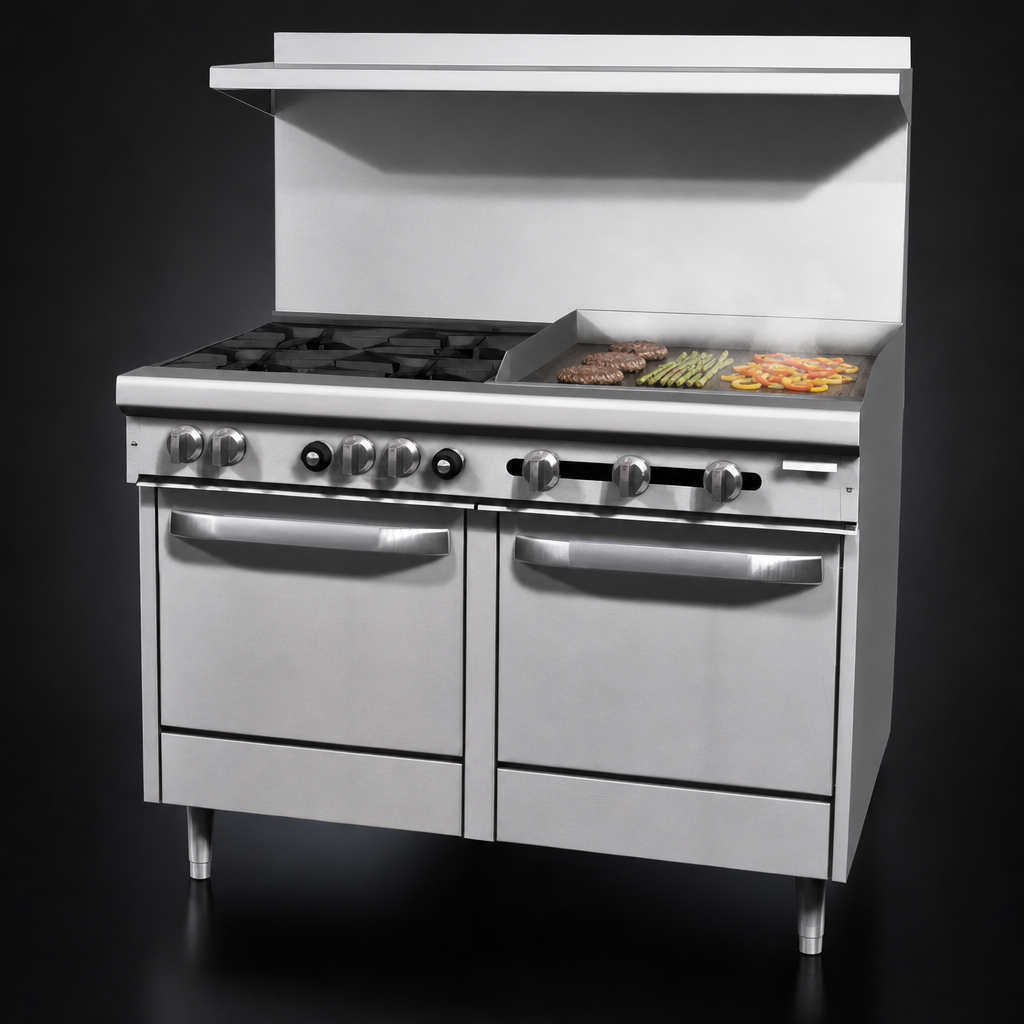

- 36" thermostatic griddle (right-side): ½" polished steel plate with four 16,000 BTU burners for even edge-to-edge heat and precise searing from 175 °F-550 °F.
- Dual 35,000 BTU space-saver ovens: snap-action thermostats (175 °F-550 °F), U-shaped burners, flame-failure safety and one rack per cavity.
- Clean-in-seconds design: two one-piece crumb drawers, removable cast-iron tops and hinged lower valve panel for tool-free service access.
- Operator-friendly build: metal control knobs with red stripe, quadrant-spring doors, 4" deep front rail and a 22.5" stainless flue riser/removable shelf for pan storage.
- Rock-solid chassis: stainless front, sides & shelf, plus 6" adjustable stainless legs (optional casters available).
- Certified & warrantied: cCSAus, CSA Flame, CSA Star and NSF listed; backed by a 1-year parts & labour warranty.
Technical Specifications
| Exterior width | 48 ⅝" / 1,235 mm |
|---|---|
| Exterior depth | 34" / 864 mm |
| Cooking height (to grates) | 37" / 940 mm |
| Overall height (to flue shelf) | 59 ½" / 1,511 mm |
| Total BTU | 190,000 BTU (Natural) • 182,000 BTU (LP) |
| Open burners | 2 × 28,000 BTU (Natural) | 24,000 BTU (LP) |
| Griddle plate | 36" W × 21" D, ½" thick polished steel, 4 × 16,000 BTU burners |
| Ovens | 2 × 35,000 BTU space-saver, snap-action 175 °F-550 °F |
| Oven cavity (each) | 19 ½" W × 26 ½" D × 14" H (495 × 673 × 356 mm) |
| Rack positions / racks shipped | 2 positions / 1 rack per oven |
| Gas connection | ¾" rear male NPT (regulator factory-installed) |
| Minimum inlet pressure | 7" W.C. Natural • 11" W.C. LP |
| Clearances – combustible | 10" sides & rear with legs/casters |
| Shipping weight | ≈ 860 lb / 390 kg |
Conversion to LP gas available at time of order.
Optional accessories: all-swivel locking casters, extra oven racks, 10" flue riser, quick-disconnect hose, salamander or cheesemelter mount.
Included Warranty
Southbend covers this range for 1 year parts & labour when installed by an authorized technician within the United States & Canada.
