Southbend (Middleby)  |  S-Series  |  SKU: S48EE-3GR

Southbend (Middleby) S48EE-3GR S-Series Gas Ranges

$9,455.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

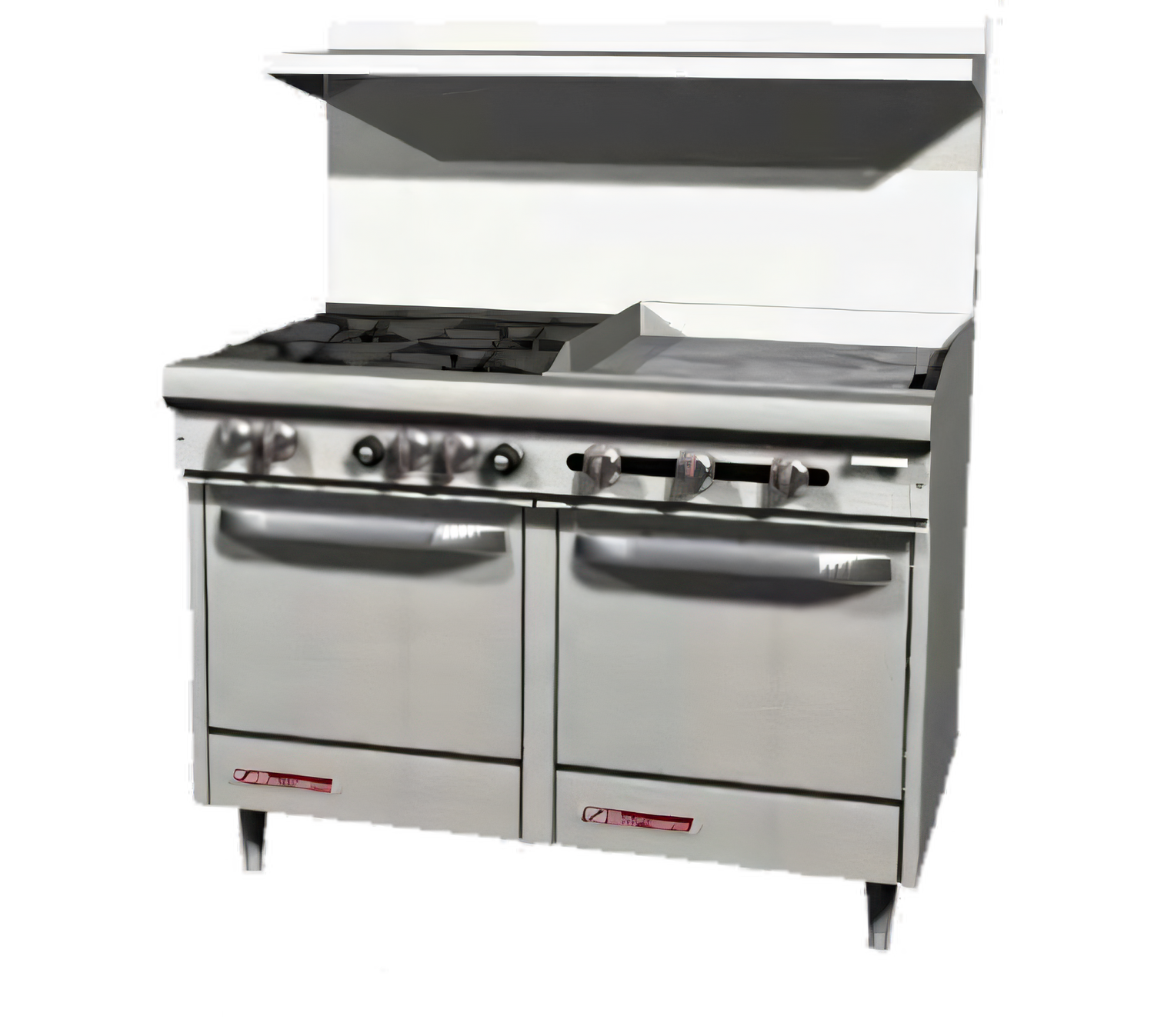

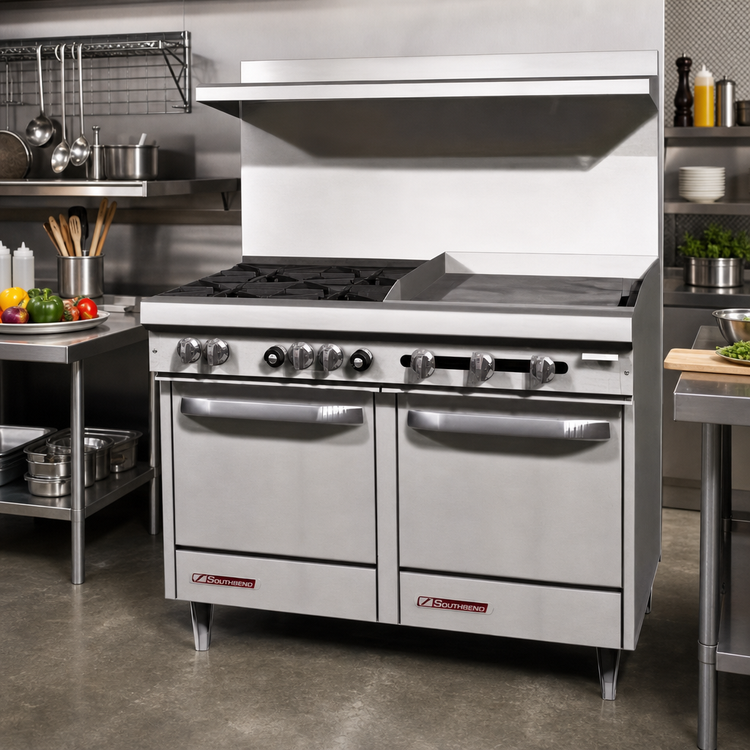

Southbend S-Series 48" Gas Restaurant Range
w/ 36" Right-Side Griddle & 2 Space-Saver Ovens

Model #: S48EE-3GR  |  Natural or LP Gas

Combine high-output open burners, a full 36" manual griddle, and two independent space-saving ovens—all in one rugged, stainless steel platform built for relentless commercial duty. At 48 5/8" wide the Southbend S-Series packs 190,000 total BTU into a footprint that fits virtually any cook-line.

Highlights

  • 190,000 BTU total output for rapid recovery during peak service.
  • (2) 28,000 BTU open burners with lifetime-warranted non-clog cast-iron heads.
  • 36" polished ½" thick steel griddle (right) with raised splash sides—perfect for breakfast, burgers & more.
  • (2) 35,000 BTU space-saver ovens with snap-action thermostats adjustable 175-550 °F.
  • Stainless front, sides, 4" rail, 22.5" flue-shelf, and 6" adjustable legs for easy leveling.
  • Quick-lift cast-iron grate tops and twin crumb drawers speed end-of-shift clean-up.
  • cCSAus, CSA Flame, CSA Star & NSF listed for gas safety and sanitation.

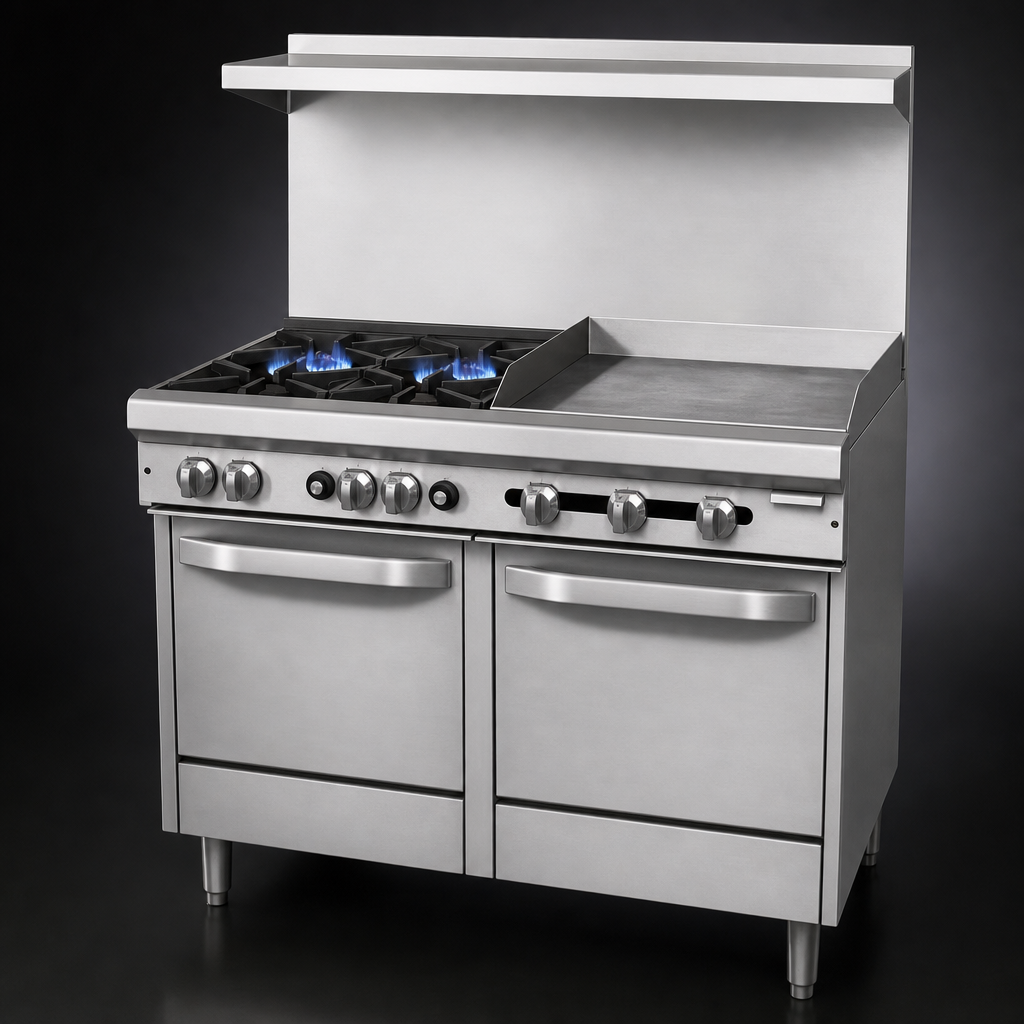

Cooktop Performance

  • Open burners are individually controlled for precise simmer-to-sear versatility.
  • Griddle is heated by (4) 16,000 BTU burners for even coverage across the entire 36" plate.
  • Manual valve controls give operators instant flame response without electronics.
  • Hinged lower valve panel provides tool-free access for service and calibration.

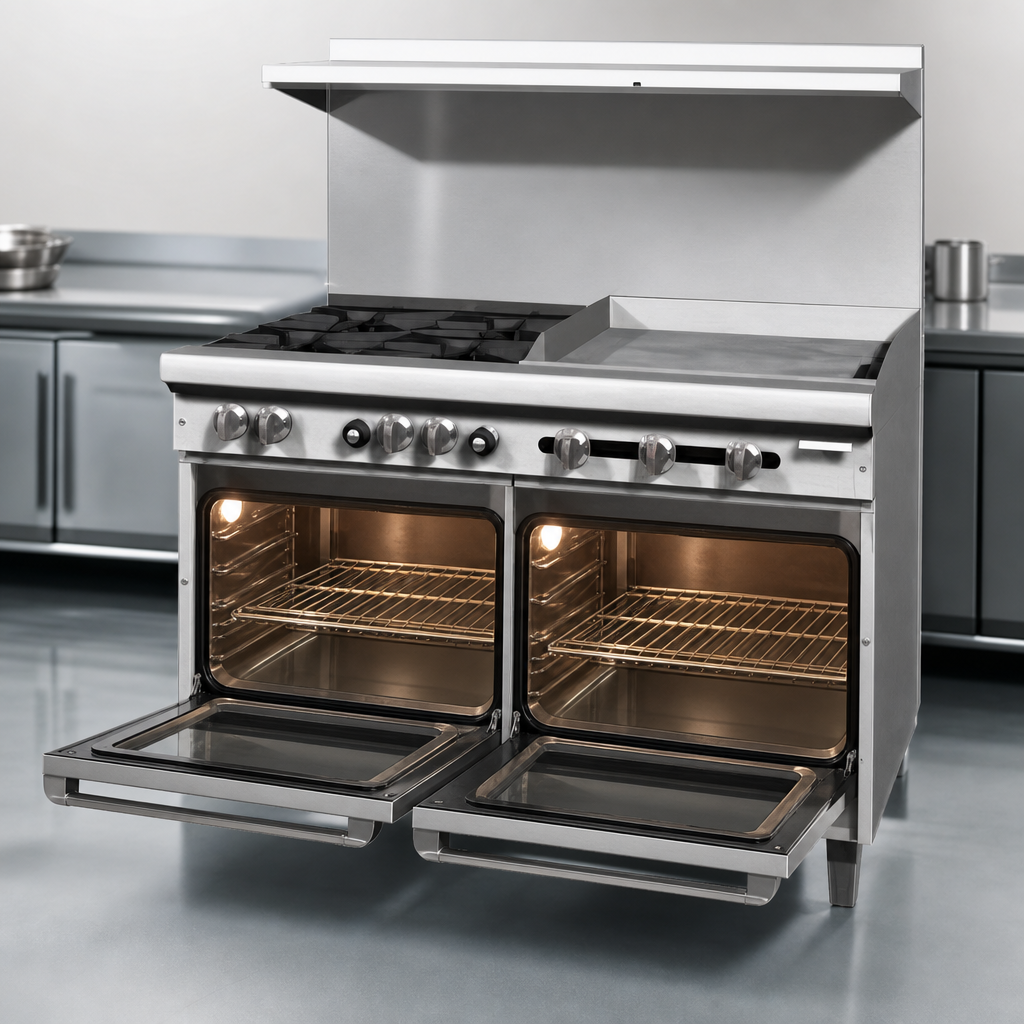

Twin Space-Saver Ovens

  • Each oven interior: 19 ½" W × 26 ½" D × 14" H (fits standard full-size sheet pans front-to-back).
  • Heavy rock-wool insulation on all sides locks in heat and lowers energy costs.
  • U-shaped burner and flame-failure safety device in every cavity.
  • 2-position rack guides; one chrome rack included per oven (total of 2).

Built for the Long Haul

  • Full stainless steel chassis resists corrosion in the busiest kitchens.
  • Quadrant spring oven doors with cool-touch chrome handles.
  • Rear grates accept up to 14" stock pots; front rail is welded closed for strength.
  • Field-convertible 3/4" rear gas connection simplifies installation.

Certifications & Warranty

  • NSF, cCSAus, CSA Flame & Star certified—meets latest gas & sanitation codes.
  • 1-year parts & labor warranty; lifetime warranty on open-top burners.

Specifications

Overall Width 48 5/8" (1235 mm)
Overall Depth 34" (864 mm)
Height – to Cook Surface 37" (940 mm)
Height – with 22.5" Flue Shelf 59 ½" (1511 mm)
Open Burners (2) × 28,000 BTU
Griddle 36" manual, ½" plate, (4) × 16,000 BTU
Ovens (2) × 35,000 BTU space-saver
Total Input 190,000 BTU/hr
Thermostat Range 175 °F – 550 °F (79 °C – 288 °C)
Gas Connection 3/4" NPT (rear, left side of griddle)
Electrical None required
Crated Weight Approx. 860 lb (390 kg)
Commercial-Use Only: Install under a properly sized vent hood. Maintain 10" clearance from combustible surfaces when on legs or casters.

Need a flexible payment option? Financing is available on every Southbend range.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

S-Series

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

48.63in

Depth

34.0in

Shipping Weight

860.0lbs

Plate Thickness

.500" = 1/2"

Exterior Finish

stainless steel front & sides

Base

(2) standard / space saver ovens

Vent

backriser with hi-shelf

Top

(2) open burners, (1) 36" griddle

Specifications

S-Series Restaurant Range, gas, 48", (2) 28,000 BTU open burners, (1) 36" griddle right, manual controls, (2) space saver ovens, snap action thermostat, (2) removable cast iron grate tops & (2) crumb drawers, hinged lower valve panel, includes (1) rack per oven, stainless steel front, sides, removable shelf, 4" front rail & 6" adjustable legs, 190,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
