Southbend (Middleby)  |  S-Series  |  SKU: S48EE-2TR

Southbend (Middleby) S48EE-2TR S-Series Gas Ranges

$9,772.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

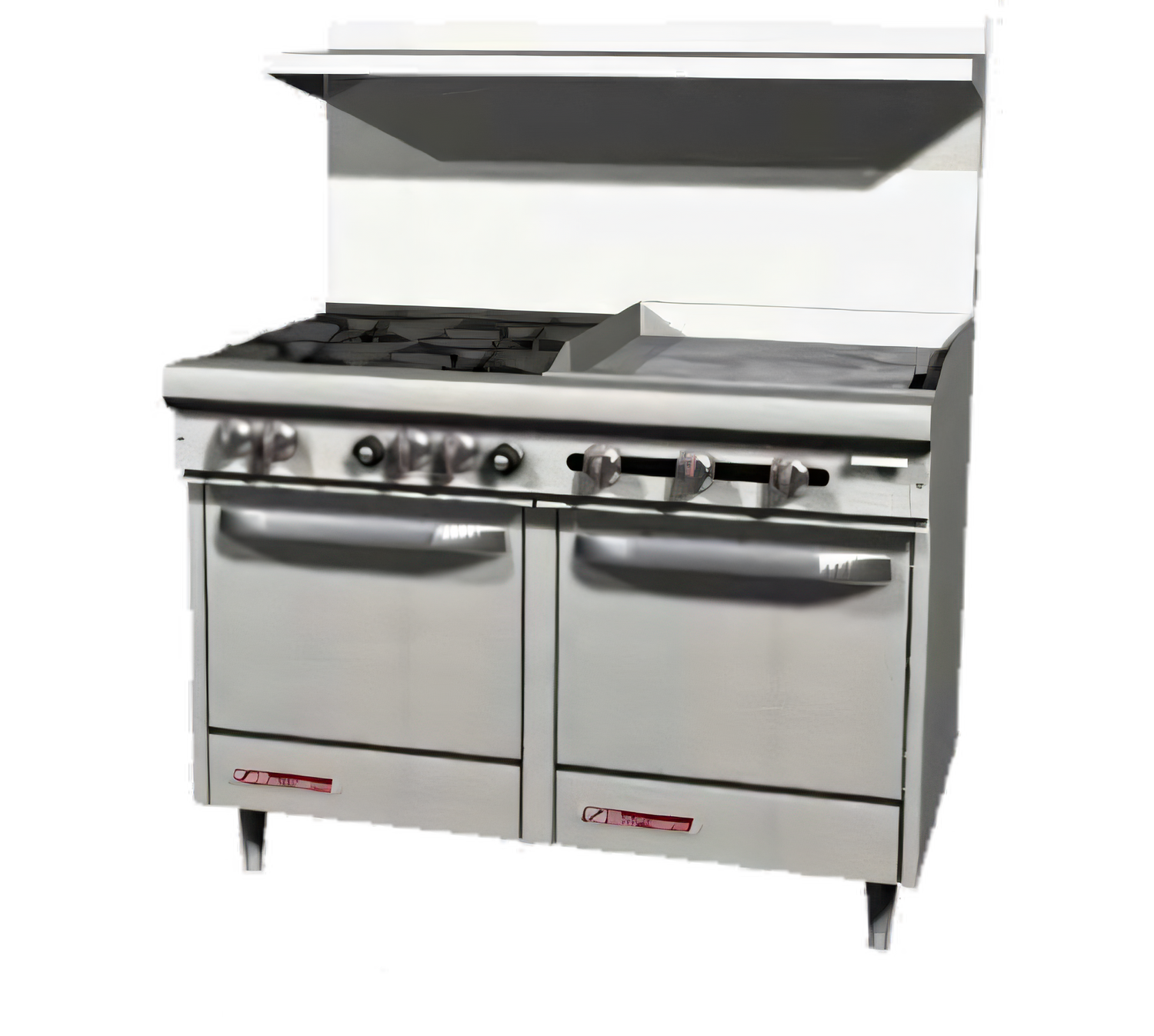

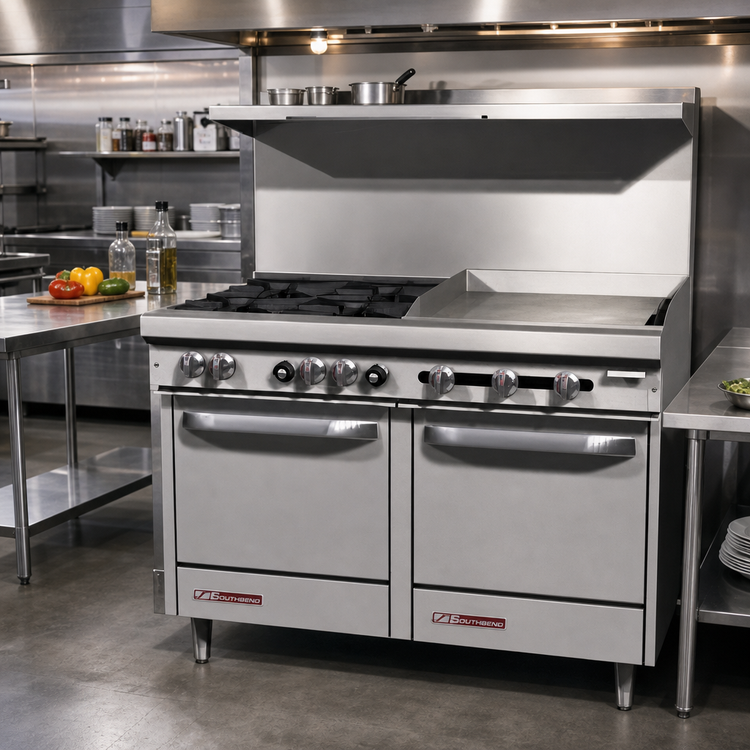

Southbend S-Series 48" Gas Restaurant Range

Model S48EE-2T | 4 Burners • 24" Thermostatic Griddle (Right) • Two Space-Saver Ovens

Engineered for demanding commercial kitchens, the Southbend S-Series packs high-output burners, a precision-controlled griddle and twin space-saving ovens into a compact 48 ⅝" footprint. Heavy-duty construction, simple service access and 230,000 BTU of total power make it the workhorse your line can count on every service.

Key Features & Benefits

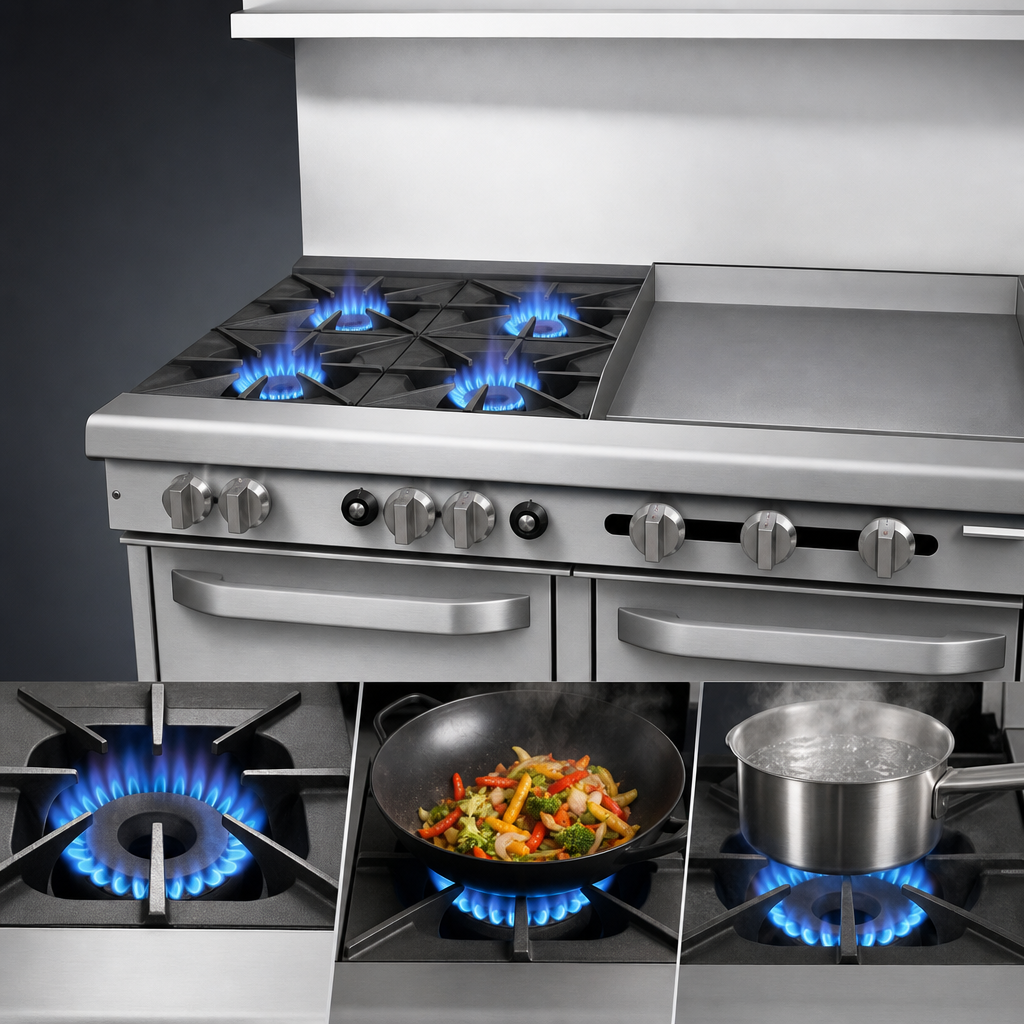

  • Four 28,000 BTU PATENTED cast-iron, non-clog open burners (lifetime warranty).

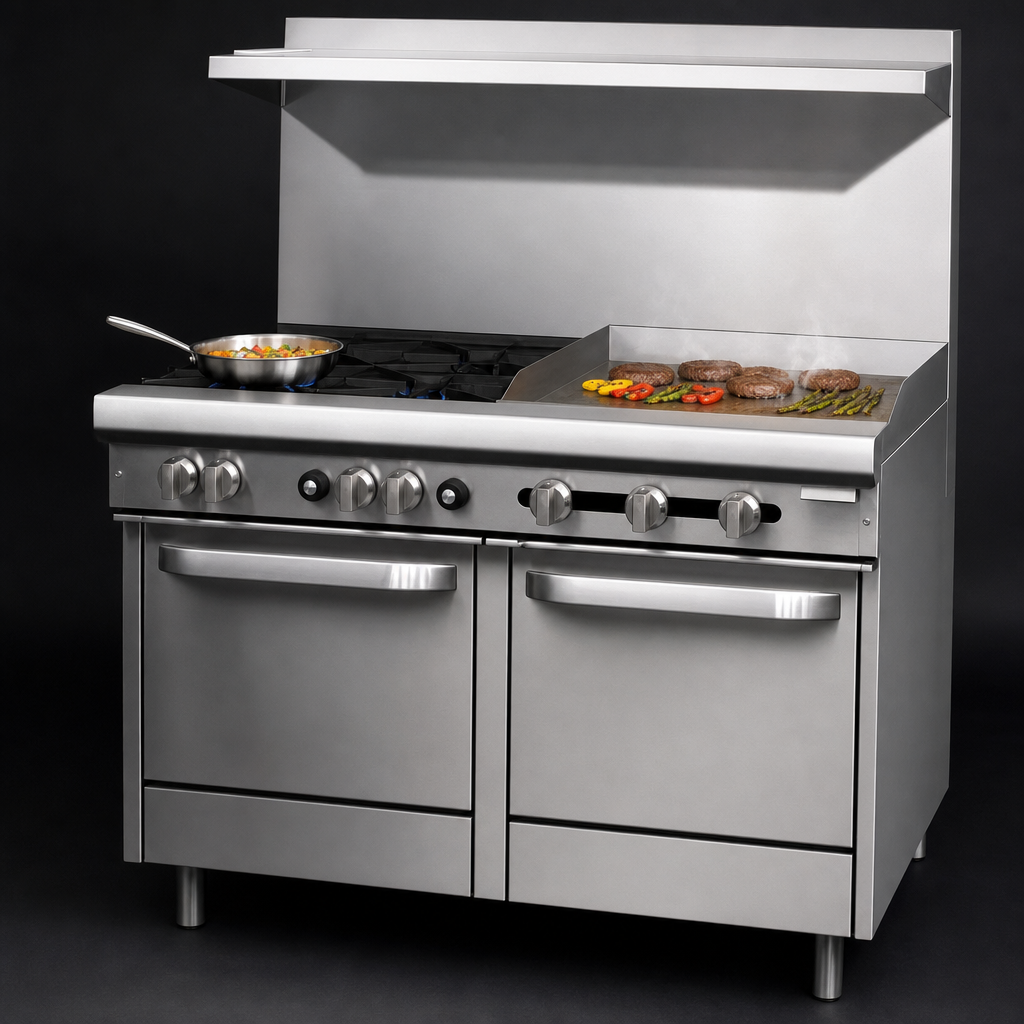

  • Right-side 24" thermostatic griddle with ½" polished steel plate & 3 x 16,000 BTU burners for even heating.
  • Dual 35,000 BTU space-saver ovens (snap-action thermostats 175–550 °F) each with 1 rack & 2-position guides.
  • Removable cast-iron grate tops accept stock pots up to 14" ⌀ for versatile cooking.
  • Two full-width crumb drawers speed cleanup and keep the cooktop debris-free.
  • Hinged lower valve panel provides fast, tool-free service access.
  • Durable stainless-steel front, sides, 22½" high flue riser & removable top shelf.
  • 4" welded stainless front rail protects controls; 6" adjustable legs standard (casters optional).
  • Factory-installed regulator & ¾" rear gas connection for quick hook-up.
  • Certified cCSAus, CSA Flame, CSA Star & NSF for gas, sanitation and safety compliance.

Performance Highlights

  • Total input: 230,000 BTU/h
  • Open burners + griddle allow simultaneous sautéing, searing and breakfast production.
  • U-shaped heavy-duty oven burners deliver even heat for baking, roasting or holding.
  • Rock-wool insulation on 4 sides & top of each oven maximizes efficiency and keeps the kitchen cooler.

Specifications

Exterior width 48 ⅝" / 1235 mm
Exterior depth 34" / 864 mm
Height w/ shelf 59 ½" / 1511 mm
Cooking surface height 37" / 940 mm
Burners (open) 4 × 28,000 BTU
Griddle burners 3 × 16,000 BTU
Ovens 2 × 35,000 BTU space-saver
Total input 230,000 BTU/h
Oven interior (each) 19 ½" W × 26 ½" D × 14" H
Gas connection ¾" NPT male, rear (Nat 7" W.C. / LP 11" W.C.)
Ship weight Approx. 860 lb / 390 kg (crated)
Warranty 1-year parts & labor

Included With Your Range

  • Two chrome oven racks (one per oven)
  • Pressure regulator (factory mounted)
  • Operator manual & quick-start guide

Popular Accessories (Sold Separately)

  • All-swivel locking casters
  • Extra oven racks
  • 10" flue riser for low ceilings
  • Salamander broiler or cheesemelter range mounts
  • ¾" quick-disconnect hose kits (3-, 4- or 5-ft)

Need financing? Middleby Equipment Financing offers fast decisions and affordable fixed payments—contact us for details.

Important installation notes:
  • Minimum 10" clearance to combustible walls; install under a vented hood.
  • Use a restraining device when the unit is on casters to protect the gas hose.
  • Commercial use only—warranty void in residential applications.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

S-Series

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

48.63in

Depth

34.0in

Shipping Weight

860.0lbs

Base

(2) standard / space saver ovens

Exterior Finish

stainless steel front & sides

Top

(4) open burners, (1) 24" griddle with thermostats

Vent

backriser with hi-shelf

Plate Thickness

.500" = 1/2"

Specifications

S-Series Restaurant Range, gas, 48", (4) 28,000 BTU open burners, (1) 24" griddle right, thermostatic controls, (2) space saver ovens, snap action thermostat, (4) removable cast iron grate tops & (2) crumb drawers, hinged lower valve panel, includes (1) rack per oven, stainless steel front, sides, removable shelf, 4" front rail & 6" adjustable legs, 230,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
