Southbend (Middleby)  |  S-Series  |  SKU: S48EE-2GR

Southbend (Middleby) S48EE-2GR S-Series Gas Ranges

$9,863.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

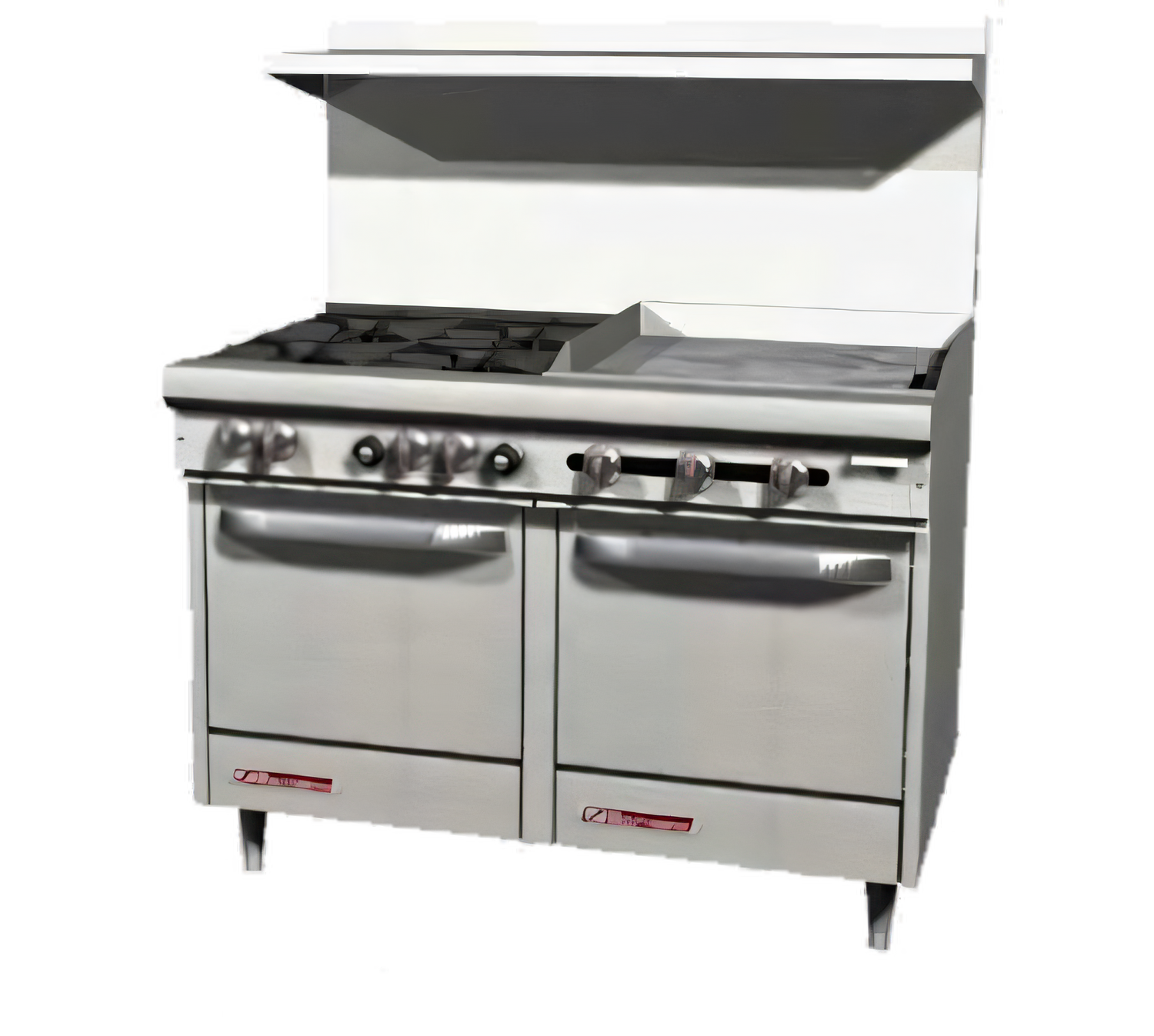

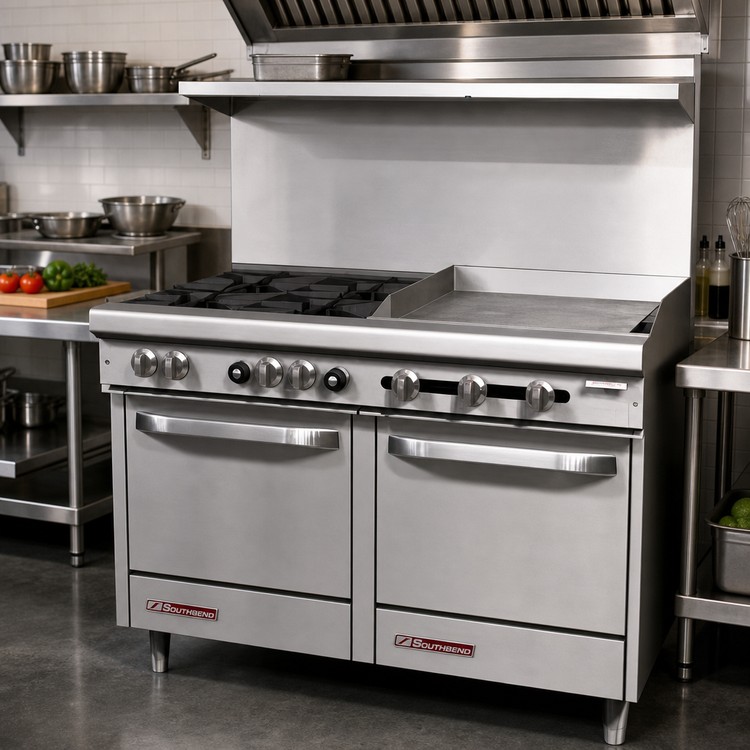

Southbend S-Series 48" Gas Restaurant Range
with 4 Open Burners, 24" Right-Side Griddle & Double Space-Saver Ovens

Model S48EE-2GR • 230,000 BTU • cCSAus, CSA Flame, CSA Star, NSF

One lineup, endless possibilities. The Southbend S-Series 48" packs a sauté station, a 24" grill and two independent ovens into less than four feet of line space—​all wrapped in heavy-gauge stainless steel and backed by the performance chefs trust since 1898.

Why You’ll Love It

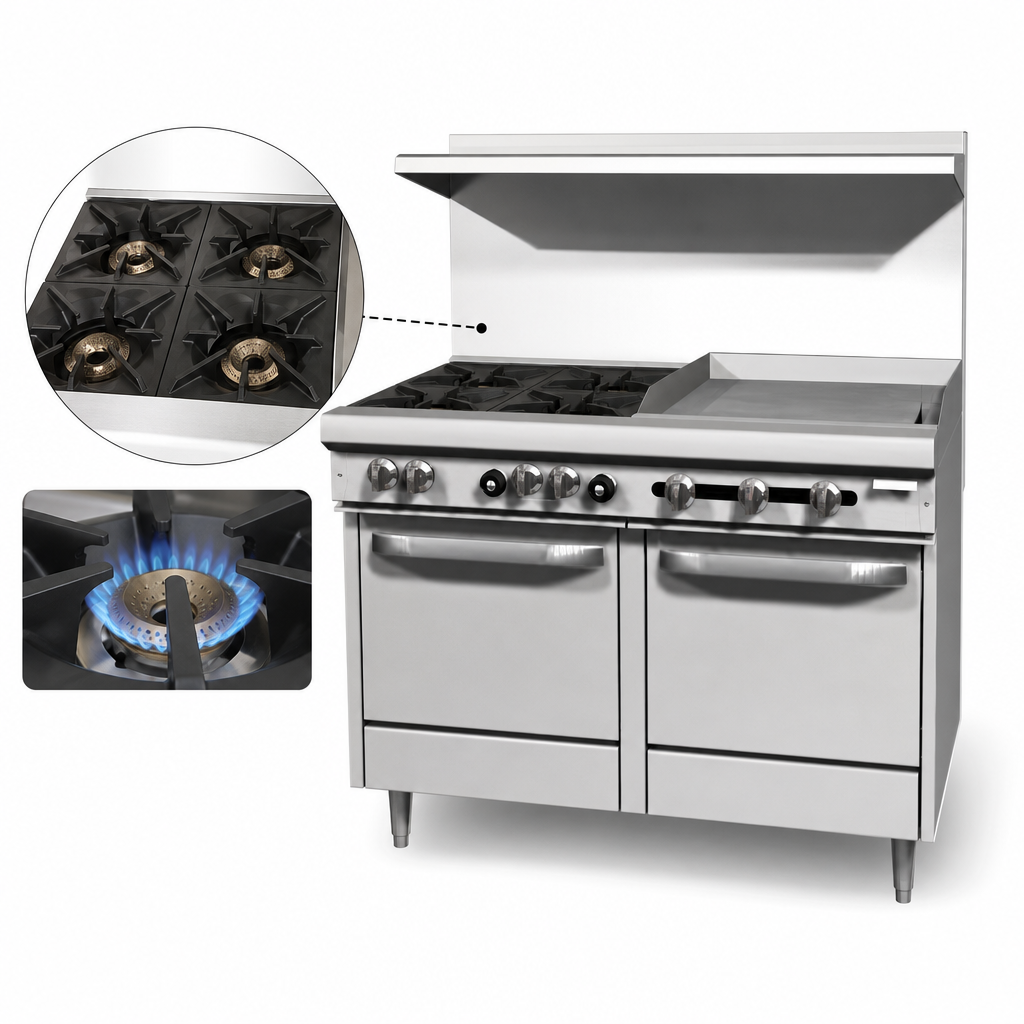

  • 4 × 28,000 BTU open burners with patented, one-piece cast-iron heads (lifetime warranty) for dependable, even flame.

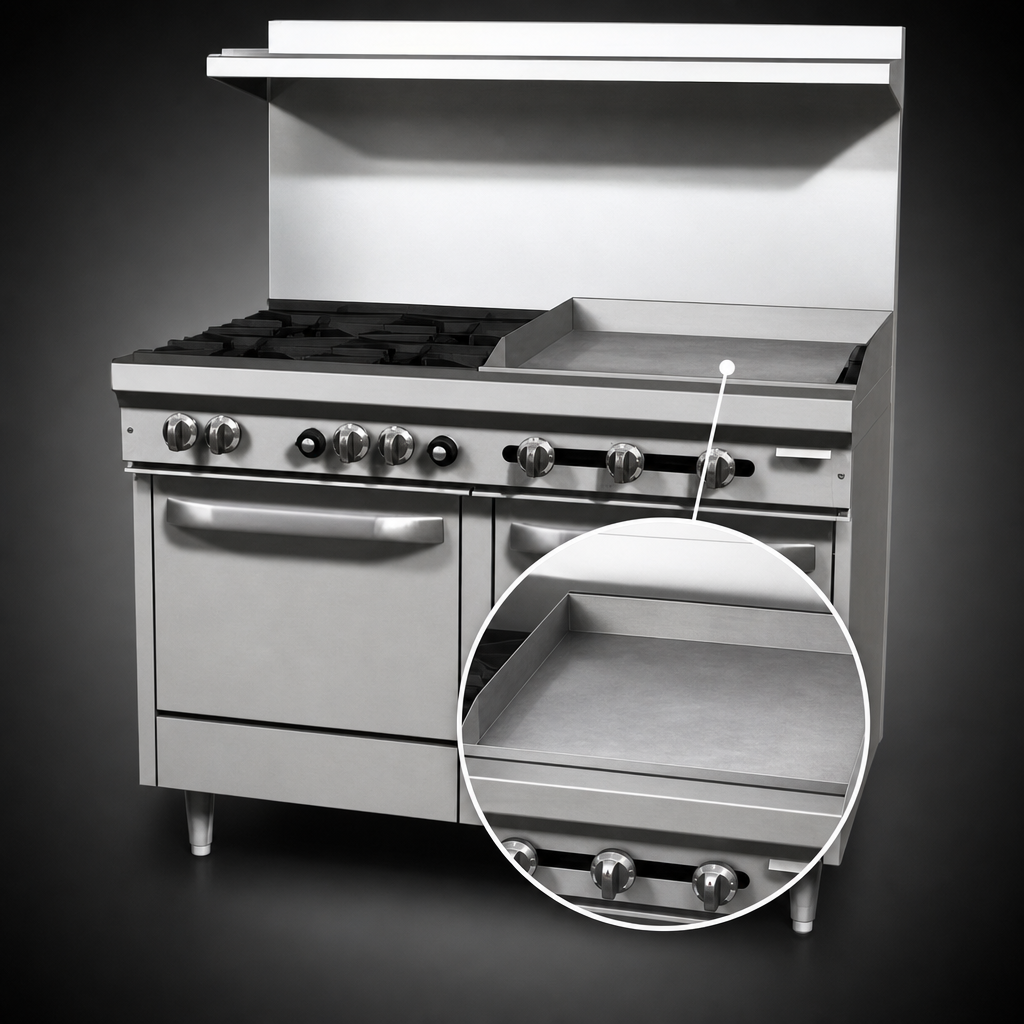

  • 24" polished steel griddle (½" thick) on the right side—perfect for breakfast, smash burgers or searing proteins.
  • Dual 35,000 BTU space-saver ovens with snap-action thermostats (175 °F–550 °F) and U-shaped burners for uniform baking.
  • Removable cast-iron grate tops hold up to 14" stock pots; two full-width crumb drawers speed daily clean-up.
  • Hinged lower valve panel and front-mounted manual controls keep service simple and fast.
  • Stainless steel front, sides, 22.5" flue-back shelf & 4" front rail stand up to years of high-volume use.
  • 6" adjustable stainless legs standard; field-install casters available.

What’s Included

  • (4) Removable cast-iron grate tops
  • (2) Heavy-duty crumb / grease drawers
  • (1) Chrome oven rack per oven (2 total)
  • Factory-installed gas pressure regulator

Quick Specs

Exterior Dimensions (W × D × H) 48 5⁄8" × 34" × 59 ½" (to top of flue)
Work-surface Height 37"
Open Burners 4 × 28,000 BTU (24,000 BTU LP)
Griddle Plate 24" W × 22 ¾" D × ½" thick, 3 × 16,000 BTU burners
Ovens (each) 19 ½" W × 26 ½" D × 14" H, 35,000 BTU
Total Input 230,000 BTU/hr (Natural Gas)
Gas Connection ¾" NPT (rear, factory right when griddle is right)
Clearances 0" sides & rear to non-combustible; 10" to combustible
Shipping Weight ≈ 860 lb

Popular Factory Options

  • All-swivel locking casters
  • Extra oven racks
  • ¾" quick-disconnect hose & restraining device (3', 4' or 5')
  • Low-profile 10" flue riser
  • Chef-mounted salamander or cheesemelter

Warranty & Certifications

• 1-year parts & labor warranty
• Lifetime warranty on cast-iron burner heads
• Certified for commercial use: cCSAus, CSA Flame, CSA Star, NSF

For Commercial Kitchens Only: Install under a properly sized exhaust hood. Oversized cookware should not hang over the front rail to avoid heat damage to control components.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

S-Series

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

48.63in

Depth

34.0in

Shipping Weight

860.0lbs

Base

(2) standard / space saver ovens

Exterior Finish

stainless steel front & sides

Plate Thickness

.500" = 1/2"

Vent

backriser with hi-shelf

Top

(4) open burners, (1) 24" griddle

Specifications

S-Series Restaurant Range, gas, 48", (4) 28,000 BTU open burners, (1) 24" griddle right, manual controls, (2) space saver ovens, snap action thermostat, (4) removable cast iron grate tops & (2) crumb drawers, hinged lower valve panel, includes (1) rack per oven, stainless steel front, sides, removable shelf, 4" front rail & 6" adjustable legs, 230,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
