Southbend (Middleby) S48DC-2GR S-Series Gas Ranges
Description

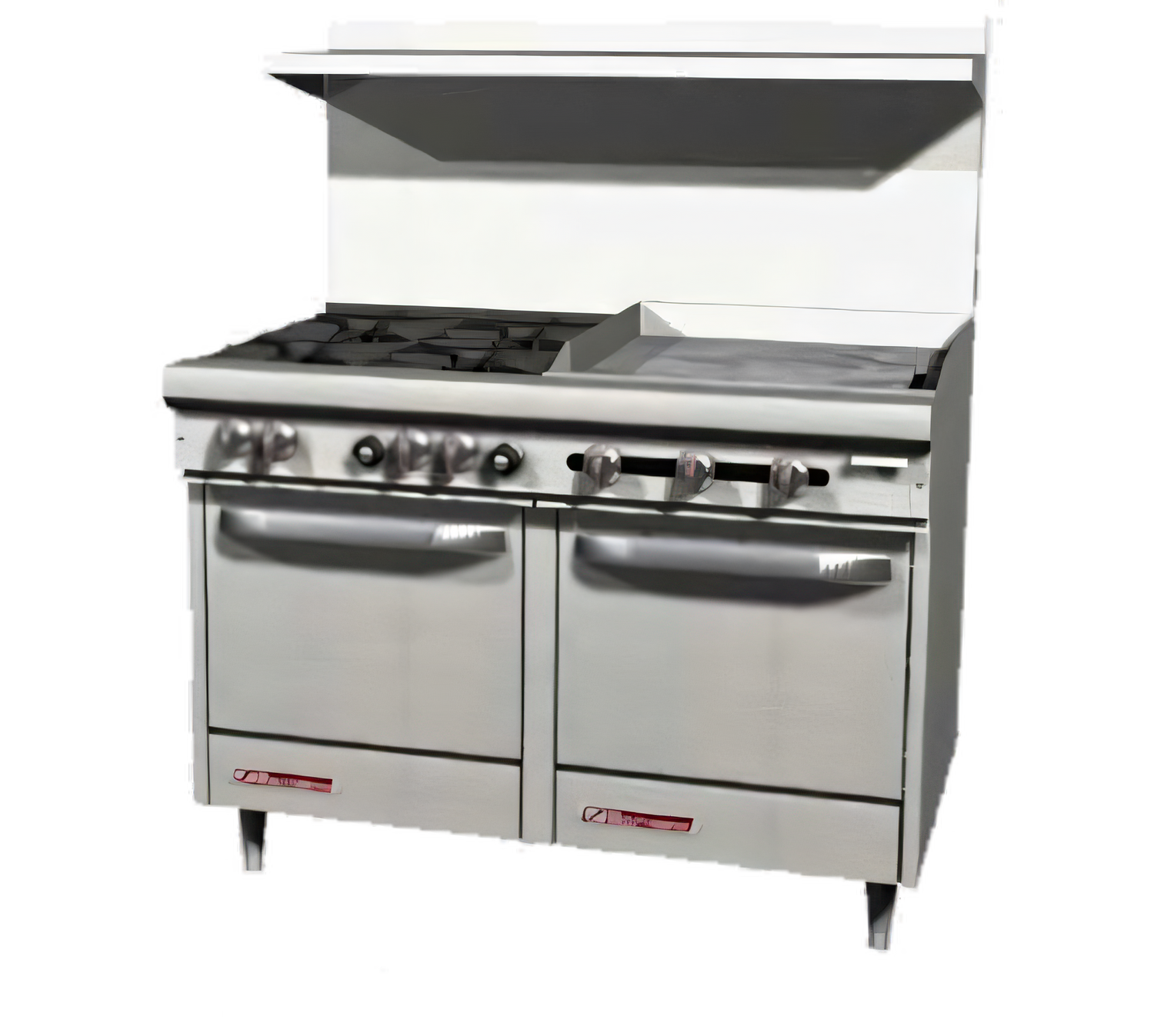

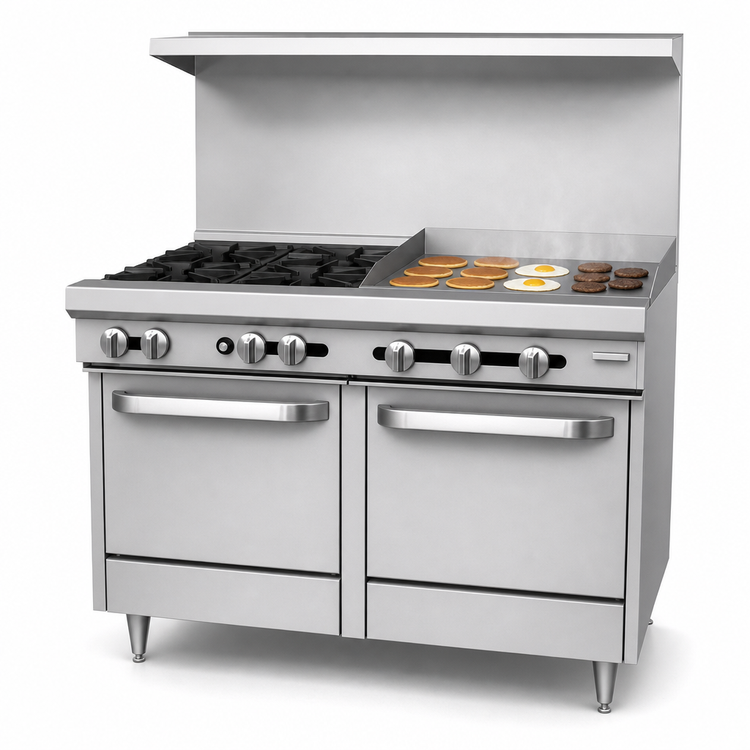

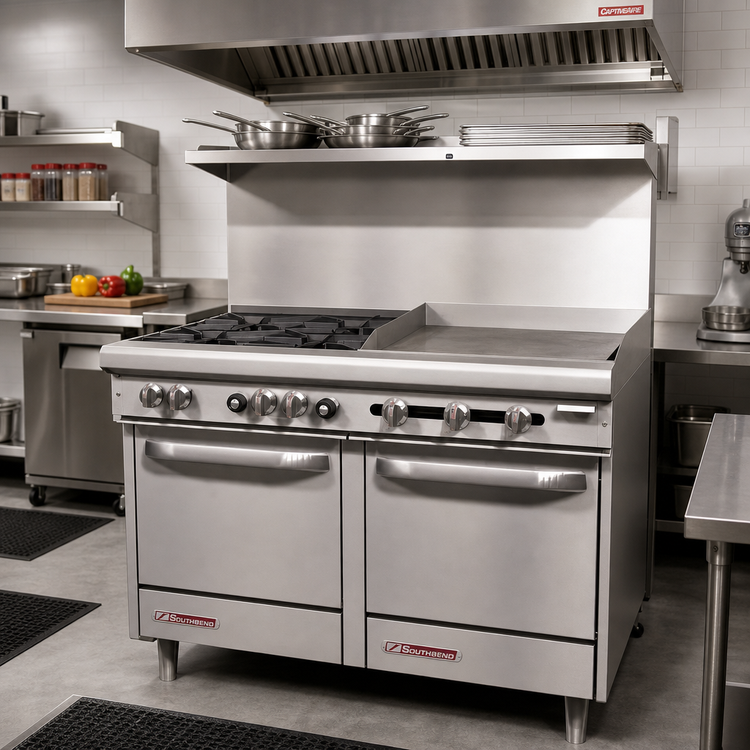

Southbend S-Series 48" Gas Restaurant Range – 4 Burners & 24" Right-Side Griddle
Model S48DC-2G/T-R | Standard Oven & Cabinet Base | 195,000 BTUBuilt for busy commercial kitchens, the Southbend S-Series 48" range pairs four high-performance open burners with a heavy-duty 24" griddle and a full-size standard oven—giving chefs the flexibility to sauté, grill, bake and warm at the same time without sacrificing valuable line space.
Key Features

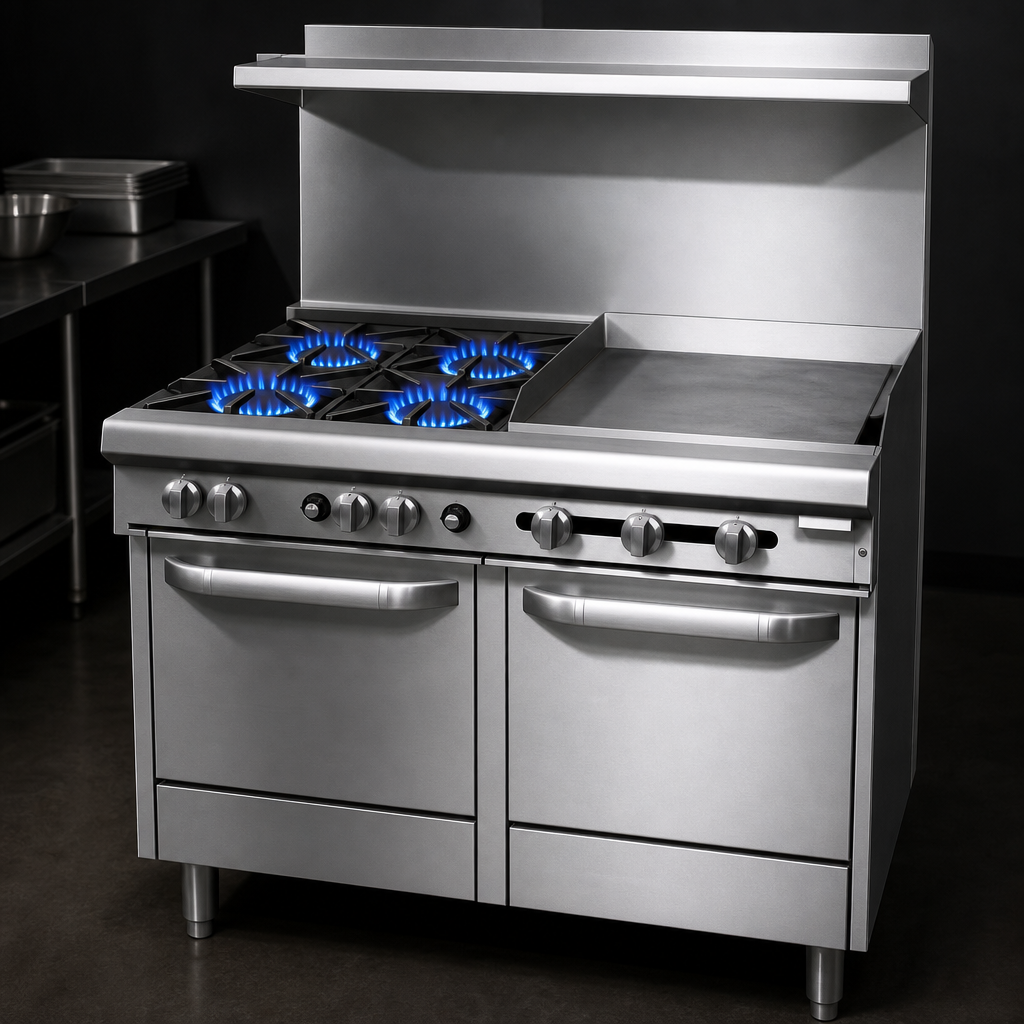

- Four 28,000 BTU patented cast-iron, non-clog burners with lifetime warranty

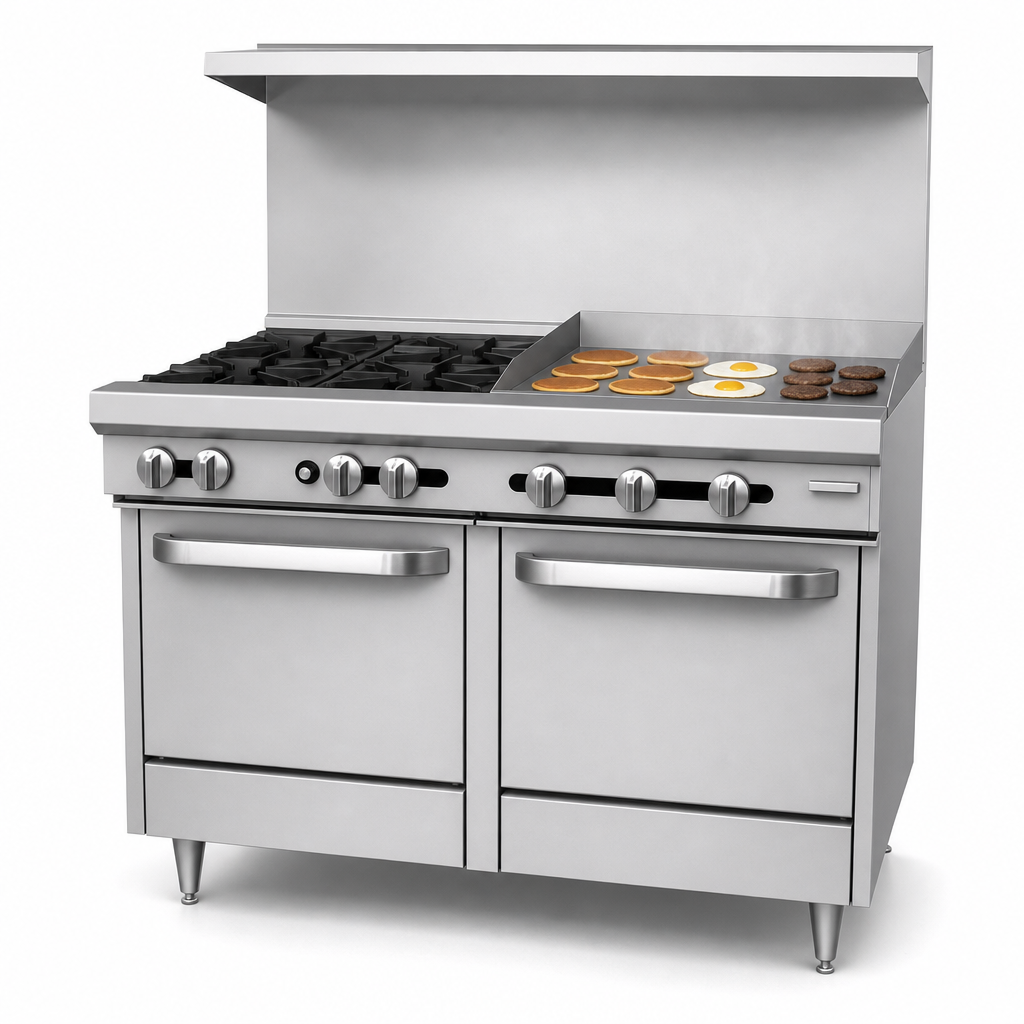

- 24" x 24" polished ½" steel griddle (right-hand) with manual controls & raised sides
- Standard oven – 35,000 BTU U-shaped burner, snap-action thermostat (175–550 °F), 1 rack included
- Aluminized cabinet base keeps sheet pans and utensils within arm’s reach
- Two one-piece crumb drawers & hinged lower valve panel for fast clean-ups
- Stainless front, sides, 4" welded-end front rail & removable flue-mounted shelf
- 6" adjustable stainless legs; approved for installation on combustible floors
- Certified cCSAus, CSA Flame, CSA Star & NSF for safety and sanitation
Performance Specifications
| Footprint (W × D × H) | 48 5/8" × 34" × 59 1/2" (to top of shelf) |
|---|---|
| Open Burners | 4 × 28,000 BTU cast-iron, removable grates |
| Griddle | 24" polished steel, 3 × 16,000 BTU burners (manual) |
| Oven Interior | 26" W × 26 ½" D × 14" H • 2-position rack guides |
| Oven Burner | 35,000 BTU • Snap-action thermostat 175–550 °F |
| Total Gas Input | ≈ 195,000 BTU/h |
| Gas Connection | ¾" NPT rear (regulator included) |
| Minimum Inlet Pressure | Natural 7" W.C. • Propane 11" W.C. |
| Clearances | 10" to combustible walls • 0" to non-combustible |
| Legs / Casters | 6" stainless adjustable legs (locking casters optional) |
| Certifications | cCSAus • CSA Flame • CSA Star • NSF |
What’s in the Box
- One chrome-plated oven rack
- Factory-installed pressure regulator
- Removable stainless shelf above flue riser
Popular Accessories (sold separately)
- Locking caster kit
- Center-opening cabinet doors (no-charge option at order)
- 10" flue riser for low ceilings
- Additional oven racks
- Salamander & cheesemelter mounts
- ¾" quick-disconnect gas hose (3–5 ft) with restraining device
Warranty
Covered by Southbend’s 1-year parts & labor warranty when installed by an Authorized Service Agency. See full warranty for terms and exclusions.
