Southbend (Middleby) S48AC-4T S-Series Gas Ranges
Description

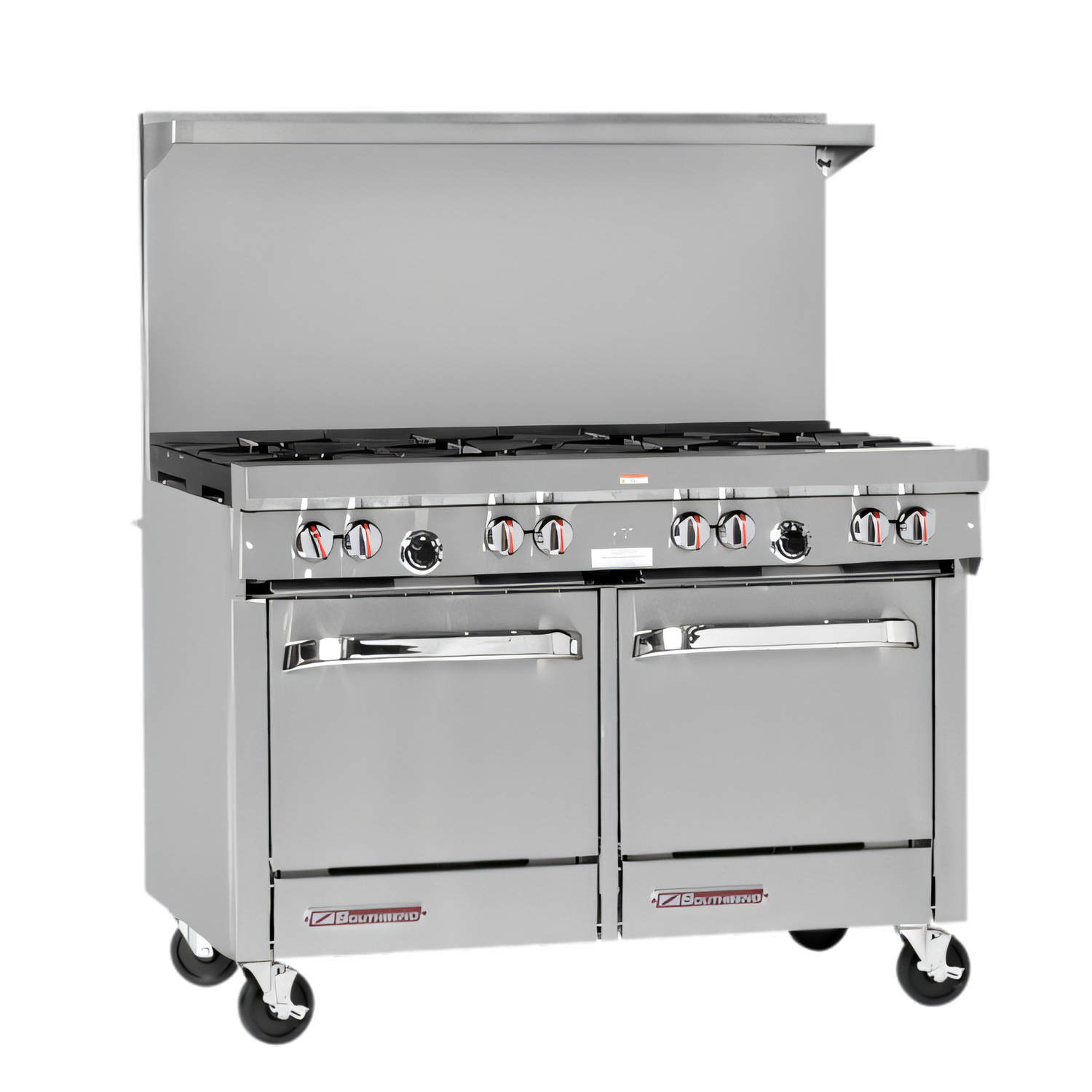

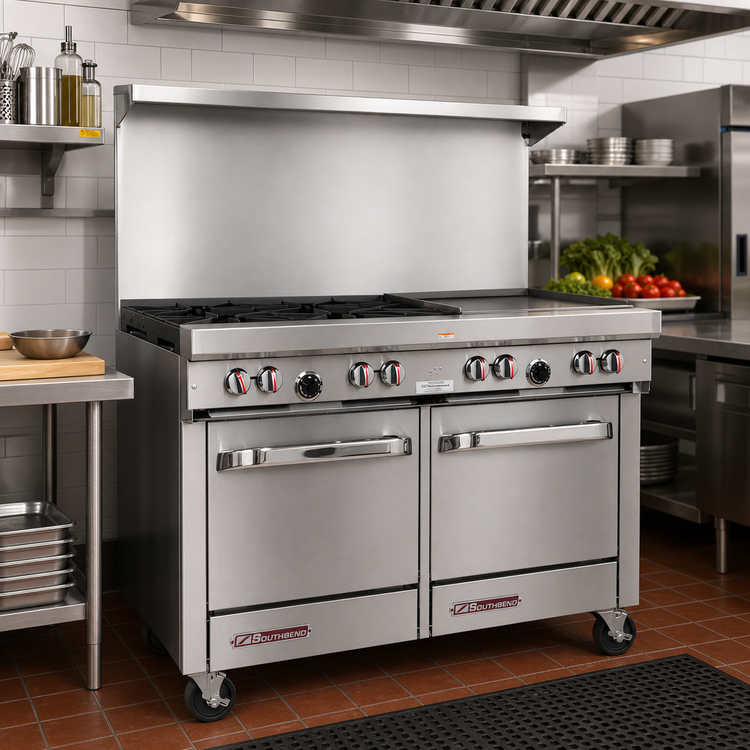

Southbend S-Series 48" Gas Griddle Range w/ Convection Oven & Cabinet Base
Model S48AC-4T | 115,000 BTU | NSF & CSA CertifiedCombine a full-width, thermostatically controlled griddle with a high-performance convection oven—all in a compact 48-inch footprint built to thrive on the busiest cooklines. Southbend’s S-Series delivers the rugged construction and precise temperature control chefs demand, backed by a full factory warranty.
Performance & Construction Highlights

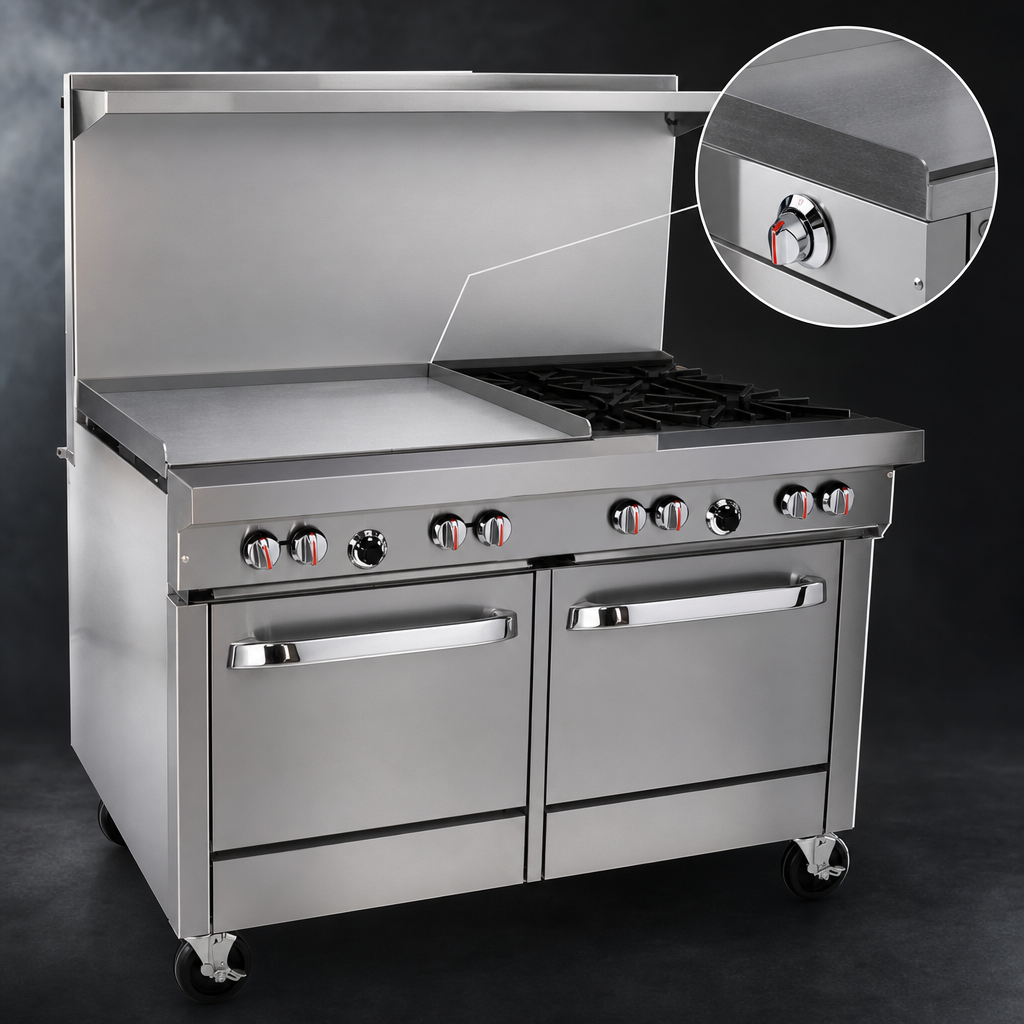

- 48" griddle: 1" thick polished steel plate with raised sides, heated by five 16,000 BTU burners for uniform heat distribution.
- Snap-action thermostats (175 – 550 °F) let you dial in exact surface temps for breakfast, lunch, and dinner menus.

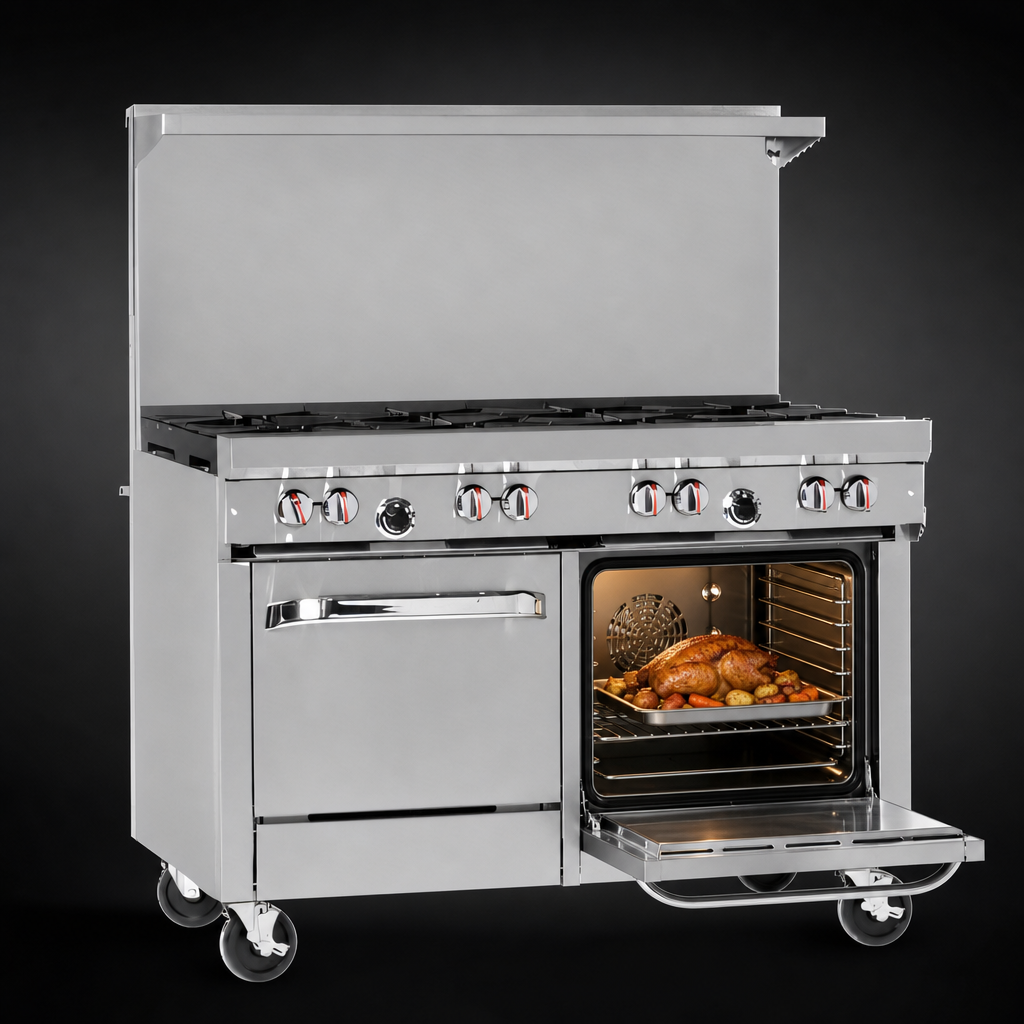

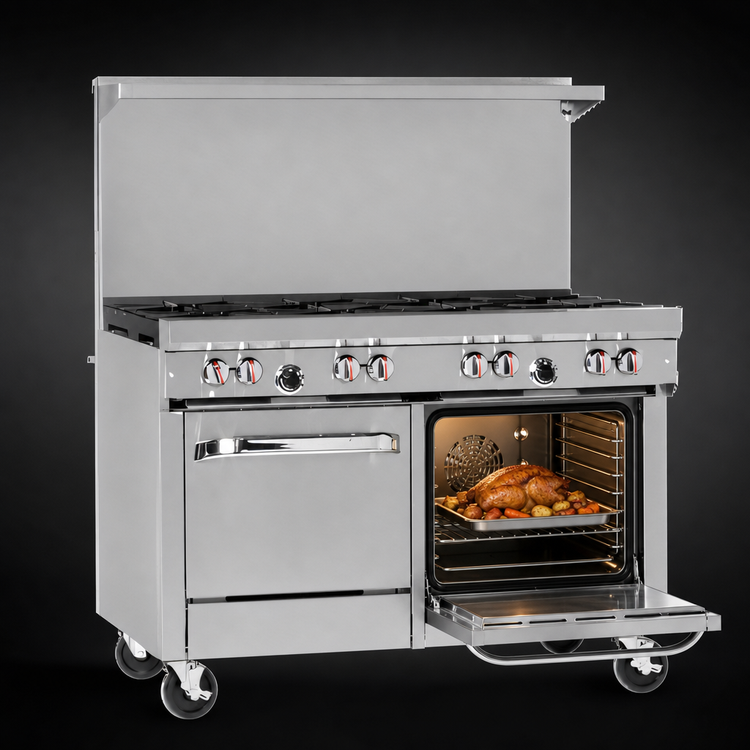

- 35,000 BTU convection oven with U-shaped burner, ½ hp fan motor, and on/off switch for standard-oven mode.
- Five-position rack guides; includes two chrome racks.
- Aluminized open cabinet base provides quick access dry storage (optional no-charge doors available).
- Two removable, one-piece crumb drawers speed daily clean-up.
- Hinged lower valve panel for fast service access.
- Stainless steel front, sides, 22.5" flue riser with removable shelf, and 4" full-width front rail.
- 6" adjustable stainless steel legs level the unit on uneven floors.
- Factory-installed ¾" rear gas regulator; Natural or LP (field convertible).
- Listings: cCSAus, CSA Flame, CSA Star, NSF.
At-a-Glance Specifications
| Overall width | 48 5⁄8" / 1,235 mm |
|---|---|
| Overall depth | 41 3⁄4" / 1,060 mm |
| Height (to top of riser shelf) | 59 1⁄2" / 1,511 mm |
| Work height | 37" / 940 mm |
| Total input | 115,000 BTU/hr |
| Gas connection | ¾" NPT (rear, side opposite griddle) |
| Min. gas pressure | 7" W.C. Natural | 11" W.C. LP |
| Electrical | 115 V / 60 Hz / 1-Ph, 5.9 A, 6' cord w/ 3-prong plug |
| Oven interior (W × D × H) | 26" × 24" × 14" (660 × 610 × 356 mm) |
| Griddle plate | 1" thick polished steel |
| Certifications | NSF, cCSAus, CSA Flame, CSA Star |
What’s in the Box
- (2) chrome-plated oven racks
- Removable stainless riser shelf
- Factory pressure regulator
- Owner’s manual & 1-year parts and labor warranty
Popular add-ons (sold separately): locking swivel casters, quick-disconnect gas hose, extra oven racks, salamander or cheesemelter mounts.
