Southbend (Middleby) S48AC-4G S-Series Gas Ranges
Southbend (Middleby) S48AC-4G S-Series Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

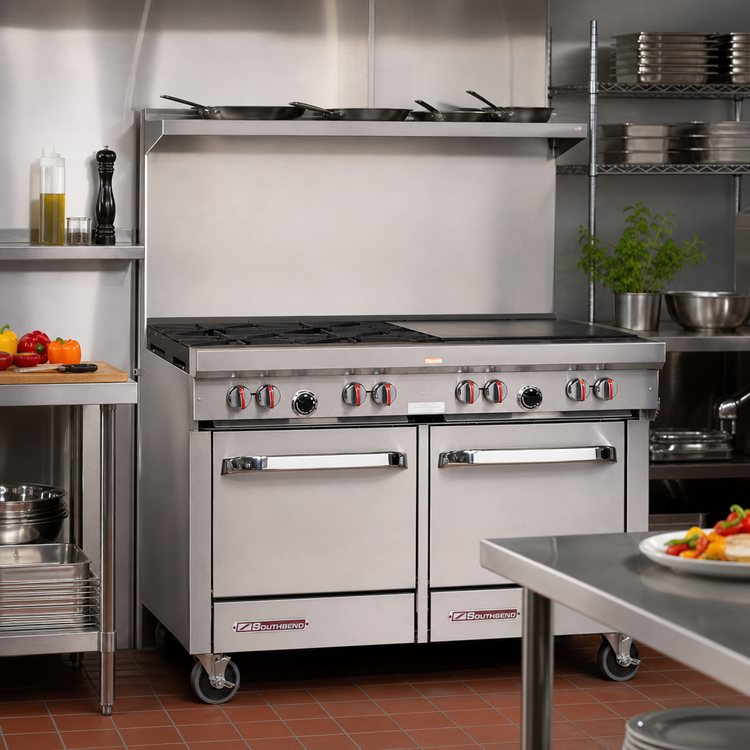

Southbend (Middleby) S48AC-4G S-Series Gas Ranges
Description
Southbend S-Series 48" Gas Range with 48" Griddle & Convection Oven (S48AC-4G)
115,000 BTU • Manual Controls • CSA & NSF CertifiedPack maximum versatility into a single 48-inch footprint. The Southbend S-Series S48AC-4G pairs a full-width griddle with a high-performance convection oven and a handy cabinet base—perfect for diners, cafés, food trucks, and any kitchen that needs dependable production without giving up floor space.
Why You’ll Love It

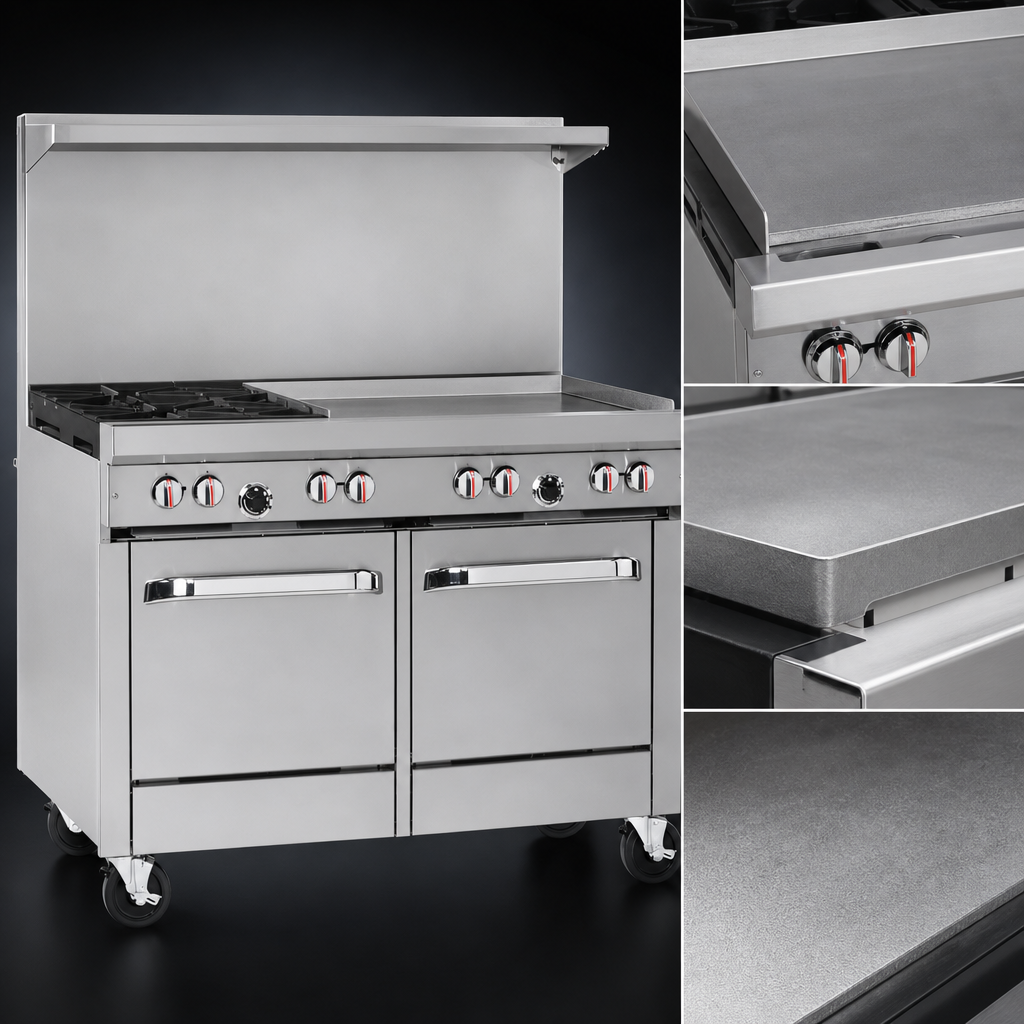

- 48" smooth, polished 1"-thick steel griddle with raised sides—great for pancakes, burgers, or searing proteins.
- Five 16,000 BTU burners (80,000 BTU total) deliver rapid recovery and consistent heat across the plate.
- Manual snap-action thermostat (175-550 °F) for precise temperature control.
- 35,000 BTU convection oven with ½ HP fan circulates heat for even baking and roasting.
- Five-position rack guides; two chrome racks included.
- Aluminized cabinet base keeps full-size sheet pans and dry goods within reach.
- Dual removable crumb drawers and a hinged lower valve panel speed up clean-ups and servicing.
- All-stainless front, sides, 4" front rail, and removable 22.5" high shelf for lasting durability.
- 6" stainless steel adjustable legs for easy leveling on uneven floors.
Key Specifications
| Total BTU Input | 115,000 BTU/hr (Natural Gas) |
|---|---|
| Griddle | 48" W × 22" D, 1" thick steel, 80,000 BTU |
| Oven Cavity | 26" W × 24" D × 14" H, 35,000 BTU convection |
| Electrical | 115 V / 60 Hz / 1-ph, 5.9 A, 6' cord & NEMA 5-15P plug |
| Gas Connection | ¾" rear NPT (7" W.C. NG / 11" W.C. LP) |
| Overall Dimensions | 48 5/8" W × 41 3/4" D × 59 1/2" H (to top of shelf) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
What’s in the Box?
- (2) Chrome convection-oven racks
- (2) One-piece removable crumb drawers
- 22.5" stainless steel flue riser with single shelf
- Factory-installed gas pressure regulator
Warranty: 1-year parts & labor through Southbend’s nationwide authorized service network.
Need casters, extra oven racks, or a salamander broiler? Talk to our team about factory-approved accessories.
