Southbend (Middleby) S48AC-3GR S-Series Gas Ranges
Description
Southbend S-Series 48" Gas Restaurant Range – 2 Burners & 36" Right-Side Griddle
Model S48AC-3GR | 155,000 BTU | cCSAus, CSA Flame, CSA Star, NSFPack more productivity into a single footprint. Southbend’s versatile S-Series hybrid range brings high-heat sautéing, all-day griddling, and even-bake convection to the line while adding a built-in storage cabinet—all in just 48 inches.
Key features
- 2 × 28,000 BTU patented cast-iron, non-clog open burners (lifetime warranty)

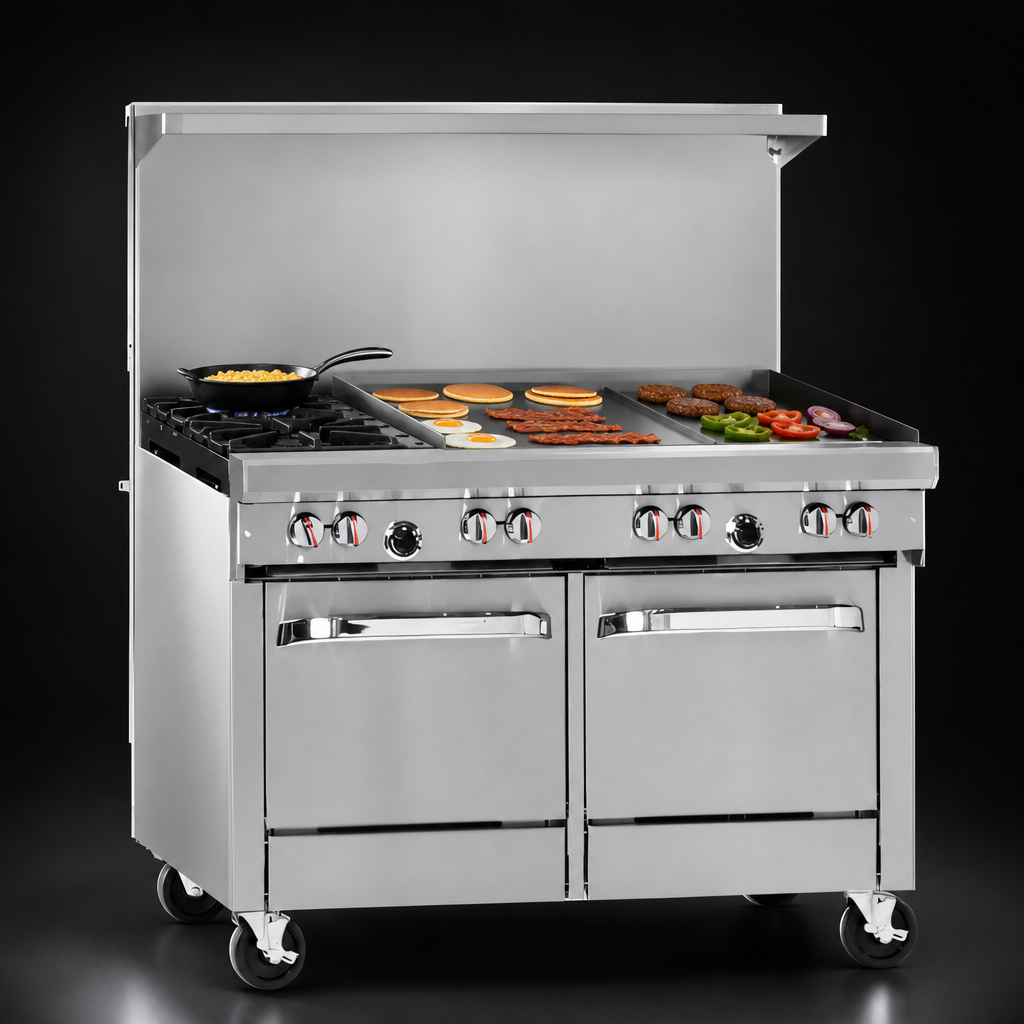

- 36" smooth, ½" thick polished-steel griddle (right side) powered by 4 × 16,000 BTU burners
- Manual burner & griddle controls for fast, precise heat adjustment
- 35,000 BTU convection oven with snap-action thermostat (175–550 °F)
- 5-position rack guides & 2 removable oven racks included
- ½ HP fan motor with on/off switch—use as standard oven when fan is off
- Full-width aluminized cabinet base for extra pan or small-wares storage
- Individual removable cast-iron grate tops handle stock pots up to 14"
- Dual crumb drawers and hinged lower valve panel speed clean-up & service
- Stainless steel front, sides, 4" front rail, and removable high-shelf flue riser
- 6" adjustable stainless legs (field-upgradable to locking casters)
- Factory-installed ¾" rear gas regulator; single 115 V plug for oven fan (5.9 A)
Performance & utility data
| Overall width | 48-5/8" (1235 mm) |
|---|---|
| Depth (with rail) | 34" (864 mm) |
| Height to cook surface | 36" (914 mm) on 6" legs |
| Height w/ shelf | 59-1/2" (1511 mm) |
| Open burners | 2 × 28,000 BTU/hr (Natural) | 2 × 24,000 BTU/hr (LP) |
| Griddle section | 4 × 16,000 BTU/hr |
| Convection oven | 35,000 BTU/hr |
| Total input | 155,000 BTU/hr (Natural) |
| Gas connection | ¾" NPT rear (opposite griddle side) |
| Electrical | 115 V / 1 ph / 5.9 A — 6' cord & 3-prong plug |
| Oven interior (W × D × H) | 26" × 24" × 14" |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
What’s in the box
- (2) Cast-iron grate tops
- (2) Nickel-plated oven racks
- Removable stainless flue riser with single shelf
- Factory-installed gas pressure regulator
Covered by Southbend’s 1-year parts & labor warranty. Optional casters, quick-disconnect hose kits, extra oven racks, and cabinet doors available.
