Southbend (Middleby) S48AC-2TR S-Series Gas Ranges
Description

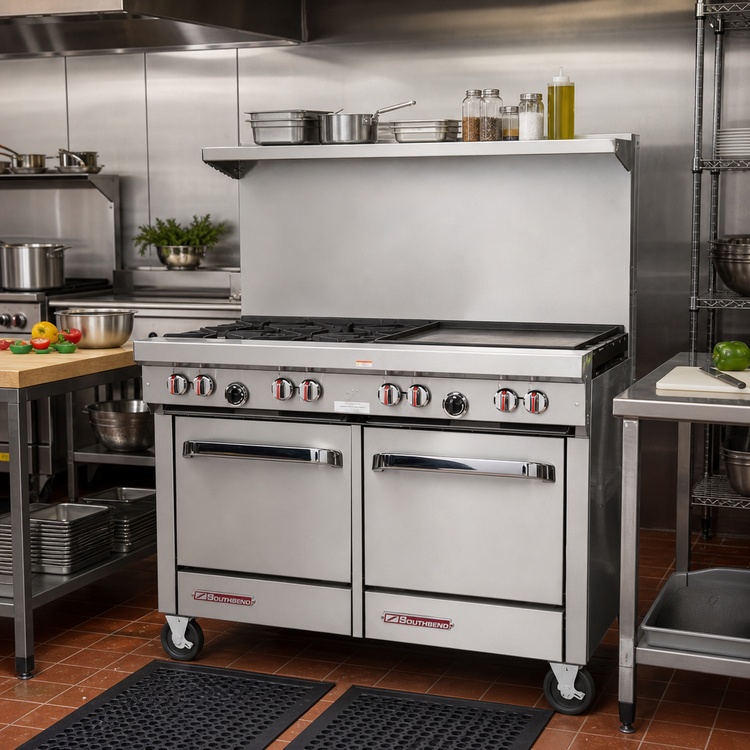

Southbend S-Series 48" Gas Restaurant Range
4 Burners • 24" Right-Side Thermostatic Griddle • Convection Oven & Cabinet
Factory model reference: S48AC-2T | Total Output: 195,000 BTU/hr
Built to thrive on the cookline of busy restaurants, the 48" Southbend S-Series combines heavy-duty open-top performance, precise griddle control, and even convection baking in one space-saving unit. Durable stainless construction, lifetime-warrantied burners, and thoughtful service features keep you cooking shift after shift.
Performance & Construction Highlights
- (4) Patented 28,000 BTU cast-iron non-clog open burners — lifetime warranty.

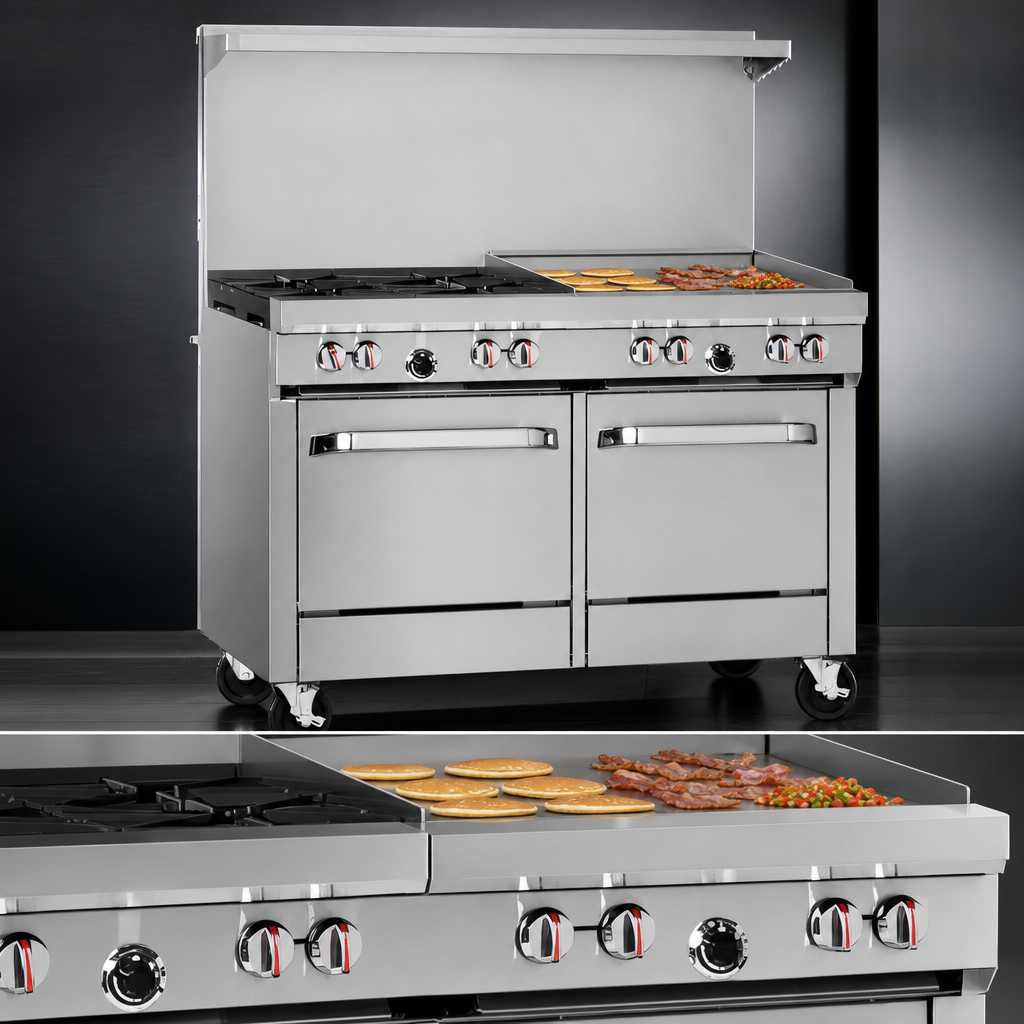

- 24" smooth, ½"-thick steel thermostatic griddle (right-hand), 3 burners @ 16,000 BTU each, 175-550 °F range.
- 35,000 BTU convection oven with 5-position rack guides, (2) chrome racks, and snap-action thermostat for fast temperature recovery.
- Left-side cabinet base for dry storage — optional doors available at no charge.
- Removable cast-iron grate tops (fit stock pots up to 14") and (2) one-piece crumb drawers for quick cleanup.
- Hinged lower valve panel and rear ¾" NPT connection simplify installation and service.
- Stainless steel front, sides, 4" welded front rail, and removable high shelf resist daily wear.
- 6" stainless adjustable legs (casters optional) meet combustible-floor clearance requirements.
- Factory-installed pressure regulator; Natural or LP gas field convertible.
- cCSAus, CSA Flame, CSA Star & NSF listed for safe, sanitary operation.
What’s in the box?
- (2) Chrome oven racks
- Removable high shelf / flue riser
- Factory pressure regulator & 6' cord with 3-prong plug (convection motor)
Technical Specifications
| Overall width | 48 5/8" (1235 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Height (to top of shelf) | 59 ½" (1511 mm) |
| Working height | 37" (940 mm) |
| Open burners | (4) × 28,000 BTU |
| Griddle burners | (3) × 16,000 BTU |
| Oven burner | 35,000 BTU (convection) |
| Total input | 195,000 BTU/hr |
| Gas inlet | ¾" NPT rear; 7" WC Natural / 11" WC LP |
| Electrical | 115 V / 60 Hz / 1 Φ, 5.9 A (convection fan) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor; lifetime on open burners |
Install under a vented hood. When using cookware 12" or larger, place it on the rear grates to prevent excess front-rail heat.
