Southbend (Middleby) S48AC-2GR S-Series Gas Ranges

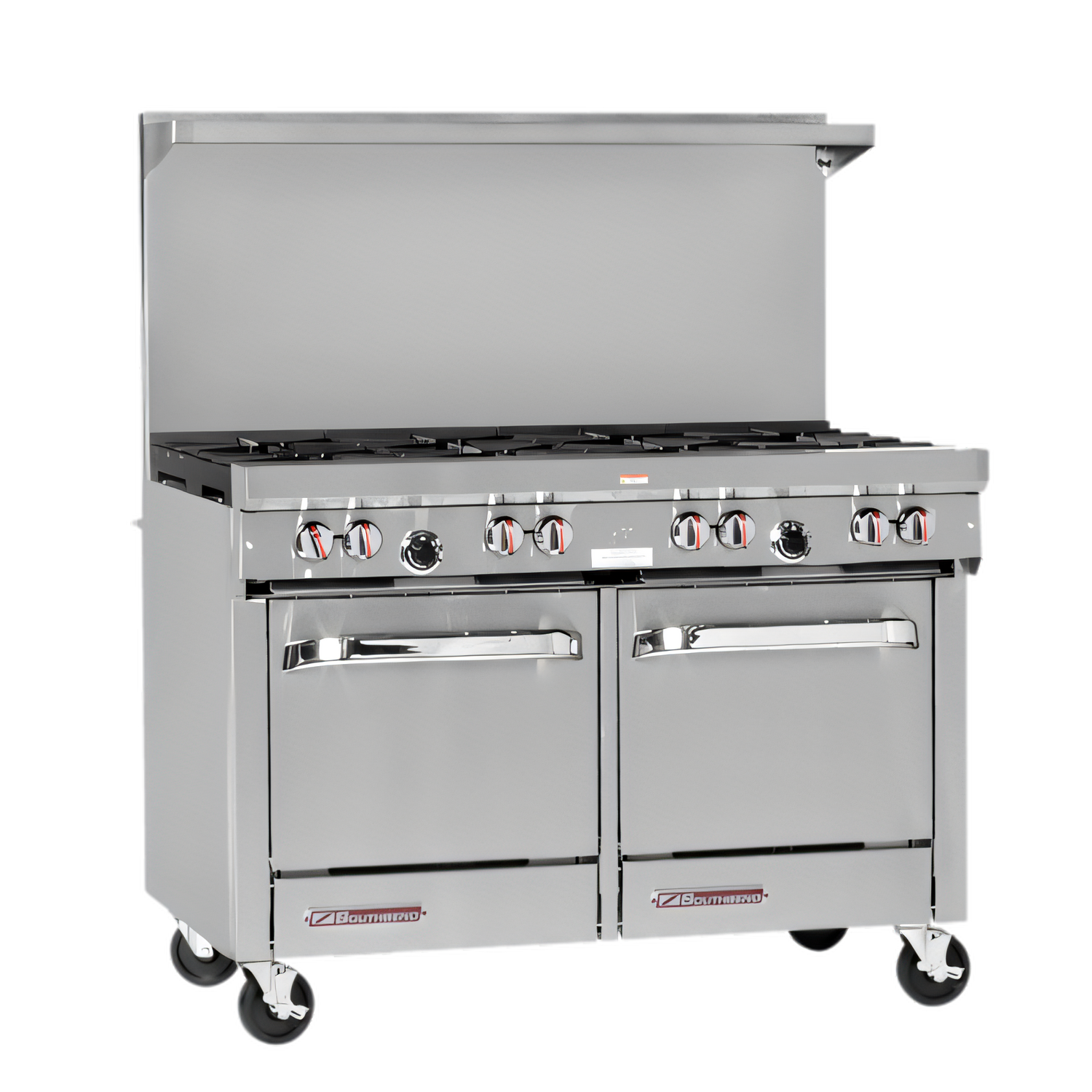

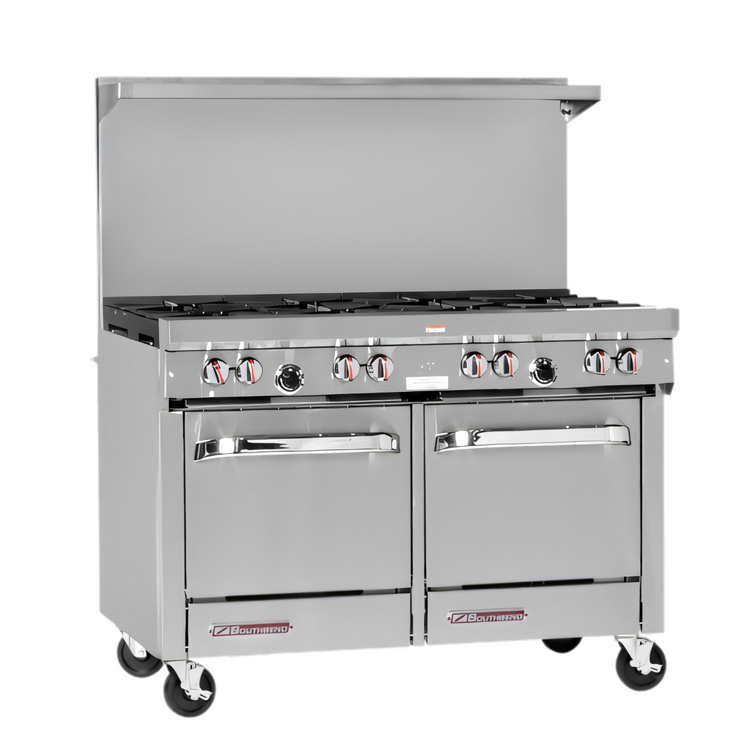

Southbend S-Series 48″ Gas Restaurant Range
Model S48AC-2G (4 Burners / 24″ Griddle Right)

Combine powerful open-top cooking, a space-saving griddle, and an efficient convection oven in a single 48-inch footprint. The Southbend S-Series delivers 195,000 BTU of reliable heat wrapped in a rugged stainless-steel chassis that’s easy to clean and NSF-listed for the line.

Key Features & Benefits

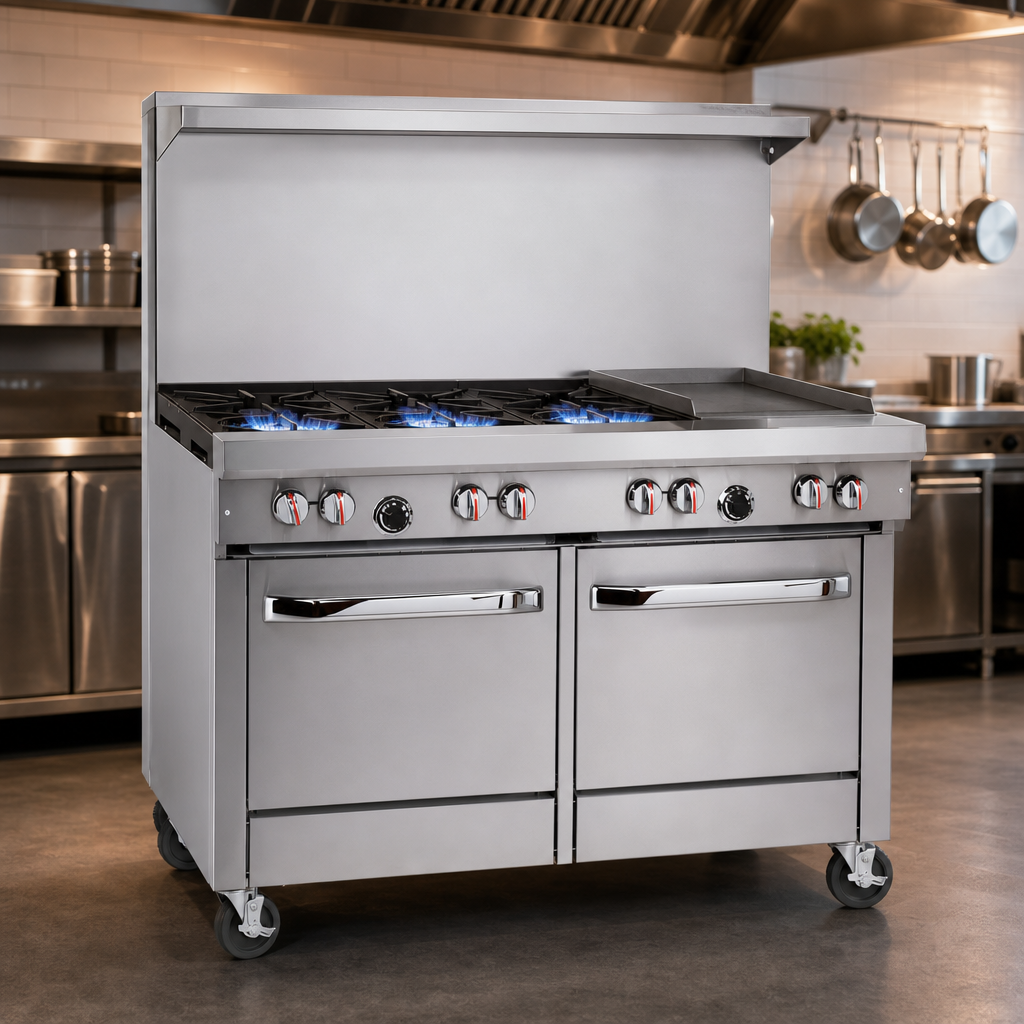

• 4 open burners  |  28,000 BTU each – PATENTED, one-piece cast-iron burners with a lifetime warranty and non-clog ports.

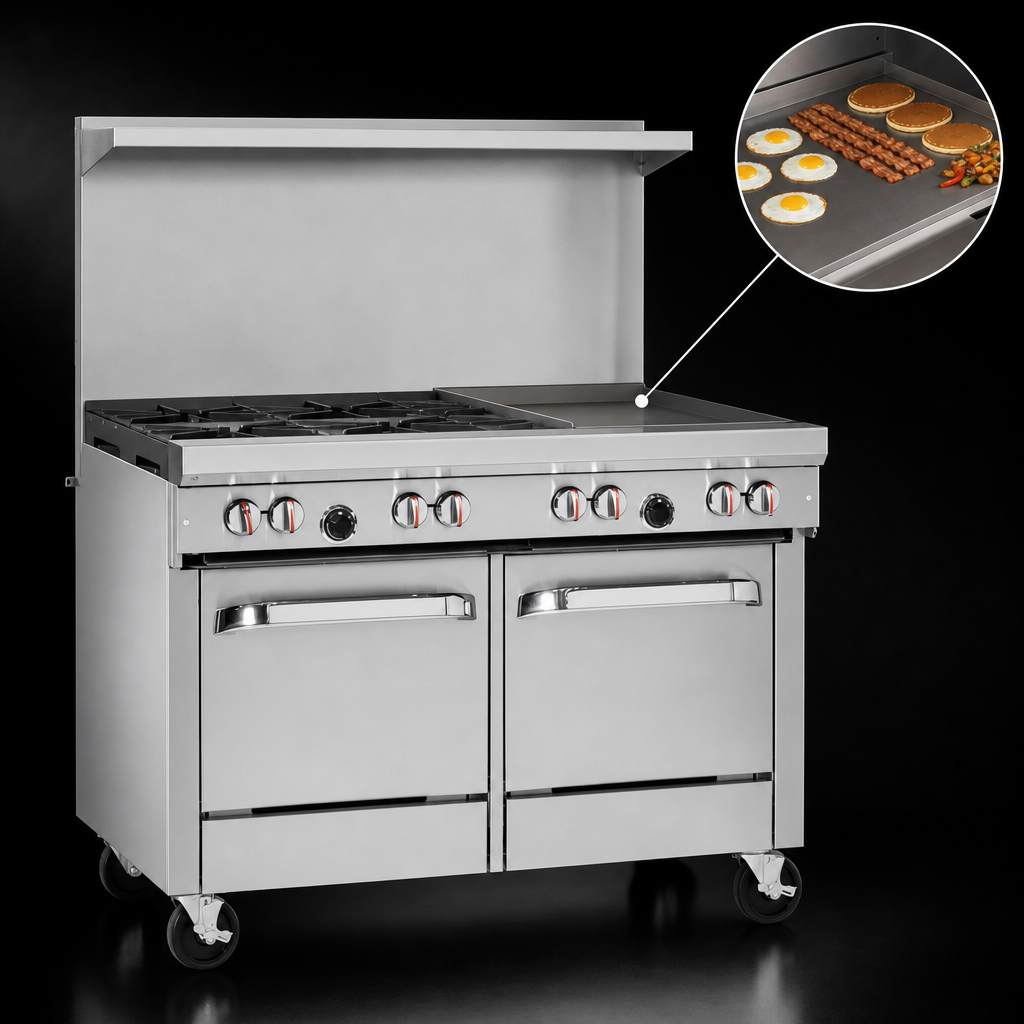

• 24″ smooth steel griddle (right-side) – ½″ thick polished plate, manual controls and 3 × 16,000 BTU burners for breakfast, grilling and finishing.
• Convection oven base – 35,000 BTU U-shaped burner, snap-action thermostat (175-550 °F), 5-position rack guides and 2 included racks.
• Left-hand cabinet base – Keep sheet pans, smallwares or hotel pans within arm’s reach (optional doors available at no charge).
• Service-friendly design – 2 full-width crumb drawers, hinged lower valve panel and individual removable cast-iron grate tops (fit up to 14″ stock pots).
• Durable construction – Stainless-steel front, sides, 4″ front rail with welded end caps, removable high-shelf and 6″ adjustable legs.
• Factory-installed ¾″ pressure regulator, rear gas connection and ½ HP fan motor with on/off switch for static-bake flexibility.
• Certified cCSAus, CSA Flame, CSA Star, NSF for worry-free code compliance.

Technical Specifications

Popular Options (Factory or Field-Installed)

• All-swivel locking casters
• Cabinet doors (no-charge option)
• 10″ flue riser or salamander/cheesemelter mounts
• ¾″ quick-disconnect gas hose (3-, 4- or 5-ft)
• Extra oven racks
