Southbend (Middleby) S36D S-Series Gas Ranges
Description

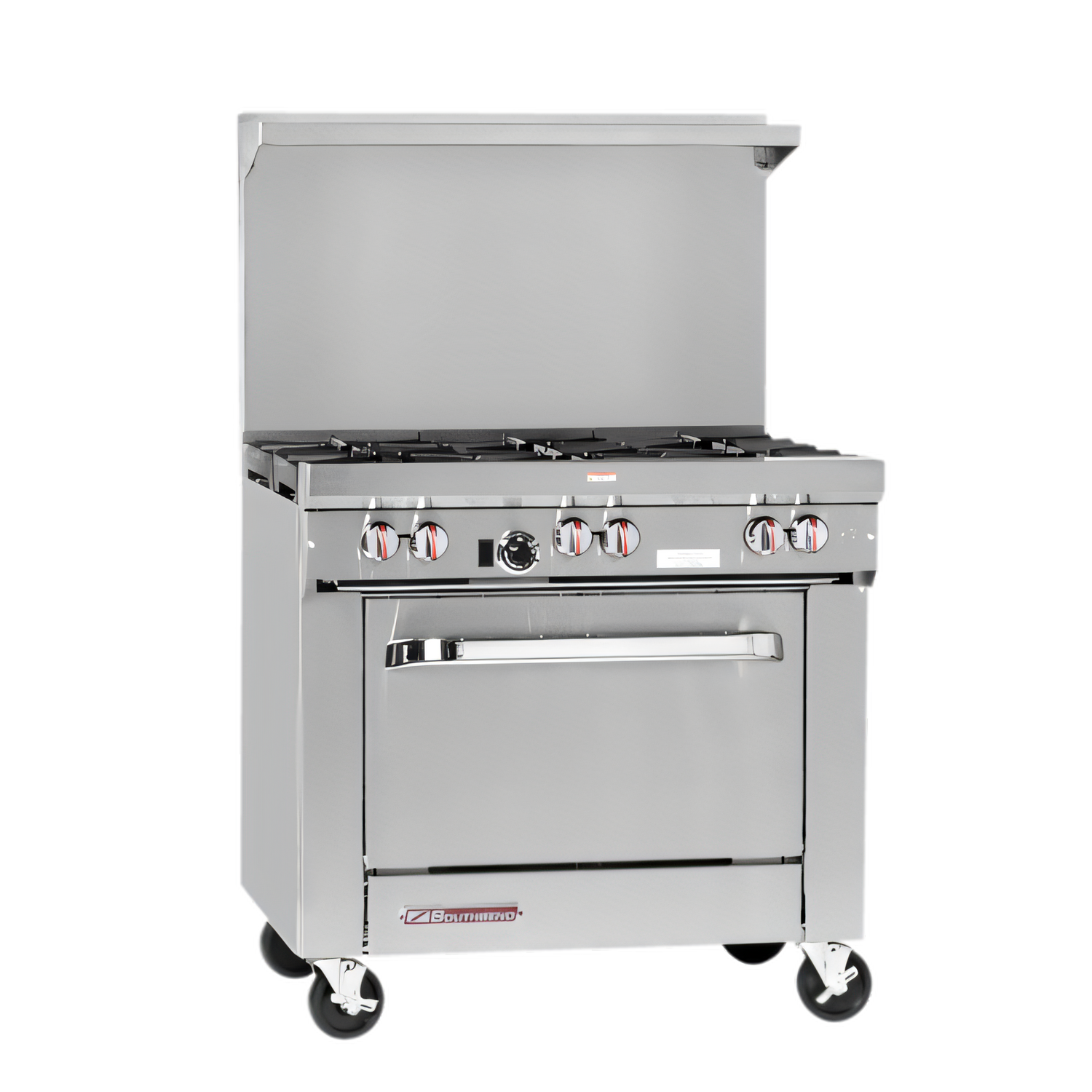

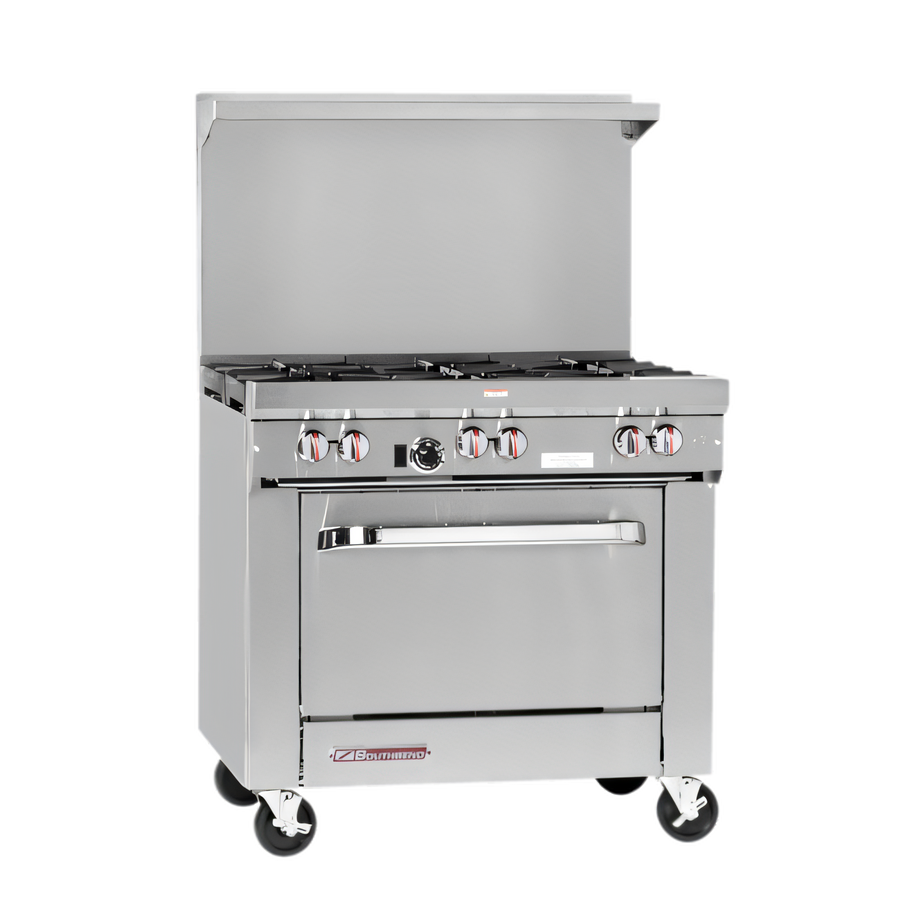

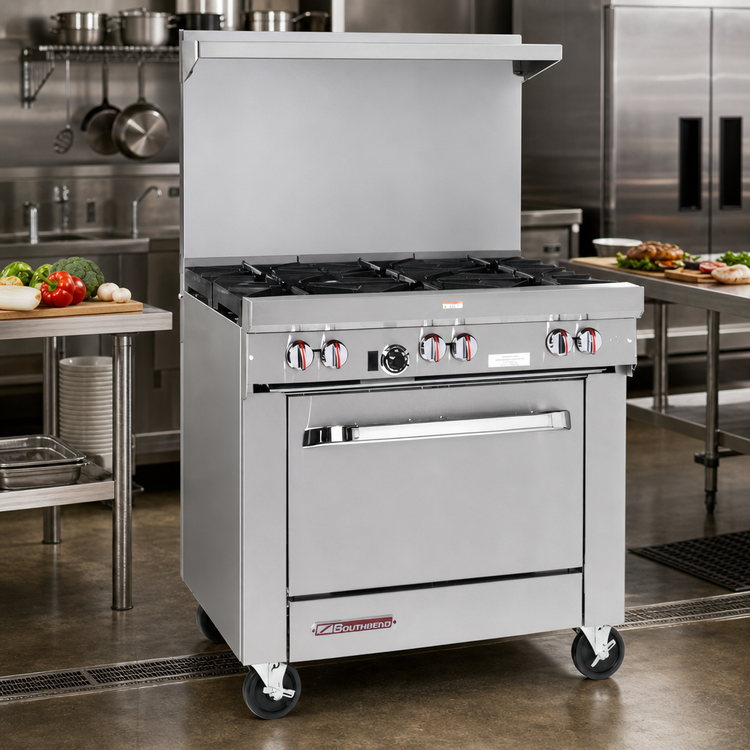

Southbend S-Series 36" Restaurant Range – Model S36D
(Quick Ship • Middleby Essentials Item • CSA & NSF Certified)Built for the daily grind of high-volume kitchens, the Southbend S36D combines six 28,000 BTU non-clog burners with a heavy-duty standard oven—delivering a powerhouse 203,000 BTU in a single, 36-inch footprint. From breakfast rush to closing cleanup, this range keeps pace with every ticket.
Performance & Productivity

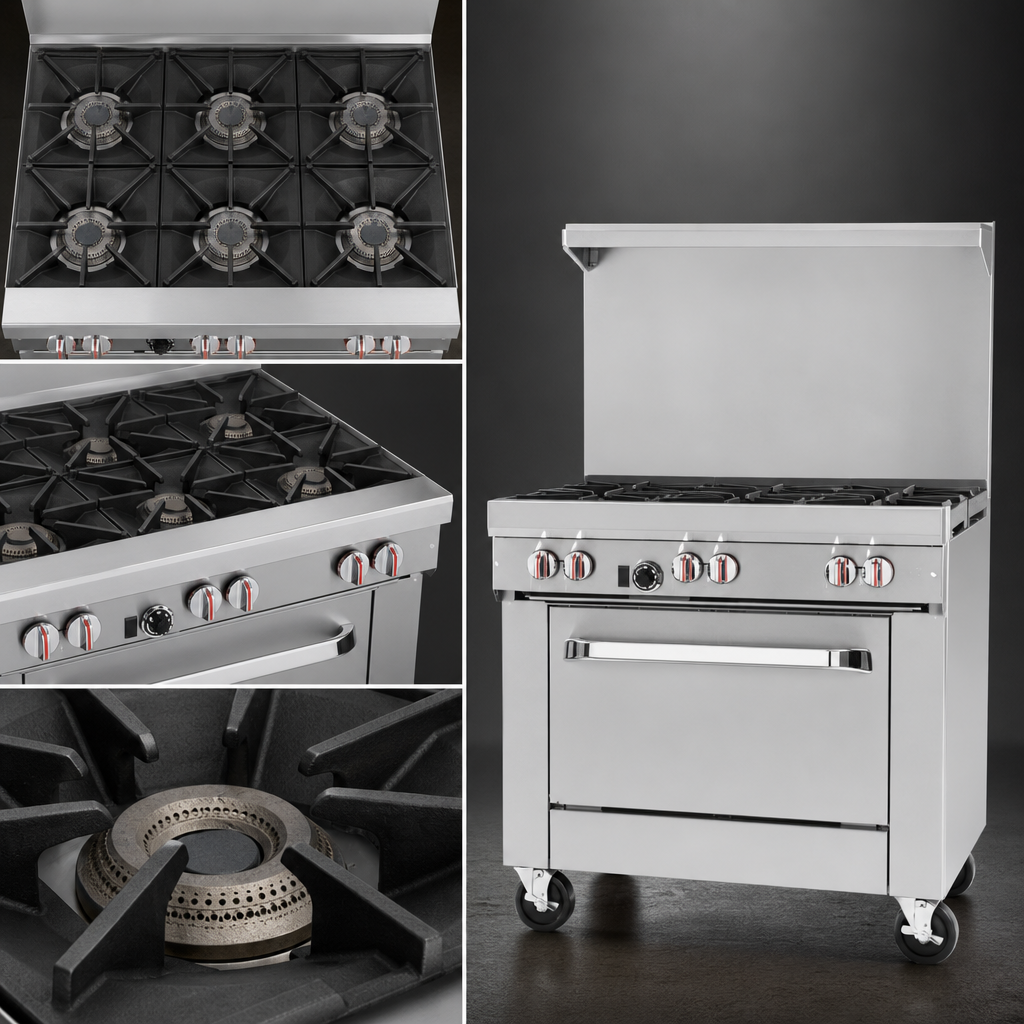

- Six PATENTED one-piece cast-iron open burners (28,000 BTU each) with a lifetime warranty

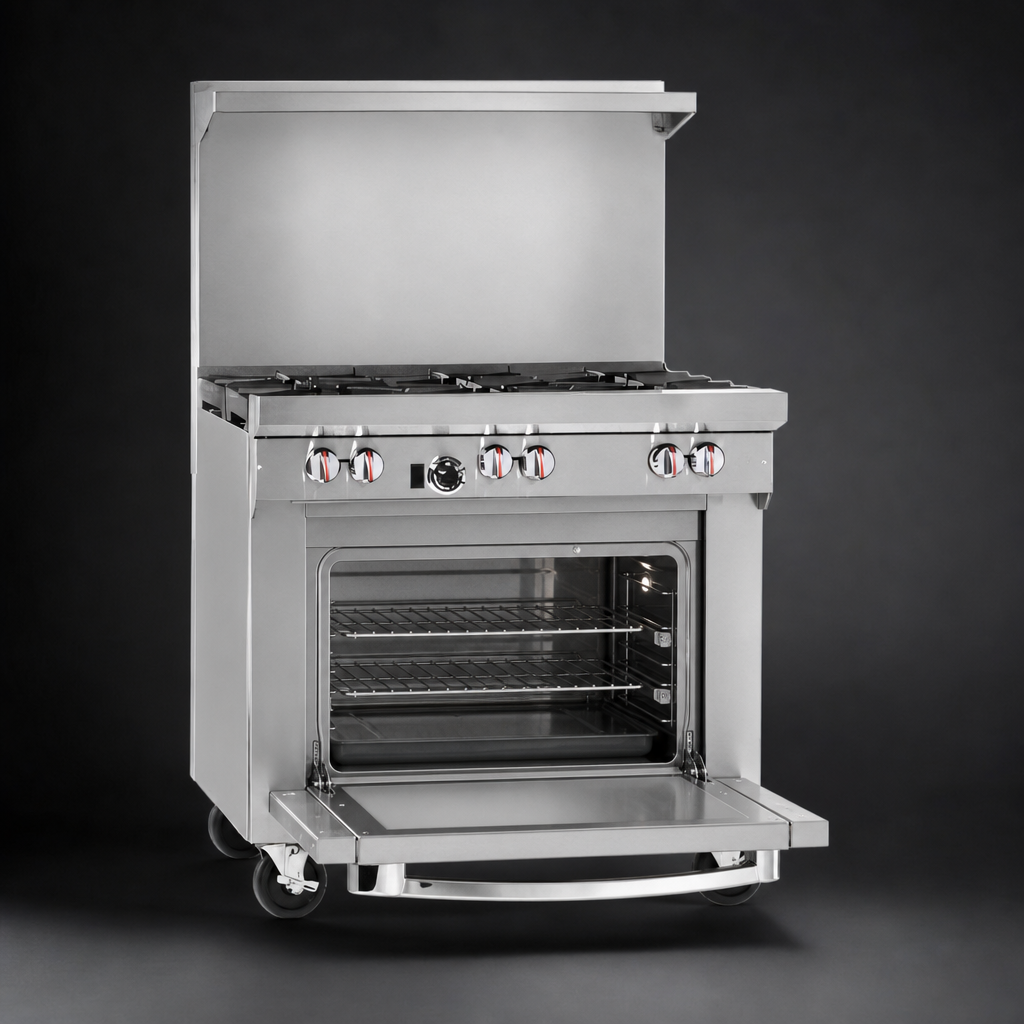

- Standard oven (35,000 BTU) with snap-action thermostat adjustable 175 °F–550 °F
- U-shaped heavy-duty oven burner for even baking & roasting
- Large 26" W × 26.5" D × 14" H porcelain-enameled oven cavity
- Two rack positions; includes one oven rack
- Rear grates sized to hold up to a 14" stock pot—perfect for high-volume boiling or sauces
Built to Last
- All-stainless front, sides, 22.5" flue riser shelf & 4" front rail with welded end caps
- Six removable cast-iron grate tops for easy deep-cleaning
- One-piece removable crumb drawer keeps the cooktop sanitary
- Hinged lower valve panel for quick service access
- 6" stainless steel adjustable legs (optional casters available)
- Factory-installed 3/4" pressure regulator; rear gas connection simplifies installation
At-a-Glance Specs
| Exterior Width | 36.5" / 927 mm |
|---|---|
| Exterior Depth | 34" / 864 mm |
| Overall Height (to shelf) | 59.5" / 1,511 mm |
| Cooktop Height | 37" / 940 mm |
| Total BTU | 203,000 BTU (Natural) / 179,000 BTU (LP) |
| Gas Inlet | 3/4" NPT (rear) |
| Oven Thermostat Range | 175 °F – 550 °F |
| Oven Interior (W × D × H) | 26" × 26.5" × 14" |
| Shipping Weight | ≈ 535 lb / 243 kg |
| Certifications | CSA, NSF |
Popular Factory Options
- Heavy-duty locking casters (all swivel)
- Restraining device for mobile installations
- Extra oven racks
- 10" flue riser
- 3/4" quick-disconnect hose kits (3 ft, 4 ft, 5 ft)
Peace-of-Mind Warranty
• Lifetime warranty on non-clog burners
• 1-year parts & labor on the complete range (commercial use)
Need it fast? This model qualifies for Southbend’s QUICK SHIP program—typically leaves the factory in days, not weeks.
