Southbend (Middleby) S36D-3T S-Series Gas Ranges
Southbend (Middleby) S36D-3T S-Series Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) S36D-3T S-Series Gas Ranges
Description

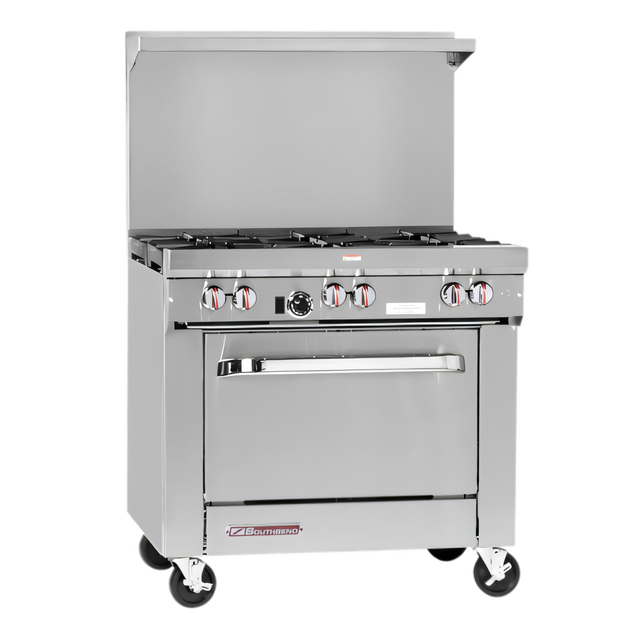

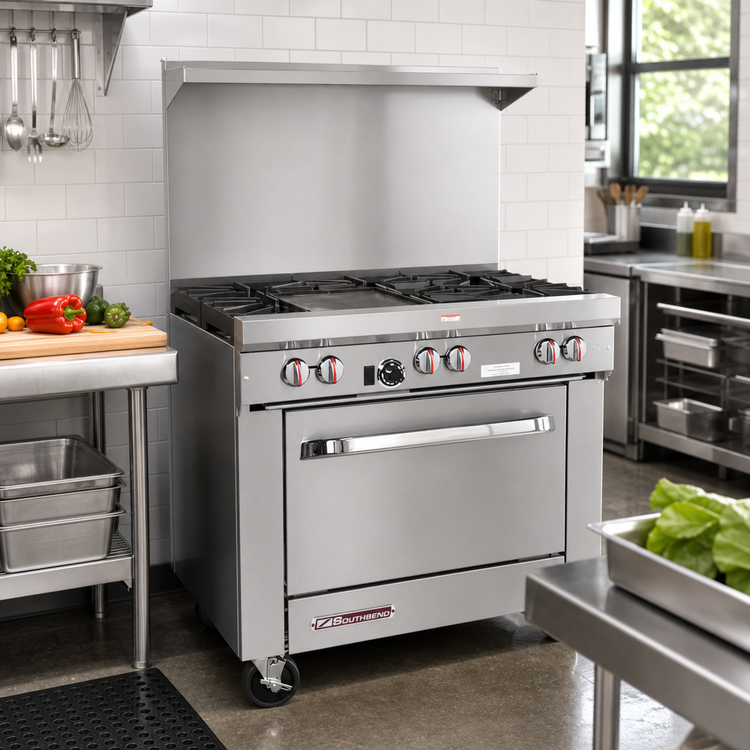

Southbend S-Series 36" Gas Range with Full Griddle & Standard Oven
Model S36D-3G/T | 99,000 BTU | NSF & CSA CertifiedBuilt for life on the cook line, the Southbend S-Series packs a 36" thermostatic griddle and a space-saving oven into a rugged stainless-steel frame just 36½" wide. Four independent 16,000 BTU burners, a ½" thick polished steel plate and snap-action thermostats give you the responsiveness you need for breakfast rushes, all-day sauté work or late-night sears.
Key features
- Full 36" smooth griddle, ½" thick polished steel for excellent heat retention

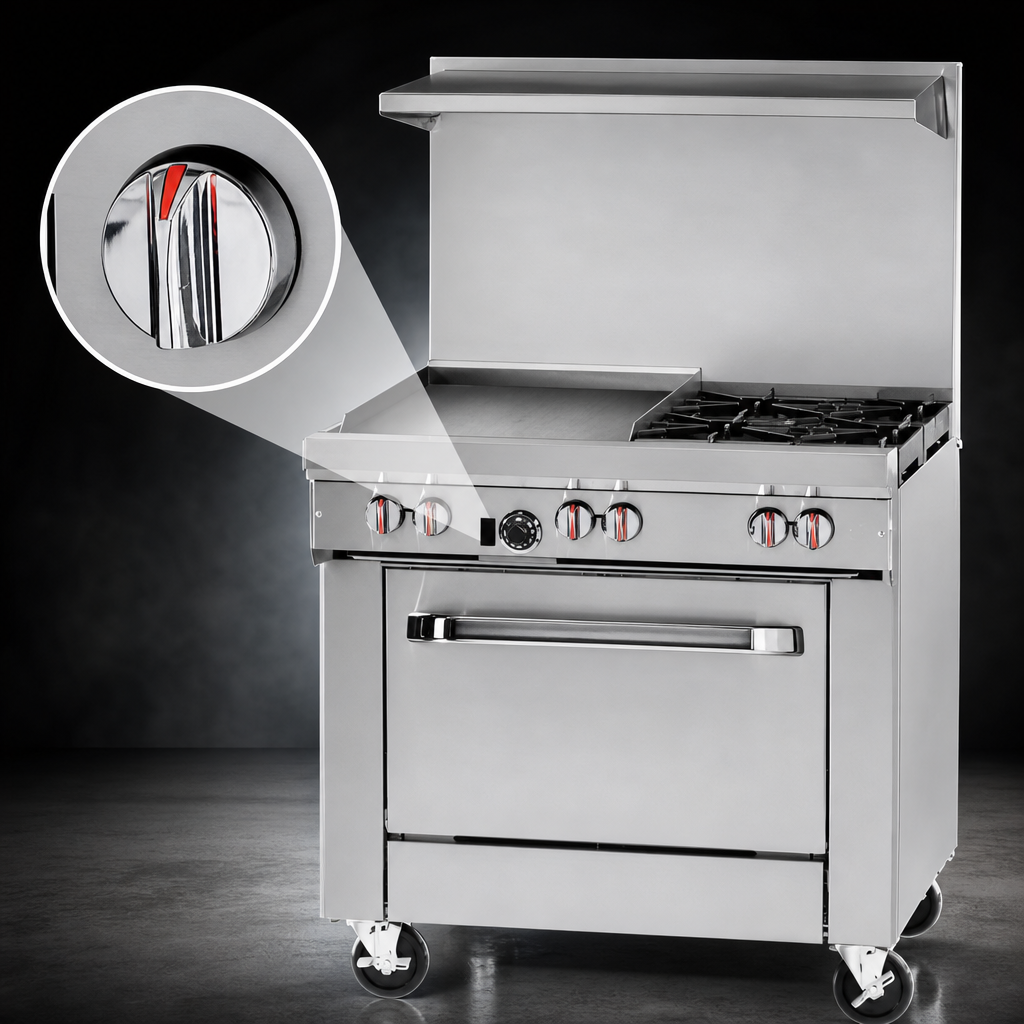

- Four independent 16,000 BTU burners (64,000 BTU total) with 175–550 °F snap-action thermostats
- 35,000 BTU standard oven with U-shaped burner and flame-failure safety
- 26" W × 26.5" D × 14" H porcelain-enameled oven cavity with (1) rack & 2-position guides
- 22.5" stainless flue riser with single heavy-duty shelf for plates or smallwares
- Hinged lower valve panel & removable crumb drawer for fast service access
- 4" welded front rail, metal control knobs with red stripes & quadrant-spring oven door
- 6" stainless steel adjustable legs; optional locking casters available
- Factory-installed ¾" pressure regulator, natural or LP gas
- cCSAus, CSA Flame, CSA Star and NSF listed for commercial kitchens
Standard oven performance
- Snap-action thermostat adjusts from 175 °F to 550 °F
- Full rock-wool insulation on sides, top and rear for energy efficiency
- Large cavity fits full-size sheet pans front-to-back or left-to-right
- Chrome rack included; extra racks available
What’s included
- Southbend S36D-3G/T range (griddle + standard oven)
- (1) heavy-duty oven rack
- ¾" NPT pressure regulator (installed)
- Owner’s manual & warranty registration
Popular accessories (sold separately)
- Front-locking swivel casters & restraining device
- 3' – 5' quick-disconnect hose kits (ANSI Z21.69)
- 10" flue riser
- Extra oven racks
- Salamander & cheesemelter mounting kits
Specifications
| Exterior width | 36.5" (927 mm) |
|---|---|
| Exterior depth | 34" (864 mm) |
| Cooking height | 37" (940 mm) on 6" legs |
| Overall height (with shelf) | 59.5" (1,511 mm) |
| Griddle size | 36" W × 24" D × ½" thick |
| Griddle BTU | 64,000 BTU (4 × 16,000 BTU) |
| Oven BTU | 35,000 BTU |
| Total output | 99,000 BTU/hr |
| Thermostat range | 175–550 °F (griddle & oven) |
| Oven cavity | 26" W × 26.5" D × 14" H |
| Gas connection | ¾" NPT male, rear (opposite griddle side) |
| Inlet pressure | Natural 7" W.C. | LP 11" W.C. |
| Shipping weight | ≈ 535 lb (243 kg) |
Warranty
1-year parts & labor when installed by a Southbend Authorized Service Agency. See enclosed policy for full terms and exclusions.
