Southbend (Middleby) S36D-3G S-Series Gas Ranges
Description
Southbend S-Series 36" Restaurant Range – Full Griddle & Standard Oven
Model S36D-3G | 99,000 BTU | Natural or LP GasEngineered for the daily grind of busy restaurants, this Southbend S-Series range combines a 36-inch manual-control griddle with a space-saving standard oven—all wrapped in a rugged, easy-to-clean stainless-steel chassis. Whether you’re searing burgers at breakfast or roasting pans of vegetables for dinner service, the S36D-3G delivers dependable performance shift after shift.
Why You’ll Love It

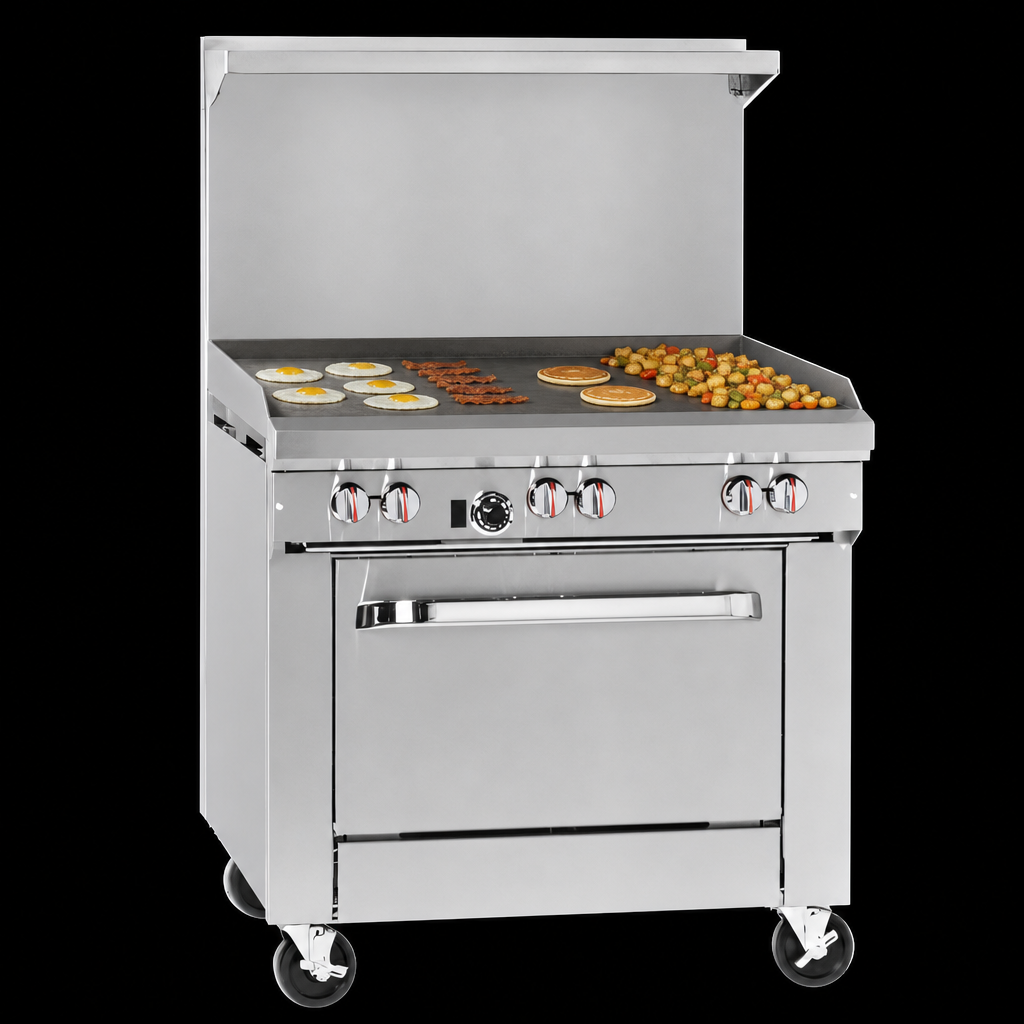

- Full 36" griddle – ½" thick polished steel plate with raised sides for superior heat retention and effortless cleanup.
- Powerful & precise – Four 16,000 BTU burners under the griddle plus a 35,000 BTU U-shaped oven burner equal 99,000 BTU of total output.

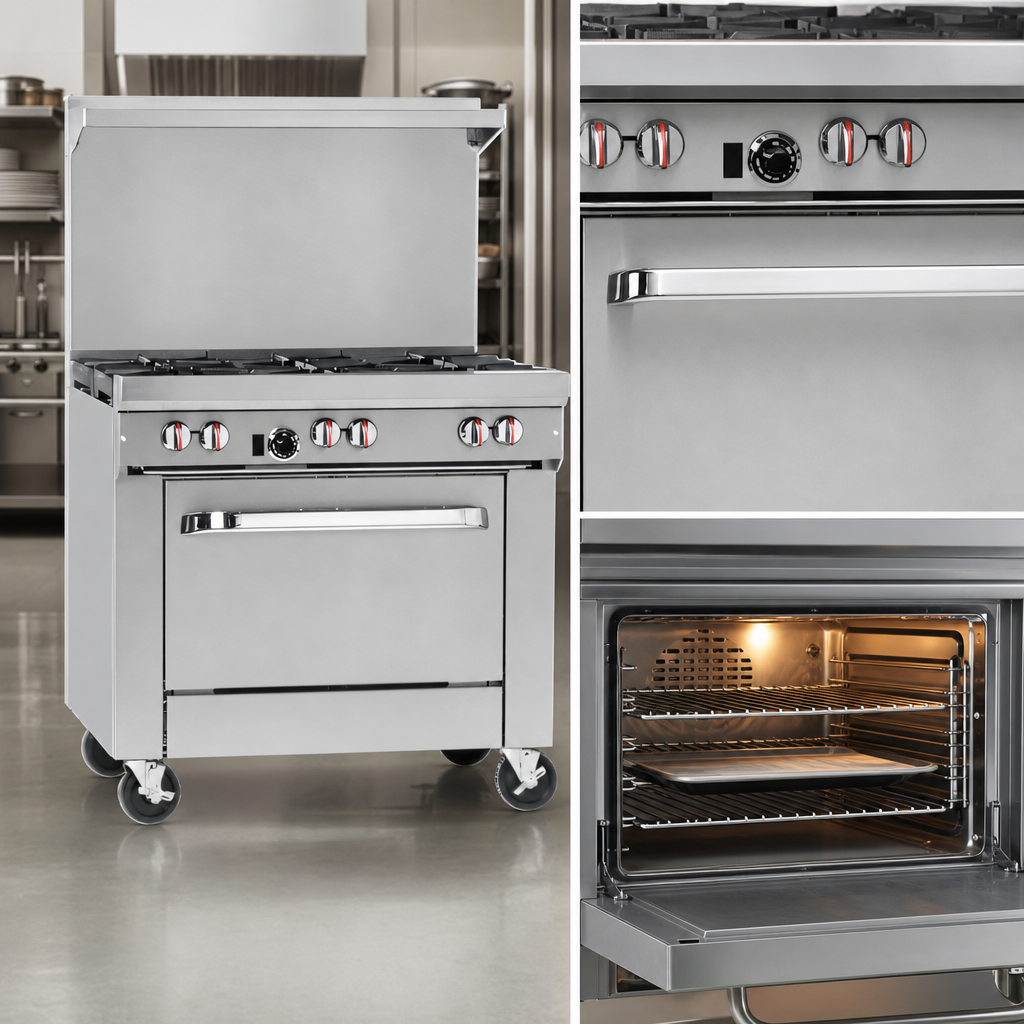

- Space-saving standard oven – Snap-action thermostat adjusts from 175 °F–550 °F and includes one rack with two positions.
- Built to last – Stainless-steel front, sides, shelf and 4" front rail with closed welded end caps.
- Easy service & cleaning – Hinged lower valve panel and factory-installed gas regulator streamline maintenance; 6" adjustable stainless legs simplify floor cleaning.
- Certified for commercial kitchens – cCSAus, CSA Flame, CSA Star & NSF listed.
Technical Specifications
| Overall width | 36 ½" (927 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Overall height (to top of shelf) | 59 ½" (1,511 mm) |
| Griddle surface | 36" W × 24" D × ½" thick polished steel |
| Griddle burners | 4 × 16,000 BTU (manual valves) |
| Oven interior (W×D×H) | 26" × 26 ½" × 14" |
| Oven burner | 35,000 BTU | Snap-action thermostat 175 °F–550 °F |
| Total input | 99,000 BTU/hr |
| Gas connection | ¾" NPT (rear, factory regulator installed) |
| Minimum inlet pressure | Natural 7" WC | LP 11" WC |
| Legs | 6" stainless steel, adjustable |
| Included accessories | One oven rack, removable shelf, regulator |
| Warranty | 1 year parts & labor (commercial use) |
Popular Options ( Sold Separately )
- Swivel casters with front-set locks
- 10" flue riser
- Additional oven racks
- Quick-disconnect gas hose kits (3-, 4- or 5-ft)
- Shelf mounts for salamander or cheesemelter
Allow 10" clearance to combustible walls; install under a vented hood per local code. Unit ships for Natural gas and may be field-converted to LP by qualified personnel.
