Southbend (Middleby)  |  S-Series  |  SKU: S36D-2TR

Southbend (Middleby) S36D-2TR S-Series Gas Ranges

$7,424.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

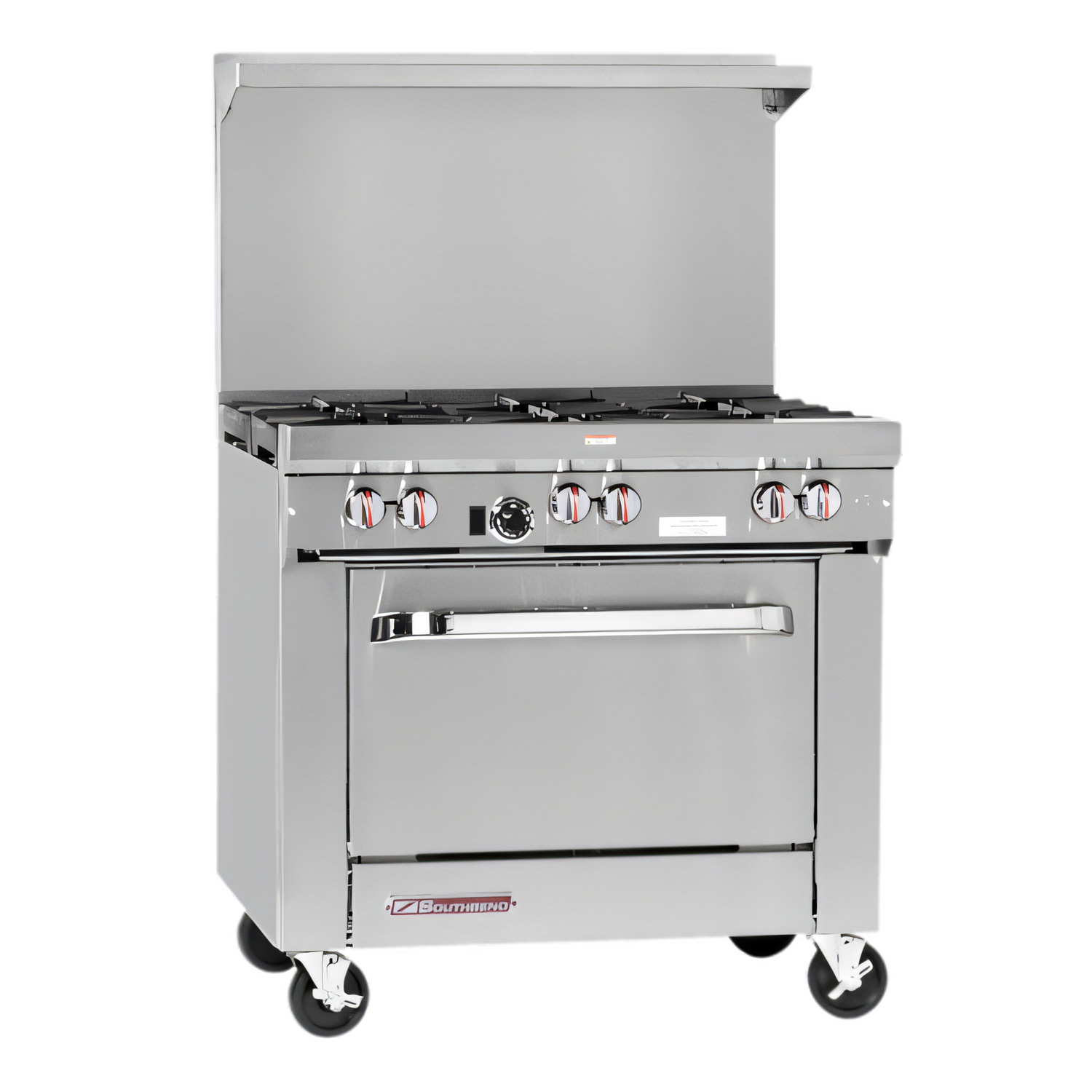

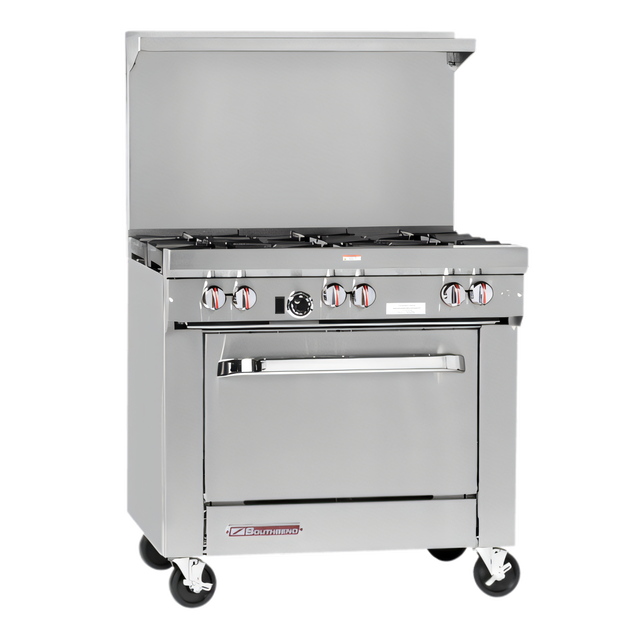

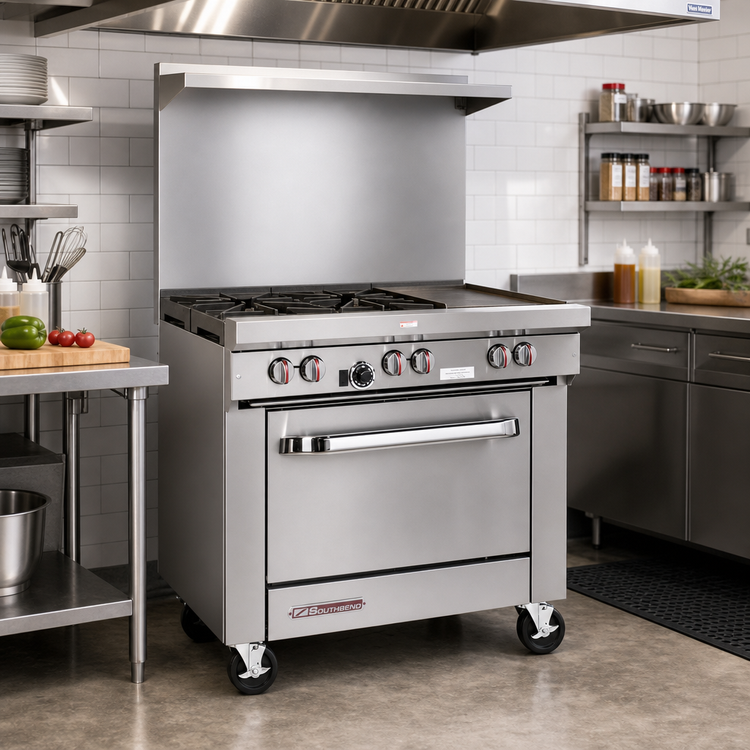

Southbend S-Series 36" Gas Restaurant Range

Model S36D-2G/T-R · 2 Open Burners · 24" Thermostatic Griddle (Right) · Standard Oven

Built to thrive in busy commercial kitchens, the Southbend S-Series combines heavy-duty performance with a space-saving 36-inch footprint. Two lifetime-warrantied open burners, a full 24-inch thermostatic griddle, and a snap-action standard oven give chefs the versatility to sauté, sear, grill and bake from a single station.

Top Reasons You’ll Love It

  • 139,000 BTU total output for fast recovery during peak service.

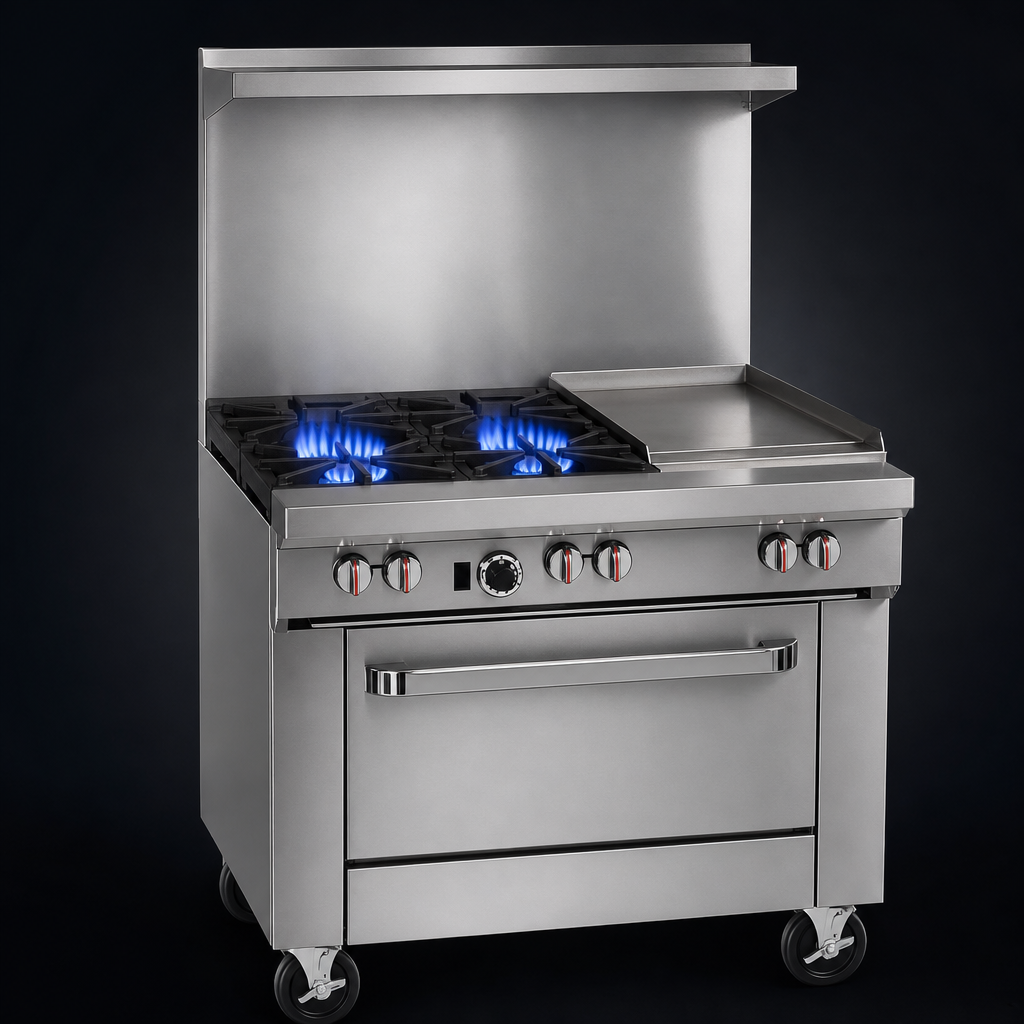

  • (2) 28,000 BTU non-clog cast-iron open burners with lifetime warranty.

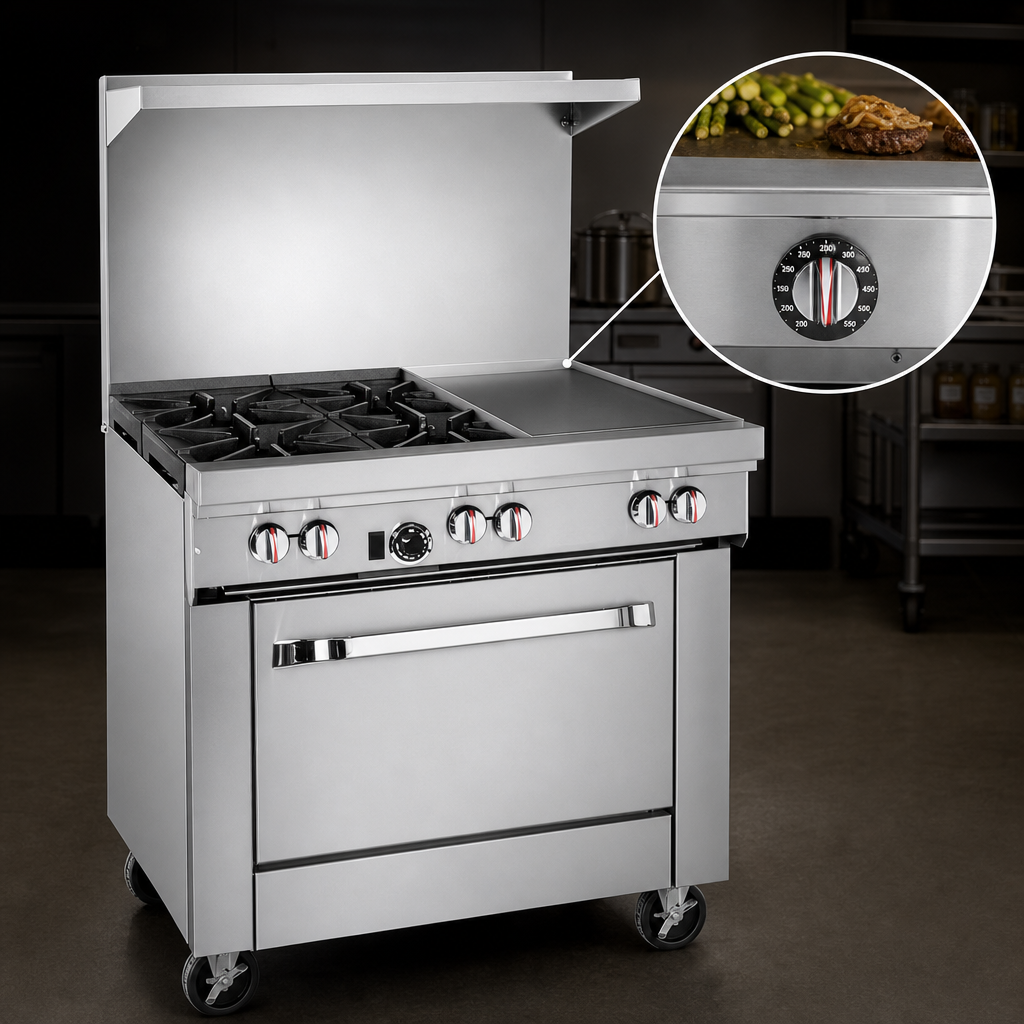

  • 24" wide, ½" thick polished steel griddle (right-side) with 3 × 16,000 BTU burners and precise thermostatic controls.
  • 35,000 BTU standard oven (175 °F – 550 °F) featuring a U-shaped burner, snap-action thermostat, flame-failure safety device and one rack.
  • Individual removable cast-iron grate tops; rear grate supports stock pots up to 14".
  • One-piece crumb drawer and hinged lower valve panel for quick daily clean-up.
  • Durable stainless-steel front, sides, 4" rail, high flue-shelf & 6" adjustable legs.
  • Factory-installed pressure regulator; ¾" rear gas connection simplifies installation.
  • Certified cCSAus, CSA Flame, CSA Star & NSF for dependable, code-compliant operation.

Specifications

Exterior Dimensions (W × D × H) 36.5" × 34" × 59.5" with flue (928 × 864 × 1511 mm)
Cooking Surface Height 37"
Open Burners (2) × 28,000 BTU NAT (24,000 BTU LP)
Griddle Plate 24" W × ½" T steel, right-mounted; (3) × 16,000 BTU burners, thermostatic
Oven Type / Capacity Standard, 35,000 BTU; 26" W × 26.5" D × 14" H cavity with 2-position rack guides, 1 rack included
Total Input 139,000 BTU/hr (Natural Gas or Propane)
Gas Connection ¾" NPT male, rear (opposite griddle side)
Required Inlet Pressure Natural 7" W.C · LP 11" W.C
Electrical None required
Construction Stainless front, sides & shelf; cast-iron grates; steel griddle plate; rock-wool insulated oven
Certifications cCSAus, CSA Flame, CSA Star, NSF
Warranty 1-year parts & labor; lifetime on open-top burners

Popular Options & Accessories (sold separately)

  • All-swivel locking casters
  • Extra oven racks
  • ¾" quick-disconnect hose & restraining device (3 ft, 4 ft or 5 ft)
  • 10" flue riser
  • Salamander or cheesemelter mounting kits

Installation Note: Allow 10" clearance to combustible walls when the unit is on 6" legs or casters. Intended for commercial use only.

Made in the USA by Southbend, a division of Middleby.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

S-Series

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

36.5in

Depth

34.0in

Shipping Weight

660.0lbs

Base

(1) standard oven

Plate Thickness

.500" = 1/2"

Vent

backriser with hi-shelf

Exterior Finish

stainless steel front & sides

Top

(2) open burners, (1) 24" griddle with thermostats

Specifications

S-Series Restaurant Range, gas, 36", (2) 28,000 BTU open burners, (1) 24" griddle right, thermostatic controls, (1) standard oven, snap action thermostat, removable cast iron grate tops & crumb drawer, hinged lower valve panel, includes (1) rack, stainless steel front, sides, shelf, 4" front rail & 6" adjustable legs, 139,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
