Southbend (Middleby)  |  S-Series  |  SKU: S36D-2GR

Southbend (Middleby) S36D-2GR S-Series Gas Ranges

$6,700.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

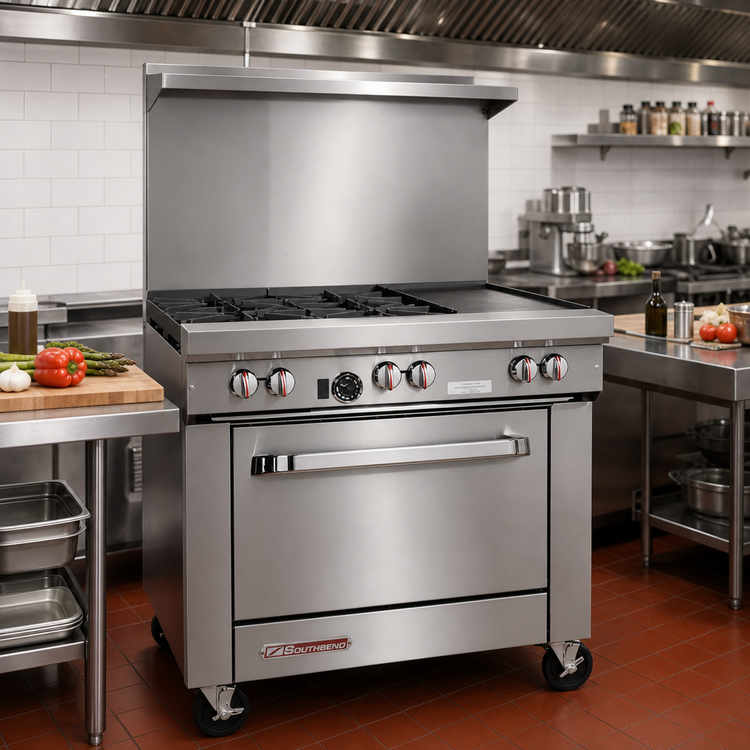

Southbend S-Series 36" Gas Restaurant Range with 24" Right-Side Griddle & Standard Oven – Model S36D-2G/T

2 Open Burners | 24" Griddle Plate | 139,000 BTU Total Output

Built for round-the-clock performance in busy kitchens, the Southbend S-Series S36D-2G/T packs open-top versatility, a full-size griddle and a space-saving oven into one 36-inch footprint. Heavy-gauge stainless steel, lifetime-warranted burners and simple manual controls deliver the reliability chefs demand without breaking the budget.

Highlighted Features

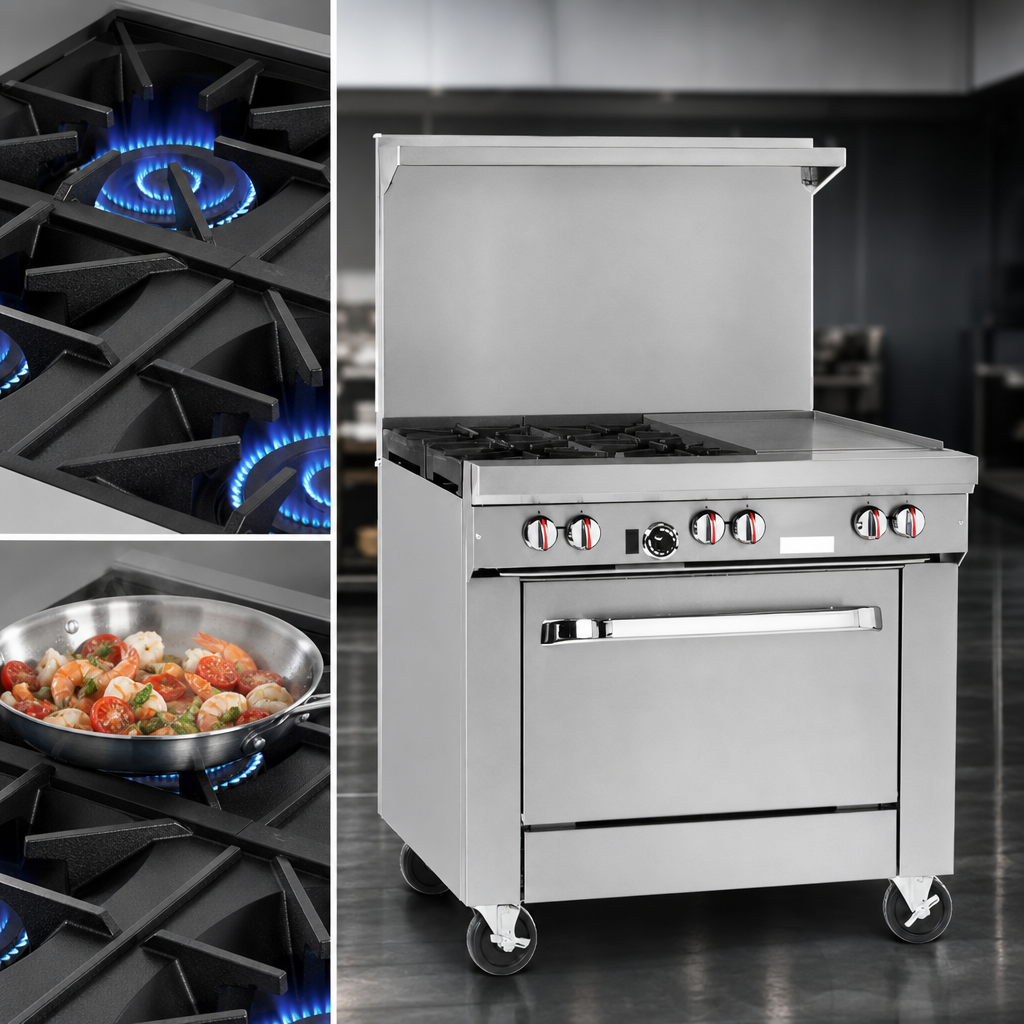

  • Two 28,000 BTU open burners with removable, non-clog cast-iron grates (rear grate holds up to a 14" stock pot).

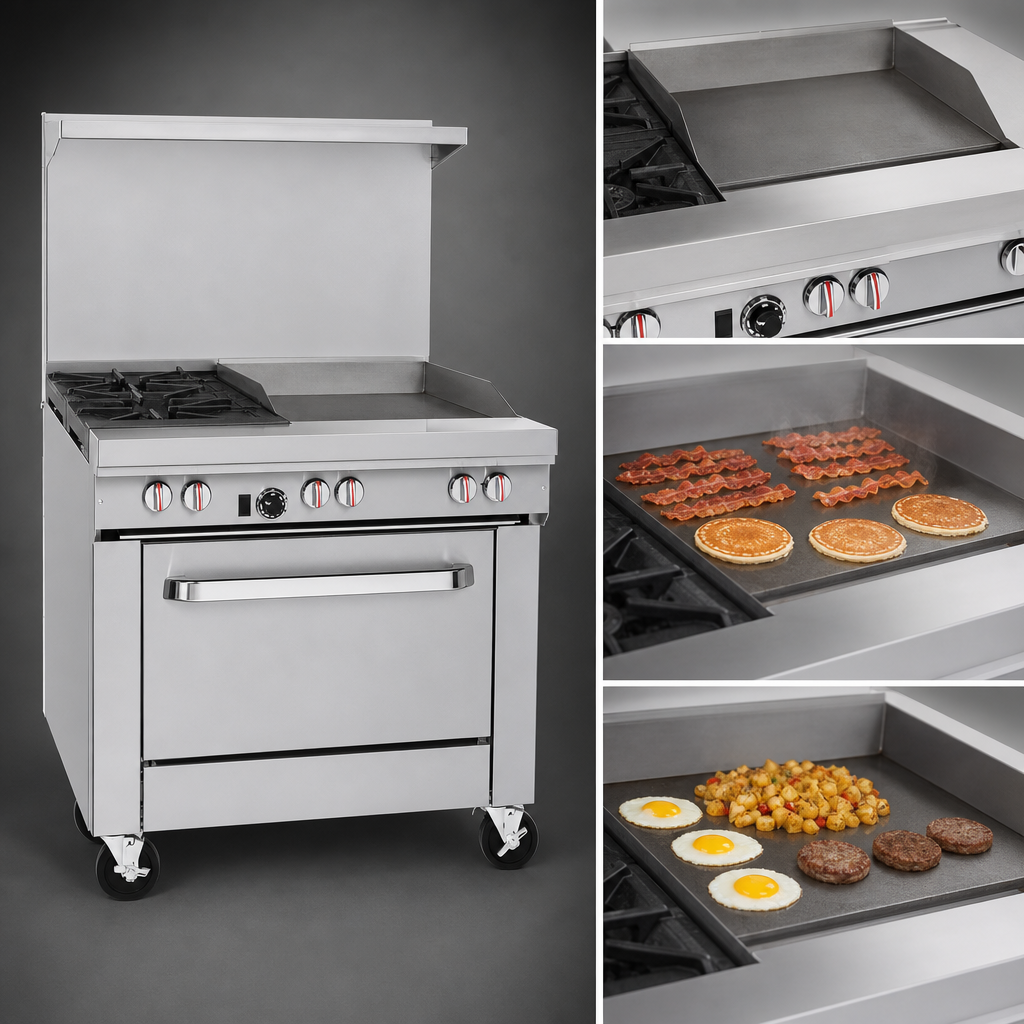

  • 24" smooth, ½" thick polished steel griddle (right-side) heated by three 16,000 BTU burners for even searing.
  • 35,000 BTU standard oven with snap-action thermostat adjustable from 175 °F – 550 °F.
  • Large 26" W × 26.5" D × 14" H oven cavity; includes one rack and two rack positions.
  • Stainless steel front, sides, 22.5" high flue riser/shelf & 4" front rail with welded ends.
  • Hinged lower valve panel, crumb drawer and individual grate tops for quick cleanup.
  • 6" stainless steel adjustable legs; optional locking casters available.
  • Factory-installed ¾" rear gas regulator; 3/4" NPT male connection.
  • cCSAus, CSA Flame, CSA Star & NSF certified for commercial use.
  • Lifetime warranty on open burners; one-year parts & labor on complete unit.

Technical Specifications

Gas Type Natural or Propane (field convertible)
Total BTU Input 139,000 BTU/hr (Nat.)
Open Burners 2 × 28,000 BTU cast-iron, non-clog
Griddle 24" W, ½" steel, 3 × 16,000 BTU burners (right-side placement)
Oven Standard, 35,000 BTU; 26" W × 26.5" D × 14" H cavity; 175–550 °F
Exterior Dimensions 36.5" W × 34" D × 59.5" H (to top of flue)
Cooking Surface Height 37"
Gas Inlet ¾" NPT male (rear), min. 7" W.C. Nat. / 11" W.C. LP
Crated Weight Approx. 535 lb
Included Accessories 1 oven rack, pressure regulator

Popular upgrades (sold separately): swivel casters with locks, extra oven racks, 10" flue riser, restraining device, and quick-disconnect gas hose assemblies.

Warranty & Certifications

  • 1-year parts & labor warranty on the complete range.
  • Lifetime warranty on non-clog cast-iron open burners.
  • Certified: cCSAus, CSA Flame, CSA Star, NSF.
Commercial Use Only: This appliance is intended strictly for professional food-service installations. Follow all local codes, ventilation requirements and Southbend’s oversized-cookware guidelines to ensure safe operation and maintain warranty coverage.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

S-Series

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

36.5in

Depth

34.0in

Shipping Weight

660.0lbs

Vent

backriser with hi-shelf

Plate Thickness

.500" = 1/2"

Top

(2) open burners, (1) 24" griddle

Exterior Finish

stainless steel front & sides

Base

(1) standard oven

Specifications

S-Series Restaurant Range, gas, 36", (2) 28,000 BTU open burners, (1) 24" griddle right, manual controls, (1) standard oven, snap action thermostat, removable cast iron grate tops & crumb drawer, hinged lower valve panel, includes (1) rack, stainless steel front, sides, shelf, 4" front rail & 6" adjustable legs, 139,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
