Southbend (Middleby) S36D-2GL S-Series Gas Ranges
Description

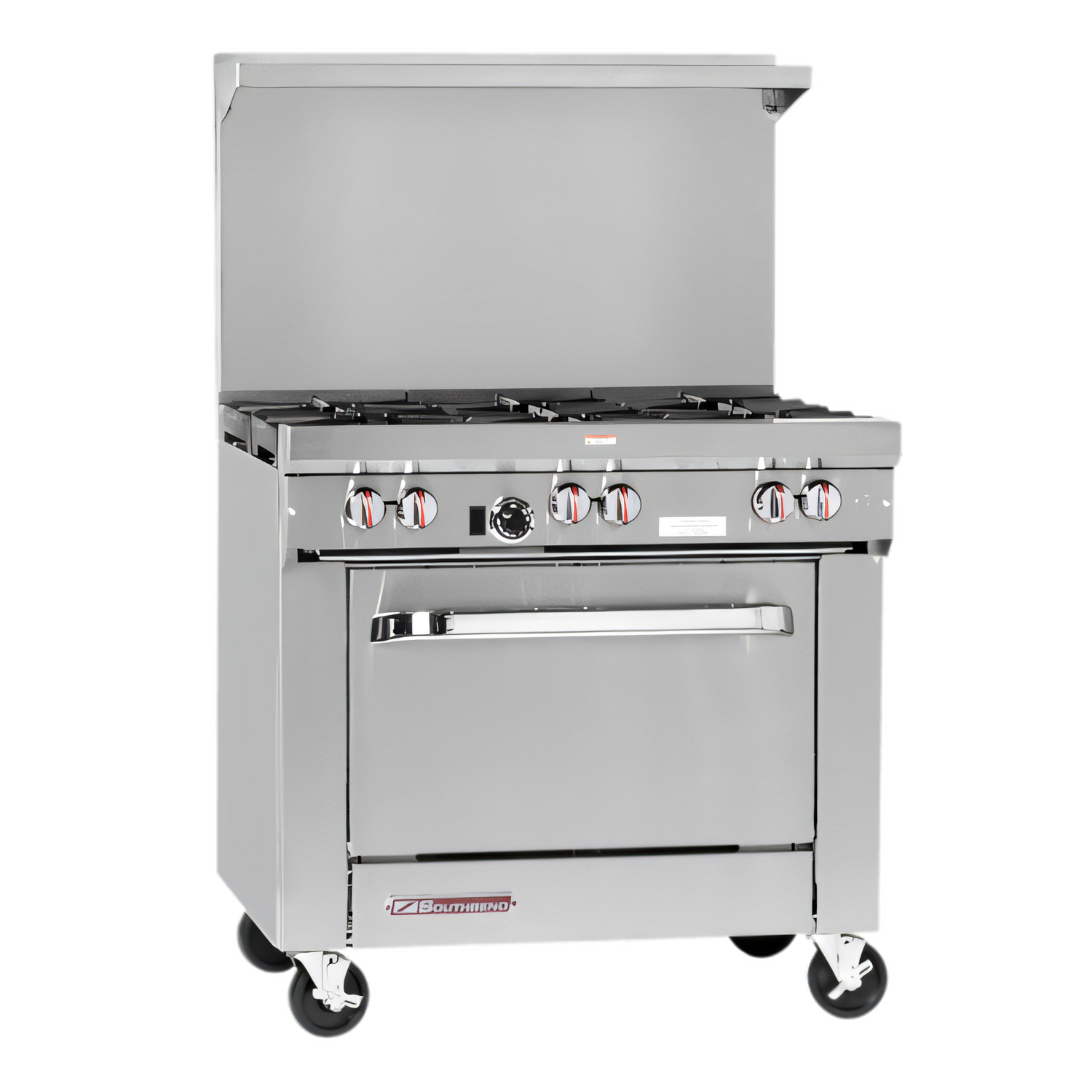

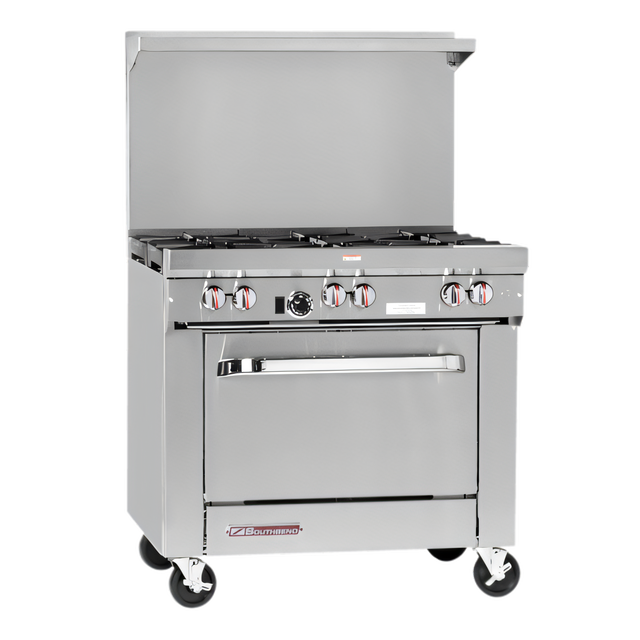

Southbend S-Series 36" Gas Restaurant Range
Model S36D-2G/T-L • 2 Open Burners | 24" Left-Side Griddle | Standard OvenDesigned for busy commercial kitchens that need big-range versatility in a small footprint, the Southbend S-Series delivers 139,000 BTU of reliable, easy-to-service power. Two lifetime-warrantied 28,000 BTU open burners, a full 24" manual-control griddle, and a space-saving standard oven give your crew the flexibility to sauté, sear, grill and bake from one rugged station.
Why Choose the S36D-2G/T?
- Compact 36½" width maximizes line space without sacrificing capacity.
- Two 28,000 BTU non-clog cast-iron burners with removable grate tops handle stockpots up to 14".
- 24" polished ½" steel griddle (left side) with three 16,000 BTU burners for high-output breakfast or sandwich production.
- 35,000 BTU standard oven with snap-action thermostat (175-550 °F) and one rack on 2 positions—perfect for breads, desserts or finishing entrées.
- Built for the long haul: stainless steel front, sides, shelf and 4" front rail, plus 6" adjustable stainless legs.
- Service-friendly design – hinged lower valve panel, removable crumb drawer and individual grate tops speed daily cleaning and maintenance.
- Certified & safe: cCSAus, CSA Flame, CSA Star and NSF listed.
Technical Specifications
| Overall width | 36.5" (927 mm) |
|---|---|
| Depth (front to back) | 34" (864 mm) |
| Height w/ shelf | 59.5" (1,511 mm) |
| Cooking surface height | 37" |
| Total BTU | 139,000 BTU/hr (Natural or LP) |
| Open burners | 2 × 28,000 BTU cast-iron, lifetime warranty |
| Griddle | 24" W × ½" thick steel plate, 3 × 16,000 BTU, manual controls (left) |
| Oven | 35,000 BTU U-shaped burner; 26" W × 26.5" D × 14" H chamber; snap-action thermostat |
| Gas connection | ¾" NPT male, rear (opposite griddle side) |
| Clearances | 0" to non-combustible, 10" to combustible surfaces |
| Certifications | NSF, cCSAus, CSA Flame, CSA Star |
| Warranty | 1-year parts & labor; lifetime open-top burner casting |
What’s in the Box
- (1) Removable oven rack
- Factory-installed gas pressure regulator
- Polished stainless shelf & 4" front rail
- 6" adjustable stainless steel legs
- User & installation manual
Need casters, additional oven racks or a salamander mount? Southbend offers a full line of optional accessories (sold separately).
