Southbend (Middleby) S36C S-Series Gas Ranges
Description

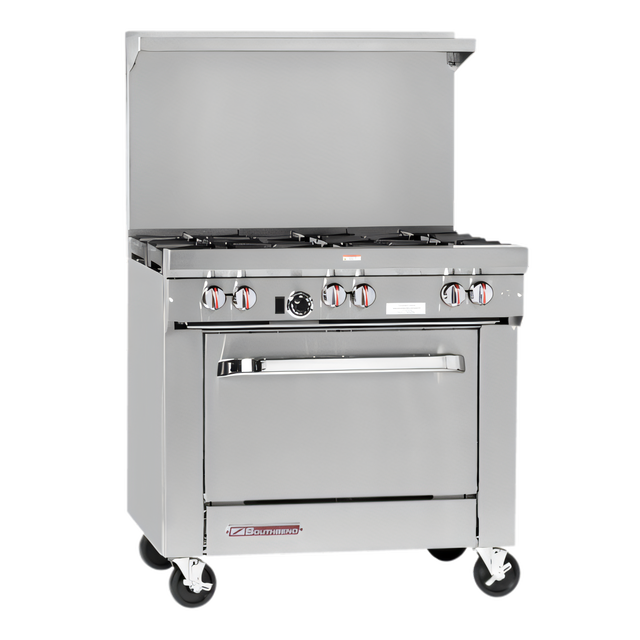

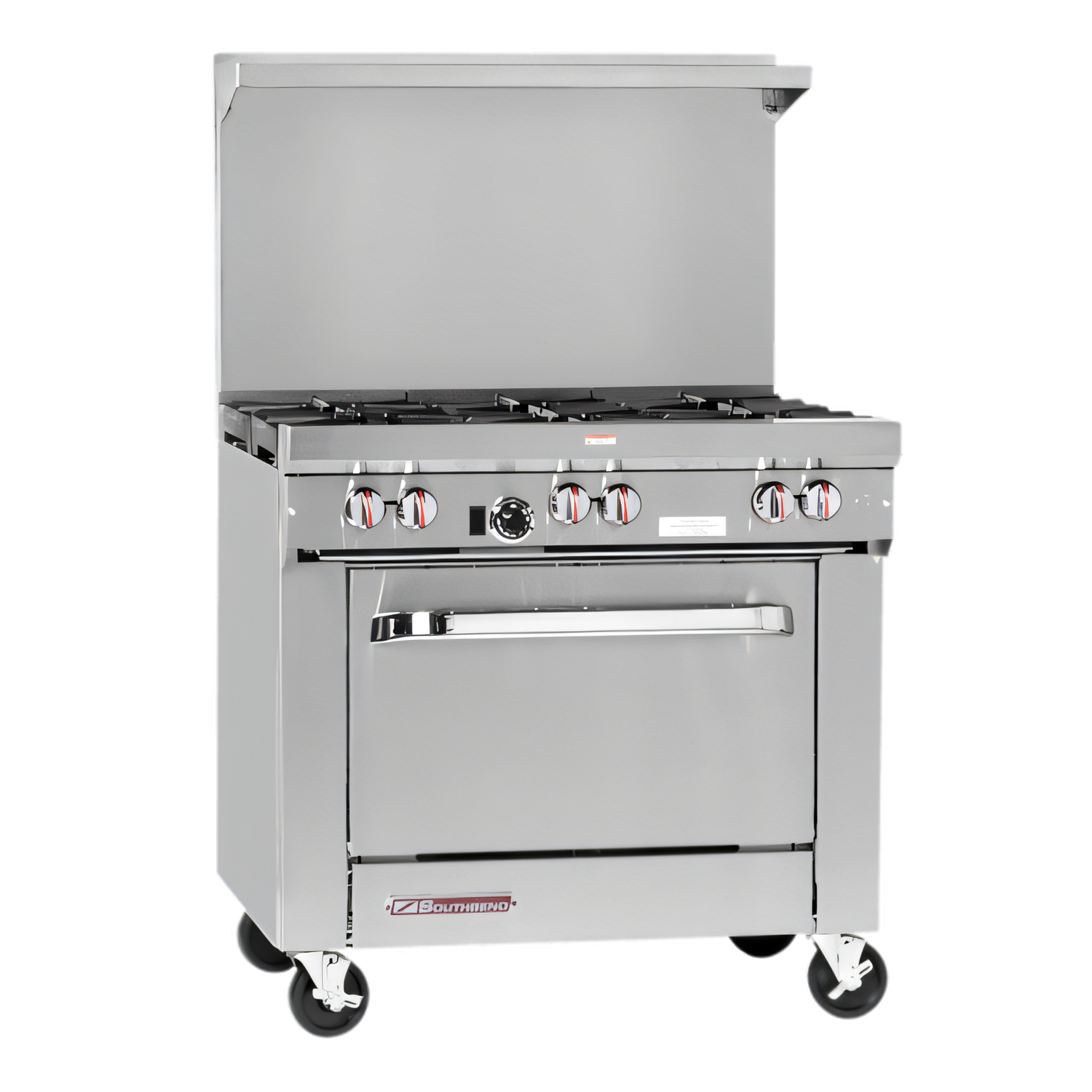

Southbend S-Series 36" Gas Restaurant Range – 6-Burner with Cabinet Base
Model S36C | 168,000 BTU | NSF & CSA CertifiedBuilt for busy commercial kitchens, the Southbend S-Series S36C delivers uncompromising power, durability, and flexibility in a compact 36-inch footprint. Six patented, non-clog cast-iron burners crank out a combined 168,000 BTU, while the full-width cabinet base keeps sheet pans, stock pots, and smallwares right where you need them. From sauté stations to production lines, the S36C is the dependable workhorse chefs have trusted for over a century.
Performance & Construction Highlights

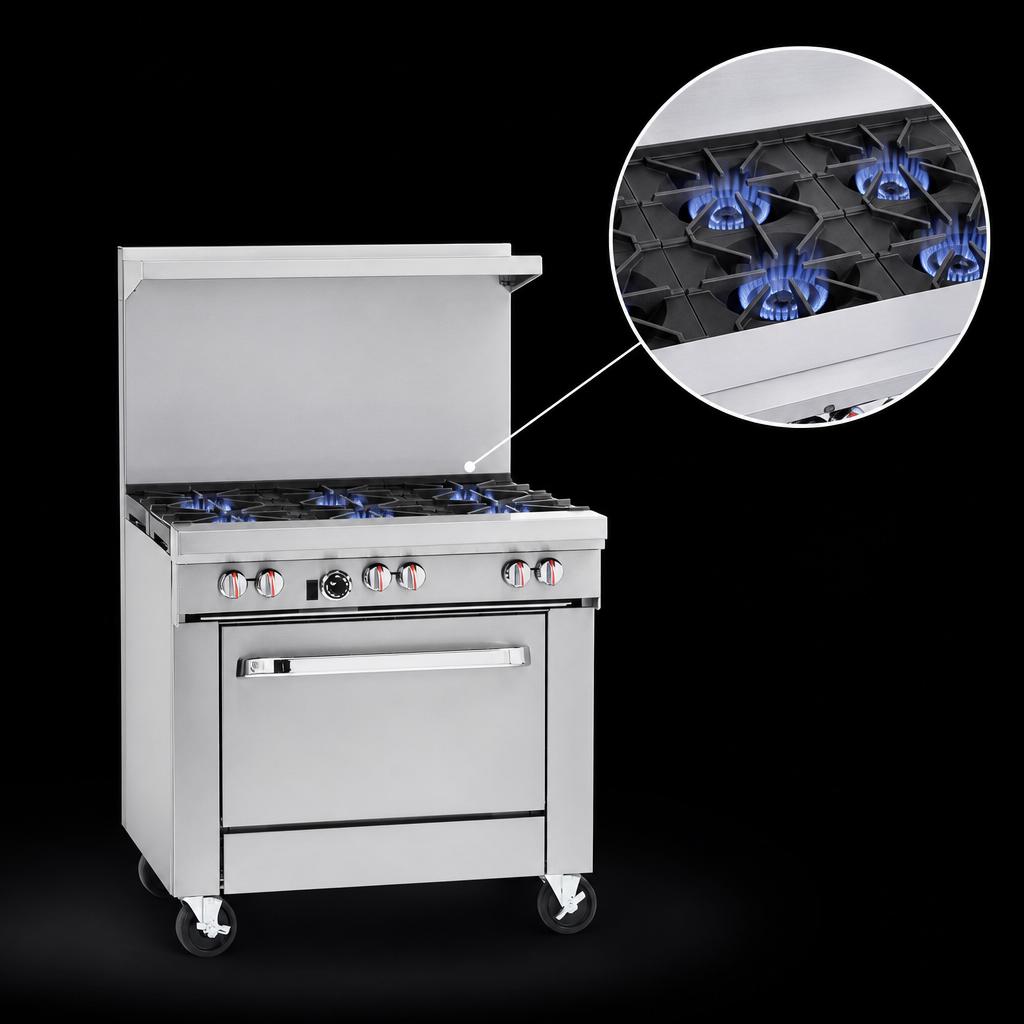

- 6 × 28,000 BTU open burners (Natural gas) with lifetime-warranty, one-piece cast-iron heads.
- Six removable cast-iron grate tops — rear grates accept stock pots up to 14" in diameter.
- Full-width aluminized cabinet base for dry storage (optional center-opening doors available at no charge).
- Stainless-steel front, sides, 22.5" flue riser, and removable high-shelf for lasting corrosion resistance.
- 4" stainless front rail with welded end caps protects controls and doubles as a plate shelf.
- One-piece crumb drawer and hinged lower valve panel speed up daily cleaning & service.
- Metal control knobs with red heat-guard stripe—easy to grasp even with gloves.
- 6" stainless-steel legs with adjustable bullet feet simplify leveling on uneven floors.
- Factory-installed gas pressure regulator included.
Technical Specifications
| Model | S36C (Cabinet Base) |
|---|---|
| Total Input | 168,000 BTU/hr (Natural) | 144,000 BTU/hr (Propane) |
| Burners | 6 open top – 28,000 BTU each (Natural) / 24,000 BTU each (LP) |
| Cooking Surface | 36.5" W × 31" D (rear holds 14" stock pot) |
| Overall Dimensions | 36.5" W × 34" D × 59.5" H (with flue) |
| Working Height | 37" to cook surface |
| Gas Connection | 3/4" NPT male, rear |
| Min. Inlet Pressure | 7" W.C. Natural | 11" W.C. Propane |
| Crated Weight | ≈ 535 lb / 243 kg |
| Certifications | CSA, NSF – Commercial use only |
| Warranty | 1 year parts & labor | Lifetime on burner castings |
Popular Accessories (sold separately)
- 10" flue riser (replaces standard shelf)
- Center-opening cabinet doors (no-charge option at time of order)
- All-swivel locking casters with restraining device
- Extra grate-top griddle plates
- ¾" quick-disconnect gas hose kits (3 ft, 4 ft, or 5 ft, ANSI Z21.69 compliant)
- Shelf mounts for salamanders or cheesemelters
Intended for commercial kitchens only – not for household use. Specifications subject to change without notice.
