Southbend (Middleby) S36C-3T S-Series Gas Ranges
Description
Southbend S-Series 36" Thermostatic Gas Griddle Range w/ Cabinet Base – 64,000 BTU
Model S36C-3G/T | NSF, cCSAus, CSA Flame & CSA StarMaximize production and streamline your cookline with the Southbend S-Series all-griddle range. A full 36-inch, ½-inch thick steel plate delivers even, lightning-fast heat, while the open cabinet base keeps sheet pans, utensils or cleaning supplies right where you need them. Rugged stainless construction, precise thermostatic controls and a space-saving 36 ½" footprint make this the go-to solution for diners, cafes and food-trucks that live on burgers, breakfast and short-order favorites.
Highlights
- Full-width 36" smooth, polished griddle plate – ½" thick with 3-sided splash guards
- Four (4) 16,000 BTU burners for a combined 64,000 BTU/hr output

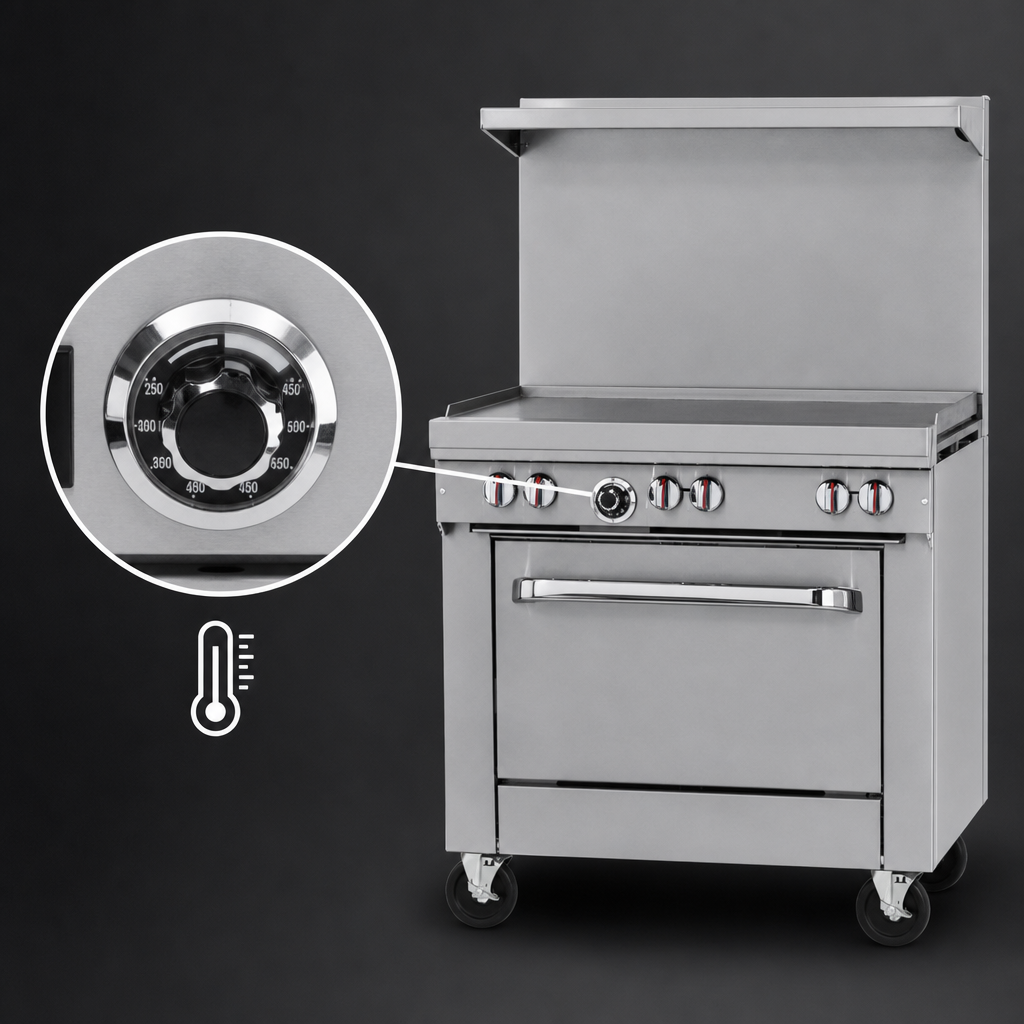

- Independent snap-action thermostatic controls for consistent zone cooking
- Aluminized open cabinet base (field-upgradable with no-charge doors)
- Stainless steel front, sides, 22.5" flue riser & removable high-shelf
- 4" deep stainless front rail provides a landing edge & knob protection
- 6" adjustable stainless legs for easy leveling on uneven floors
- Factory-installed ¾" gas pressure regulator for fast hook-up
- One-year parts & labor warranty backed by Southbend’s nationwide service network
Specifications
| Cooking surface | 36" W x 22" D (approx.) smooth steel, ½" thick |
|---|---|
| Total BTU | 64,000 BTU/hr (natural or propane, field convertible) |
| Controls | Snap-action thermostats – adjustable up to 550 °F |
| Base | Open storage cabinet, aluminized interior |
| Exterior | Stainless steel front, sides, 4" rail & high shelf |
| Overall dimensions | 36.5" W × 34" D × 59.5" H (with flue riser) |
| Gas connection | ¾" NPT rear; min. pressure – 7" W.C. NG / 11" W.C. LP |
| Shipping weight | ≈ 535 lb |
| Certifications | NSF, cCSAus, CSA Flame, CSA Star |
What’s in the Box
- 22.5" stainless flue riser with removable shelf
- Full-width removable crumb tray
- Heavy-duty metal control knobs with red-stripe indicators
- Installation & operation manual
Popular Add-Ons (sold separately)
- All-swivel caster kit with front locks
- 3 ft, 4 ft or 5 ft quick-disconnect gas hose & restraining device
- 10" flue riser extension
- Center-opening cabinet doors (no-charge factory option)
- Wall or range-mount salamander & cheesemelter brackets
Need a different burner or oven configuration? Explore the full Southbend S-Series lineup or chat with us for a custom quote.
