Southbend (Middleby)  |  S-Series  |  SKU: S36C-2TR

Southbend (Middleby) S36C-2TR S-Series Gas Ranges

$4,866.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend S-Series 36" Gas Restaurant Range
with 24" Thermostatic Griddle (Right) & Cabinet Base

Model: S36C-2G/T-R • 104,000 BTU • Natural or LP Gas

Built to thrive on the busiest cooklines, the Southbend S-Series combines two powerful open burners with a full 24-inch thermostatic griddle and a spacious cabinet base. Rugged stainless-steel construction, industry-leading burner output, and a lifetime warranty on the cast-iron grates ensure this 36-inch range delivers reliable performance shift after shift.

Key Features

  • Two 28,000 BTU non-clog open burners (natural) with lifetime-warranty cast-iron grates

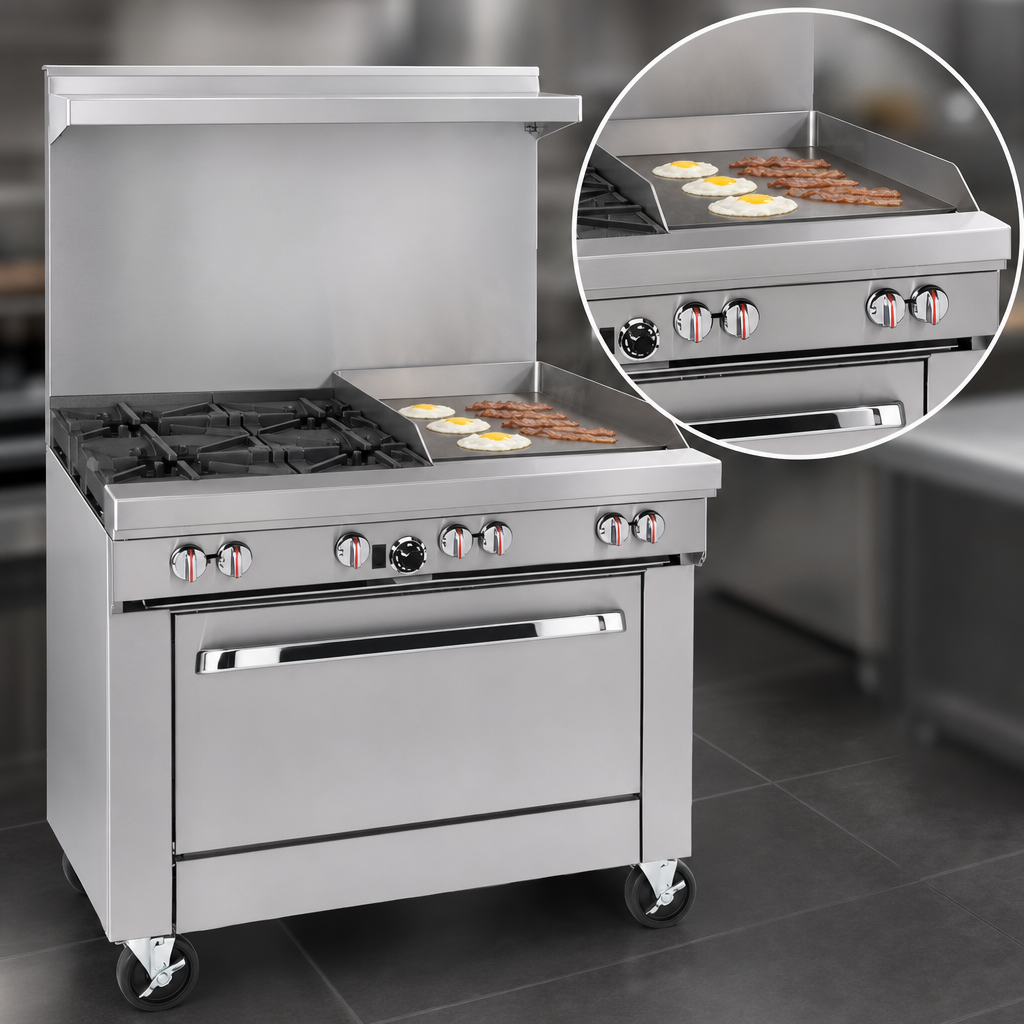

  • 24" x 1/2" polished steel griddle plate, right-hand mounted, with precise thermostatic control (175 °F – 550 °F)
  • Independent, removable cast-iron top grates (rear grate accommodates up to a 14" stock pot)
  • One-piece crumb drawer and hinged lower valve panel for fast cleanup & service access
  • 4" deep stainless-steel front rail with welded end caps—ideal for plating and utensil staging
  • Durable aluminized cabinet base for dry storage (optional center-opening doors available)
  • Factory-installed gas pressure regulator & 6" adjustable stainless legs
  • Stainless front, sides, high-shelf & 22.5" flue riser resist corrosion and simplify wipe-downs
  • cCSAus, CSA Flame, CSA Star & NSF listed for peace of mind and code compliance

Serious Cooking Power

  • Total input: 104,000 BTU/hr (natural gas) / 92,000 BTU/hr (LP)
  • Three 16,000 BTU griddle burners deliver even heat edge-to-edge for breakfast, lunch, and dinner menus
  • Metal control knobs with red stripe give chefs sure-grip adjustment in high-heat environments
  • Raised griddle side splashes keep grease & food debris contained on the plate—not on your line

Specifications

Exterior dimensions (W × D × H) 36.5" × 34" × 59.5" (927 × 864 × 1,511 mm) (to top of flue riser)
Cooking height 37" (940 mm)
Open burners 2 × 28,000 BTU cast-iron, non-clog
Griddle section 24" W, 1/2" thick steel plate, 3 × 16,000 BTU
Base Aluminized storage cabinet (door kit optional)
Gas connection 3/4" NPT male, rear (min. pressure: 7" W.C. NG / 11" W.C. LP)
Clearances 0" to non-combustible surfaces; 10" to combustibles
Certifications NSF, cCSAus, CSA Flame, CSA Star
Warranty 1 year parts & labor; lifetime on open-top burners

Popular Options & Accessories

  • Locking front casters & rear swivel casters
  • Center-opening cabinet doors (no-charge option)
  • 10" flue riser for low-clearance hoods
  • Extra oven racks (for units ordered with an oven base)
  • 3/4" quick-disconnect gas hose & restraining device (3 ft, 4 ft, or 5 ft)
  • Cheesemelter or salamander mounts
Installation Notice: This unit is intended for commercial kitchens only. Install under a properly sized, vented hood and maintain 10" clearance from combustible surfaces. If casters are used, a restraining device must be installed to avoid strain on the gas hose.

Need this range now but want to keep cash flow flexible? Ask us about fast, fixed-payment equipment financing.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

S-Series

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

36.5in

Depth

34.0in

Shipping Weight

660.0lbs

Exterior Finish

stainless steel front & sides

Vent

backriser with hi-shelf

Top

(2) open burners, (1) 24" griddle with thermostats

Base

(1) cabinet

Plate Thickness

.500" = 1/2"

Specifications

S-Series Restaurant Range, gas, 36", (2) 28,000 BTU open burners, (1) 24" griddle right, thermostatic controls, (1) cabinet base, removable cast iron grate tops & crumb drawer, hinged lower valve panel, stainless steel front, sides, shelf, 4" front rail & 6" adjustable legs, 104,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
