Southbend (Middleby)  |  S-Series  |  SKU: S36C-1G

Southbend (Middleby) S36C-1G S-Series Gas Ranges

$4,307.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend S-Series 36" Restaurant Range – 4 Burners & 12" Left-Side Griddle

Model S36C-1G | 130,000 BTU | Gas

Built for busy kitchens that need maximum versatility in a compact footprint, the Southbend S-Series 36" range combines four high-performance open burners with a heavy-duty 12" griddle and a spacious cabinet base for dry storage. Rugged stainless-steel construction, lifetime-warranty cast-iron burners, and NSF/CSA certifications make it a smart, long-term investment for any commercial cookline.

Key Features

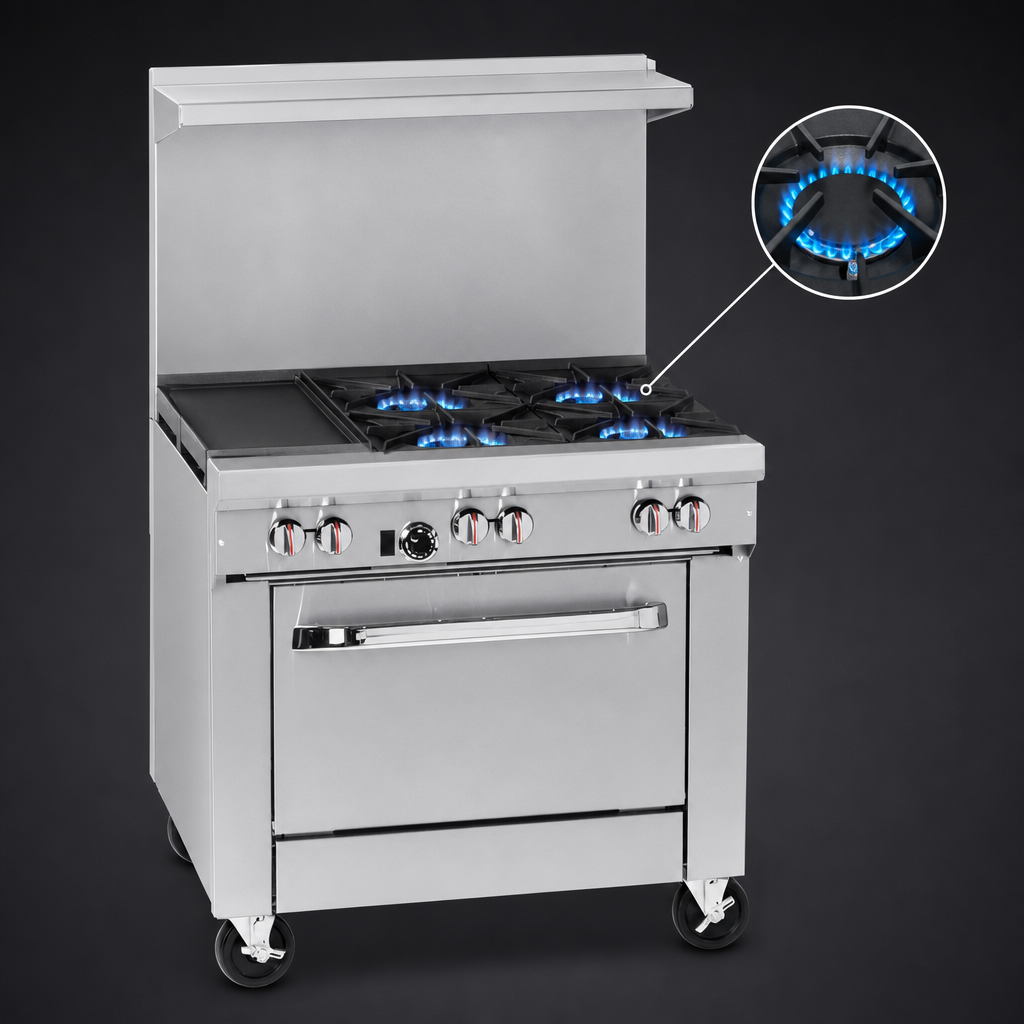

  • Four 28,000 BTU NAT (24,000 BTU LP) non-clog cast-iron open burners with lifetime warranty

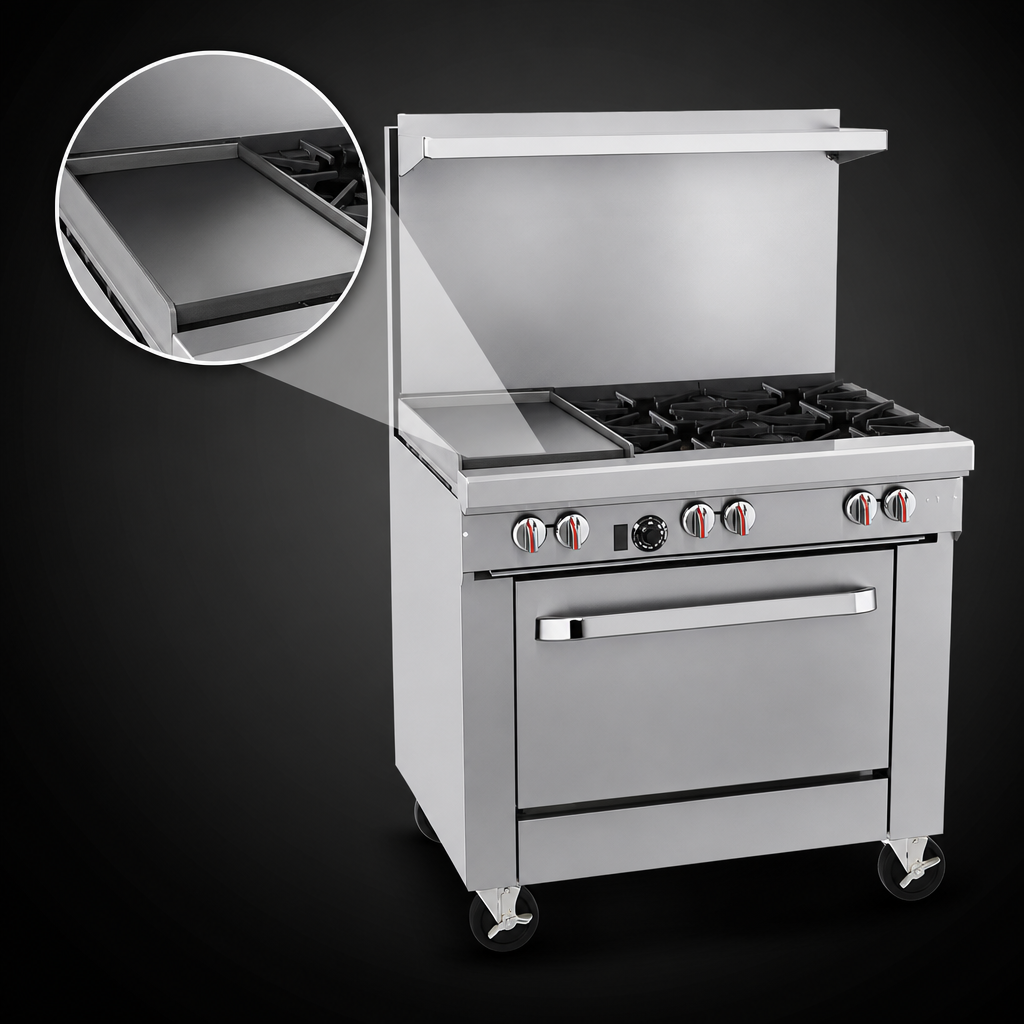

  • 12" polished ½"-thick steel griddle (left side) heated by an 18,000 BTU burner—ideal for breakfast items, searing, or finishing
  • Aluminized cabinet base keeps sheet pans, stock pots, or smallwares within arm’s reach (optional doors available at no charge)
  • Removable cast-iron grate tops accommodate up to a 14" stock pot on the rear grates
  • One-piece removable crumb drawer and hinged lower valve panel for fast cleanup and service access
  • Stainless-steel front, sides, 4" front rail (welded end caps), and 22.5" high flue riser with removable shelf
  • 6" stainless-steel adjustable legs—field convertible to locking casters (optional)
  • Factory-installed pressure regulator with ¾" rear gas connection
  • Manual, easy-grip metal knobs with red safety stripe
  • Certified cCSAus, CSA Flame, CSA Star, and NSF for commercial use

Specifications

Overall Width 36.5" / 927 mm
Overall Depth 34" / 864 mm
Height (to flue top) 59.5" / 1,511 mm (with shelf)
Total BTU Input 130,000 BTU/hr
Open Burners 4 × 28,000 BTU (NAT) cast-iron burners
Griddle Plate 12" W × 24" D, ½" thick, 18,000 BTU burner (left-side)
Gas Connection ¾" NPT male (rear); NAT 7" W.C. minimum, LP 11" W.C. minimum
Cooking Surface Height 36" nominal with 6" legs
Certifications NSF, cCSAus, CSA Flame, CSA Star
Warranty 1 year parts & labor (commercial use)

Options & Accessories

  • All-swivel locking casters
  • No-charge cabinet base doors (center-opening)
  • ¾" quick-disconnect gas hose with restraining device (3 ft, 4 ft, or 5 ft)
  • 10" flue riser
  • Extra storage rack(s) for cabinet
  • Mounting kits for salamanders & cheesemelters
Important: This appliance is intended for commercial kitchens only. Maintain at least 10" clearance to combustible construction and install under a properly sized vent hood. Never allow cookware to hang over the 4" front rail, and always secure the unit with a gas-hose restraining device if casters are fitted.

Need flexible financing? Middleby Equipment Financing can convert your purchase into affordable monthly payments—ask your rep for details.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

S-Series

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

36.5in

Depth

34.0in

Shipping Weight

660.0lbs

Vent

backriser with hi-shelf

Plate Thickness

.500" = 1/2"

Top

(4) open burners, (1) 12" griddle

Exterior Finish

stainless steel front & sides

Base

(1) cabinet

Specifications

S-Series Restaurant Range, gas, 36", (4) 28,000 BTU open burners, (1) 12" griddle left, manual controls, (1) cabinet base, removable cast iron grate tops & crumb drawer, hinged lower valve panel, stainless steel front, sides, shelf, 4" front rail & 6" adjustable legs, 130,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
