Southbend (Middleby) S36A-2TR S-Series Gas Ranges
Description
Southbend S-Series 36" Gas Range – 2 Burners, 24" Thermostatic Griddle & Convection Oven
Model S36A-2G/T (right-side griddle)Bring sauté, grill, and bake capabilities into one rugged station. Southbend’s S-Series packs two 28,000 BTU open burners, a full 24-inch thermostatic griddle, and a high-performance convection oven into just 36 ½" of line space—ideal for restaurants, bars, food trucks, and ghost kitchens that refuse to compromise on power or durability.
Why It Belongs on Your Cookline
- (2) 28,000 BTU non-clog open burners with lifetime-warranty cast-iron heads

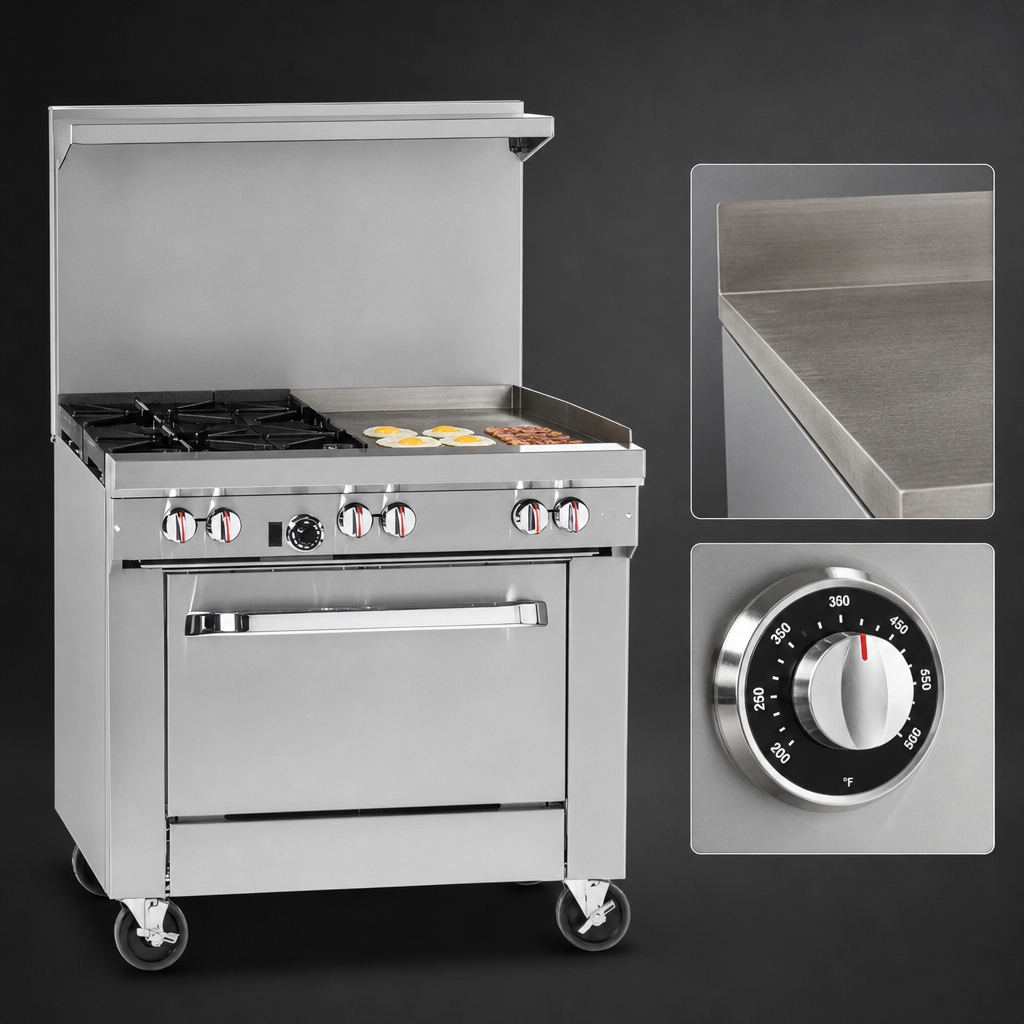

- 24" smooth ½" thick steel griddle (right-side) heated by (3) 16,000 BTU burners with snap-action thermostats adjustable 175–550 °F
- 35,000 BTU space-saver convection oven with ½ HP fan; 5-position rack guides & (2) chrome racks included
- Removable cast-iron grates (rear grate accepts up to a 14" stock pot) & one-piece crumb drawer for fast cleanup
- Stainless steel front, sides, 22.5" flue riser & shelf plus 4" welded front rail for lasting, easy-clean performance
- Hinged lower valve panel & factory pressure regulator simplify service
- 6" stainless adjustable legs; optional locking casters available
- Certified cCSAus, CSA Flame, CSA Star & NSF
Technical Specs
| Exterior width | 36.5" (927 mm) |
|---|---|
| Exterior depth | 41.75" (1 060 mm) with oven handle |
| Overall height | 59.5" (1 511 mm) to shelf |
| Total input | 139,000 BTU/hr (natural gas) |
| Gas connection | ¾" NPT male, rear |
| Electrical | 115 V / 60 Hz / 1-ph, 5.9 A – 6' cord & NEMA 5-15P plug |
| Oven cavity | 26" W × 24" D × 14" H |
| Rack positions / supplied | 5 / 2 |
| Construction | Stainless front, sides & shelf; cast-iron grates; ½" steel griddle plate |
| Warranty | 1 year parts & labor (commercial use) |
Perfect For
- Line or prep kitchens needing multiple cooking styles in one footprint
- Cafés, diners & bars adding all-day breakfast or burger programs
- Mobile kitchens & concessions with only 36" of range space
Need a left-hand griddle, cabinet base, or additional options? The S-Series line offers multiple burner, griddle, and oven combinations—contact us for details.
