Southbend (Middleby)  |  S-Series  |  SKU: S36A-2GR

Southbend (Middleby) S36A-2GR S-Series Gas Ranges

$8,786.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

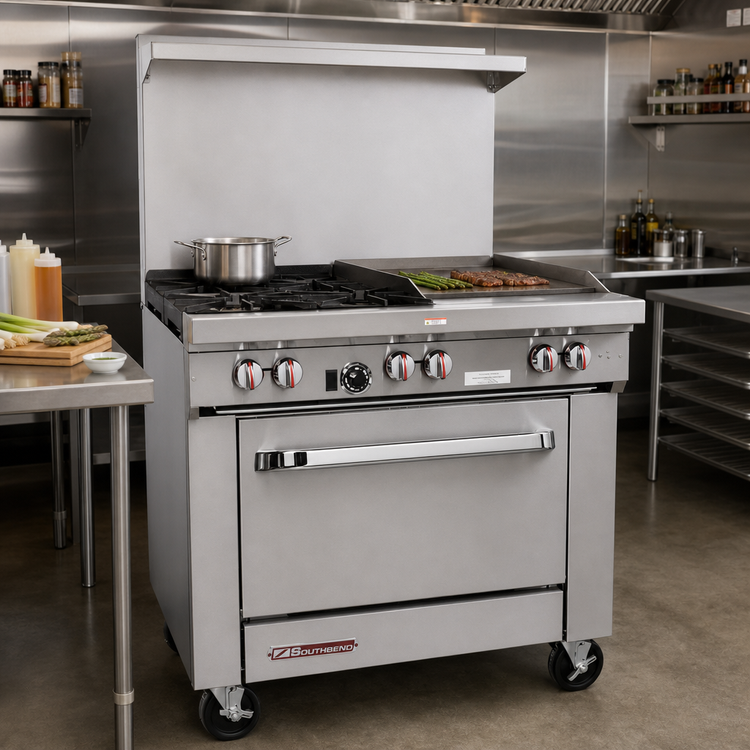

Southbend S-Series 36" Gas Range with 24" Right-Side Griddle & Convection Oven

Model S36A-2G/T-R | 139,000 BTU Total Output

Bring powerhouse performance to a compact footprint. This S-Series range pairs two 28,000 BTU open burners, a high-production 24" griddle and a full-size convection oven—giving your kitchen the versatility it needs without sacrificing valuable line space.

Key Performance Features

  • (2) 28,000 BTU cast-iron non-clog open burners with lifetime warranty.

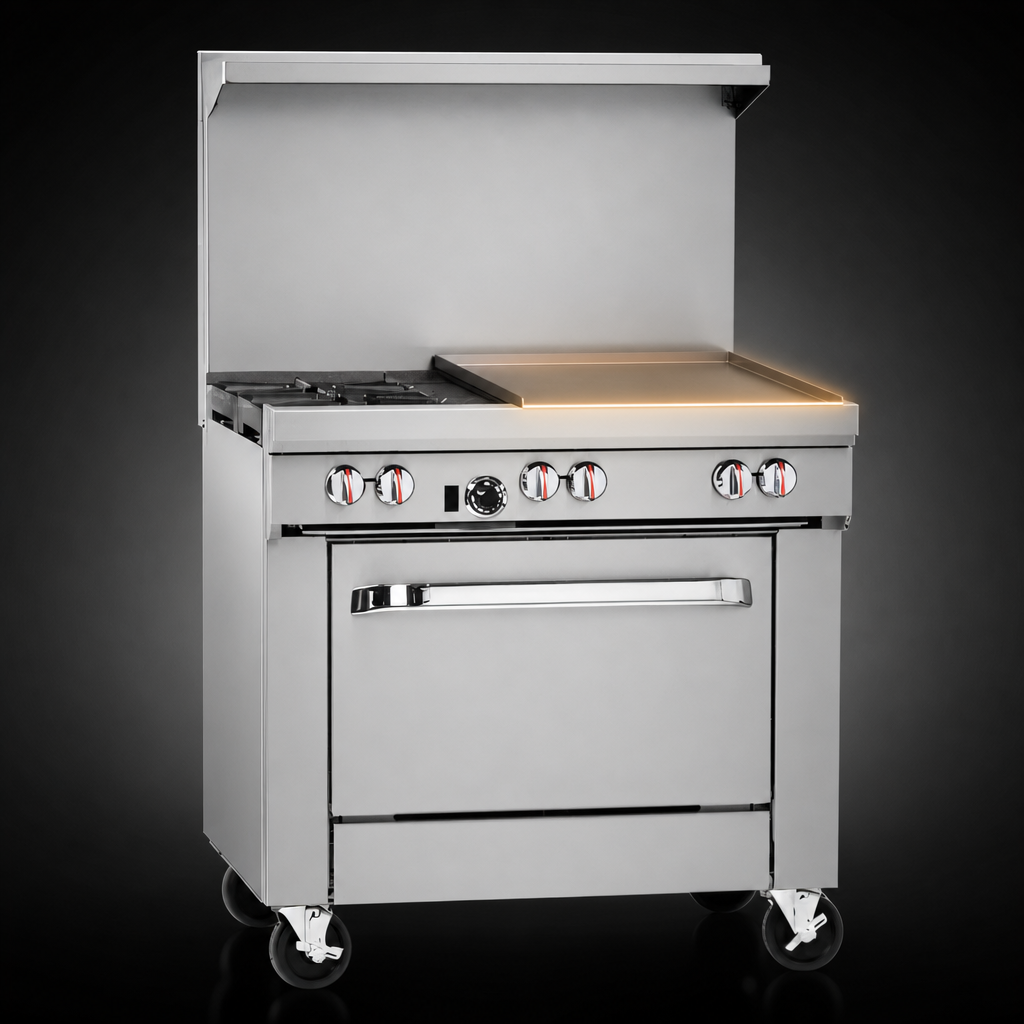

  • 24" x 1/2" polished steel griddle plate (right-hand) heated by (3) 16,000 BTU burners for rapid, even recovery.
  • 35,000 BTU convection oven with 1/2 HP fan, snap-action thermostat (175 – 550 °F), five rack positions & two chrome racks.
  • Total output: 139,000 BTU/h (Natural Gas).
  • Manual, front-panel gas controls for precise, instant adjustments.

Built to Last

  • Stainless steel front, sides, hinged shelf, 4" deep front rail & 6" adjustable legs.
  • Individual, removable cast-iron grates (rear grate accepts up to a 14" stock pot).
  • One-piece removable crumb drawer speeds daily clean-up.
  • Hinged lower valve panel for fast access during service.
  • Factory-installed pressure regulator & rear 3/4" NPT connection.

Utilities & Certifications

  • Gas: Natural, 3/4" rear connection, min. 7" W.C.
  • Electric: 115 V / 60 Hz / 1-ph, 5.9 A, 6' cord & plug.
  • cCSAus, CSA Flame, CSA Star & NSF listed for commercial safety and sanitation.
  • Ships ready for installation under a vented hood.

Specification Snapshot

Overall Width 36 1/2"
Overall Depth 41 3/4"
Height (to top of flue shelf) 59 1/2"
Cooking Surface Height 37"
Oven Interior (W × D × H) 26" × 24" × 14"
Open Burners (2) × 28,000 BTU
Griddle Burners (3) × 16,000 BTU
Oven Burner 35,000 BTU
Total BTU 139,000 BTU/h
Shipping Weight ≈ 535 lb
Warranty 1 year parts & labor (commercial use)

Need a quick payment solution? Southbend ranges qualify for fixed-rate equipment financing—learn more ›

Commercial Use Only: This appliance is engineered for professional kitchens and must be installed under an approved ventilation hood. Follow all local gas & electrical codes.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

S-Series

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

36.5in

Depth

42.25in

Shipping Weight

660.0lbs

Vent

backriser with hi-shelf

Plate Thickness

.500" = 1/2"

Top

(2) open burners, (1) 24" griddle

Exterior Finish

stainless steel front & sides

Base

(1) convection oven

Specifications

S-Series Restaurant Range, gas, 36", (2) 28,000 BTU open burners, (1) 24" griddle right, manual controls, (1) convection oven, snap action thermostat, removable cast iron grate tops & crumb drawer, hinged lower valve panel, includes (2) racks, stainless steel front, sides, shelf, 4" front rail & 6" adjustable legs, 115v/60/1-ph, 5.9 amps, cord and plug, 139,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
