Southbend (Middleby)  |  S-Series  |  SKU: S36A-1G

Southbend (Middleby) S36A-1G S-Series Gas Ranges

$8,612.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

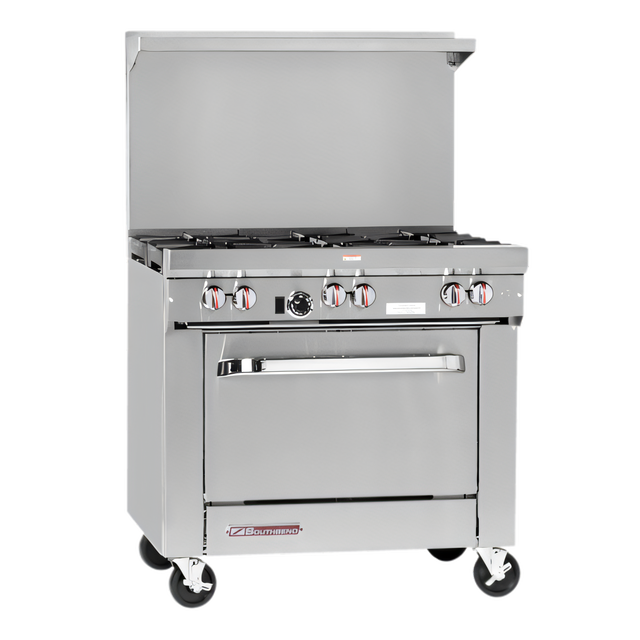

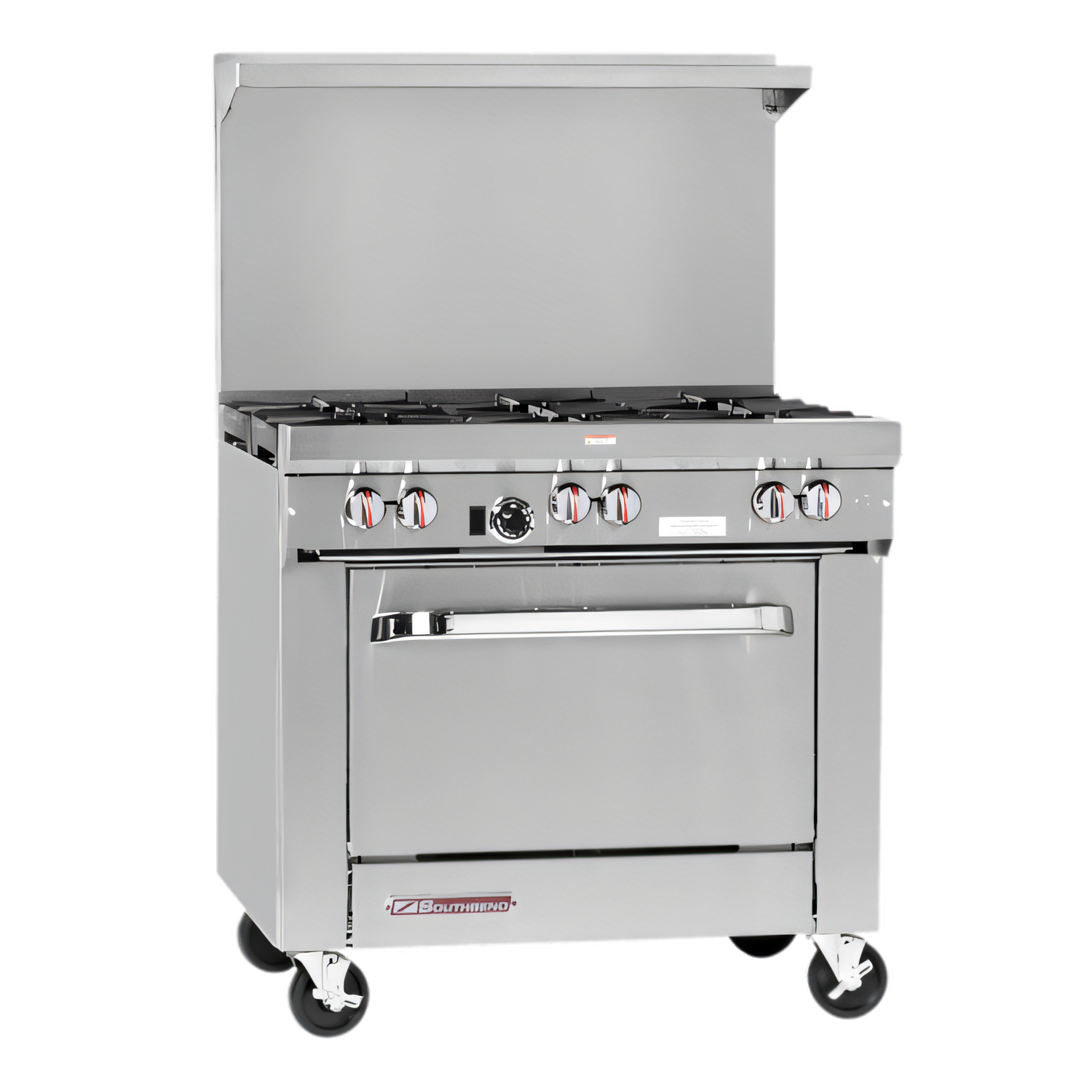

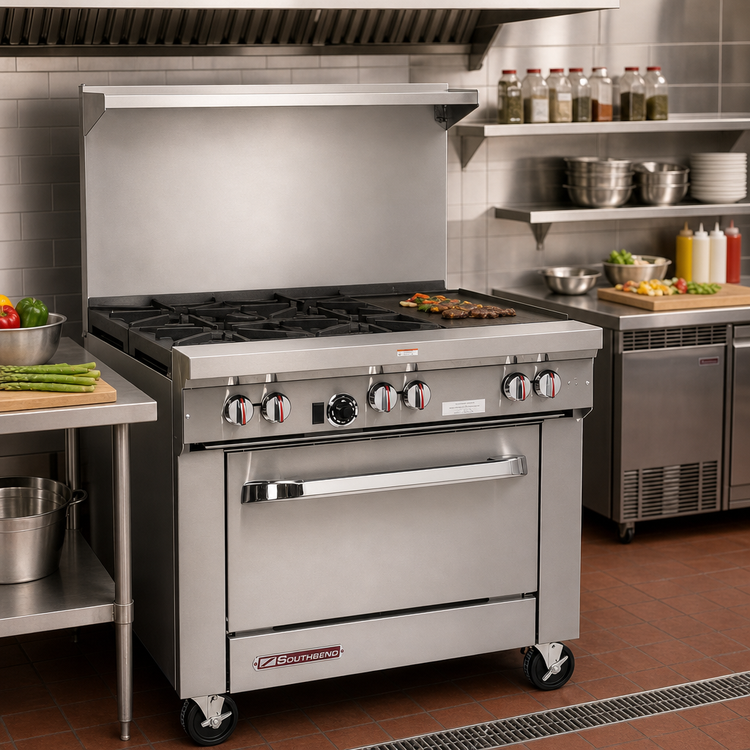

Southbend S-Series 36" Gas Restaurant Range w/ 4 Burners, 12" Griddle & Convection Oven

Model S36A-1G • 165,000 BTU Total Output

A true workhorse for busy kitchens, the Southbend S-Series delivers high-powered cooking, baking and finishing in one space-saving 36 inch footprint. Rugged stainless construction, lifetime-warranted burners and chef-friendly service features keep you cooking shift after shift.

Key Features
  • (4) 28,000 BTU non-clog cast-iron open burners with lifetime warranty

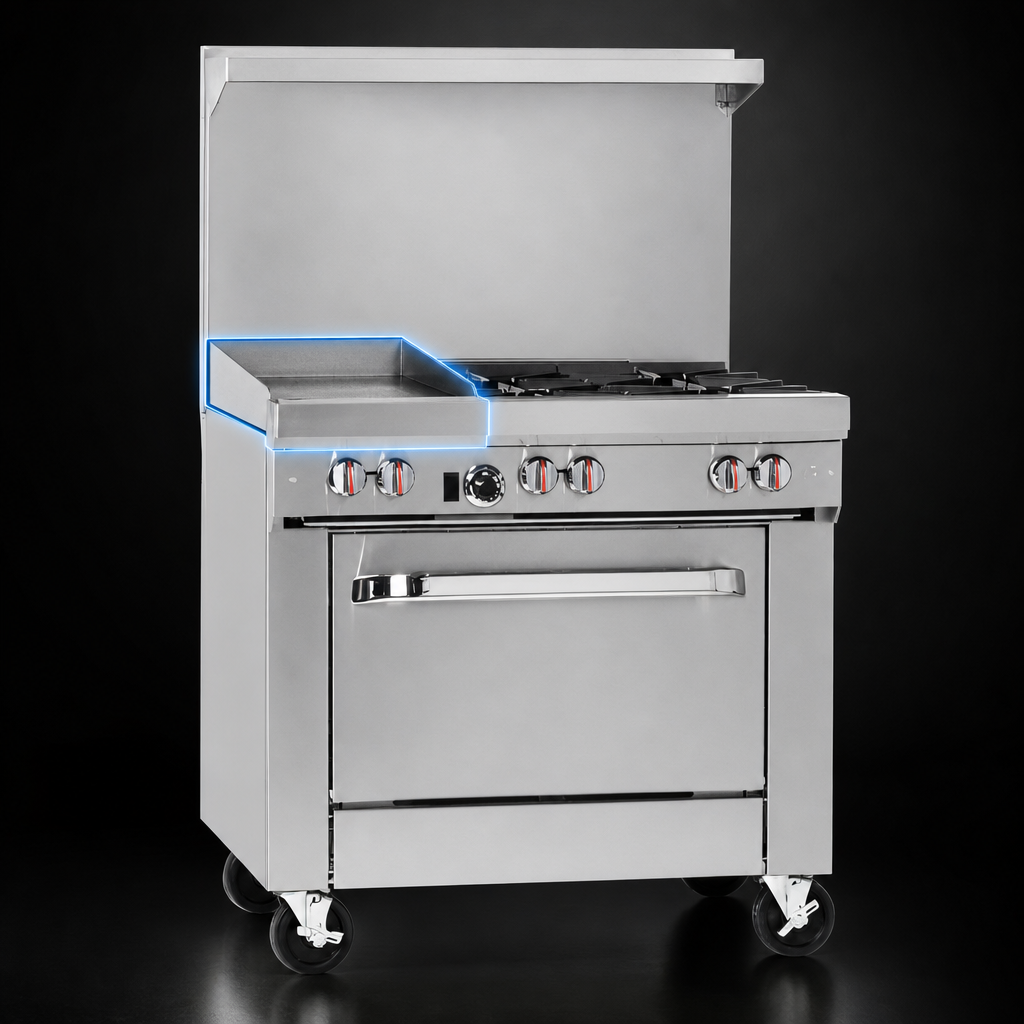

  • 12" polished ½" thick steel griddle plate (left) heated by an 18,000 BTU burner
  • 35,000 BTU convection oven with snap-action thermostat (175 °F – 550 °F)
  • 5-position rack guides & (2) chrome racks—holds full-size sheet pans front-to-back
  • Removable cast-iron grate tops; rear grate handles 14" stock pots
  • One-piece crumb drawer & hinged lower valve panel for fast clean-ups
  • Stainless front, sides, 4" rail, 22.5" flue riser & removable top shelf
  • 6" adjustable stainless legs; factory-installed ¾" gas pressure regulator
  • Metal control knobs with red heat-safety stripe
  • cCSAus, CSA Flame, CSA Star & NSF listed
Performance You Can Count On
  • Total heat: 165,000 BTU (natural or LP)
  • ½ hp convection motor – 115 V / 60 Hz / 1-phase, 5.9 A, cord & NEMA 5-15P plug included
  • Heavy block-type rock-wool insulation keeps exterior surfaces cooler
  • Lifetime burner warranty plus 1-year parts & labor coverage
Specifications
Overall Width 36 ½" / 927 mm
Overall Depth (with handle) 41 ¾" / 1,060 mm
Overall Height (to shelf) 59 ½" / 1,511 mm
Open Burners 4 × 28,000 BTU
Griddle 12" W × ½" thick steel, 18,000 BTU (left-side)
Oven Type Convection, U-shaped burner, 35,000 BTU
Oven Cavity 26" W × 24" D × 14" H
Temperature Range 175 °F – 550 °F / 79 °C – 288 °C
Gas Connection ¾" NPT rear (opposite griddle side)
Electrical 115 V / 1-ph / 5.9 A, cord & plug supplied
Shipping Weight ≈ 535 lb / 242.7 kg

Need casters, salamander mounts or extra oven racks? Contact us for factory-approved accessories.

Important: Commercial use only. Provide 10" clearance from combustible walls and install under a properly sized vent hood in accordance with local codes.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

S-Series

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

36.5in

Depth

42.25in

Shipping Weight

660.0lbs

Vent

backriser with hi-shelf

Plate Thickness

.500" = 1/2"

Base

(1) convection oven

Exterior Finish

stainless steel front & sides

Top

(4) open burners, (1) 12" griddle

Specifications

S-Series Restaurant Range, gas, 36", (4) 28,000 BTU open burners, (1) 12" griddle left, manual controls, (1) convection oven, snap action thermostat, removable cast iron grate tops & crumb drawer, hinged lower valve panel, includes (2) racks, stainless steel front, sides, shelf, 4" front rail & 6" adjustable legs, 115v/60/1-ph, 5.9 amps, cord and plug, 165,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
