Southbend (Middleby) S24E S-Series Gas Ranges
Description

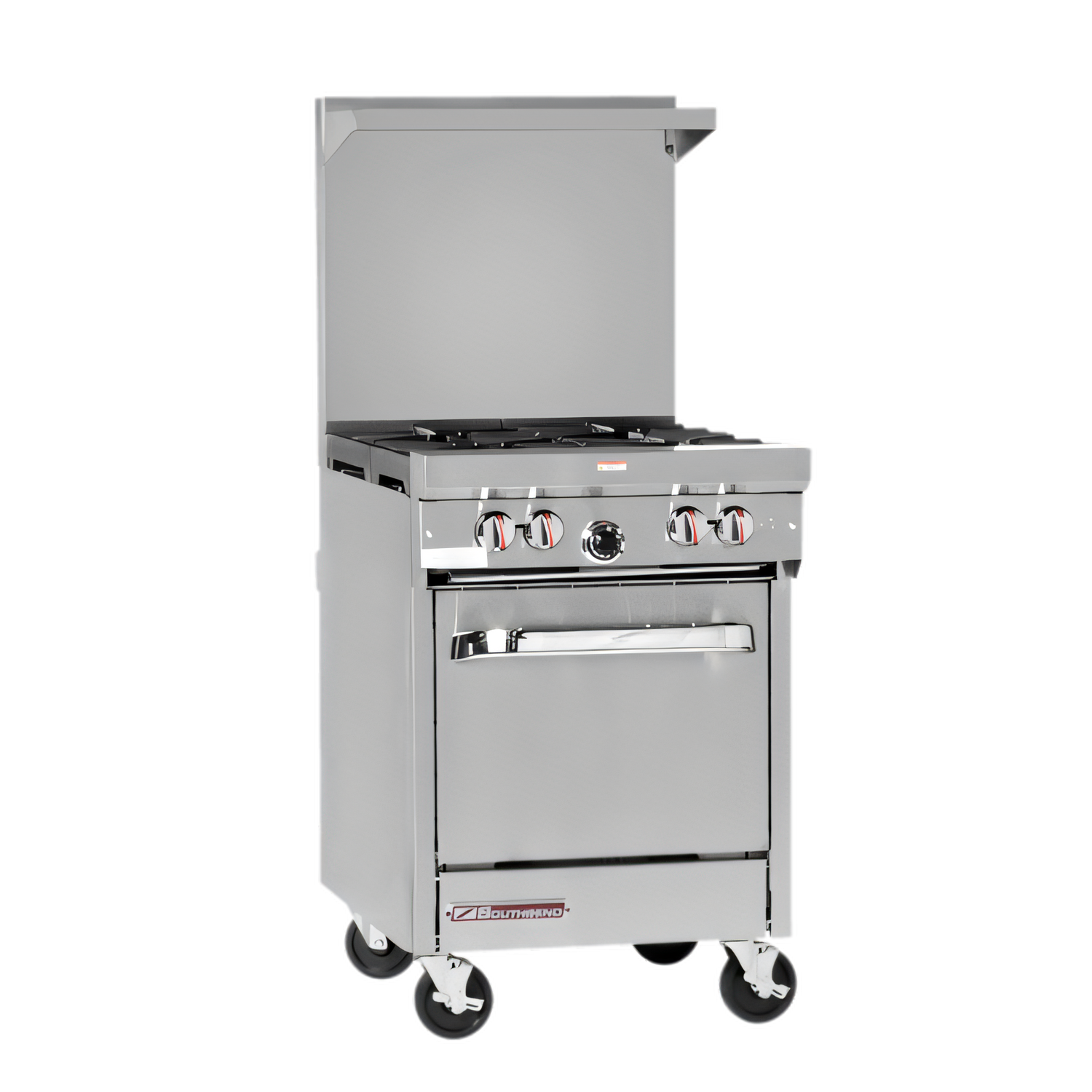

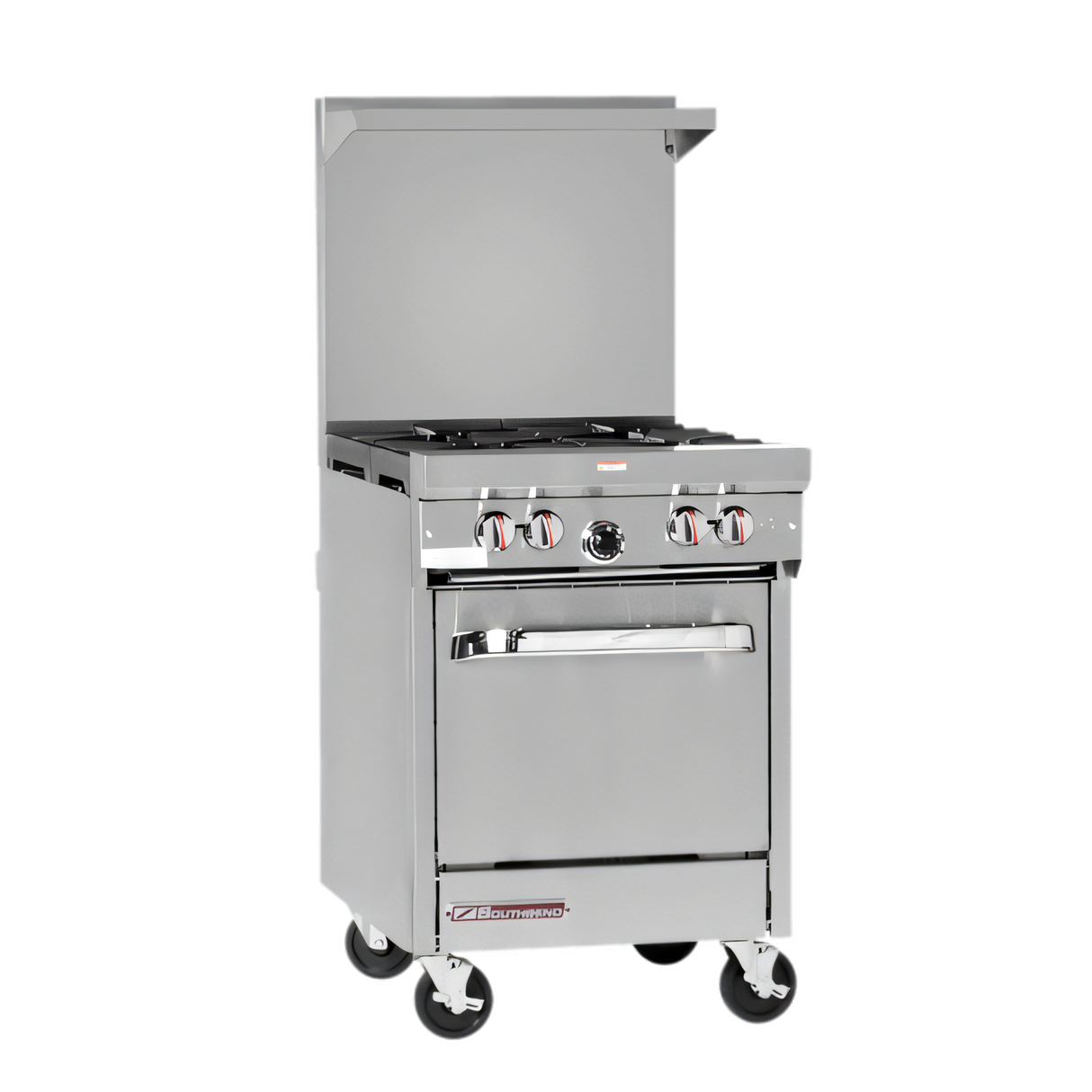

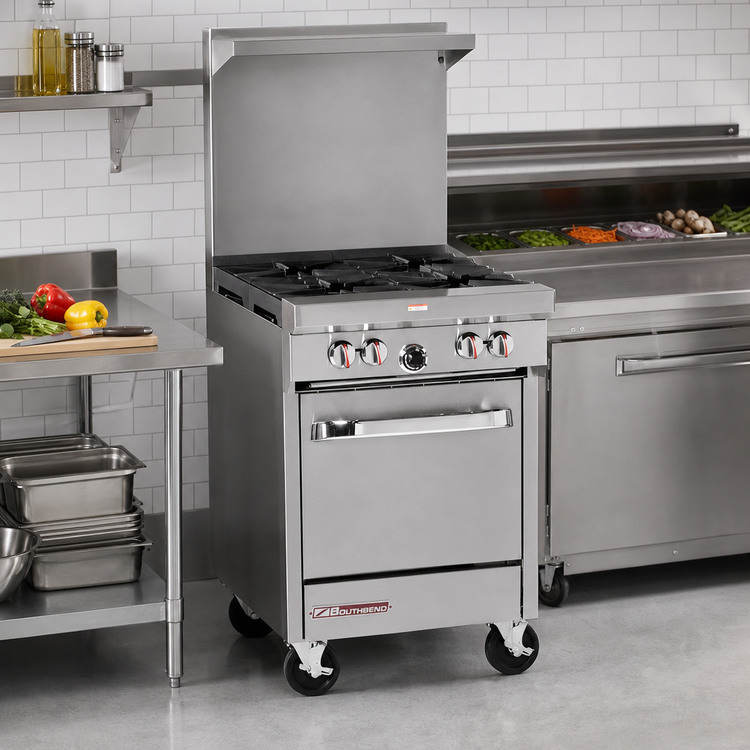

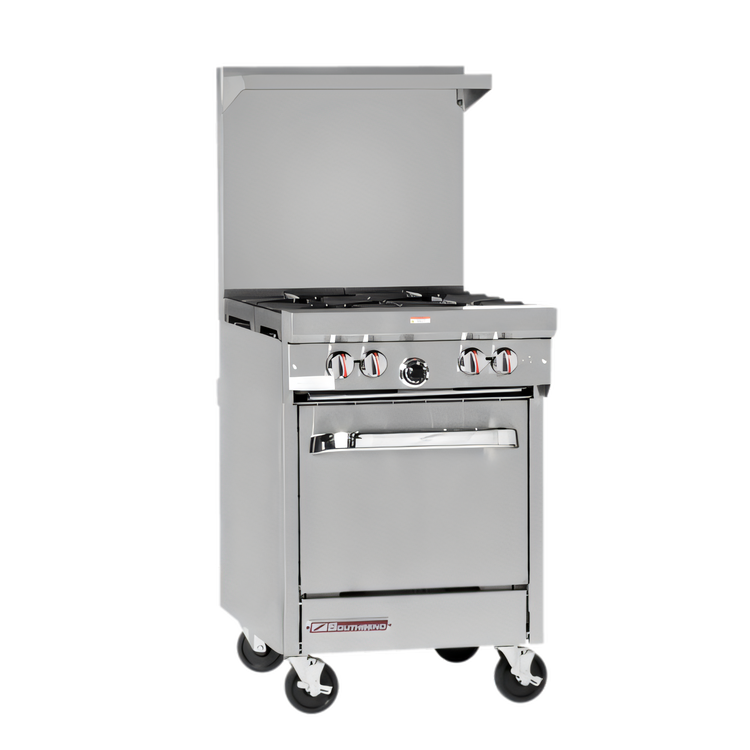

Southbend S-Series 24" Restaurant Range
Model S24E – 4 Open Burners & Space-Saver OvenEngineered for demanding commercial kitchens, the Southbend S-Series packs full-size power into a compact 24-inch footprint. Four patented 28,000 BTU open burners deliver instant, even heat, while the 35,000 BTU space-saver oven turns out perfectly baked, roasted or broiled dishes. Heavy-gauge stainless steel, cast-iron components, and industry-leading warranties ensure years of worry-free performance.
Why You’ll Love It
- 147,000 BTU total output (112,000 BTU top + 35,000 BTU oven) handles every high-volume rush.

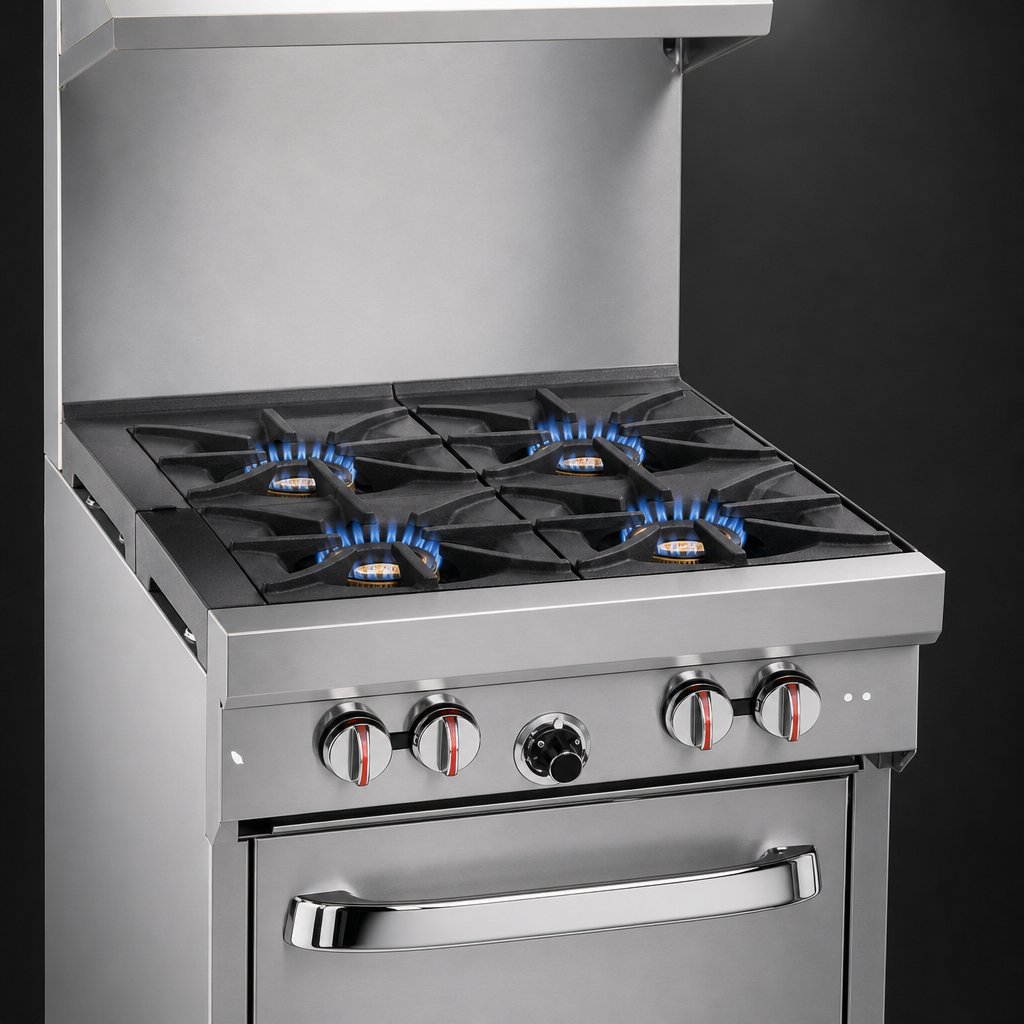

- Four 28,000 BTU, one-piece, non-clog cast-iron burners with a Lifetime Warranty.
- Removable cast-iron grate tops; rear positions accept up to a 14" stock pot.
- Full-width crumb drawer and hinged valve panel speed daily cleaning and service.

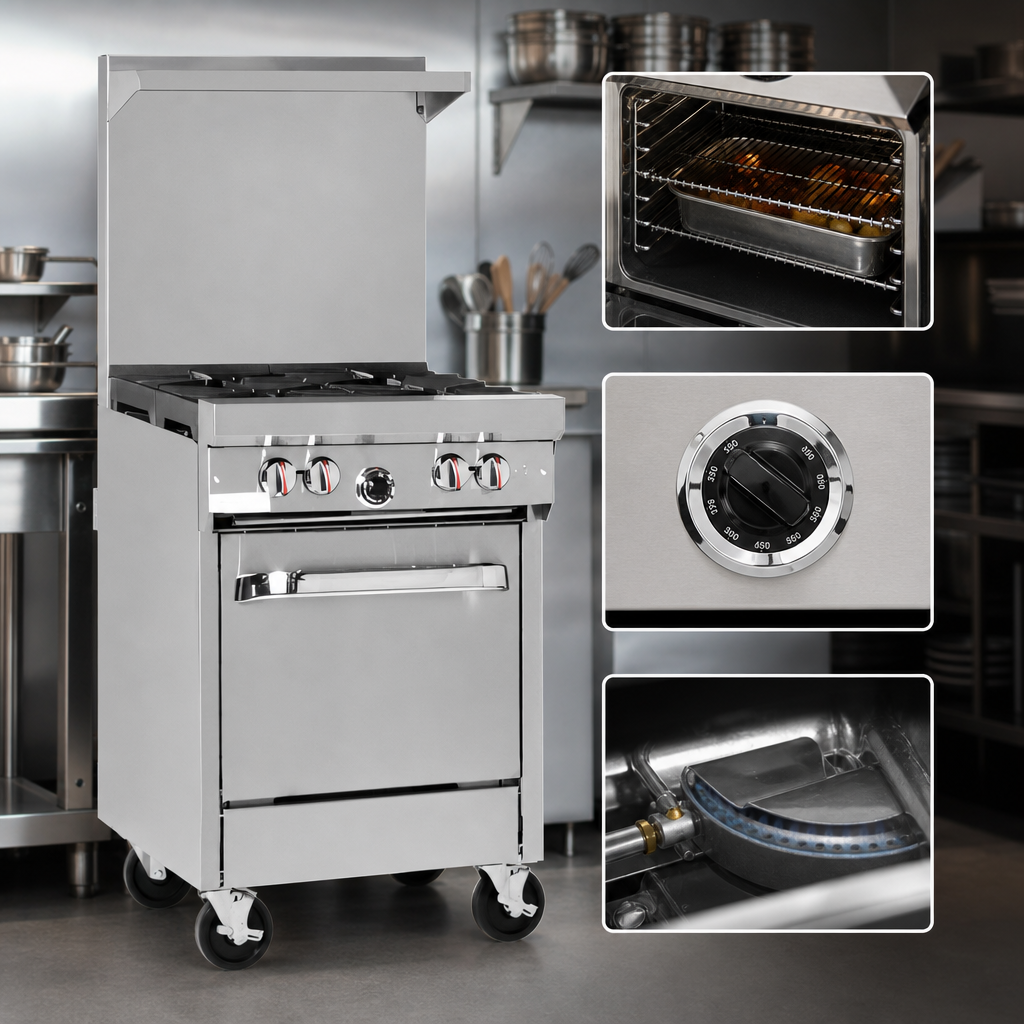

- 35,000 BTU space-saver oven with snap-action thermostat adjustable from 175 °F – 550 °F.
- U-shaped oven burner, flame-failure safety device, and 2-position rack guides (1 rack included).
- All-stainless front, sides, removable 22.5" flue shelf, and 4" front rail with welded end caps.
- 6" stainless steel adjustable legs for easy leveling on uneven floors.
- Factory-installed ¾" rear gas pressure regulator; CSA & NSF certified for commercial use.
Technical Specifications
| Overall Width | 24 3⁄8" (619 mm) |
|---|---|
| Overall Depth | 34" (864 mm) |
| Overall Height (w/ flue) | 59 1⁄2" (1,511 mm) |
| Cooking Surface Height | 37" (940 mm) |
| Oven Interior (W × D × H) | 19 1⁄2" × 26 1⁄2" × 14" |
| Open Burners | 4 × 28,000 BTU (Natural) / 24,000 BTU (LP) |
| Oven Burner | 35,000 BTU |
| Total Input | 147,000 BTU/hr (Natural) |
| Gas Connection | ¾" NPT male, rear |
| Minimum Inlet Pressure | 7" W.C. Natural • 11" W.C. LP |
| Clearances (combustible) | 10" sides & rear with legs or casters |
| Certifications | CSA, NSF |
| Warranty | 1-Year parts & labor • Lifetime burner castings |
Popular Options & Accessories
- All-swivel locking casters
- Restraining device (required with casters)
- ¾" quick-disconnect hose (3 ft, 4 ft or 5 ft)
- Additional oven racks
- 10" or 24" flue-mounted cheesemelter
- No-charge cabinet doors (in place of oven)
