Southbend (Middleby)

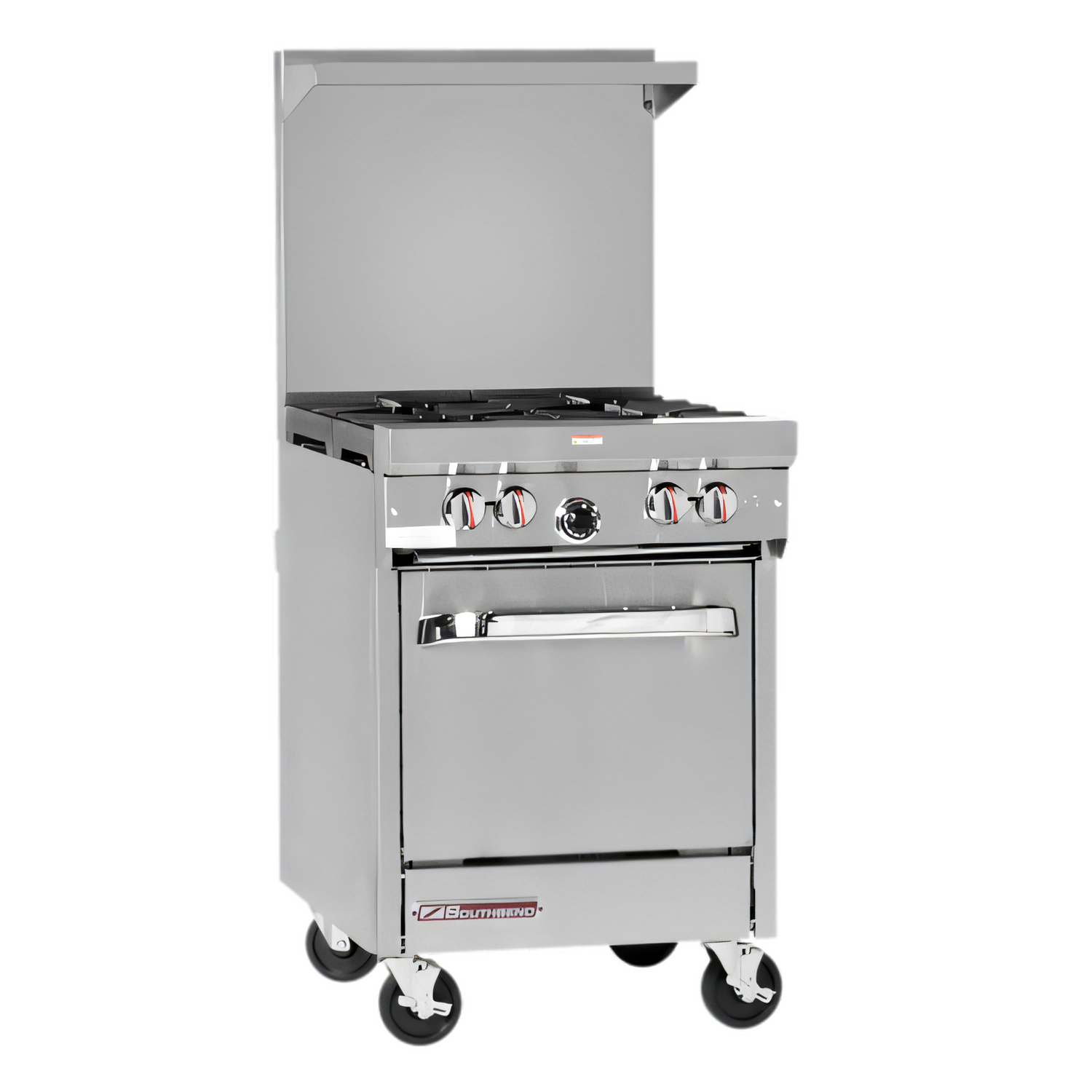

Southbend S-Series 24-Inch Commercial Gas Range with 4 Open Burners and Cabinet Base

SKU: S24C
$2,778.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

Southbend S-Series 24-Inch Commercial Gas Range with 4 Open Burners and Cabinet Base

Backriser with Hi-Shelf, Stainless Steel Front/Sides, Adjustable Legs

Built for busy kitchens, this compact 24-inch gas range pairs four high-output open burners with a durable cabinet base and stainless steel construction.

  • 24-inch floor model with four open burners and a cabinet base for under-range storage
  • 28,000 BTU per burner on natural gas; 24,000 BTU per burner on propane
  • Stainless steel front and sides with a removable shelf and 4-inch front rail
  • Removable cast iron grate tops and a one-piece crumb drawer simplify cleanup
  • 22.5-inch stainless steel backriser with single shelf adds utility space
  • 6-inch stainless steel adjustable legs and a factory-installed pressure regulator

Overall Dimensions:

24.25"W x 34.0"D x 59.5"H

Product Weight:

475.0 lb

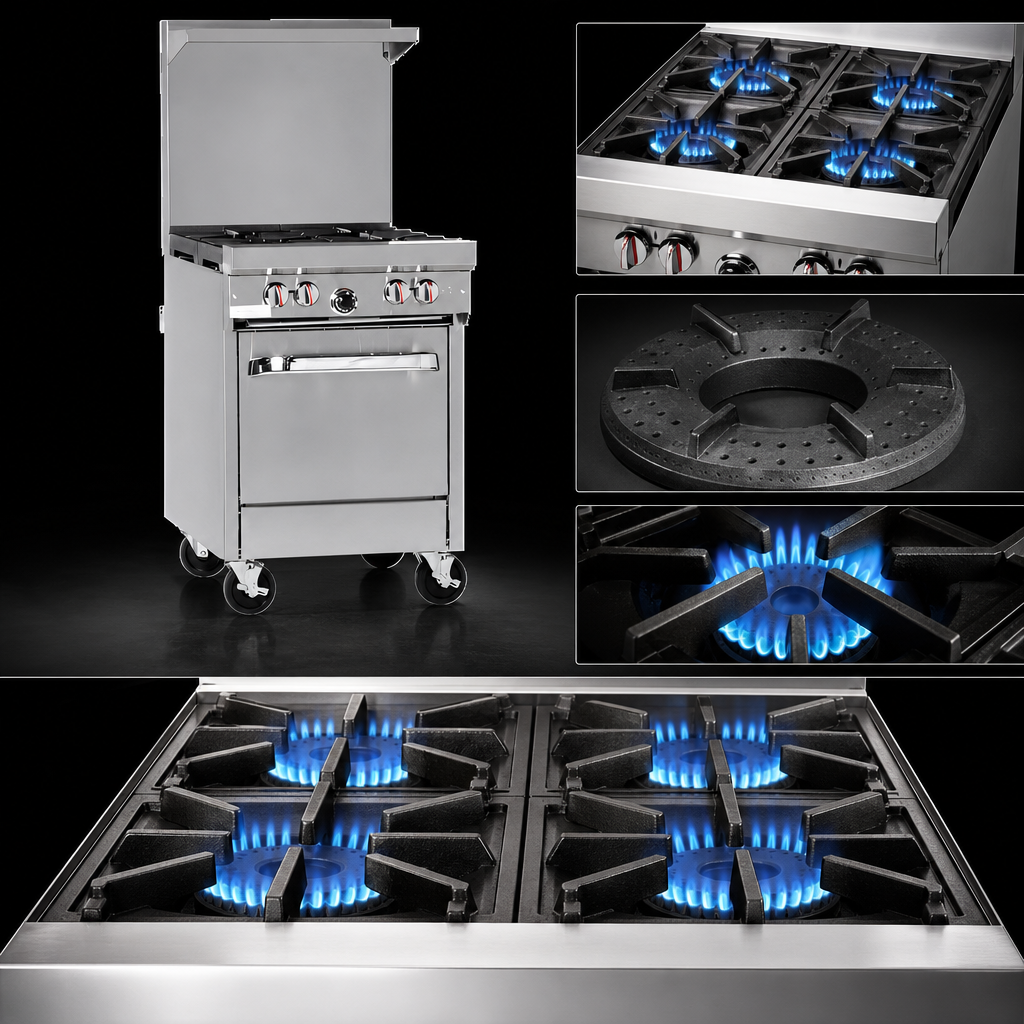

Four High-Output Open Burners

One-piece cast iron, non-clog burners deliver 28,000 BTU each on natural gas or 24,000 BTU each on propane and are built for heavy-duty service.

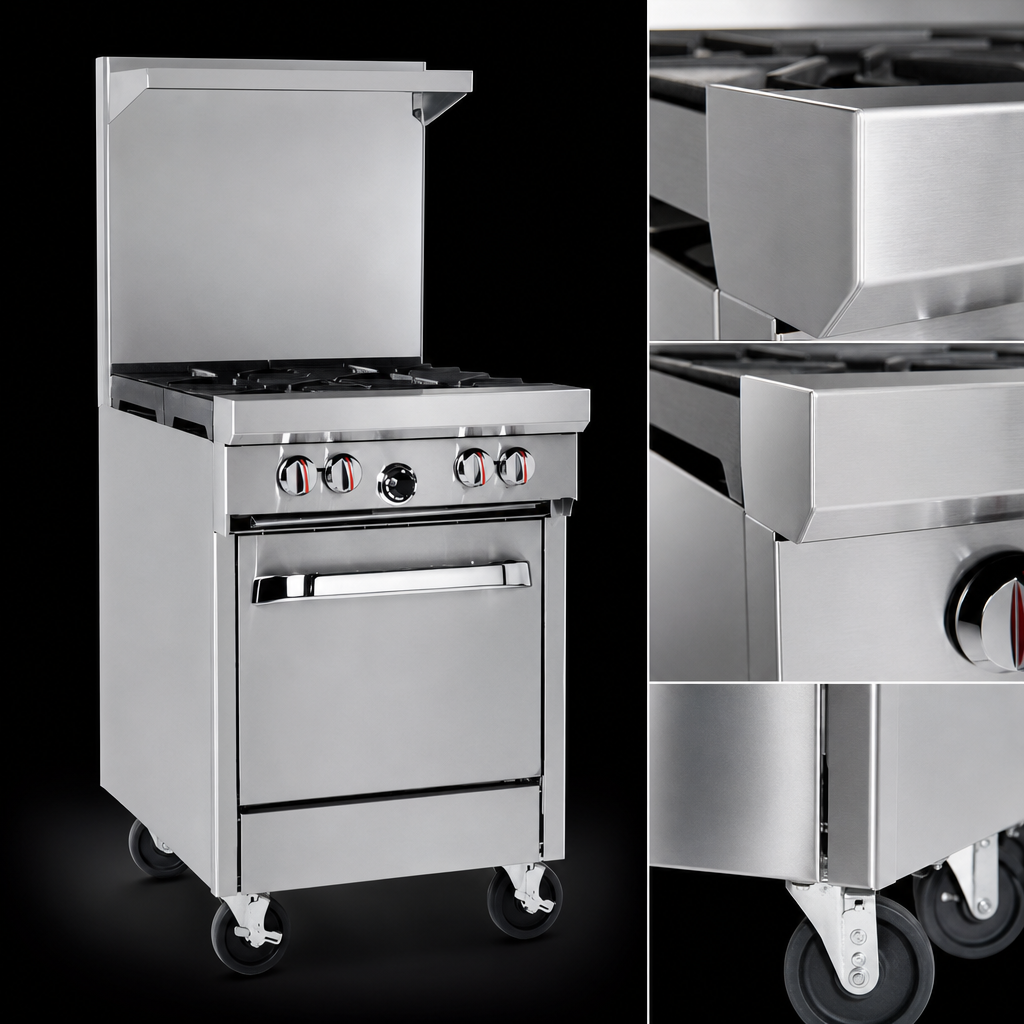

Stainless Steel Exterior

Stainless steel front and sides with a 4-inch front rail and closed, welded end caps provide a durable, easy-to-clean finish.

Removable Cast Iron Grates and Crumb Drawer

Four removable cast iron grate tops and a one-piece crumb drawer under the burners make daily cleaning easier.

Cabinet Base Storage

The aluminized cabinet base provides built-in storage space under the range; center-opening doors are available as an option.

Backriser with Hi-Shelf

A stainless steel flue riser with single shelf adds convenient rear workspace and utility.

Adjustable Legs and Regulator

Six-inch stainless steel adjustable legs help level the range, and a factory-installed pressure regulator is included.

Designed for Vented Hood Installation

The cutsheet specifies installation under a vented hood for proper operation.

Type Restaurant Range
Style Open Burner
Installation Type Floor Model
Capacity 4 Burners
Material Stainless Steel
Finish Stainless Steel
BTU 112,000 BTU
Gas Connection Size 3/4 Inch
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 25 Inches
Shipping Depth 34 Inches
Shipping Height 60 Inches
Shipping Weight 475 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and 1 year labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. The S24C is the cabinet-base version of the S-Series 24-inch range and does not include an oven.
It has four open burners.
Each burner is rated at 28,000 BTU on natural gas and 24,000 BTU on propane.
Each unit has a 3/4-inch male rear gas connection. Minimum inlet pressure is 7" W.C. for natural gas and 11" W.C. for propane.
The range should be installed under a vented hood. For combustible floors or adjacent combustible walls, allow 10 inches of clearance.
Southbend's limited warranty is 1 year parts and 1 year labor, subject to the terms, conditions, and exclusions listed in the warranty sheet.
