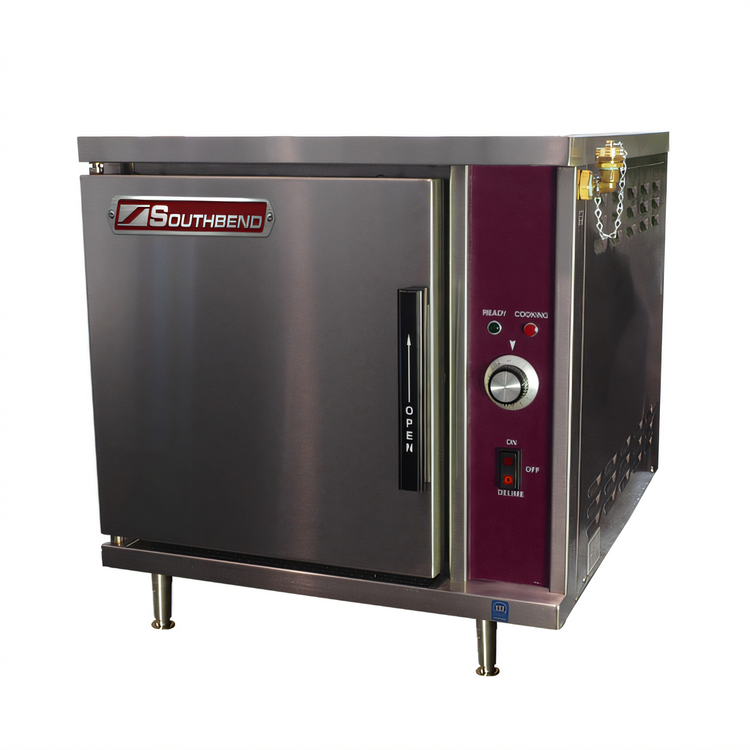

Southbend Steam R24-5 Countertop Electric Convection Steamer, 5-Pan, Auto Fill/Drain
Southbend Steam R24-5 Countertop Electric Convection Steamer, 5-Pan, Auto Fill/Drain
1 Compartment, 12 x 20 Pan Capacity
This countertop electric steamer combines 5-pan capacity, automatic fill and drain operation, and durable stainless-steel construction for efficient high-volume steaming.
- 1-compartment countertop electric convection steamer with capacity for up to five 12 x 20 pans.
- 15 kW steam generator with auto fill, auto drain, and automatic generator blowdown valve.
- 304 stainless steel exterior and 316 stainless steel cooking chamber with coved corners.
- 60-minute electromechanical timer with audible alarm plus ready and cook indicator lights.
- Split water connections and a drain tempering system help simplify installation and maintenance.
- Positive-lock door with full perimeter gasket helps retain steam during operation.
- Can be mounted flush to the countertop or configured with optional legs and stacking accessories.
Overall Dimensions:
24.0"W x 25.0"D x 25.5"HProduct Weight:

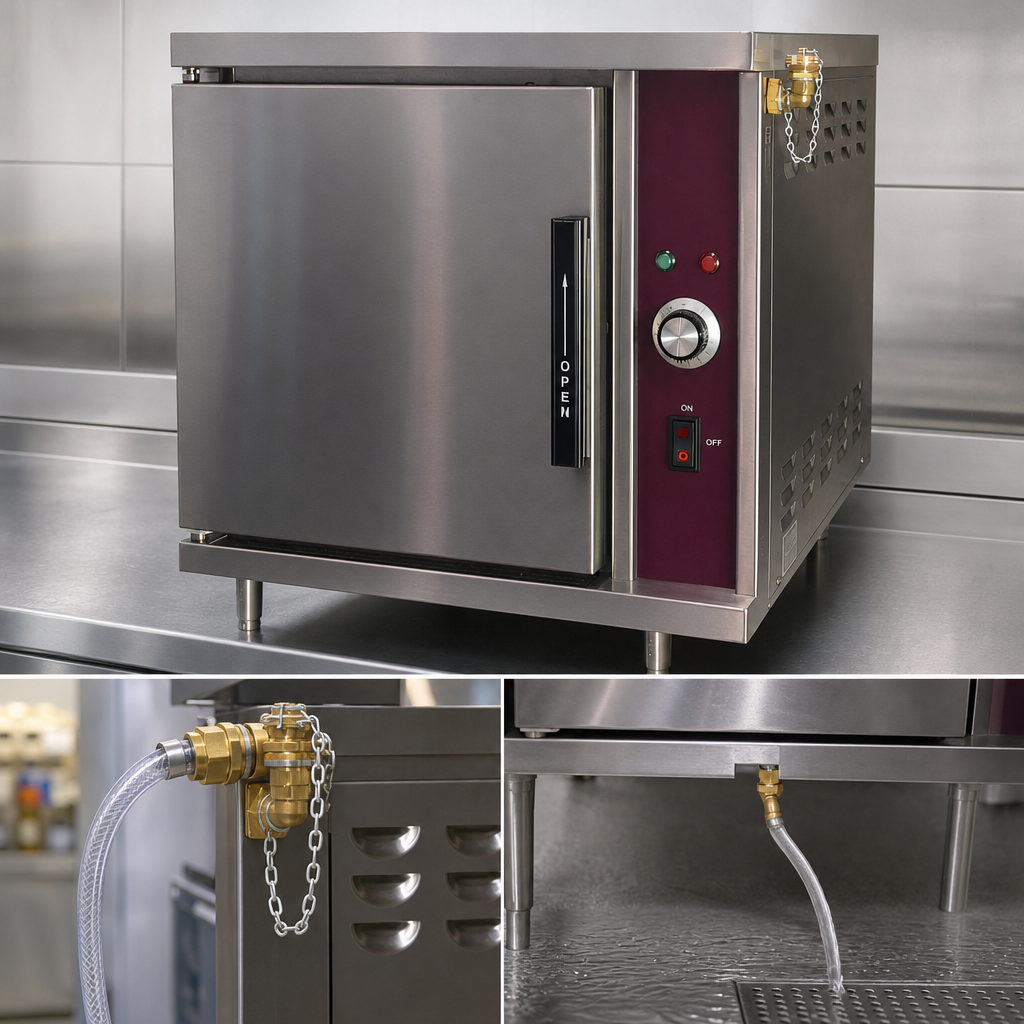

169.0 lbAuto Fill and Auto Drain
Automatically maintains the generator water level and drains the unit to reduce manual handling.

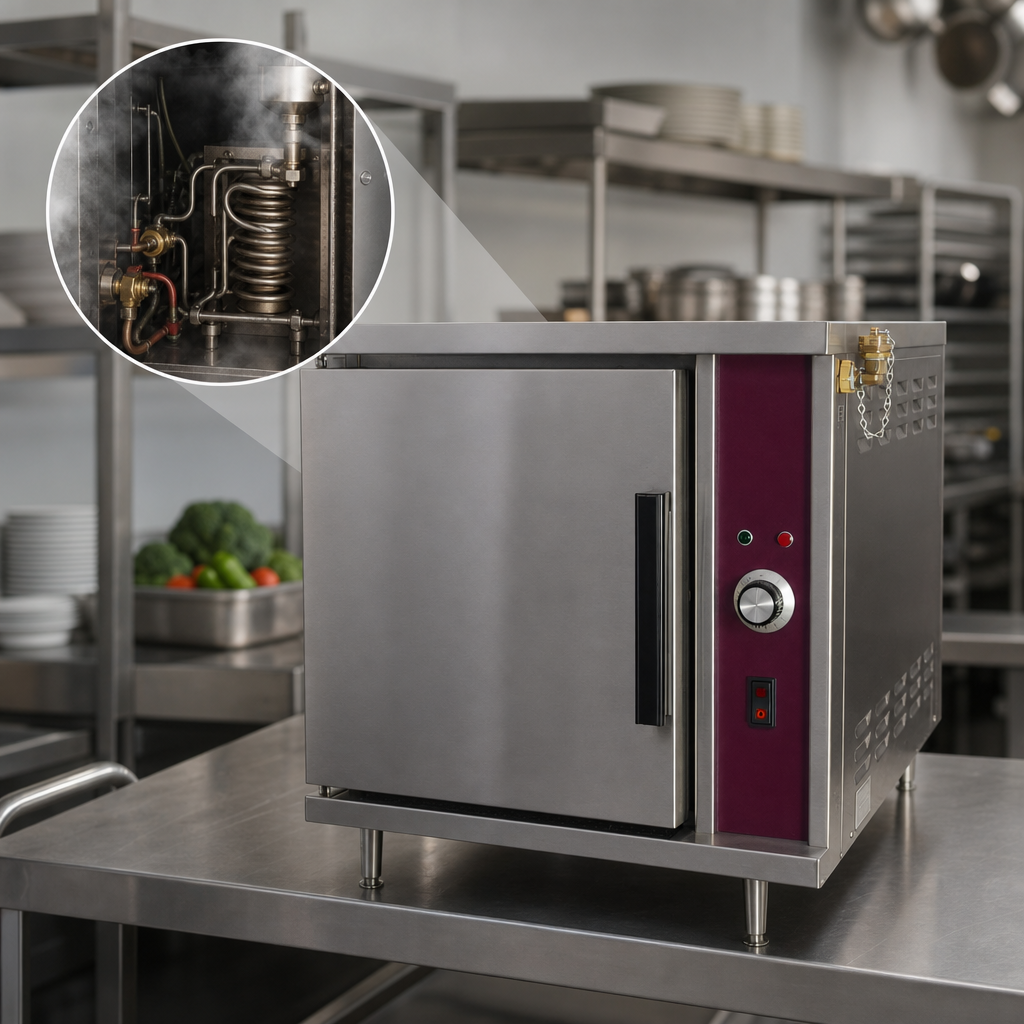

15 kW Electric Steam Generator
Electrically heated generator provides steam for countertop cooking performance.
316 Stainless Steel Cooking Chamber
One-piece welded chamber with coved corners supports durability and easier cleanup.
304 Stainless Steel Exterior
Satin-finish stainless exterior is built for commercial kitchen use.
Electromechanical Timer Controls
60-minute timer includes an audible end-of-cycle alarm plus ready and cook indicator lights.
Three-Way Power Switch
ON/OFF/Delime switch simplifies startup, shutdown, and deliming.
Split Water Connections
Separate water connections support easier hookup to the water treatment system.
Drain Tempering System
Designed for the 140 degree temperature requirement and requires a 1/2-inch cold water connection.
Removable Pan Supports and Gasketed Door
Stainless steel pan supports, full-perimeter gasket, and positive lock and seal mechanism help retain steam.
Steam Interlock Safety
Steam flow stops when the door is opened and reactivates when the door is closed.
Mounting Flexibility
The steamer can be mounted flush to the countertop or installed with optional legs or stacking accessories.
Water Treatment System
Standard water treatment system support is specified to help protect the generator and maintain performance.
Certifications & Compliance
Warranty & Protection
1 year parts and 1 year labor
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
