Southbend Steam R18A-4 Electric Countertop Convection Steamer, 1 Compartment, 4-Pan Capacity

SKU: R18A-4
$11,360.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cooking Equipment Cooking Equipment Countertop Steamer New Arrivals Restaurant Equipment Southbend (Middleby) Steam Cooking Equipment Steam Cooking Equipment Steamers (Countertop & Floor)

Southbend Steam R18A-4 Electric Countertop Convection Steamer, 1 Compartment, 4-Pan Capacity

Internal Steam Generator, 316 Stainless Steel Liner, 304 Stainless Steel Exterior

A compact electric steamer that delivers consistent atmospheric steam with simple electromechanical controls and durable stainless steel construction.

  • Electric countertop convection steamer with an internal steam generator for atmospheric steam cooking.
  • Single-compartment design with 4-pan capacity for 12 x 20 pans.
  • Electromechanical controls include a three-way ON/OFF/DELIME switch and 60-minute timer.
  • 316 stainless steel liner and 304 stainless steel exterior support heavy-duty commercial use.
  • Automatic blowdown, split water connection, and de-liming port help simplify maintenance.
  • 4-inch adjustable legs with leveling feet make installation and leveling easier.

Overall Dimensions:

18.0"W x 29.0"D x 26.5"H

Product Weight:

172.0 lb

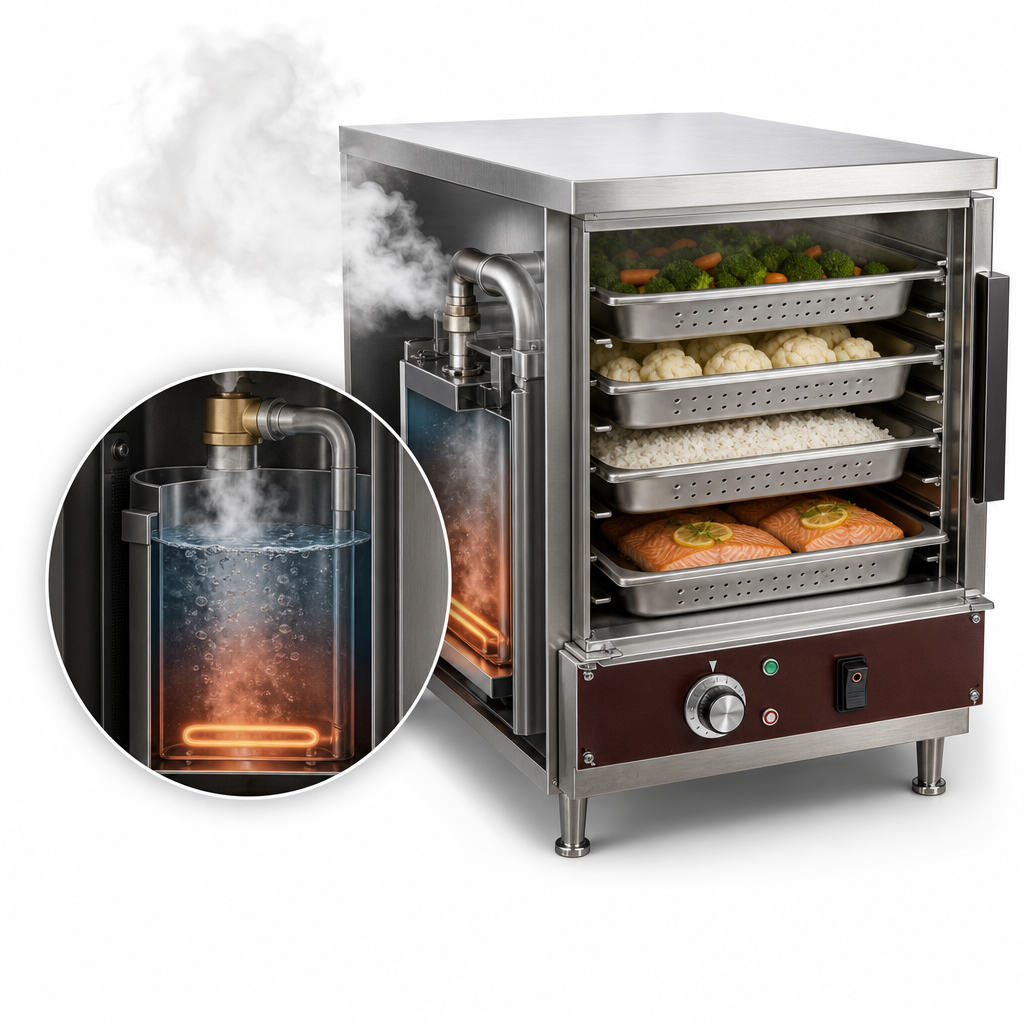

Internal Electric Steam Generator

Built-in steam generator maintains water temperature at approximately 205°F for consistent atmospheric steaming.

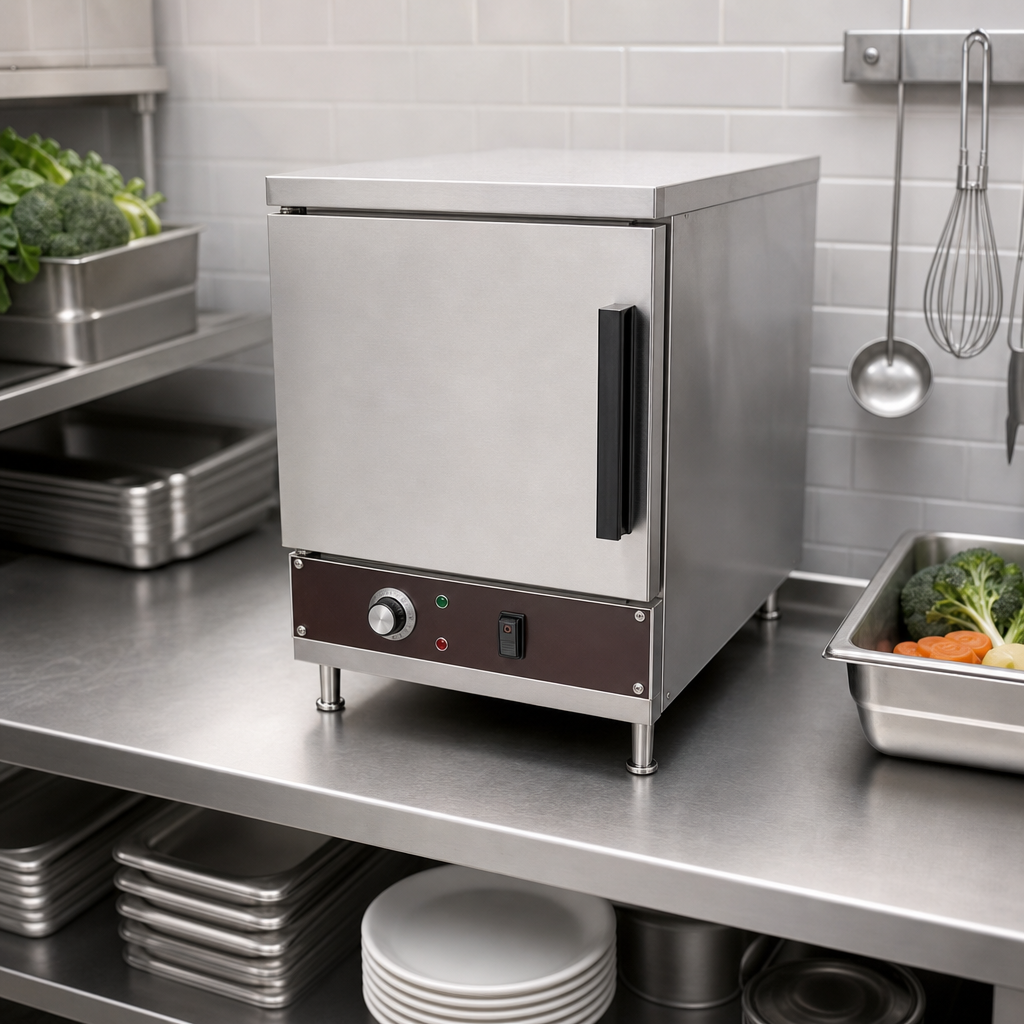

Single-Compartment Countertop Design

Space-saving countertop footprint with one cooking compartment for smaller kitchens and prep areas.

Electromechanical Controls

Features a three-way ON/OFF/DELIME power switch, 60-minute timer, ready light, cooking light, and end-of-cycle buzzer.

Automatic Blowdown Valve

Automatically drains the boiler after shutdown to help flush minerals and reduce scale buildup.

Deliming Access

Includes a de-liming port and DELIME mode to support routine maintenance.

Stainless Steel Construction

Built with a 316 stainless steel liner and 304 stainless steel exterior for durability and corrosion resistance.

Pan Compatibility and Supports

Accepts combinations of 12 x 20 inch solid or perforated pans and includes removable pan supports.

Adjustable Legs with Leveling Feet

4-inch adjustable legs help stabilize and level the steamer on the counter.

Split Water Connection

Uses separate water feed lines for the generator and condensate system; manual specifies a 3/8-inch NPT inlet and open-gap drain connection.

Installation Type Countertop
Style Countertop
Type Convection Steamer
Compartments 1
Pan Capacity 4 Pans
Pan Size 12 x 20 Inches
Controls Electromechanical
Material Stainless Steel
Interior Finish 316 Stainless Steel
Water Connection Required
Drain Connection Required
Water Inlet Size 3/8 Inch NPT
Drain Connection Size 1 Inch IPS
Selling Unit Each
Units Per Case 1
Shipping Width 18 Inches
Shipping Depth 29 Inches
Shipping Height 27 Inches
Shipping Weight 172 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year parts and 1 year labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It accommodates combinations of 12 x 20 inch solid or perforated pans. The manual lists capacities by pan depth, including up to 6 pans at 1 inch deep, 3 pans at 2.5 inches, 2 pans at 4 inches, or 1 pan at 6 inches.
The main power switch has ON, OFF, and DELIME positions. The timer sets cooking time from 0 to 60 minutes, and the ready and cooking lights indicate operating status.
The manual specifies a 3/8-inch NPT copper tube water inlet and a 1-inch IPS drain to an open air gap drain.
The manual recommends cleaning the drain screen regularly, draining the generator after each day's use, and using the DELIME function during de-liming.
The manual lists 208, 220, 240, 380, and 480 volt configurations. Power is rated at 10 kW for 208, 240, and 480 volts, and 8.4 kW for 220 and 380 volts.
The manual describes an optional constant steam feature, but standard operation is timed cooking.
