Southbend (Middleby) PE36T-BBB Platinum Electric Ranges
Description

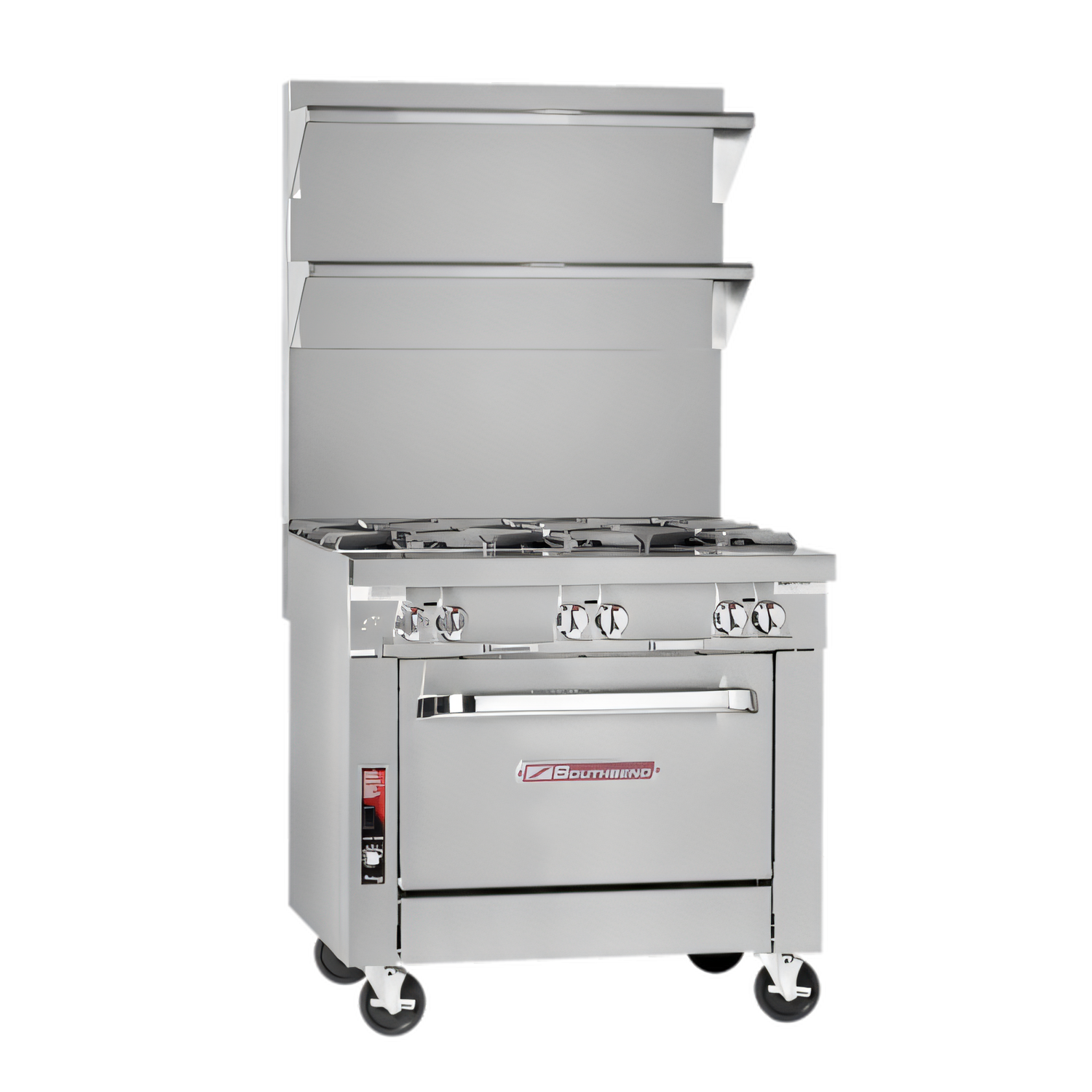

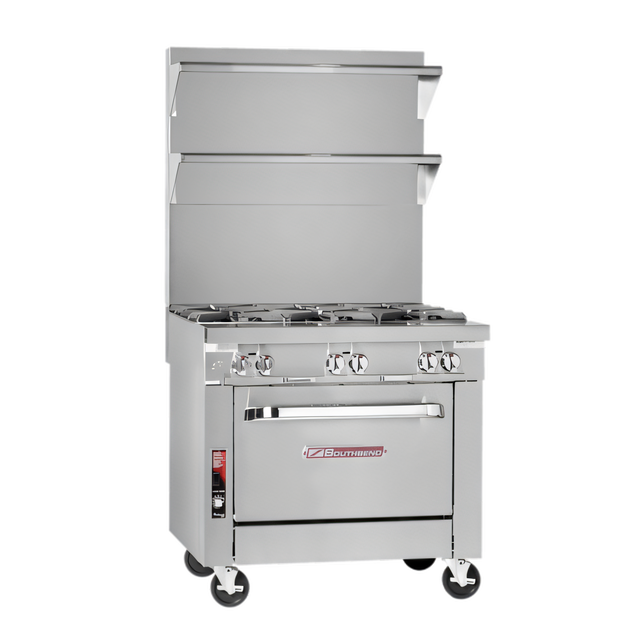

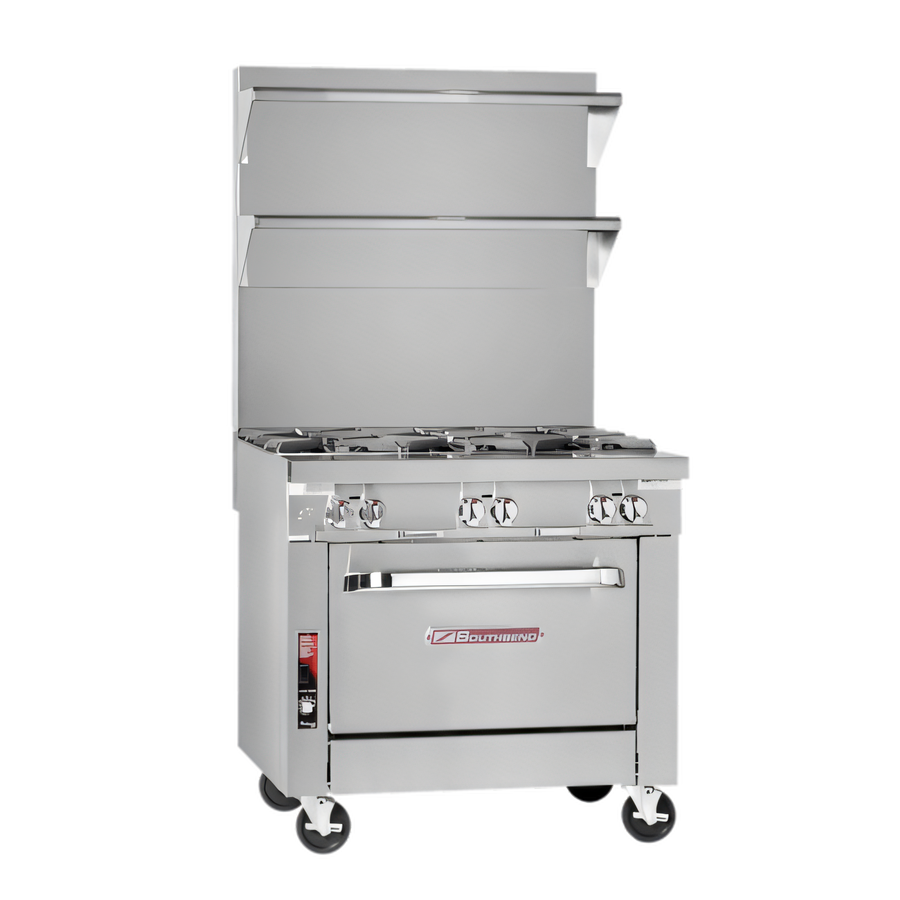

Southbend Platinum 36" Heavy-Duty Electric Range – 6 Round Hot Plates with TruVection Oven Base
Model family: PE36 Series (Platinum Heavy Duty)Built for the punishing pace of high-volume kitchens, the Southbend Platinum 36" electric range marries six powerful 9" round hot plates with a full TruVection convection oven base. Rugged stainless-steel construction, precise controls, and energy-efficient design make it the perfect all-in-one solution for sautéing, simmering, boiling, baking and roasting – all within a compact 36" footprint.
Highlights at a Glance
- Six (6) solid 9" round hot plates, each delivering 2.6 kW of focused heat (15.6 kW total).
- Individual 4-position switches (High / Medium / Low / Off) give every element independent, repeatable control.
- TruVection convection oven base speeds cook times while ensuring even browning on every rack.
- Durable stainless-steel front, sides, rear and exterior bottom stand up to daily commercial abuse.
- 9-1/4" deep front rail doubles as a plating shelf and shields the control panel from spills and heat.
- Fully insulated cooktop deck, burner box and oven cavity help keep kitchen temperatures in check.
- 5" stainless-steel flue riser directs heat and vapors into the hood for a cooler, safer workspace.
- 6" adjustable stainless-steel legs make leveling and floor sanitation easy.
- NSF-, cULus-listed and backed by Southbend’s free battery-design assistance.
Technical Specifications
| Cooking Surface | Six (6) 9" solid round hot plates |
|---|---|
| Output per Plate | 2.6 kW |
| Total Connected Load | 15.6 kW |
| Control Type | 4-position heat switch (one per element) |
| Oven Base | TruVection convection oven |
| Exterior Dimensions (W × D × H*) | 36" × 41" × 37-1/2" (914 × 1 041 × 953 mm) *Add 5" (127 mm) for standard flue riser height. |
| Electrical | 208, 240 or 480 V, 3-phase; 43.4 A / 37.6 A / 18.8 A per line (respectively) |
| Shipping Weight | Approx. 600 lb (272 kg) |
| Warranty | 1-year limited parts & labor (details) |
Clearances: 0" to non-combustible surfaces; 10" side & 12" rear to combustible surfaces. Installation under a properly sized vent hood is required by most local codes.
