Southbend (Middleby) PE24N-TT Platinum Electric Ranges
Description

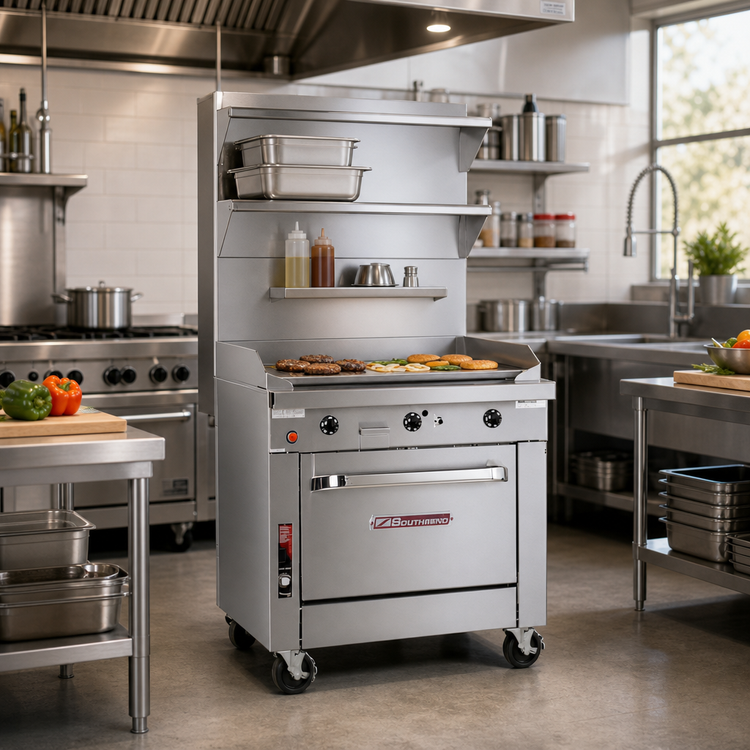

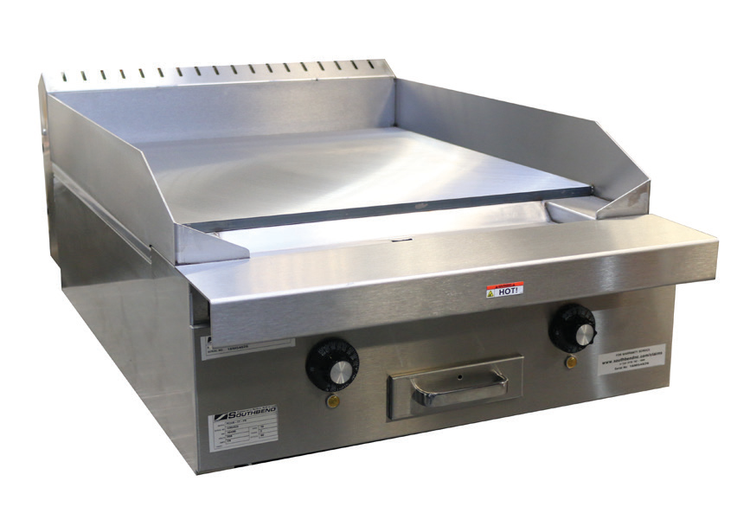

Southbend Platinum Series 24" Electric Modular Griddle Range – Model PE24N-TT
10.6 kW • Thermostatic • Stainless Steel • cCSAus & NSFBring the power of a heavy-duty range to the smallest footprint in your cookline. The Southbend Platinum PE24N-TT couples a full-width 24" x 24" griddle with precise thermostatic control, rugged all-stainless construction, and the flexibility to stand alone or battery with other Platinum sectional units.
Why You’ll Love It
- Two independent 5.3 kW elements deliver rapid recovery and even heat across the entire plate.
- Thermostatic control from 150 °F to 450 °F lets you switch effortlessly from delicate breakfast items to high-heat searing.
- 1/2" thick polished stainless griddle plate with built-in side & rear splashers keeps splatter contained.
- 9-1/4" deep stainless steel front rail doubles as a handy landing zone for plates and pans.
- Large, removable grease drawer speeds cleanup and minimizes downtime.
- All-stainless exterior plus fully insulated burner box for a cooler kitchen and years of reliable service.
- 6" adjustable legs included—drop them for countertop use or battery this unit with other Platinum pieces.
- Proudly certified for commercial safety and sanitation (cCSAus, NSF).
Technical Specifications
| Model | PE24N-TT (modular mount) |
|---|---|

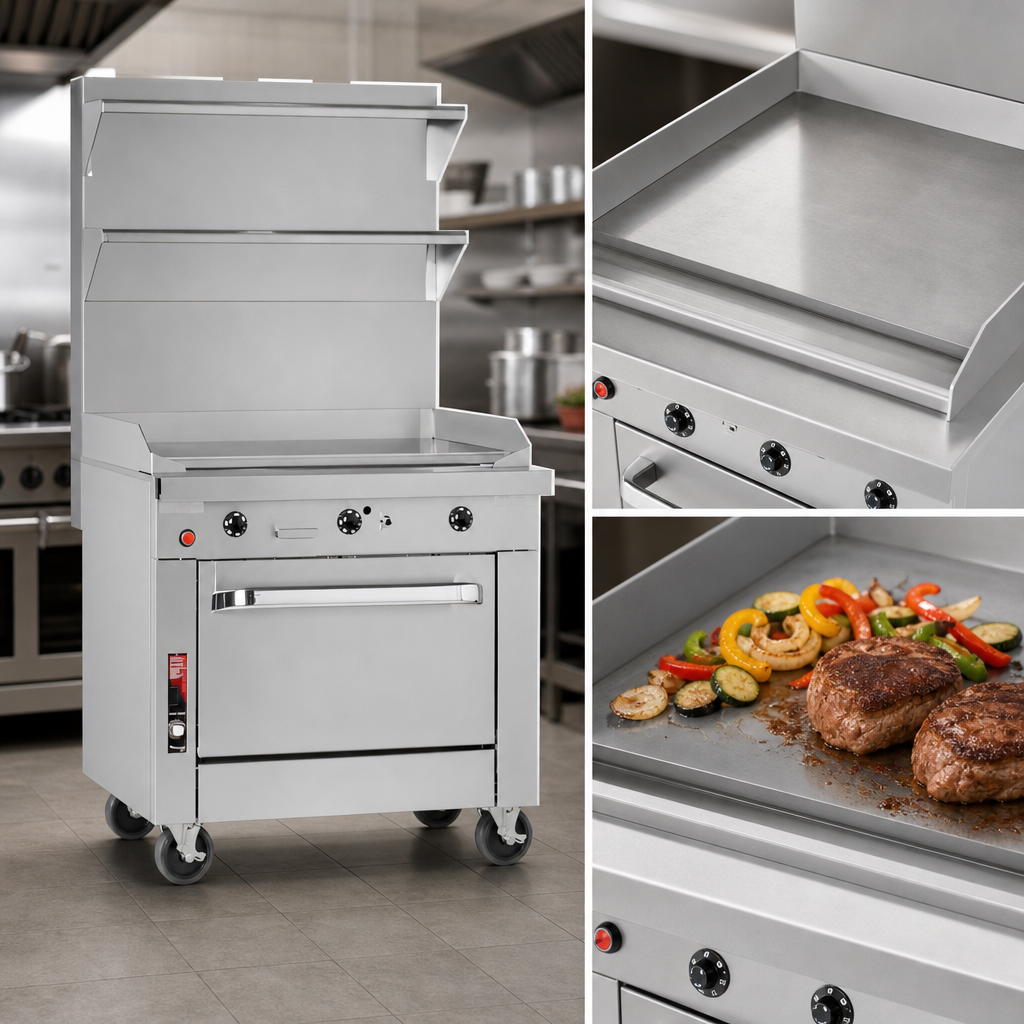

| Cooking Surface | 24" W × 24" D (610 mm × 610 mm) |
| Plate Thickness | 1/2" (13 mm) polished stainless steel |

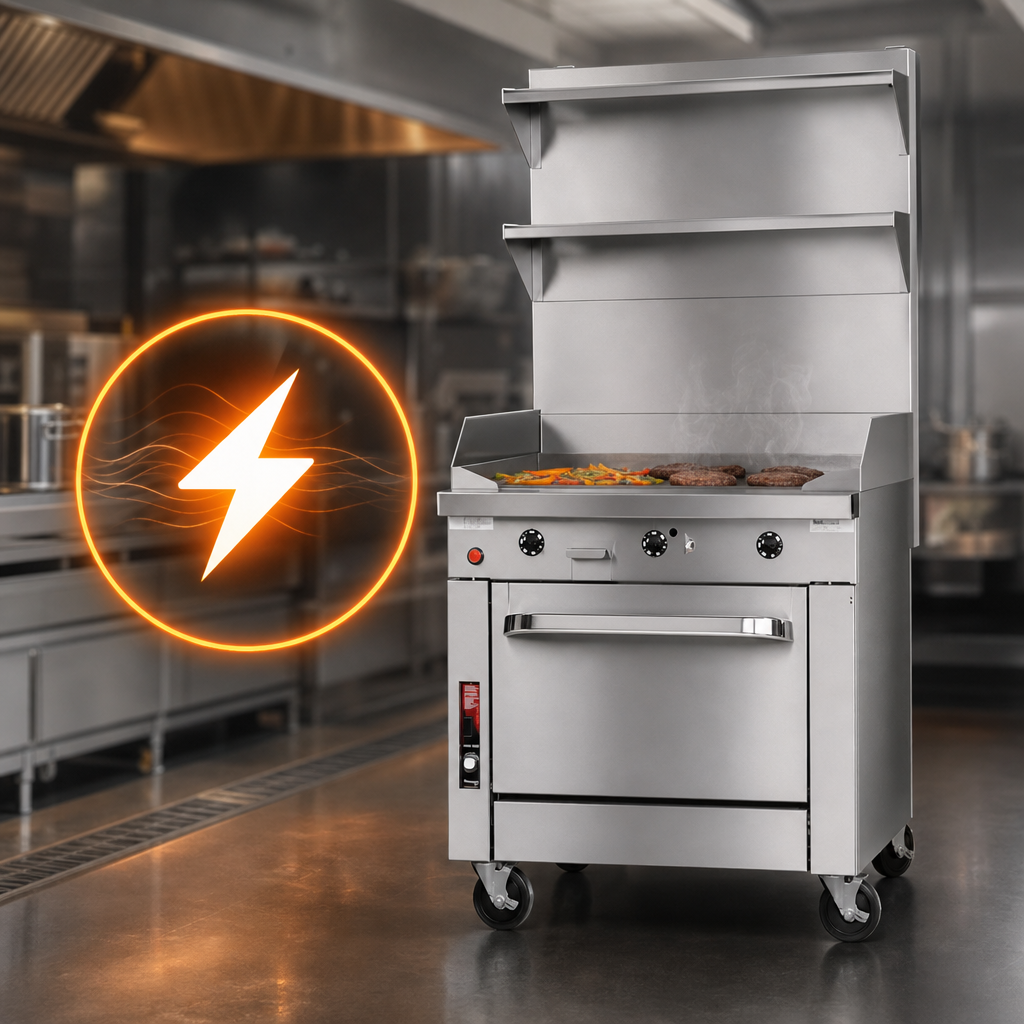

| Total Power | 10.6 kW (two 5.3 kW elements) |
| Temperature Range | 150 °F – 450 °F (66 °C – 232 °C) |
| Electrical | 208, 240, or 480 V / 3-phase connection Nominal line amps: 25–43 A (consult chart) |
| Overall Dimensions* | 24" W × 34" D × 33-3/4" H to cook surface + 5" flue riser |
| Shipping Weight | Approx. 250 lb (113 kg) |
| Construction | 430/304 stainless steel exterior, fully insulated |
| Included | 6" adjustable legs, 5" flue riser, stainless grease drawer |
| Warranty | 1-year limited parts & labor |
| Certifications | cCSAus, NSF |
*Dimensions shown are for the modular model on legs. See spec sheet for cabinet-base version PE24C-TT.
Looking to build a full battery or add accessories? Our equipment specialists are happy to help.
