Southbend (Middleby)  |  Platinum  |  SKU: PE24N-HH

Southbend (Middleby) PE24N-HH Platinum Electric Ranges

$7,168.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Warranty sheet
Related Searches
Commercial Electric Ranges Commercial Ranges Electric Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Platinum Series 24″ Modular Heavy-Duty Electric Hot-Top Range

Model PE24N-HH  |  2 × 12″ × 24″ Hot Plates, 5.3 kW Each

Built to anchor the busiest cooklines, the Southbend Platinum PE24N-HH packs heavy-duty muscle and pinpoint control into a space-saving 24" footprint. Drop it onto a refrigerated, freezer or open-frame base and unleash 10.6 kW of electric power for sautéing, searing, pan roasting and holding—all day, every day.

Performance & Construction Highlights

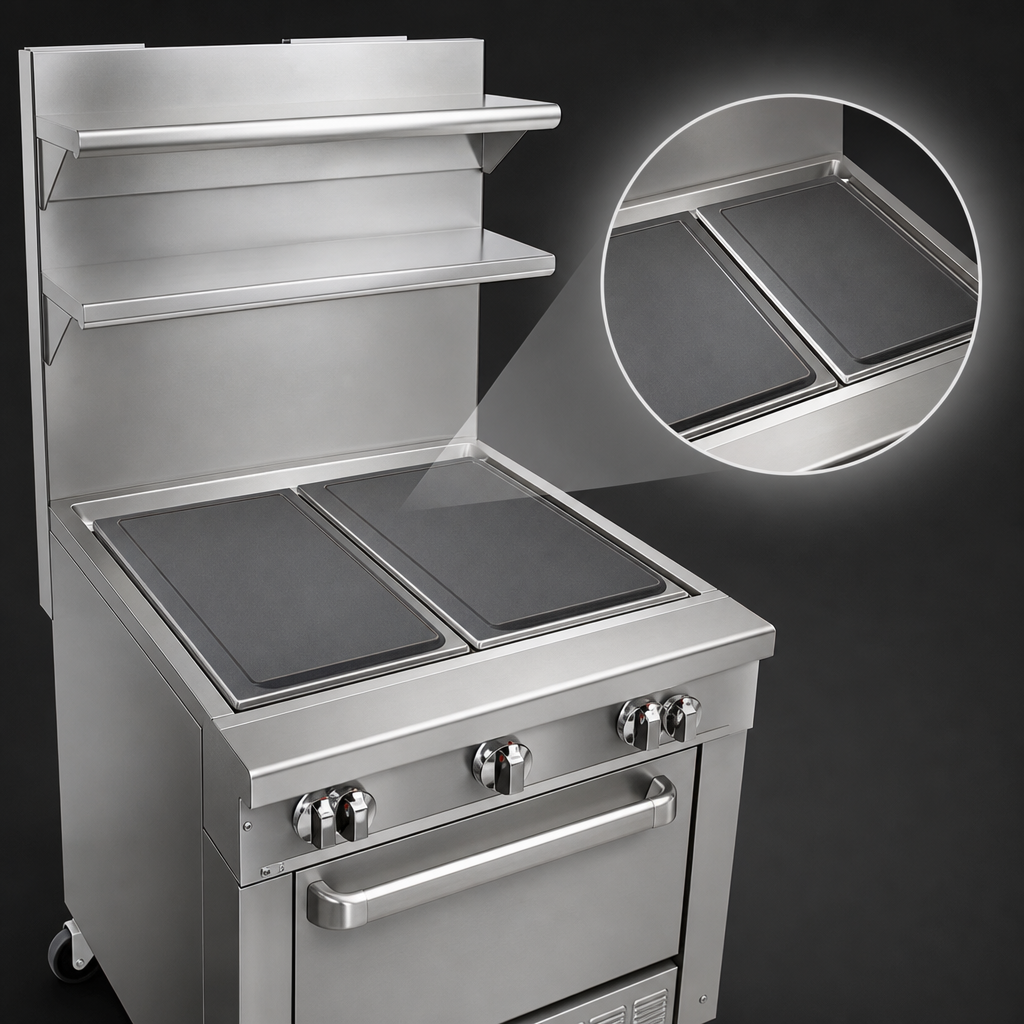

  • Two independent 12″ × 24″ hot tops—each driven by a 5.3 kW element for lightning-fast recovery.
  • Thermostatic surface control from 250 °F to 850 °F for everything from low-heat holding to high-heat searing.
  • 1/2″-thick stainless steel plate distributes heat evenly and resists warping.
  • 9-1/4″ deep full-width front rail protects operators and keeps tools within reach.
  • Removable stainless steel grease drawer streamlines daily cleanup.
  • Fully insulated burner box minimizes ambient heat and boosts energy efficiency.
  • 5″ stainless steel flue riser channels exhaust toward the hood.
  • All-stainless exterior (front, sides, rear & bottom) stands up to the harshest kitchen environments.
  • 6″ adjustable stainless steel legs for quick leveling on uneven floors.
  • cCSAus & NSF listed for worry-free code compliance.

Technical Specifications

Cooking surface 2 × 12″ × 24″ hot plates (½″ thick)
Temperature range 250 °F – 850 °F (thermostatic)
Element output 5.3 kW per plate  |  10.6 kW total
Electrical 208 V, 240 V or 480 V, 3-phase (field-selectable)
208 V amp draw L1 25 A  •  L2 43.4 A  •  L3 25 A
240 V amp draw L1 22.1 A  •  L2 38.3 A  •  L3 22.1 A
480 V amp draw L1 11.1 A  •  L2 19.2 A  •  L3 11.1 A
Overall dimensions 24″ W × 36″ D × 34″ H (to hot-top surface)
Front rail depth 9-1/4″
Shipping weight Approx. 231 lb (105 kg)
Clearances 0″ sides (non-combustible)  |  10″ sides & 12″ rear (combustible)
Certifications cCSAus, NSF
Warranty 1-year parts & labor, factory-authorized service

Popular Options & Accessories

  • 24″ or 36″ flue riser with single or double utensil shelves
  • Casters or open-frame base for battery installations
  • Front rail cut-outs, square belly bar or 7-1/4″ deep rail
  • Cable-restraint kit for mobile/portable setups
  • Extra-deep flue riser for oversized cookware
Important: Oversized cookware (12″ dia. or larger) should not overhang the front rail—excessive heat may damage internal components. This range is intended for commercial use only and must be installed under a properly sized ventilation hood.

Prefer predictable monthly payments? Ask about Middleby Equipment Financing and have this Southbend Platinum hot-top range earning for you right away.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, cCSAus

Height

13.5in

Width

24.0in

Depth

37.5in

Base

modular (no base)

Top

(2) hotplates

Exterior Finish

stainless steel front & sides

Specifications

Platinum Heavy Duty Range, electric, 24", modular, (2) 12" x 24" hotplates, 5.3 kW per plate, thermostatic controls, front rail, stainless steel construction, 6" adjustable legs, cCSAus, NSF
