Southbend (Middleby)  |  Platinum  |  SKU: PE24N-BB

Southbend (Middleby) PE24N-BB Platinum Electric Ranges

$7,072.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Warranty sheet
Related Searches
Commercial Electric Ranges Commercial Ranges Electric Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

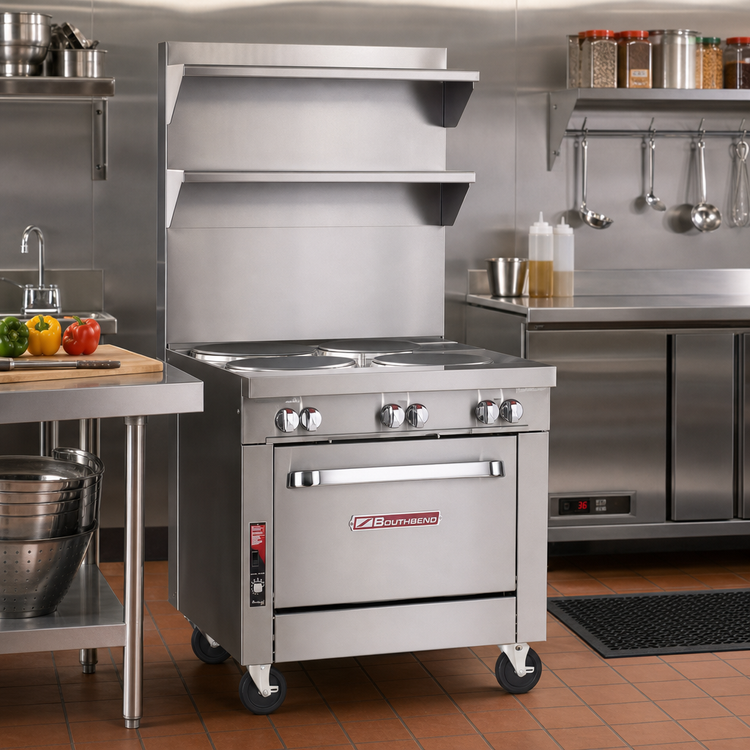

Southbend Platinum Series 24" Modular Electric Range – 4 Round Hot Plates

Model PE24N-BB | Heavy-Duty Sectional Range

Engineered for high-volume, all-day production, the Southbend Platinum PE24N-BB packs four 9" solid round hot plates into a compact 24" footprint. Its rugged stainless steel body, fully insulated burner box and precision 4-position heat switches give chefs the power and reliability they need on the busiest cooklines.

Key Features

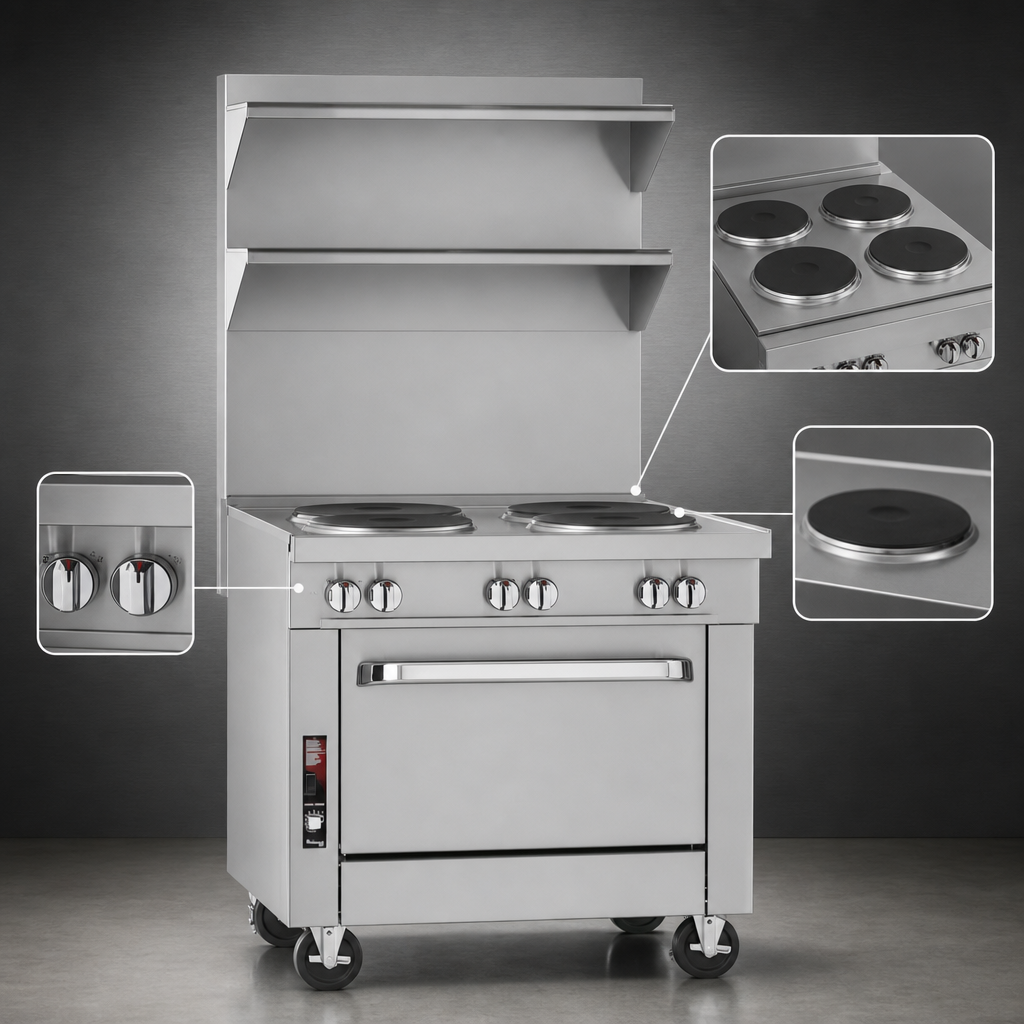

  • Four 9" solid round hot plates, 2.6 kW each (10.4 kW total)

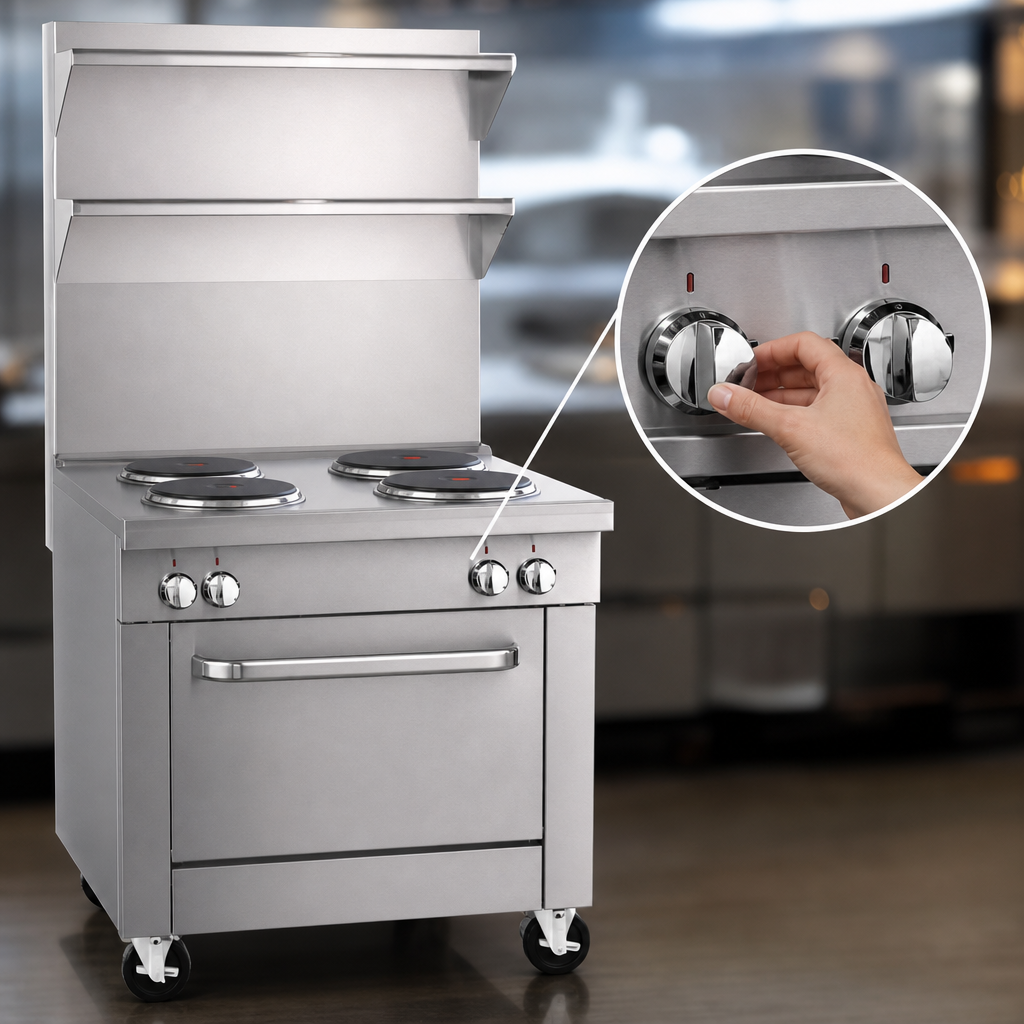

  • Independent 4-position heat switches – High / Medium / Low / Off
  • Space-saving modular design for countertop, refrigerated or freezer bases
  • 9-1/4" deep stainless steel front rail for safe pan handling
  • 5" stainless steel flue riser channels heat away from the operator
  • All-stainless exterior (front, sides, rear & bottom) with fully insulated lining
  • 6" adjustable stainless steel legs simplify leveling
  • Certified cCSAus & NSF for sanitation and safety
  • 1-year limited parts & labor warranty backed by Southbend’s nationwide service network

Specifications

Model PE24N-BB (modular)
Width 24" / 610 mm
Depth 34" / 864 mm
Height to cook surface 34" / 864 mm
Flue riser height 5" / 127 mm (standard)
Hot plate diameter 9" / 229 mm
Heat output 2.6 kW per plate × 4 (10.4 kW total)
Electrical 208, 240 or 480 VAC, 3-phase, 50/60 Hz
(240 V nominal amps/line: 28.7 A • 18.8 A • 28.7 A)
Shipping weight 250 lb / 113.4 kg
Certifications cCSAus, NSF
Warranty 1-year parts & labor (details)

Installation & Clearance

  • Zero clearance from non-combustible surfaces
  • 10" (254 mm) side & 12" (305 mm) rear clearance from combustible surfaces
  • Install under a properly vented hood; verify local code compliance
  • Designed for commercial kitchens only – not for residential use
Oversized Cookware Policy: Pots & pans 12" or larger should be kept on the rear hot plates. Allowing cookware to overhang the front rail can trap heat and shorten component life.

Need help with financing? Southbend equipment is eligible for flexible payment plans – ask your representative for details.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, cCSAus

Height

13.5in

Width

24.0in

Depth

37.5in

Top

(4) round hotplates

Base

modular (no base)

Exterior Finish

stainless steel front & sides

Specifications

Platinum Heavy Duty Range, electric, 24", modular, (4) round hotplates, 2.6 kW per plate, thermostatic controls, front rail, stainless steel construction, 6" adjustable legs, cCSAus, NSF
