Southbend (Middleby) PE24C-TT Platinum Electric Ranges
Description

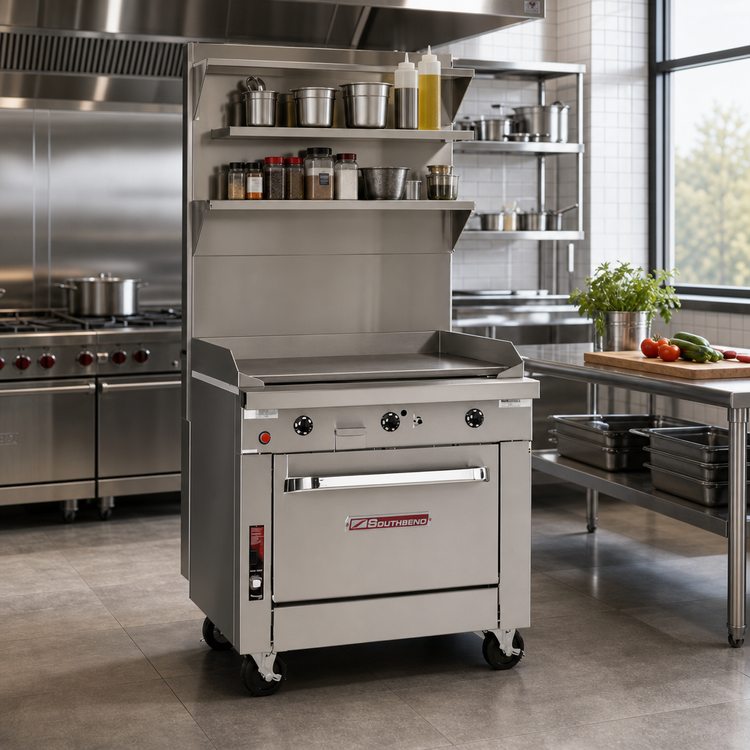

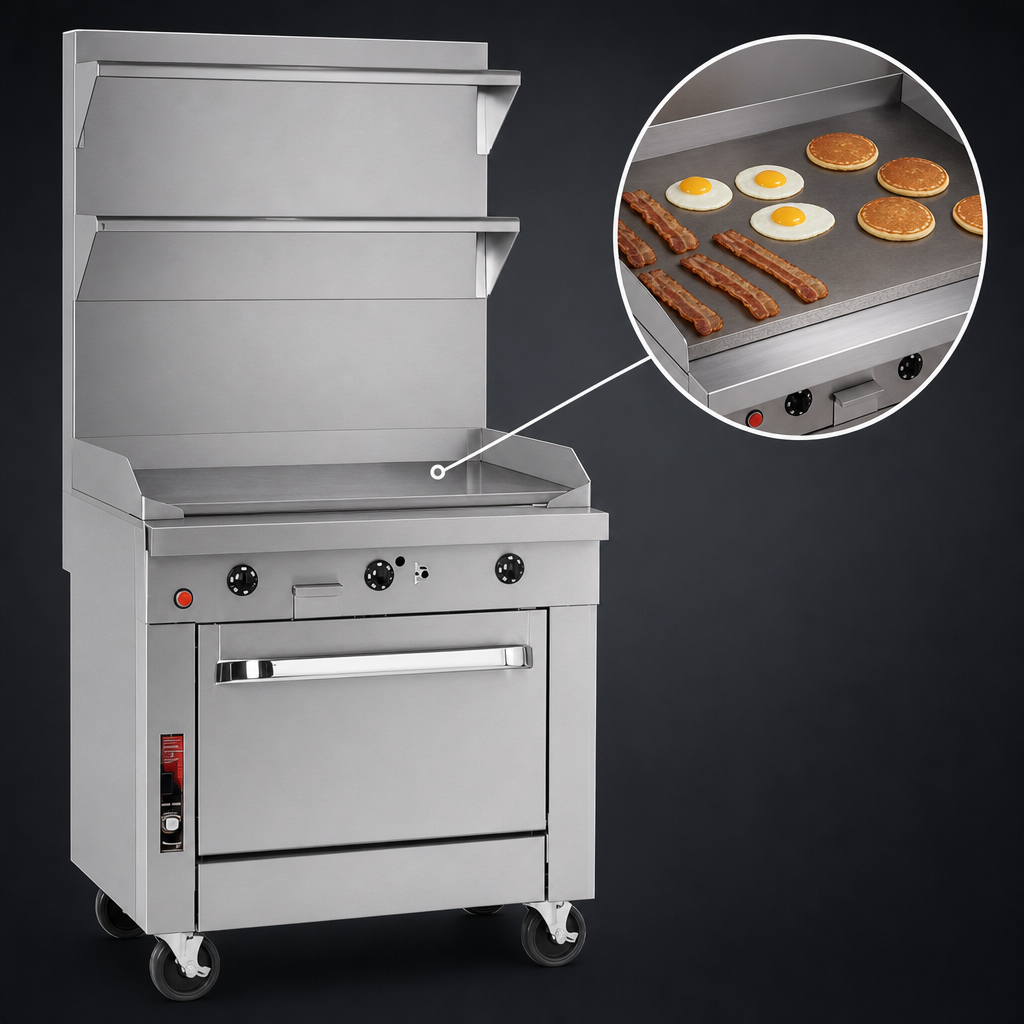

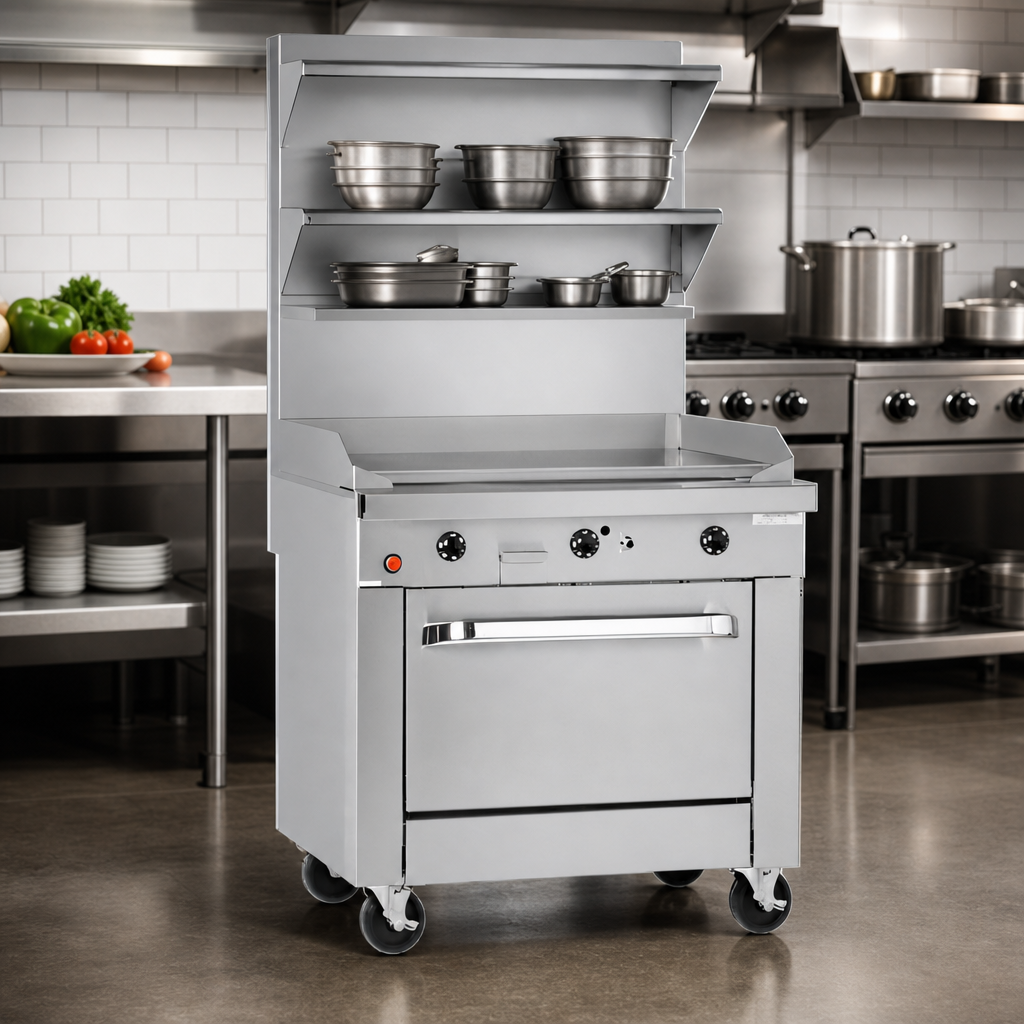

Southbend Platinum Series 24” Electric Griddle Range — Cabinet Base
Model PE24C-TT | 10.6 kW thermostatic griddleBuilt for the most demanding kitchens, the Southbend Platinum PE24C-TT combines a full-width electric griddle with a heavy-duty stainless steel cabinet base, giving you high-output cooking power and convenient under-counter storage in a single 24” footprint.
Why You’ll Love It
- 10.6 kW of even, electric heating delivered by two 5.3 kW elements.
- 1/2” thick, 24” × 24” stainless steel griddle plate for superior heat retention and recovery.
- Independent thermostatic controls (150 – 450°F) let you zone cook breakfast, lunch and dinner items simultaneously.
- 9-1/4” deep front rail stays cool and provides a handy landing zone for plates or utensils.
- Stainless steel cabinet base with center-opening removable doors keeps pans, smallwares or seasonings right where you need them.
- Removable stainless steel grease drawer and 5” flue riser simplify daily cleaning.
- All-stainless exterior (front, sides, rear & bottom) plus a fully-insulated liner for maximum durability and kitchen comfort.
- 6” adjustable stainless steel legs for easy leveling on uneven floors.
- cCSAus & NSF listed for worry-free code compliance.
- Backed by a 1-year parts & labor warranty from Southbend.
At-a-Glance Specifications
| Model | PE24C-TT (Platinum Series) |
|---|---|
| Equipment type | 24” Heavy-Duty Electric Sectional Range with Full-Width Griddle & Cabinet Base |
| Griddle surface | 24”W × 24”D • 1/2” thick stainless plate • side & rear splashers |
| Heat output | 10.6 kW total (two 5.3 kW elements) |
| Temperature range | 150 – 450°F (thermostatic) |
| Overall dimensions | 24”W × 37-1/2”D × 34”H (to top of 5” flue riser) |
| Electrical (3-phase) |
208 V / 43.4 A 240 V / 38.3 A 480 V / 19.2 A |
| Cabinet storage | Stainless, double-door, removable |
| Shipping weight | ≈ 330 lb (149.7 kg) |
| Certifications | cCSAus, NSF |
| Warranty | 1 year parts & labor |
Installation & Clearance
- Zero clearance from non-combustible construction.
- 10” side and 12” rear clearance required when adjacent to combustible surfaces.
- Must be installed under a suitable commercial ventilation hood; check local codes.
- Designed for commercial use only — not for residential applications.
Using cookware larger than 12” in diameter on the front half of the griddle may trap excess heat in the rail and is not recommended.
